Setting up Our Project Structure

In this lesson, we will configure our project structure for a full-stack application that includes a Flask backend and a React frontend. Proper organization is essential to ensure smooth development and maintenance.

In the previous lesson, we set up a virtual environment for the image optimizer. Now, we will remove that existing virtual environment and create a new structure with two primary directories:

• imageoptimizer.app – for the Flask backend
• imageoptimizer.web – for the React frontend

Let's start by reorganizing our application folder and setting up the Flask app.

Scaffolding the Flask Application

Begin by navigating to your application directory in the terminal:

(venv) jeremy@Jeremys-Mac-Studio imageoptimizer % cd imageoptimizer.app
(venv) jeremy@Jeremys-Mac-Studio imageoptimizer.app %

If you are new to Flask or simply want a quick scaffold, you might consider using an AI-based tool to generate the setup instructions. After entering your project folder, you could prompt:

"How do you scaffold a typical Flask application?"

You could receive similar commands as output. As part of this setup, create a new virtual environment and install Flask:

python3 -m venv venv
source venv/bin/activate  # On Windows use `venv\Scripts\activate`

Then install Flask:

pip install Flask

You might see output similar to this:

Downloading blinker-1.9.0-py3-none-any.whl (8.5 kB)
Using cached click-8.1.7-py3-none-any.whl (96 kB)
Downloading itsdangerous-2.2.0-py3-none-any.whl (16 kB)
Using cached jinja2-3.1.4-py3-none-any.whl (133 kB)
Using cached MarkupSafe-3.0.2-cp312-cp312-macosx_11_0_arm64.whl (12 kB)
Installing collected packages: MarkupSafe, itsdangerous, click, Werkzeug, Jinja2, Flask
Successfully installed Flask-2.3.1 Jinja2-3.1.4 MarkupSafe-3.0.2 Werkzeug-2.3.1 blinker-1.9.0 click-8.1.7 itsdangerous-2.2.0
[notice] A new release of pip is available: 24.2 → 24.3.1
[notice] To update, run: pip install --upgrade pip

Next, use an AI-based tool to provide instructions on setting up the directory structure and initializing your Flask application. Typically, an __init__.py file is created to serve as the application factory. For instance, here’s a snippet demonstrating a simple login form using Flask-WTF:

from flask_wtf import FlaskForm
from wtforms import StringField, PasswordField, SubmitField
from wtforms.validators import DataRequired

class LoginForm(FlaskForm):
    username = StringField('Username', validators=[DataRequired()])
    password = PasswordField('Password', validators=[DataRequired()])
    submit = SubmitField('Login')

Additional package installation output may appear as follows:

Downloading blinker-1.9.0-py3-none-any.whl (8.5 kB)
Downloading click-8.1.7-py3-none-any.whl (68 kB)
Downloading itsdangerous-2.0.1-py3-none-any.whl (5.1 kB)
Downloading MarkupSafe-2.1.1-cp39-cp39-macosx_11_0_arm64.whl (12 kB)
Installing collected packages: MarkupSafe, Werkzeug, Jinja2, Flask
Successfully installed Flask-2.2.3 Jinja2-3.1.0 MarkupSafe-2.1.1 Werkzeug-2.2.3
[notice] A new release of pip is available: 24.2 → 24.3.1
[notice] To update, run: pip install --upgrade pip

This AI-assisted scaffolding approach can be very effective, and in our case, we are leveraging a custom AI model for setup instructions, although other models provide similar support.

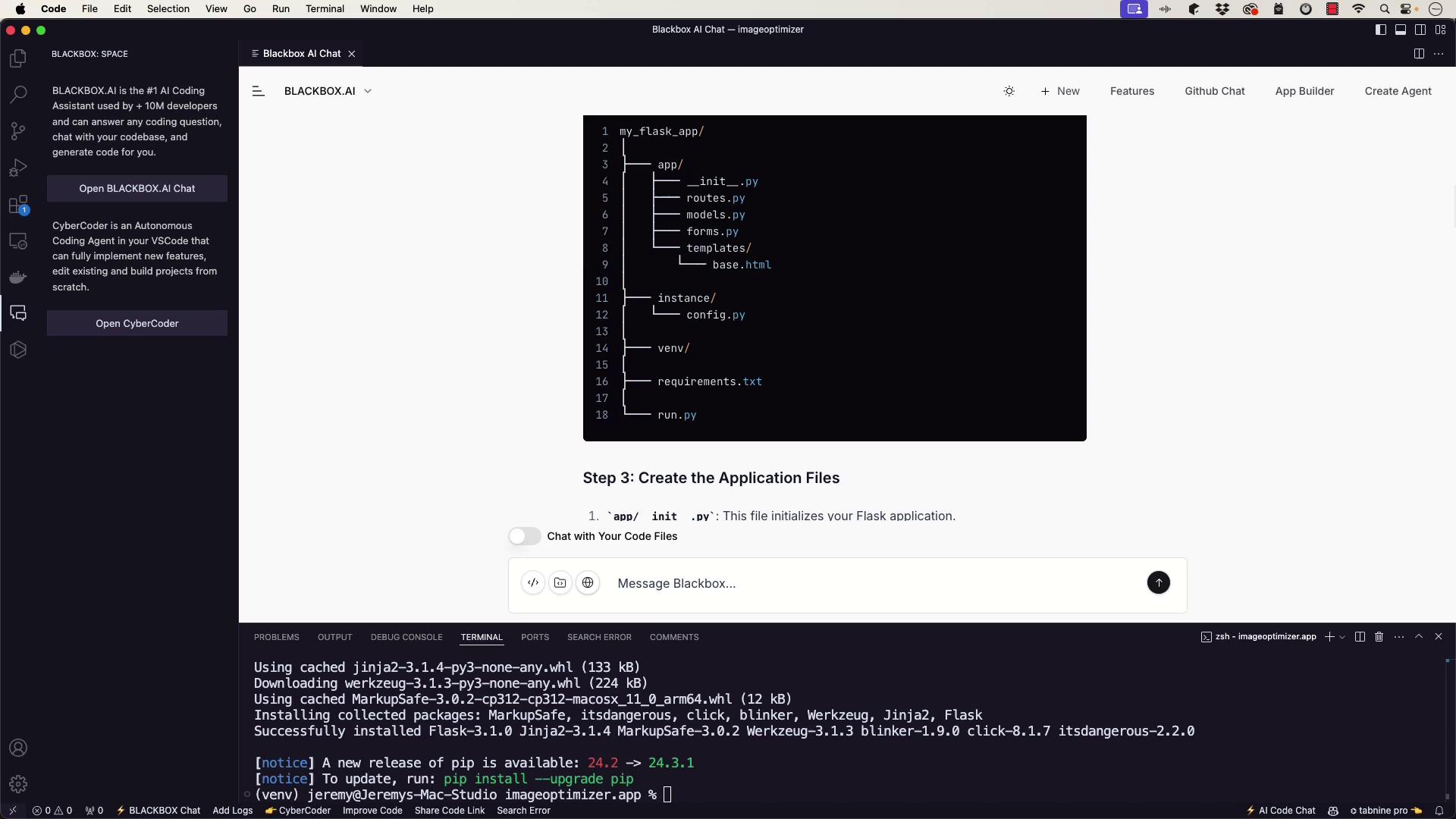

Creating the Directory Structure

Now, create the following directory structure for the Flask application:

my_flask_app/
├── app/
│   ├── __init__.py
│   ├── routes.py
│   ├── models.py
│   ├── forms.py
│   └── templates/
│       └── base.html
├── instance/
│   └── config.py
├── venv/
├── requirements.txt
└── run.py

To generate this structure within imageoptimizer.app, follow these steps:

1. Change to the app directory and create necessary files:

   (venv) jeremy@Jeremys-Mac-Studio imageoptimizer.app % cd app
   (venv) jeremy@Jeremys-Mac-Studio app % touch __init__.py
   (venv) jeremy@Jeremys-Mac-Studio app % touch routes.py
   (venv) jeremy@Jeremys-Mac-Studio app % touch models.py
   (venv) jeremy@Jeremys-Mac-Studio app % touch forms.py


2. Create the templates folder and add the base template:

   (venv) jeremy@Jeremys-Mac-Studio app % mkdir templates
   (venv) jeremy@Jeremys-Mac-Studio app % touch templates/base.html


3. Create an instance folder and configuration file:

   (venv) jeremy@Jeremys-Mac-Studio app % mkdir instance
   (venv) jeremy@Jeremys-Mac-Studio app % touch instance/config.py


4. Finally, create the run.py file in the project’s root and generate the requirements.txt file to capture the dependencies:

   (venv) jeremy@Jeremys-Mac-Studio app % pip freeze > requirements.txt


   Later, you can install these dependencies with:

   pip install -r requirements.txt


Setting Up Git and .gitignore

Initialize a Git repository for the project from the root folder (which contains both imageoptimizer.app and imageoptimizer.web):

(venv) jeremy@Jeremys-Mac-Studio imageoptimizer % git init
Initialized empty Git repository in /Users/jeremy/Projects/genaicourse/imageoptimizer/.git/

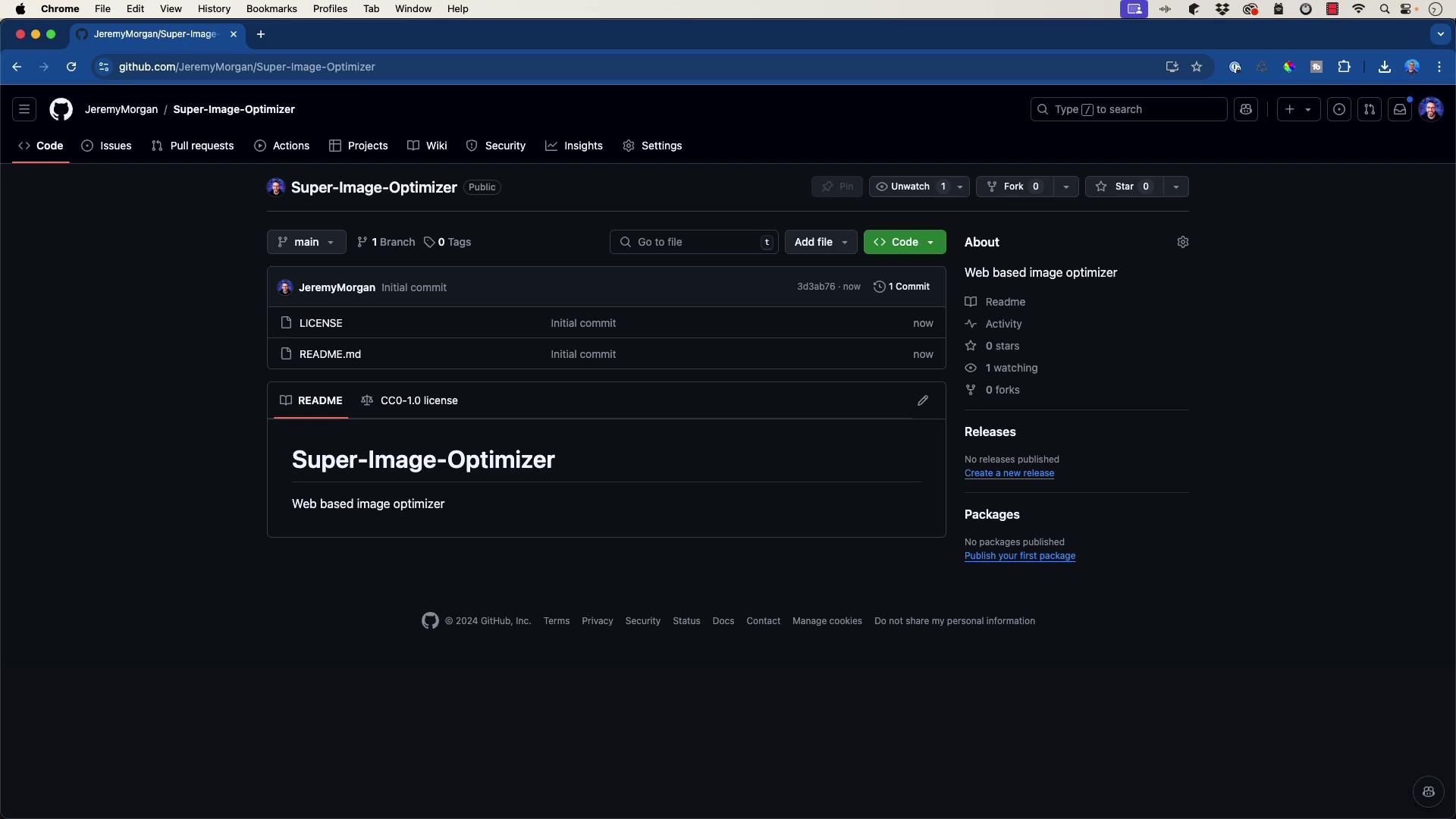

Next, add a remote origin that points to your GitHub repository:

(venv) jeremy@Jeremys-Mac-Studio imageoptimizer % git remote add origin https://github.com/JeremyMorgan/Super-Image-Optimizer.git

Before committing your files, create a .gitignore file to exclude the virtual environment and other temporary files. An AI tool can help generate a typical .gitignore for a Python Flask application. A sample .gitignore might include:

venv/
__pycache__/
*.pyc
instance/config.py

After setting up .gitignore, add your files to the repository:

(venv) jeremy@Jeremys-Mac-Studio imageoptimizer % git add .

You can check the status with:

(venv) jeremy@Jeremys-Mac-Studio imageoptimizer % git status
On branch main

No commits yet

Changes to be committed:
  (use "git rm --cached <file>..." to unstage)
        new file:   .gitignore
        new file:   imageoptimizer.app/__init__.py
        new file:   imageoptimizer.app/forms.py
        new file:   imageoptimizer.app/models.py
        new file:   imageoptimizer.app/routes.py
        new file:   imageoptimizer.app/run.py
        new file:   imageoptimizer.app/templates/base.html
        new file:   imageoptimizer.app/requirements.txt

Commit your changes and push them to GitHub:

git commit -m "Initial commit"
git branch -M main
git push -u origin main

If you encounter a rejection due to remote changes, resolve it by pulling the latest updates and pushing again:

git branch --set-upstream-to=origin/main
git pull --rebase
git push origin main

This setup ensures your repository remains clean, excluding unnecessary files such as the virtual environment.

Building the Flask Application

Now that our environment is ready and Git is tracking our updates, we will create the Flask application using the application factory pattern. Below is an example of how to set up Flask:

from flask import Flask

def create_app():
    app = Flask(__name__, instance_relative_config=True)
    app.config.from_mapping(
        SECRET_KEY='dev',  # Change this in production!
    )

    # Load the instance config, if it exists, and skip during testing
    try:
        app.config.from_pyfile('config.py', silent=True)
    except FileNotFoundError:
        pass

    with app.app_context():
        from . import routes  # Import routes

    return app

If you are utilizing SQLAlchemy, you may define your models like this:

# Example of a model using SQLAlchemy
from flask_sqlalchemy import SQLAlchemy

db = SQLAlchemy()

class User(db.Model):
    id = db.Column(db.Integer, primary_key=True)
    username = db.Column(db.String(80), unique=True, nullable=False)

Similarly, your Flask-WTF forms can be set up as follows:

from flask_wtf import FlaskForm
from wtforms import StringField, PasswordField, SubmitField
from wtforms.validators import DataRequired

class LoginForm(FlaskForm):
    username = StringField('Username', validators=[DataRequired()])
    password = PasswordField('Password', validators=[DataRequired()])
    submit = SubmitField('Login')

Next Steps

In the upcoming lesson, we will integrate the Flask API and perform testing to ensure the application operates as expected. We will also troubleshoot and refine the workflow to enhance our development process.

Happy coding, and see you in the next lesson!
