AWS Certified Developer - Associate

AWS CICD Developer Tools

Code Artifact

In this lesson, we explore AWS CodeArtifact, a fully managed artifact repository service designed to securely store, publish, and share software packages during application development. These packages—ranging from libraries and frameworks to various software components—are essential for building and maintaining your applications.

Overview

AWS CodeArtifact consolidates package management by allowing you to cache packages from public repositories (such as those used by npm or pip) and host your own internal or proprietary artifacts. This ensures efficient management of dependencies, as CodeArtifact maintains the entire dependency tree for all packages used in your applications.

Key Benefit

Utilizing CodeArtifact not only centralizes your package repositories but also enforces strict access controls, ensuring that only authorized users can access private or internal packages.

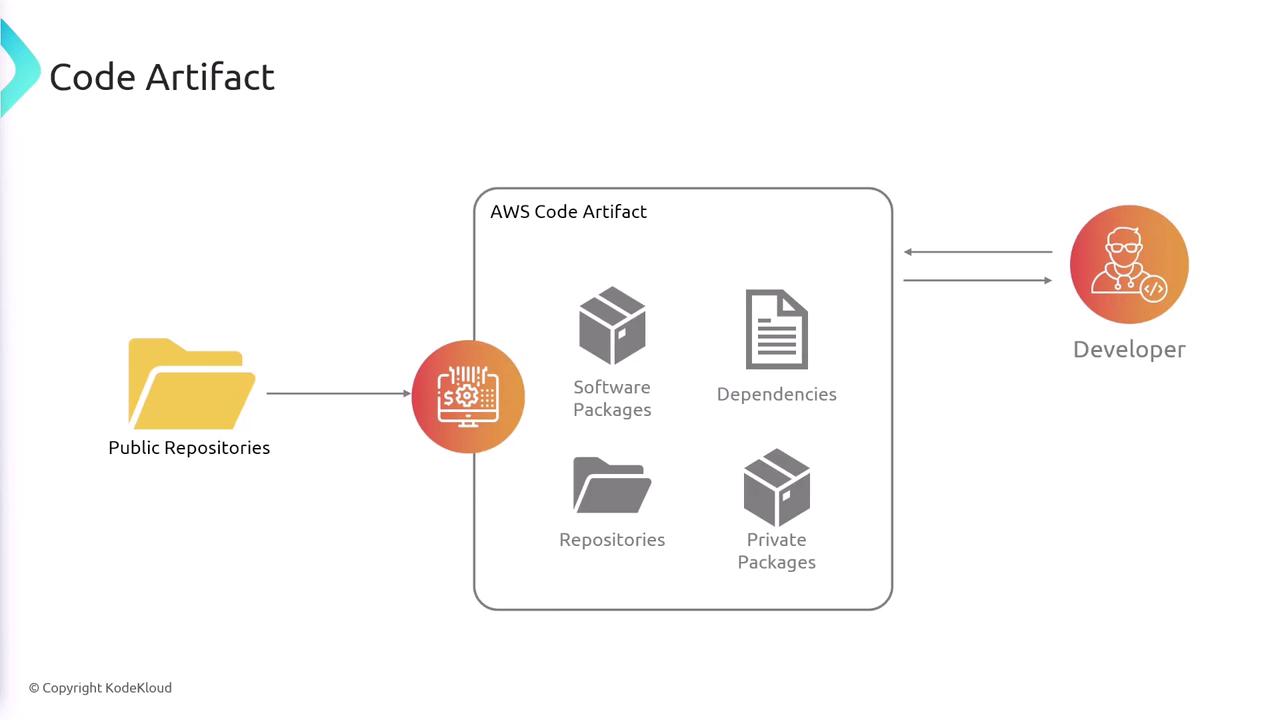

The image is a diagram illustrating the AWS Code Artifact workflow, showing interactions between public repositories, software packages, dependencies, repositories, private packages, and a developer.

Development Workflow with CodeArtifact

When a developer installs a package using a package manager, CodeArtifact intercepts the request to enhance performance and security. For example, to install the popular Python library "requests", a developer would use the following command:

pip install requests

Upon executing this command, CodeArtifact performs several tasks:

  • Intercepts the package request.
  • Downloads the package from the internet.
  • Caches the package (and its dependencies) for faster subsequent retrieval.
  • Provides the package directly to the developer.

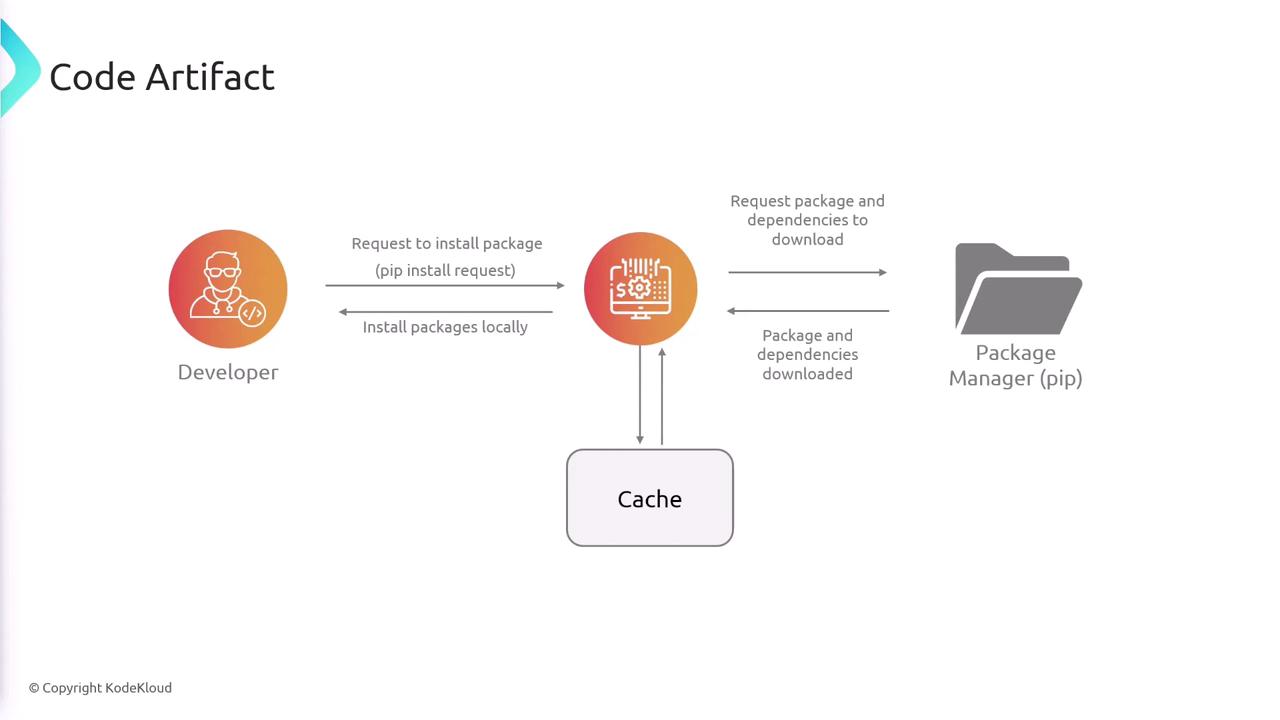

The image illustrates a process flow for installing packages using a package manager (pip), involving a developer, a cache, and the package manager.

Caching Advantage

Caching is essential for reducing latency in package downloads. By storing packages and their dependencies closer to the users, CodeArtifact ensures quicker access and improved performance.

Integration and Features

AWS CodeArtifact seamlessly integrates with CI/CD pipelines; for example, CodeBuild can pull required packages from CodeArtifact, eliminating the need to access external public repositories. This integration supports a wide range of package management tools, including Maven, Gradle, NPM, Yarn, Twine, and Pip.

Key features of AWS CodeArtifact include:

  • Secure storage of both public and private packages.
  • Fully managed service that removes the overhead of managing repository infrastructure.
  • Seamless integration with popular package management tools.
  • Version management with immutable storage, ensuring that once a package version is published, it remains unchanged.
  • Enhanced dependency management through effective caching mechanisms.

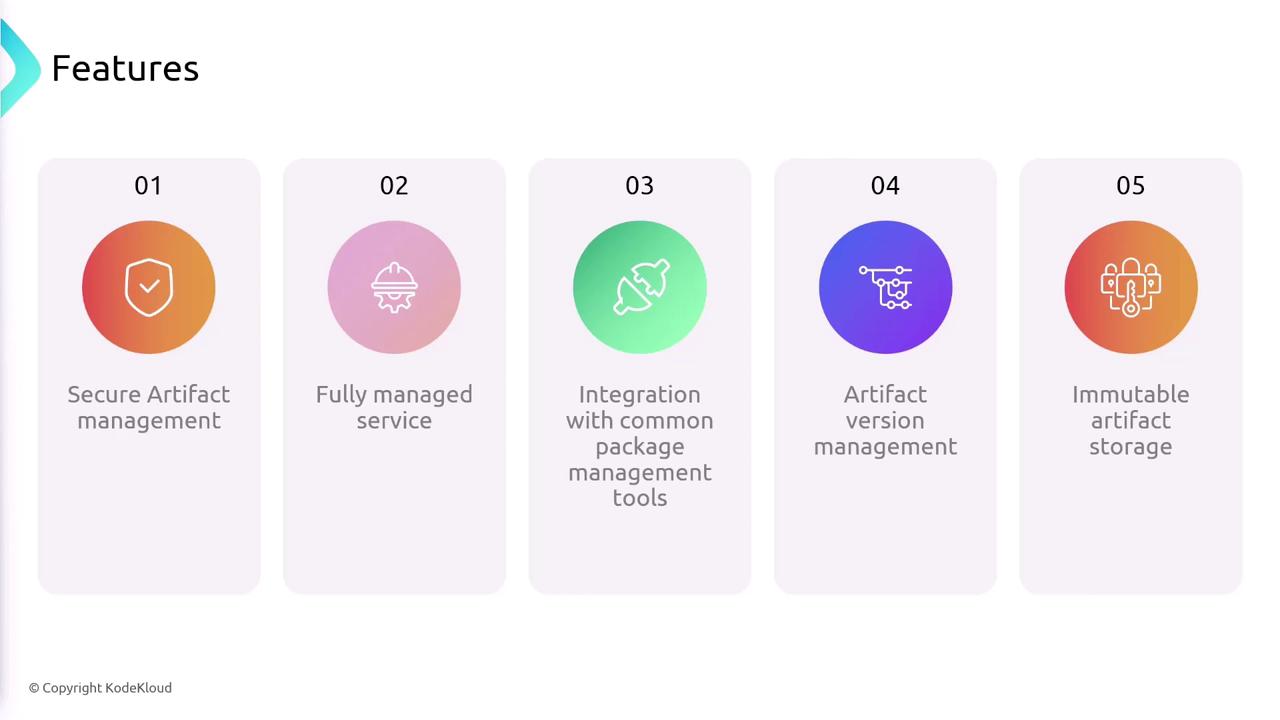

The image lists five features related to artifact management: secure management, fully managed service, integration with package tools, version management, and immutable storage.

Summary

AWS CodeArtifact centralizes artifact management by ensuring developers interact only with a secure, centralized repository. Its caching capabilities reduce download latency, and its integration with tools like CodeBuild streamlines dependency management throughout the CI/CD pipeline.

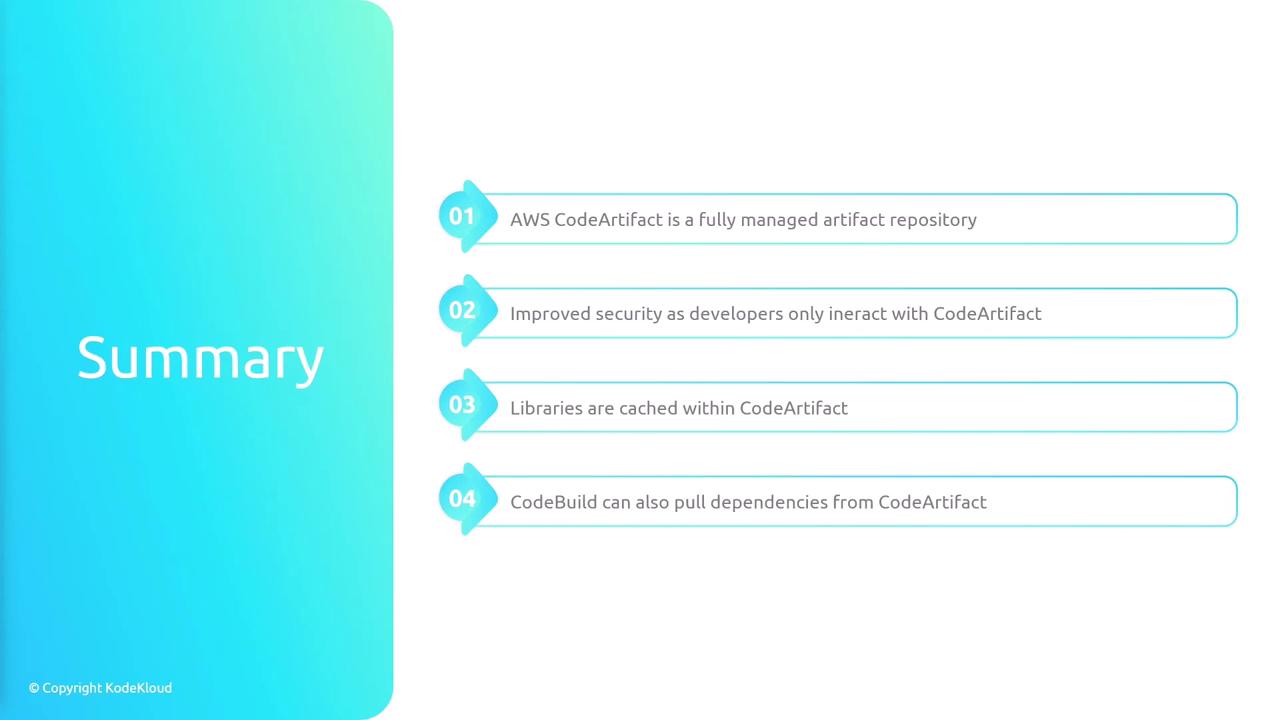

The image is a summary slide highlighting key points about AWS CodeArtifact, including its role as a fully managed artifact repository, improved security, library caching, and integration with CodeBuild.
