CodeCommit Demo part 1

In this lesson, we will demonstrate how to use AWS CodeCommit by walking through the steps of creating a repository, uploading a file, managing branches, committing changes, and creating pull requests. This guide is ideal for developers looking to understand the workflow in AWS CodeCommit.

Creating a Repository and Uploading a File

Begin by navigating to the CodeCommit service in your AWS console and create a new repository. Name it “myapp” (or any preferred name) and click Create. After the repository is created, you will be provided with instructions on how to connect to it. For example, you might see a command such as:

git clone https://git-codecommit.us-east-1.amazonaws.com/v1/repos/myapp

This command will enable you to clone the repository to your local machine.

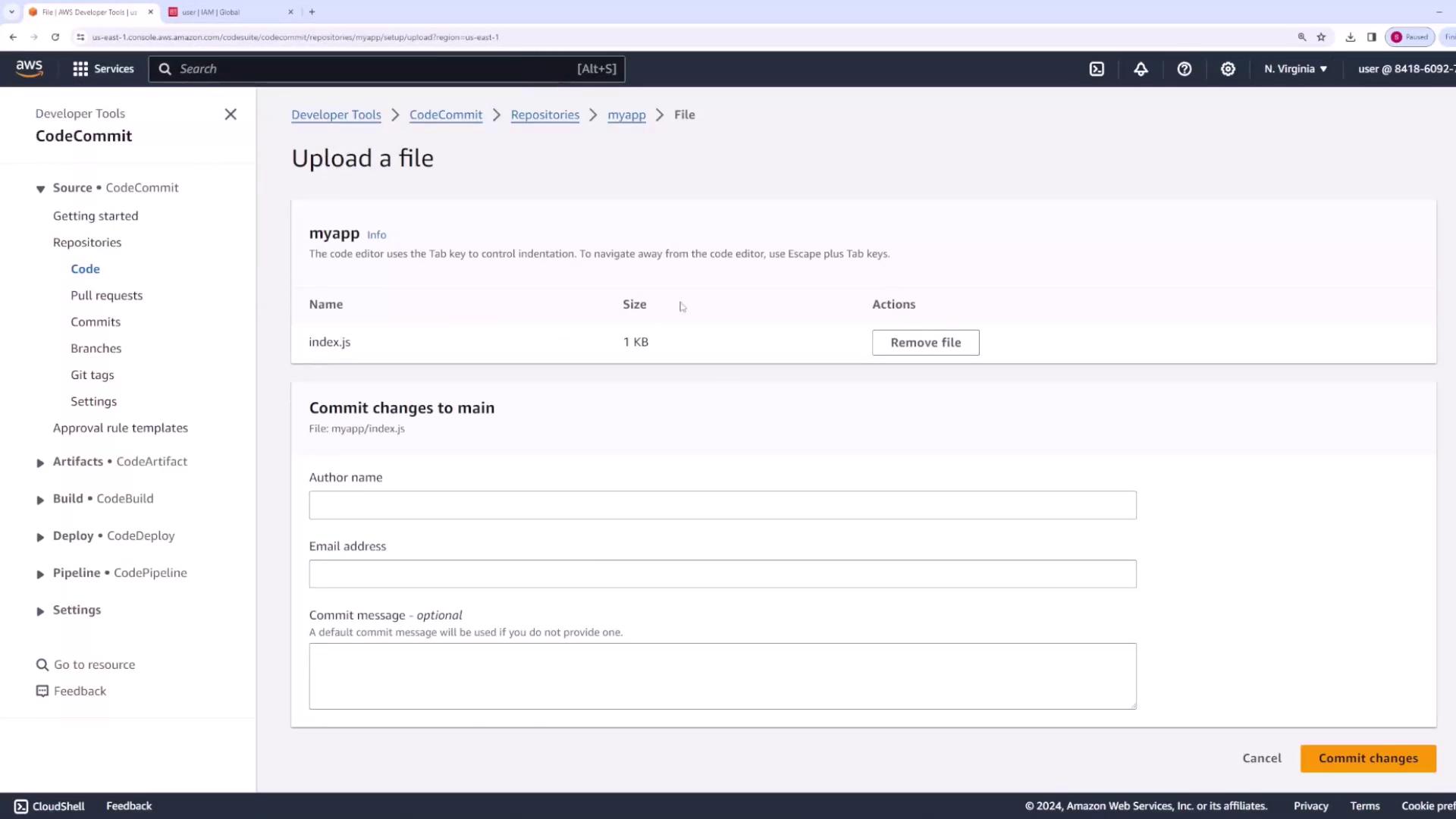

Instead of creating a file manually using the command line, you may choose to upload an existing file via the AWS CodeCommit user interface. To do this:

1. Click Add file.
2. Select Upload file.
3. Choose a file from your computer (for instance, index.js).

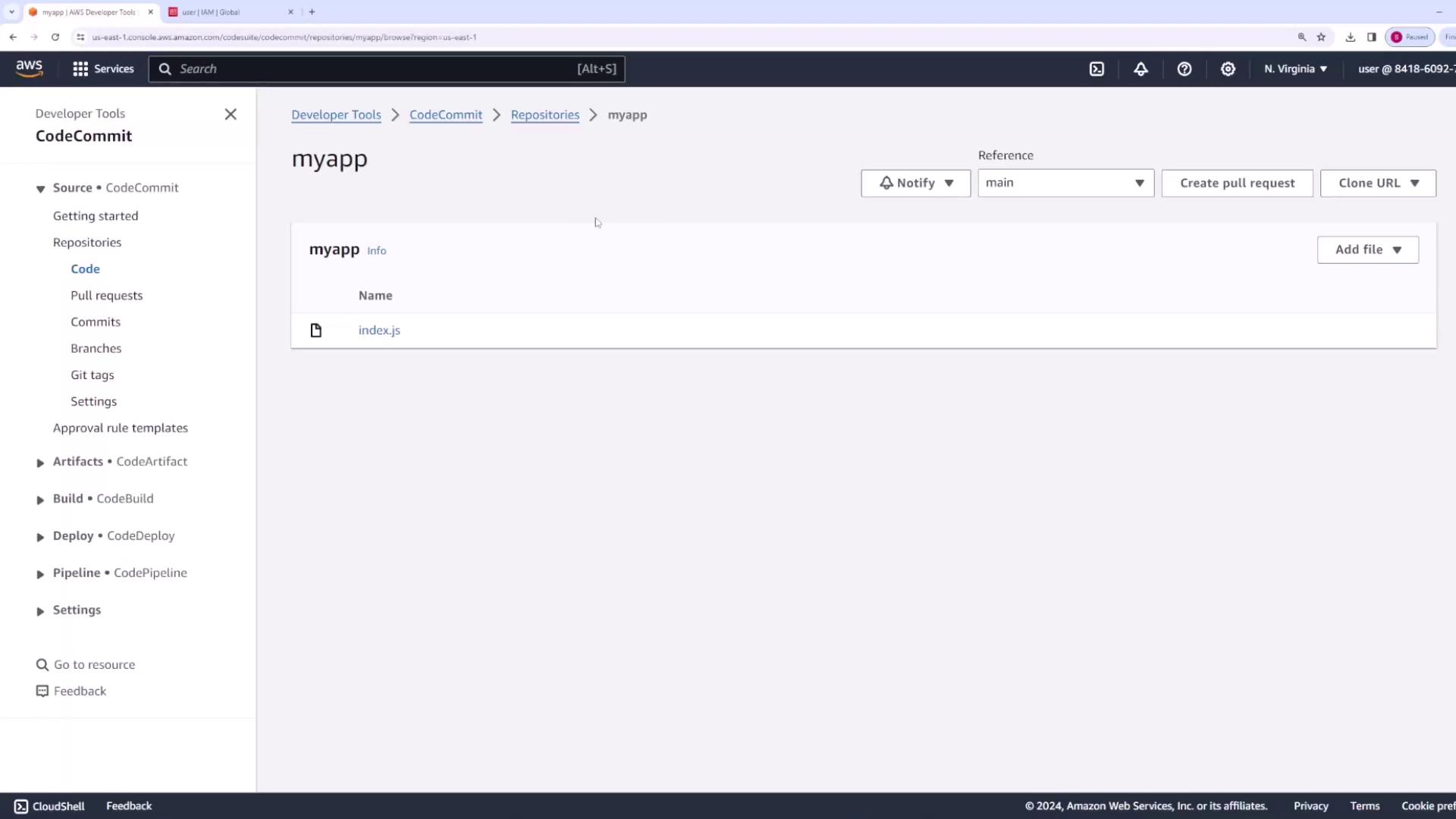

After selecting your file, enter the required author details (name and email) along with a commit message (e.g., "initial commit"). Once committed, the "myapp" repository will display the newly uploaded index.js file. You can inspect its contents directly within the CodeCommit interface.

Viewing the Repository Contents

When inspecting the uploaded file, you will notice that the current branch is indicated in the interface. By default, CodeCommit creates a single branch (commonly named main or sometimes master). Here is an example of what the content of index.js might look like:

const express = require("express");
const app = express();
const port = 3000;

app.get("/", (req, res) => {
  res.send("Hello World!");
});

app.listen(port, () => {
  console.log(`Example app listening on port ${port}`);
});

Additionally, the repository interface provides access to the commit history, displaying details such as the commit ID, filename, date, and author information. This makes it straightforward to track the changes made over time.

Branching for Feature Development

Suppose your team wants to add a new feature (for example, implementing authentication) without impacting the main branch. The recommended approach is to create a new branch. Follow these steps:

1. Navigate to the Branches section.
2. Create a branch named create-auth derived from the main branch.
3. Switch to the create-auth branch and modify the index.js file as needed. For example, you might add a log statement to indicate the addition of authentication:

After editing, your modified index.js could appear as follows:

const express = require("express");
const app = express();
const port = 3000;

app.get("/", (req, res) => {
    res.send("Hello World!");
});

console.log("added authentication");

app.listen(port, () => {
    console.log(`Example app listening on port ${port}`);
});

Commit the changes on the create-auth branch with the appropriate author information and a commit message, such as "added auth features." Remember that these changes are isolated to the create-auth branch. Switching back to the main branch will show the index.js file without the authentication log.

Creating and Merging a Pull Request

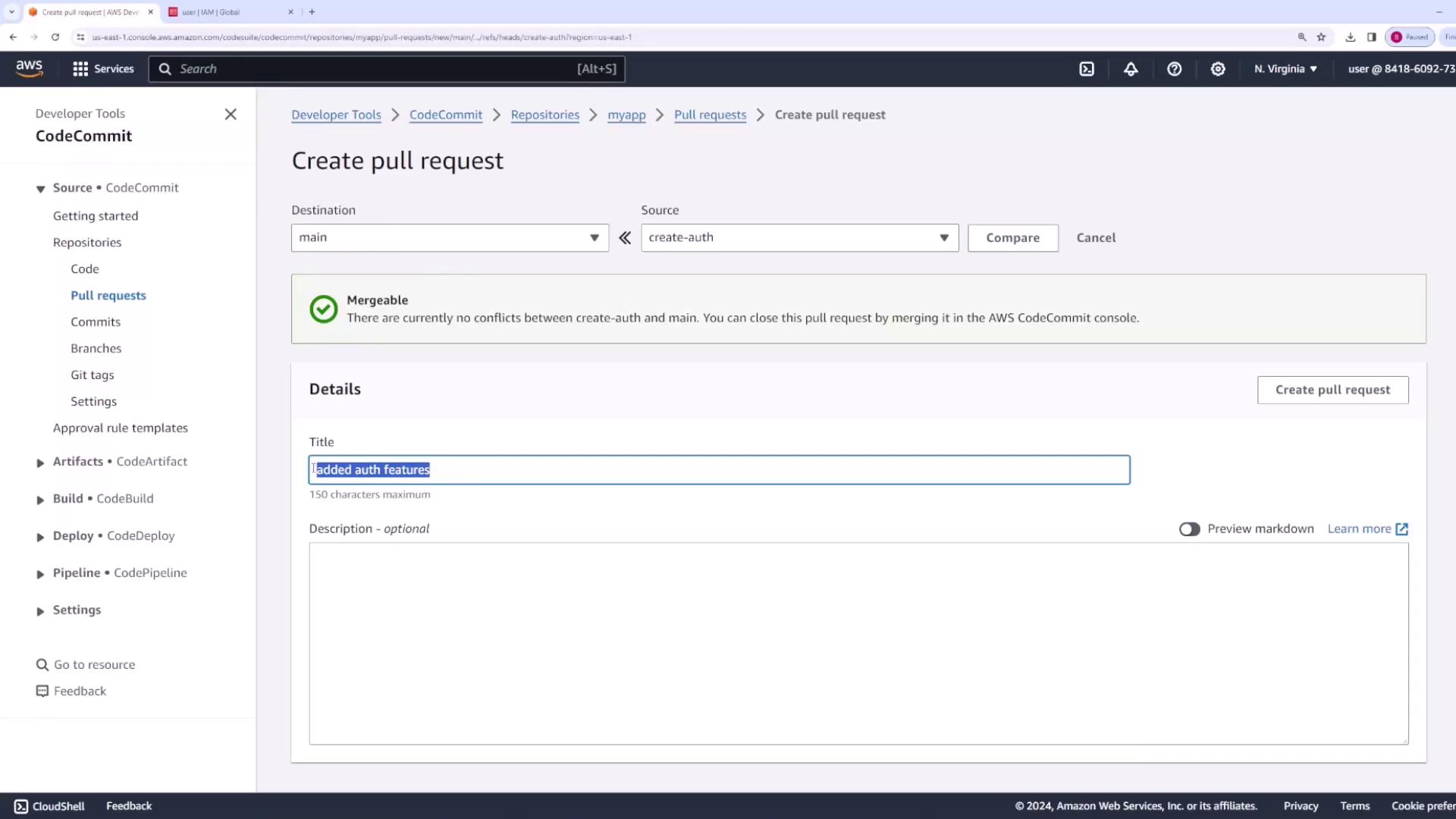

Once the new authentication feature has been tested and verified, you can merge the changes into the main branch by creating a pull request. The process involves:

1. Navigating to the Pull Requests section.
2. Setting the source branch to create-auth and the destination branch to the main branch.
3. Providing an appropriate title (e.g., "added auth features") and a detailed description.
4. Creating the pull request.

Once the team lead reviews and approves the pull request, merge it using the default merge strategy. The main branch will then include the updates from the authentication feature. The updated index.js file in the main branch will now look like this:

const express = require("express");
const app = express();
const port = 3000;

app.get("/", (req, res) => {
    res.send("Hello World!");
});

console.log("added authentication");

app.listen(port, () => {
    console.log(`Example app listening on port ${port}`);
});

Reviewing Commit History

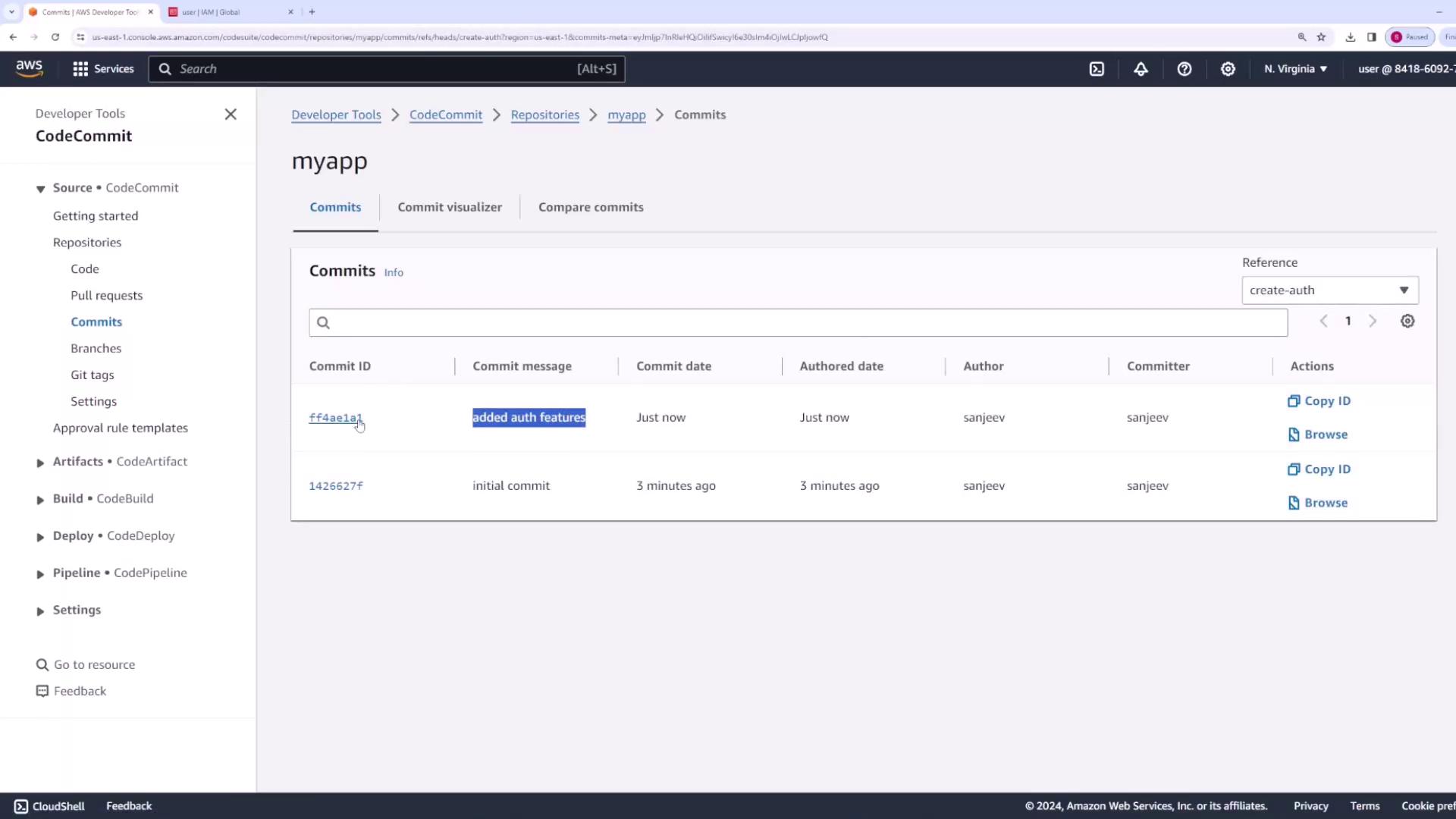

You can inspect the commit history for each branch independently. For example, when viewing the create-auth branch, the commit history will detail the changes made, such as the addition of the authentication log lines. This granular view is helpful for understanding the evolution of your codebase.

Configuring Notifications and Triggers

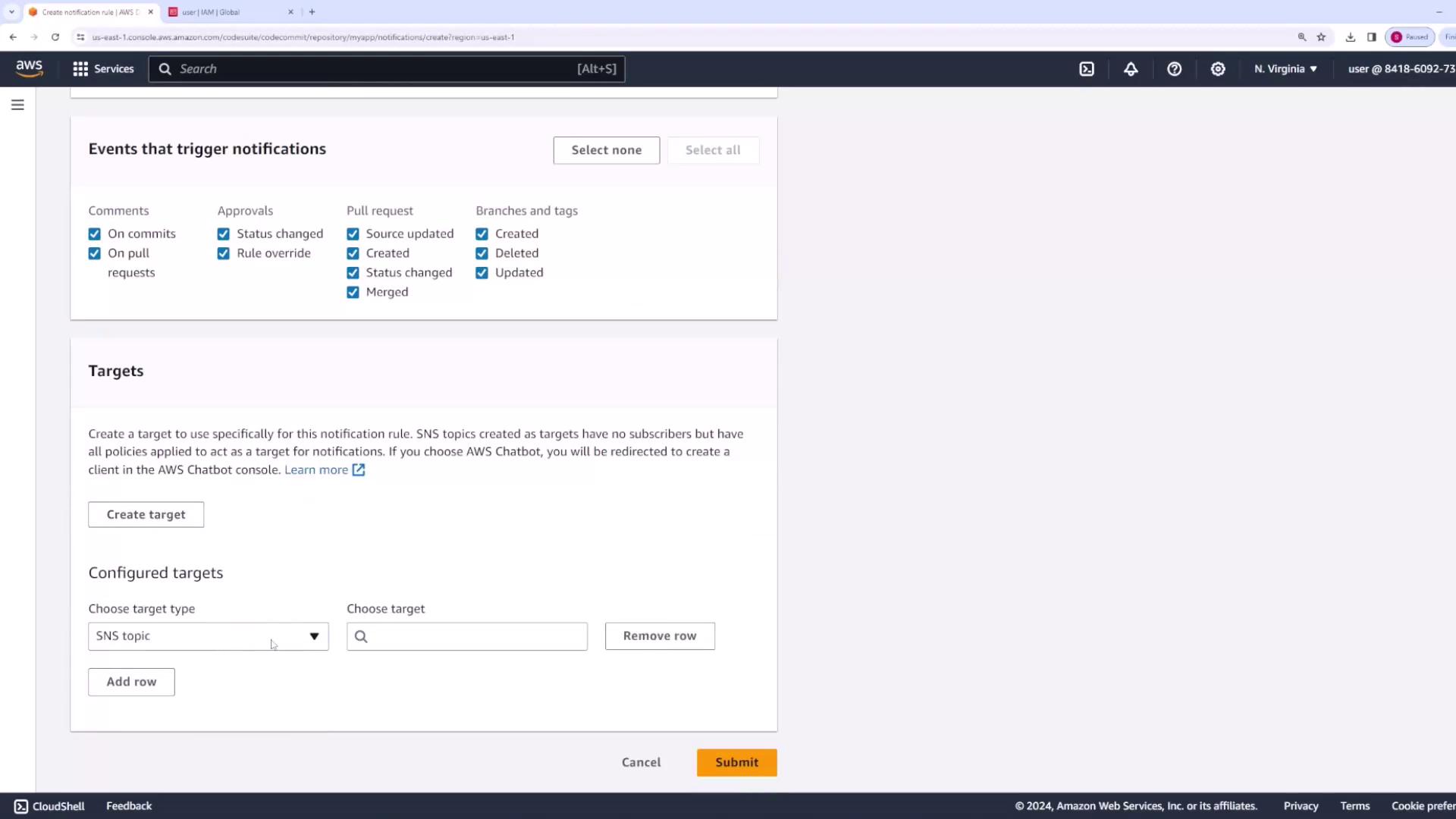

Beyond code management, AWS CodeCommit allows you to configure notifications to alert your team whenever certain events occur (e.g., on new commits or pull request status changes). Notification rules can be set within the repository settings, enabling delivery through AWS Chatbot, SNS topics, or other integrations.

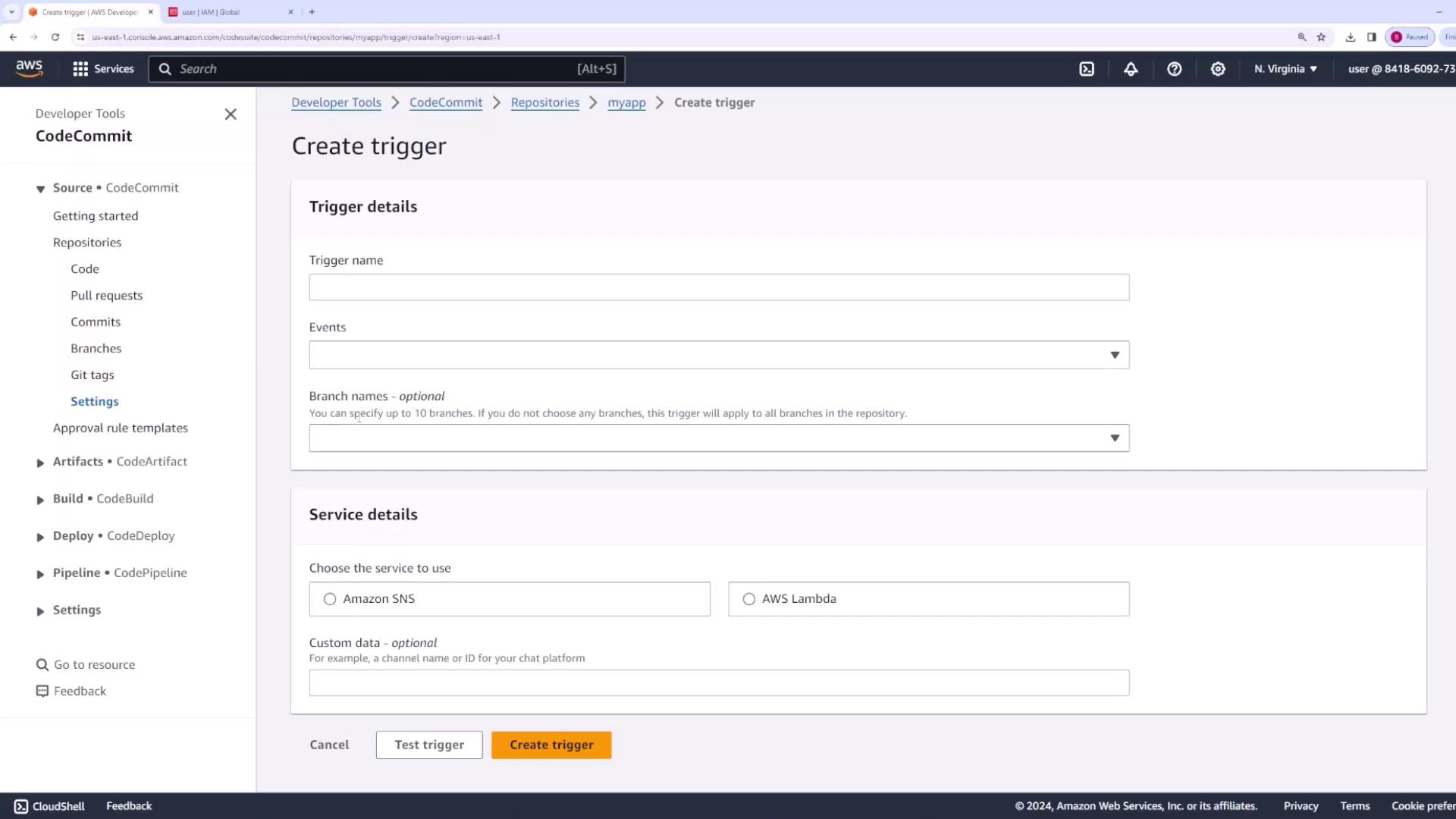

Similarly, you can set up triggers to capture specific event details. The triggers configuration allows you to select the events, branch names, and integration services (e.g., Amazon SNS or AWS Lambda) that should receive the event data.

Conclusion

This concludes the first part of our CodeCommit demonstration. In the next lesson, we will explore how to clone your repository to your local machine and set up authentication, enabling seamless push and pull operations with AWS CodeCommit.

For more details on AWS CodeCommit and related developer tools, visit the AWS CodeCommit Documentation.
