CloudTrail Demo

In this lesson, we explore how to work with AWS CloudTrail to monitor and store your AWS account activity. You will learn how to view events from the past 90 days, create a CloudTrail trail for long-term event storage or forwarding to CloudWatch, and examine logs stored in Amazon S3.

Viewing Recent Events

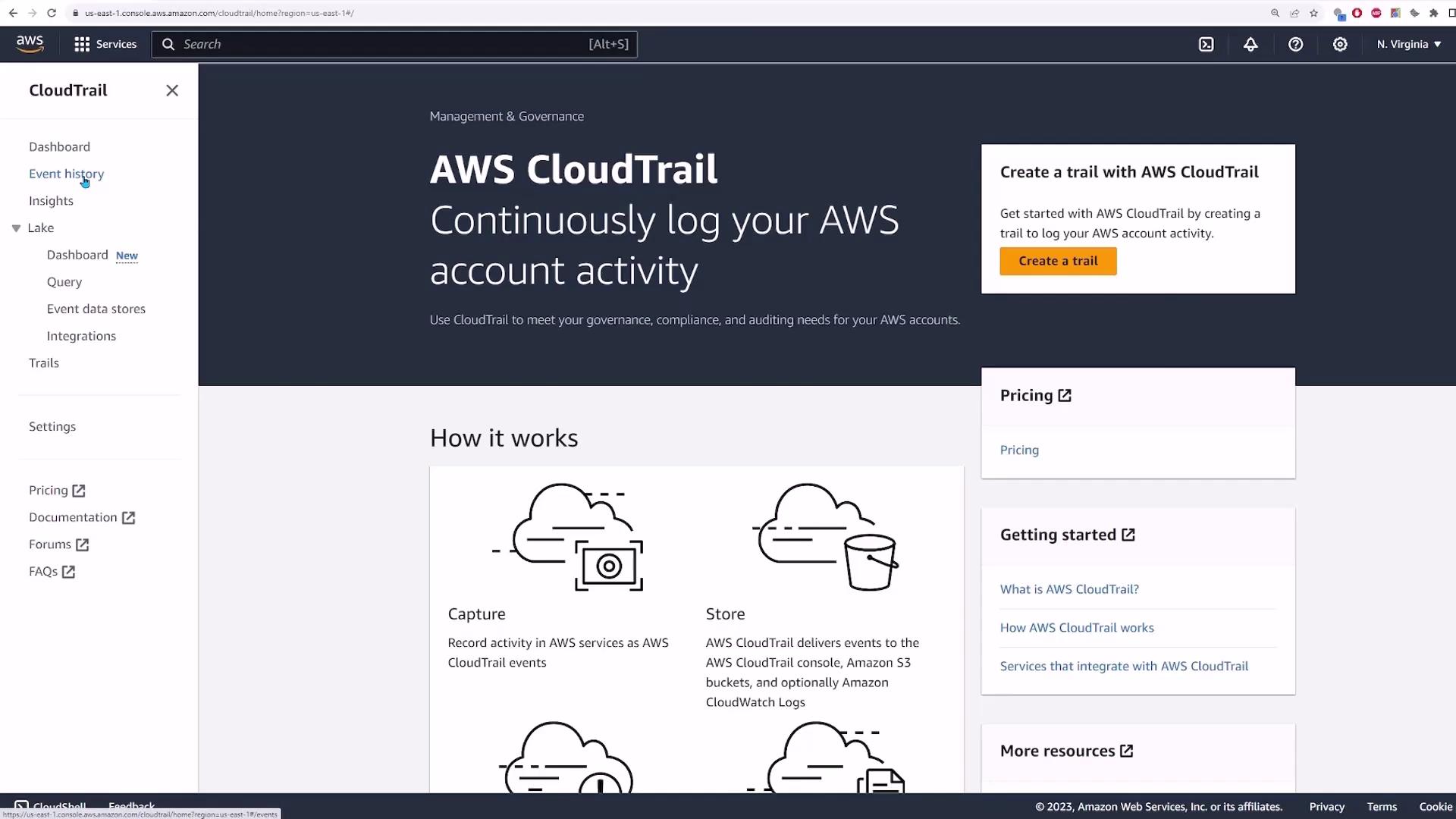

AWS CloudTrail automatically records events for the past 90 days. You can view these events directly from the event history without the need to create a trail. For instance, when you search for a "CreateUser" event, you'll see detailed information such as the event timestamp, the actor responsible, the source IP address, and the relevant AWS resource.

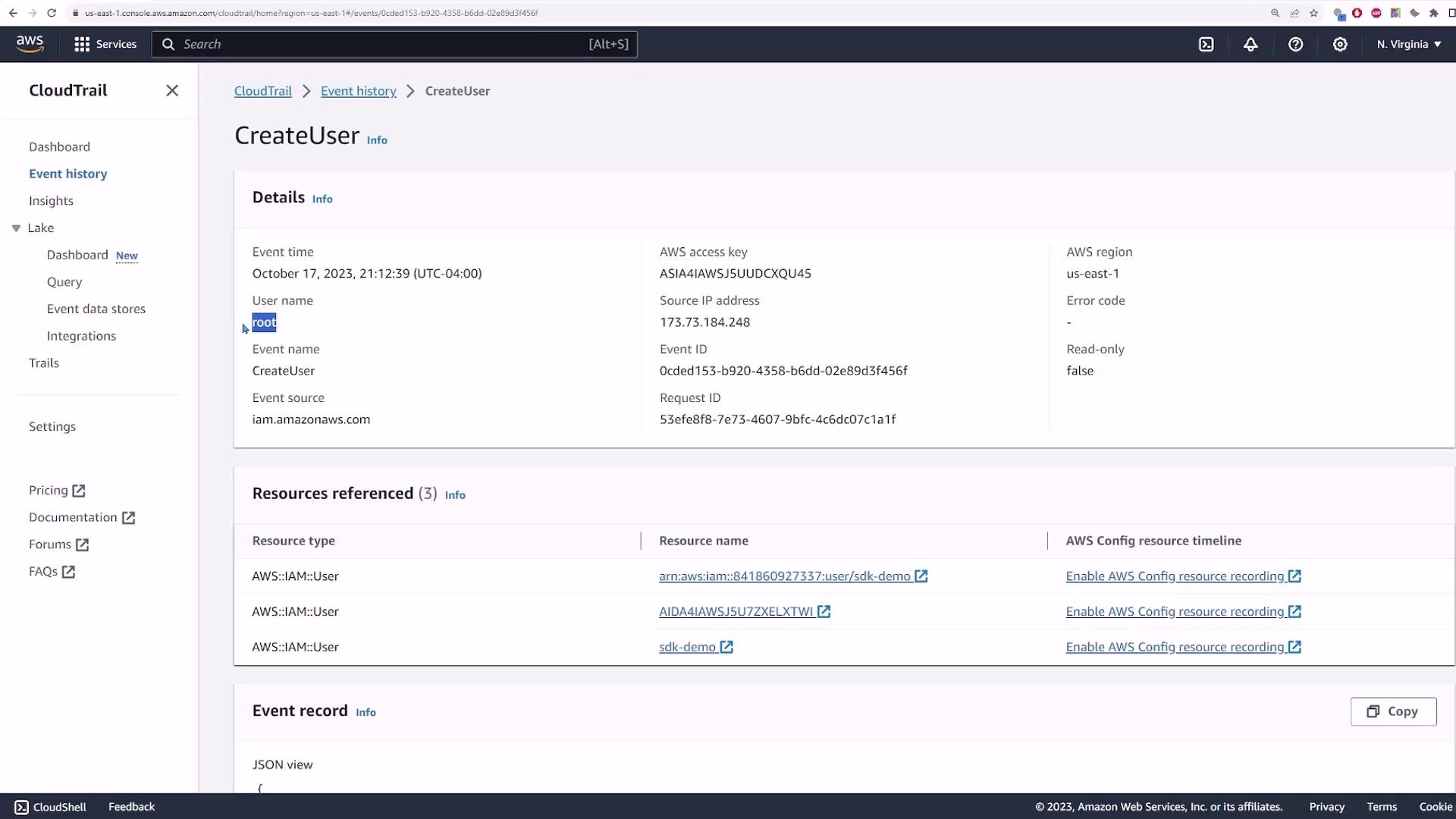

Clicking on an event (like user creation) will display additional details, including event time, user identity, source IP, and resource affected.

Viewing an event in detail will reveal a JSON view containing key entries such as user identity, event type, and region.

Creating a CloudTrail Trail

If you require event logs beyond the standard 90-day period, or want to forward events to Amazon S3 or CloudWatch, you can create a CloudTrail trail. Follow these step-by-step instructions:

1. Click on Create trail.

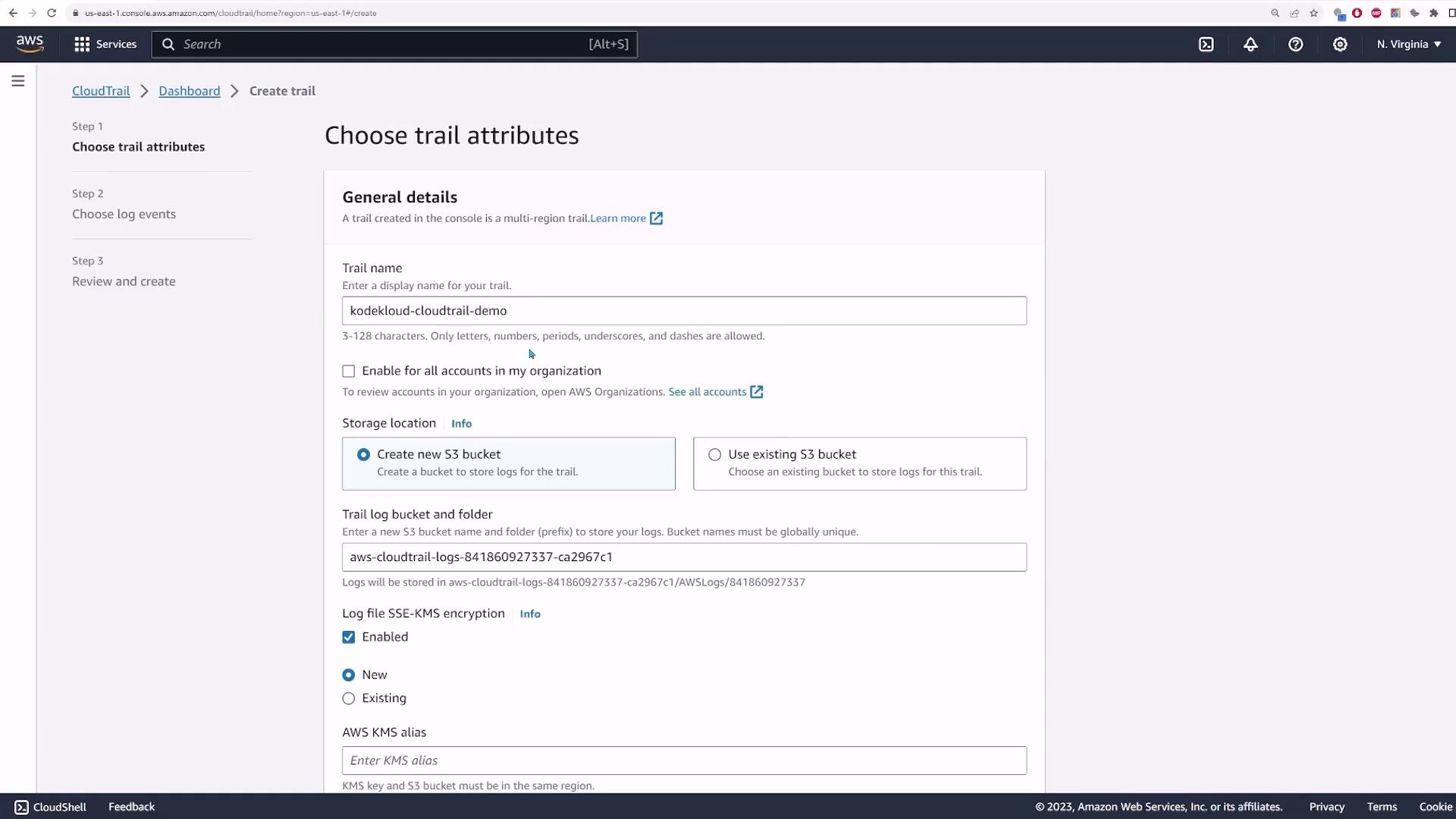

2. Enter a trail name, for example, "CodeCloud-CloudTrail-demo".
3. By default, CloudTrail captures events from all regions. Optionally, you can capture events across all accounts in your organization (for this demo, leave this unchecked).

4. Decide if you want to create a new S3 bucket or use an existing one. In this demonstration, a new S3 bucket will be created.
5. Optionally, enable encryption for your log files. In this example, encryption remains disabled.

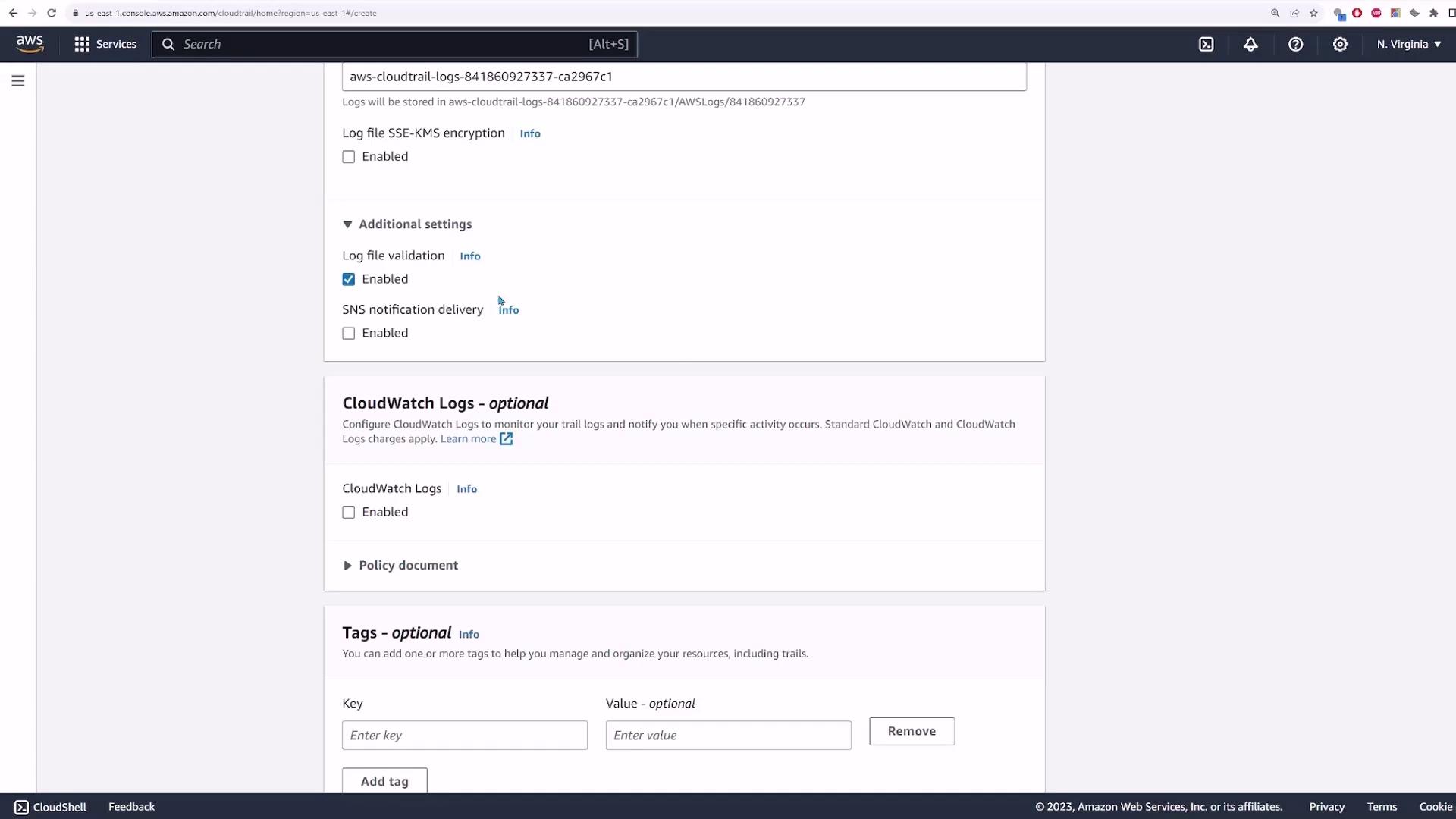

6. Optionally, enable log file validation to verify log integrity—this is not essential for this demo.
7. You may configure SNS notifications to be alerted when CloudTrail events occur or when log files are delivered. For simplicity, leave SNS notifications disabled.
8. To forward logs to CloudWatch, enable the CloudWatch Logs option. Then choose to create a new log group (default settings can be applied).
9. Configure a role for CloudTrail to forward logs to CloudWatch by selecting “New” and accepting the default role name (e.g., "CloudTrail CloudWatch role").

Click Next to proceed.

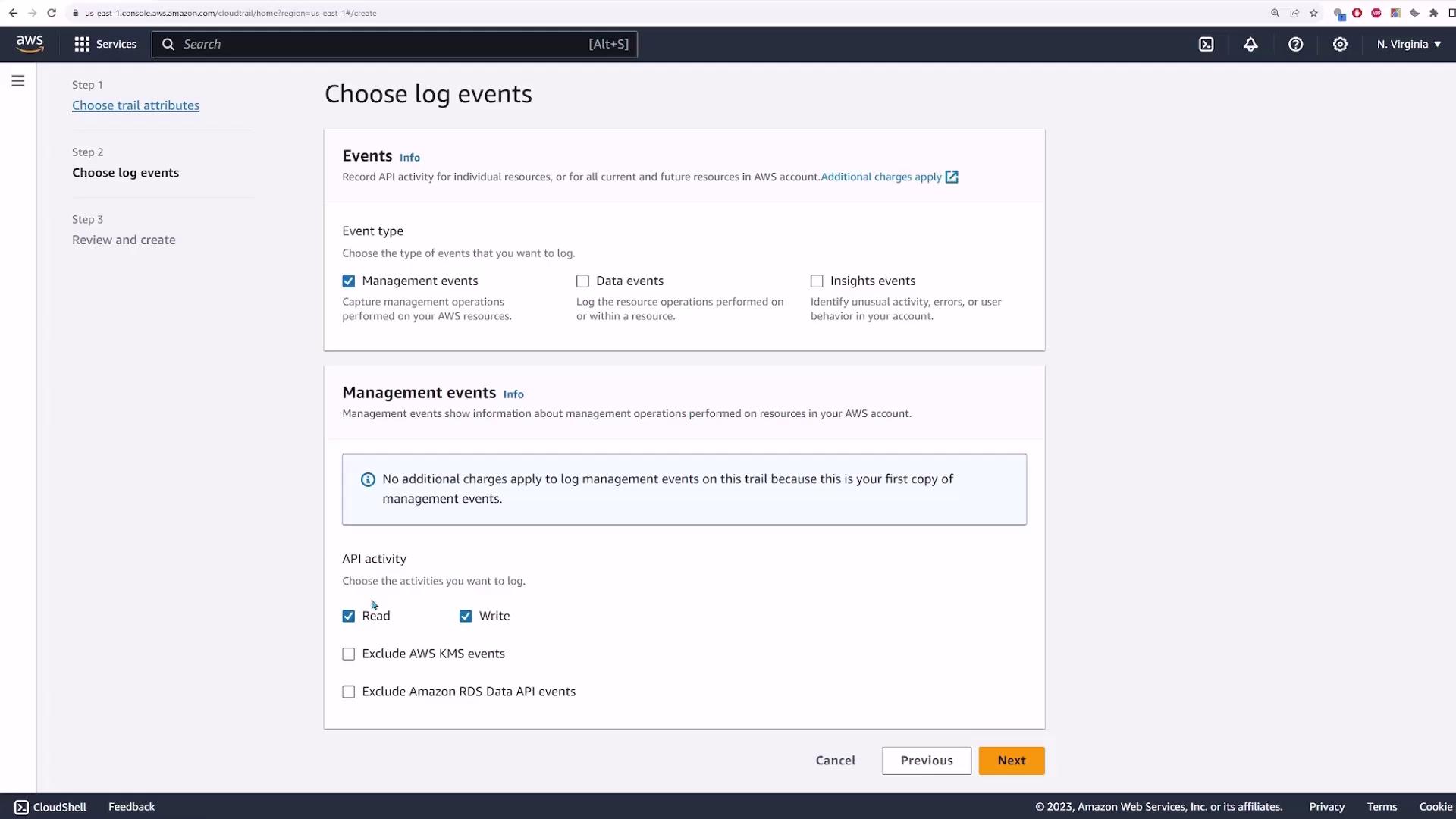

On the next screen, specify the types of events you wish to log. By default, management events are selected. While you could also log data or insight events, this demo focuses solely on management events.

Finally, you can refine API activity logging by filtering for read or write events, or even excluding specific events (such as those from KMS or the RDS Data API).

Review your settings and create the trail.

Exploring S3 Log Storage

After creating the trail, navigate to your designated S3 bucket. CloudTrail provides a link, taking you to a specific path within the bucket where your logs reside. The structure typically appears as follows:

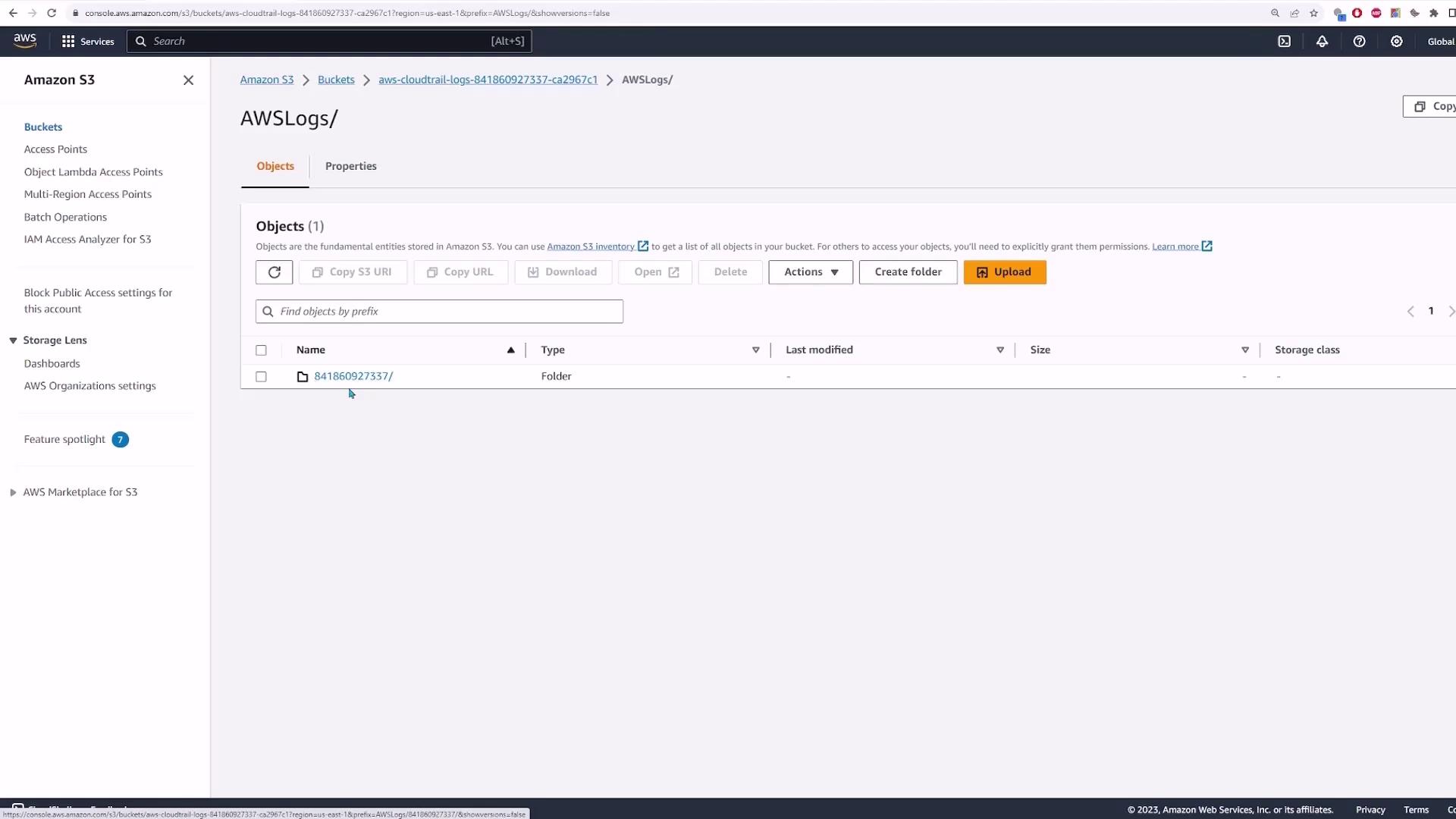

• A folder named "AWS Logs" followed by your account ID (e.g., 841860923737).
• Within the account folder, a "CloudTrail" folder exists.
• Logs are organized by region—in our example, only logs for the "us-east-1" region are available.
• Within the regional folder, logs are further divided by year, month, and day.

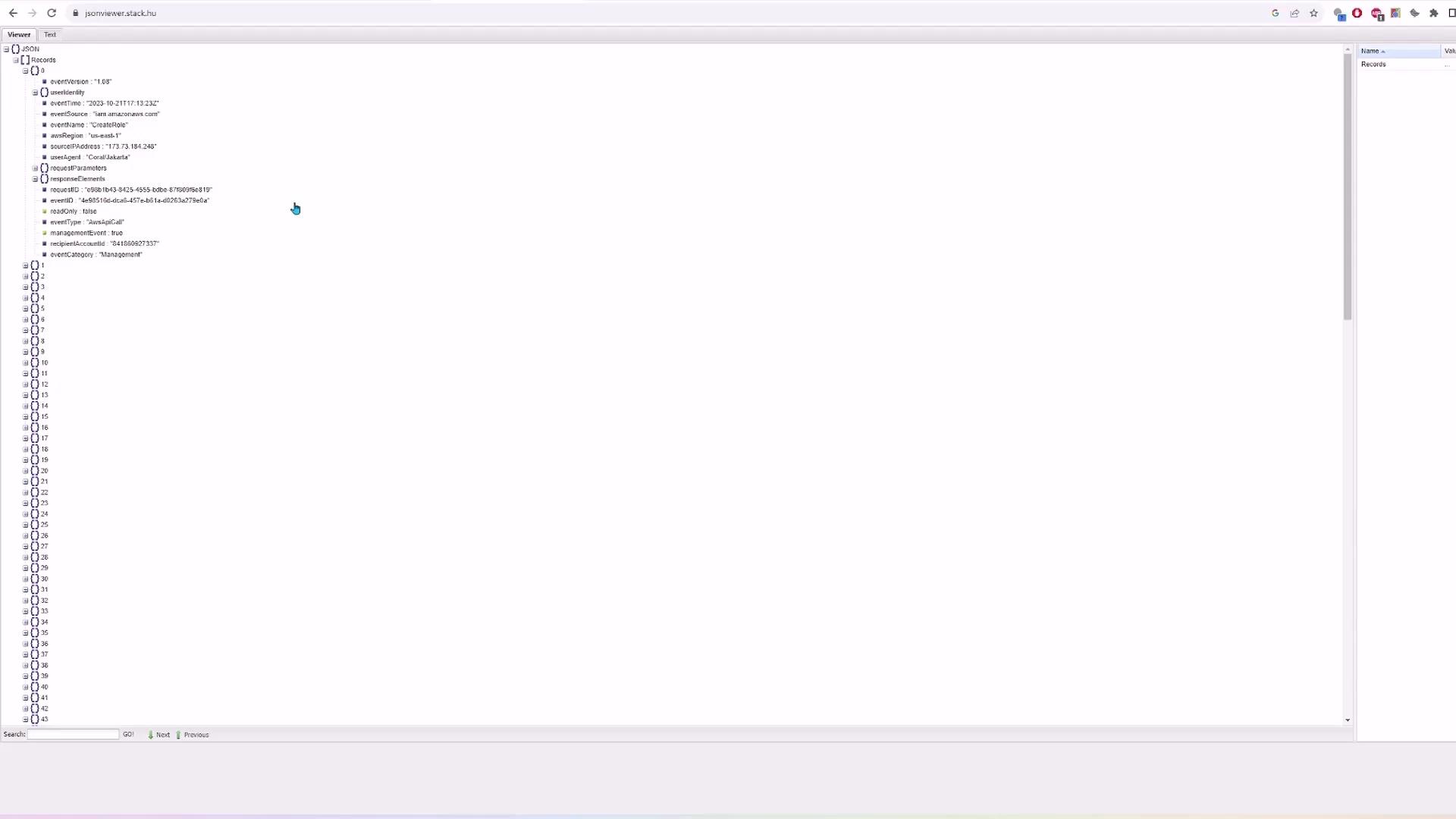

Selecting a log file opens it in JSON format. Although the raw JSON might not be visually appealing, you can copy and paste it into a JSON Viewer for a clearer, structured display.

Below is an example of a CloudTrail log file in JSON format:

{
  "Records": [
    {
      "eventVersion": "1.08",
      "userIdentity": {
        "type": "Root",
        "principalId": "841860927337",
        "arn": "arn:aws:iam::841860927337:root",
        "accountId": "841860927337",
        "accessKeyId": "ASIA...qGV",
        "sessionContext": {
          "attributes": {
            "creationDate": "2023-10-17T17:24:18Z",
            "mfaAuthenticated": "false"
          }
        }
      },
      "eventTime": "2023-10-17T17:24:18Z",
      "eventSource": "cloudtrail.amazonaws.com",
      "eventName": "AssumeRole",
      "awsRegion": "us-east-1",
      "sourceIPAddress": "173.178.145.188",
      "userAgent": "AWS Internal",
      "requestParameters": {
        "roleArn": "arn:aws:iam::841860927337:role/AssumedRole"
      },
      "responseElements": {
        "credentials": {
          "accessKeyId": "ASIA...qb8E",
          "secretAccessKey": "TqE...uNbx",
          "sessionToken": "FwoGZXIvYXdzE...3B4",
          "expiration": "2023-10-17T18:24:18Z"
        }
      },
      "requestID": "98ca...c8be",
      "eventID": "828...8e0d",
      "readOnly": false,
      "eventType": "AWS API Call via CloudTrail",
      "recipientAccountId": "841860927337",
      "eventCategory": "Management"
    }
  ]
}

Consider this additional example from a "CreateRole" event:

{
  "eventVersion": "1.08",
  "userIdentity": {
    "type": "Root",
    "principalId": "841860927373",
    "arn": "arn:aws:iam::841860927373:root",
    "accountId": "841860927373",
    "accessKeyId": "ASIAIAIW3J5USLDMR7ZR",
    "sessionContext": {},
    "webIdFederationData": {},
    "attributes": {
      "creationDate": "2023-10-21T17:04:29Z",
      "mfaAuthenticated": "true"
    }
  },
  "eventTime": "2023-10-21T17:13:23Z",
  "eventSource": "iam.amazonaws.com",
  "eventName": "CreateRole",
  "awsRegion": "us-east-1",
  "sourceIPAddress": "173.73.184.248",
  "userAgent": "Coral/Jakarta",
  "requestParameters": {
    "path": "/service-role/",
    "roleName": "Cloudtrail-cloudwatch-role",
    "assumeRolePolicyDocument": "{\n  \"Version\": \"2012-10-17\",\n  \"Statement\": [\n    {\n      \"Effect\": \"Allow\",\n      \"Principal\": {\n        \"Service\": \"cloudtrail.amazonaws.com\"\n      },\n      \"Action\": \"sts:AssumeRole\"\n    }\n  ]\n}"
  }
}

Storing logs in an S3 bucket ensures your CloudTrail data is preserved even after the 90-day retention period.

Forwarding Logs to CloudWatch

To enable real-time monitoring and leverage analysis tools, CloudTrail logs can be forwarded to CloudWatch. Navigate to CloudWatch and open the log groups section to locate the log group created by your CloudTrail configuration.

Within the log group, select a log stream to inspect events—these logs will follow the same JSON structure previously shown. Below is a simplified CloudWatch log record example:

{
  "eventVersion": "1.08",
  "userIdentity": {
    "type": "Root",
    "principalId": "8418609273737",
    "arn": "arn:aws:iam::8418609273737:root",
    "accountId": "8418609273737",
    "accessKeyId": "ASIAIAM5JUQCKLHKU",
    "sessionContext": {},
    "webIdFederationData": {},
    "attributes": {
      "creationDate": "2023-10-21T17:04:29Z",
      "mfAuthenticated": "true"
    }
  }
}

Forwarding logs to CloudWatch allows for real-time event monitoring and deeper analysis.

Conclusion

In this lesson, you learned how to:

• View recent CloudTrail events without creating a trail.
• Set up a CloudTrail trail to store logs in Amazon S3 and forward them to CloudWatch.
• Navigate and analyze JSON log files for comprehensive monitoring of AWS account activity.
