Lambda Networking Demo

In this lesson, we will guide you through configuring an AWS Lambda function within a Virtual Private Cloud (VPC). By integrating your Lambda with a VPC, you enable secure communication with private resources like an RDS instance or other services deployed within your VPC.

Step 1: Create the Lambda Function

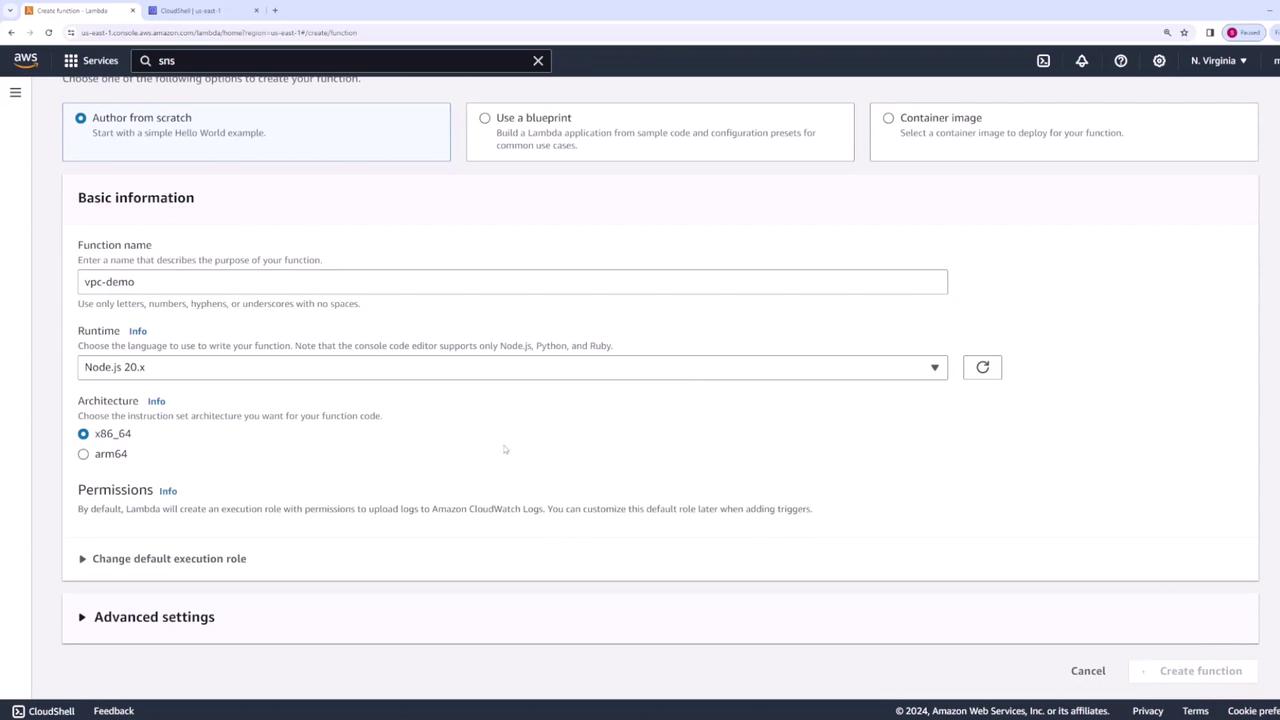

Begin by creating your Lambda function. For this demonstration, we'll name the function "VPC demo". By default, Lambda functions run in an environment that provides internet access. This initial setup allows you to later integrate VPC connectivity without impacting the function's execution.

Step 2: Configure VPC Settings

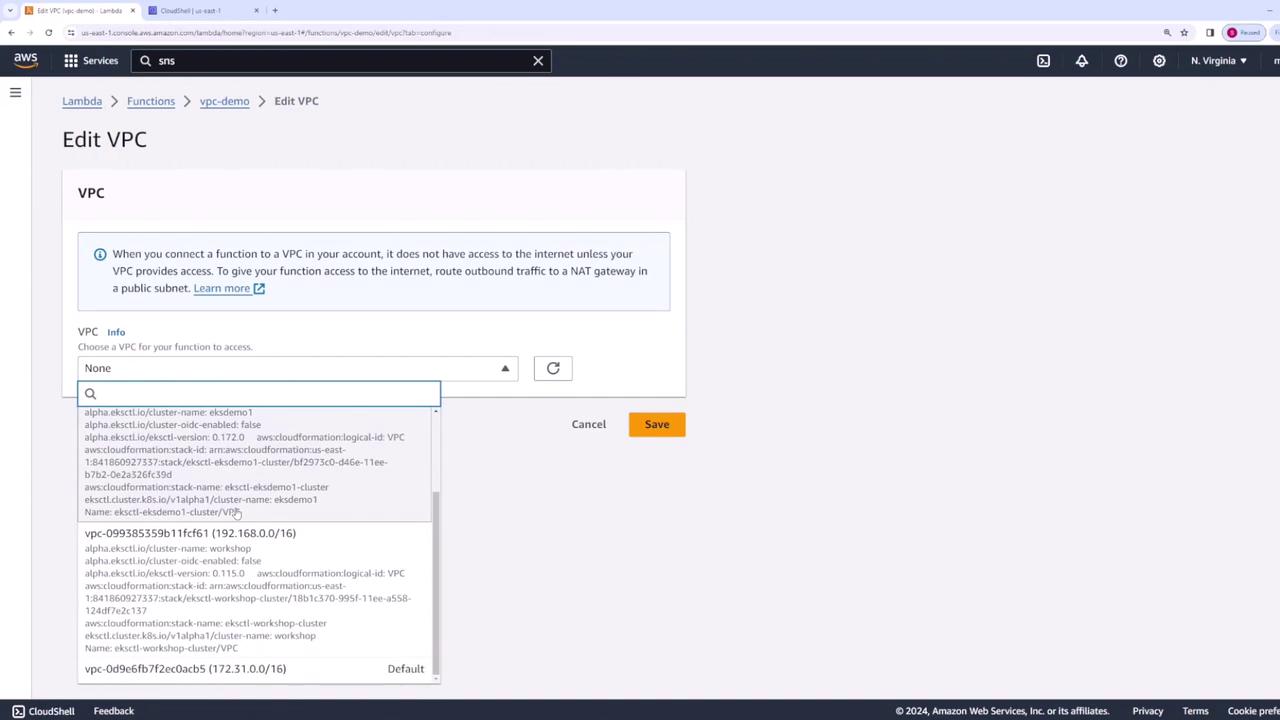

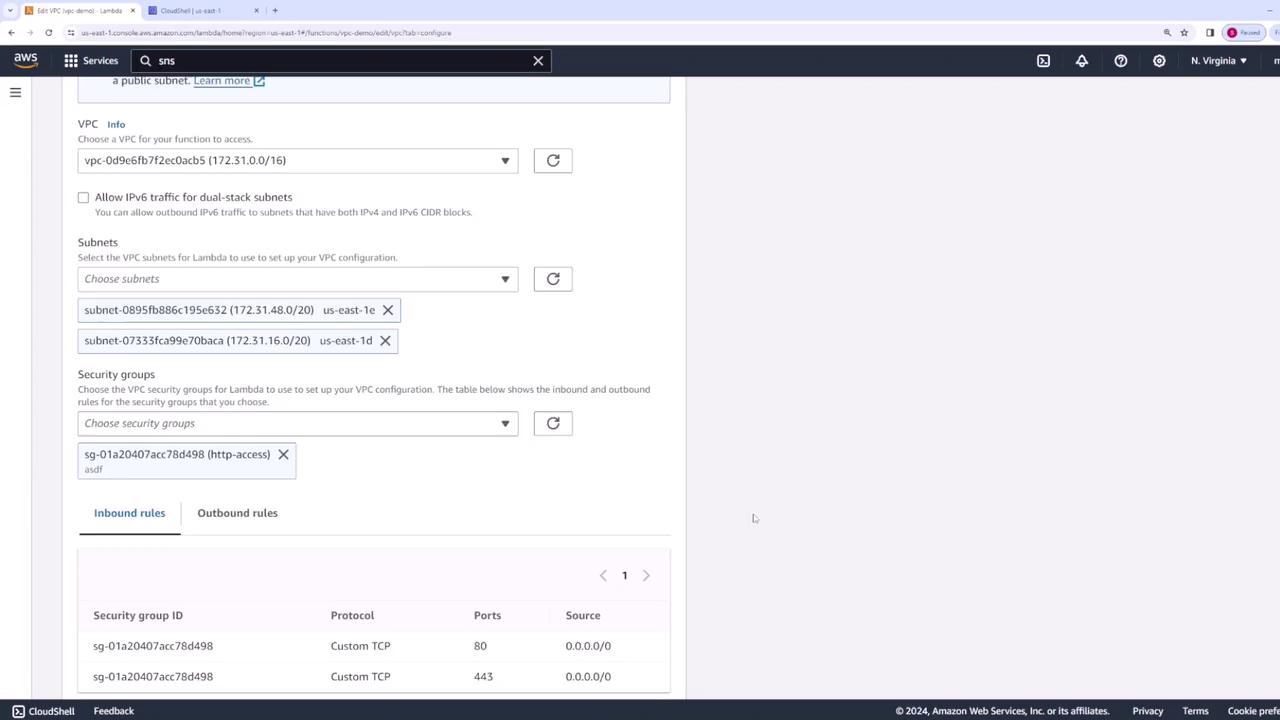

To connect your Lambda function to internal resources within your VPC, navigate to the function's configuration tab and locate the VPC settings. Click "Edit" and then choose the desired VPC—using the default VPC is a convenient option. Select two subnets and assign a security group that allows the necessary traffic for your application.

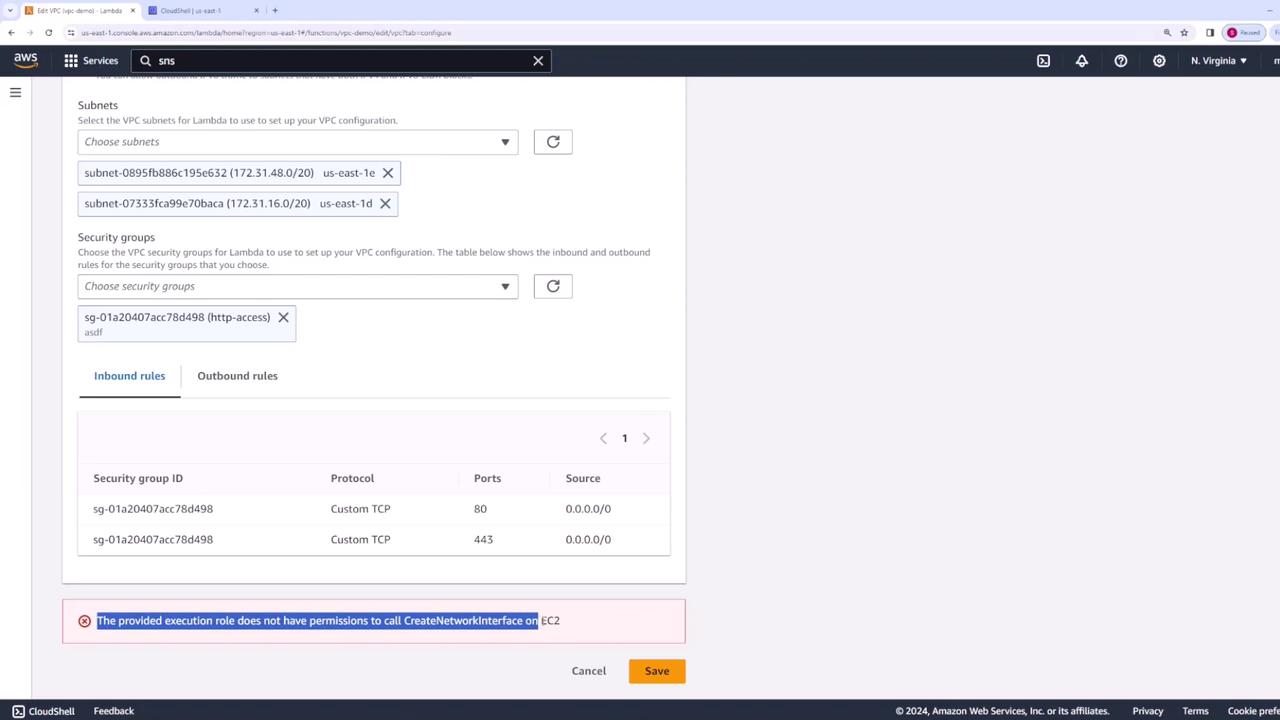

After selecting the subnets and security group, click "Save". At this stage, you may encounter an error indicating that the execution role does not have permissions to call CreateNetworkInterface on EC2.

Step 3: Update Execution Role Permissions

When a Lambda function is deployed within a VPC, it must have permissions to create network interfaces and perform other network-related actions. To fix the error, update the Lambda function's execution role to include the necessary permissions. Follow these steps:

1. Go to the Permissions tab in your Lambda function's configuration.
2. Locate the VPC execution role.
3. Attach a policy that grants the following permissions:
   • logs:CreateLogGroup
   • logs:CreateLogStream
   • logs:PutLogEvents
   • ec2:CreateNetworkInterface
   • ec2:DescribeNetworkInterfaces
   • ec2:DescribeSubnets
   • ec2:DeleteNetworkInterface
   • ec2:AssignPrivateIpAddresses
   • ec2:UnassignPrivateIpAddresses

Below is the JSON policy you can attach to your execution role:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AWSLambdaVPCAccessExecutionPermissions",
      "Effect": "Allow",
      "Action": [
        "logs:CreateLogGroup",
        "logs:CreateLogStream",
        "logs:PutLogEvents",
        "ec2:CreateNetworkInterface",
        "ec2:DescribeNetworkInterfaces",
        "ec2:DescribeSubnets",
        "ec2:DeleteNetworkInterface",
        "ec2:AssignPrivateIpAddresses",
        "ec2:UnassignPrivateIpAddresses"
      ],
      "Resource": "*"
    }
  ]
}

After updating the policy, return to your Lambda function and save the VPC configuration again. The update should now be accepted without any errors.

Step 4: Verify the Configuration

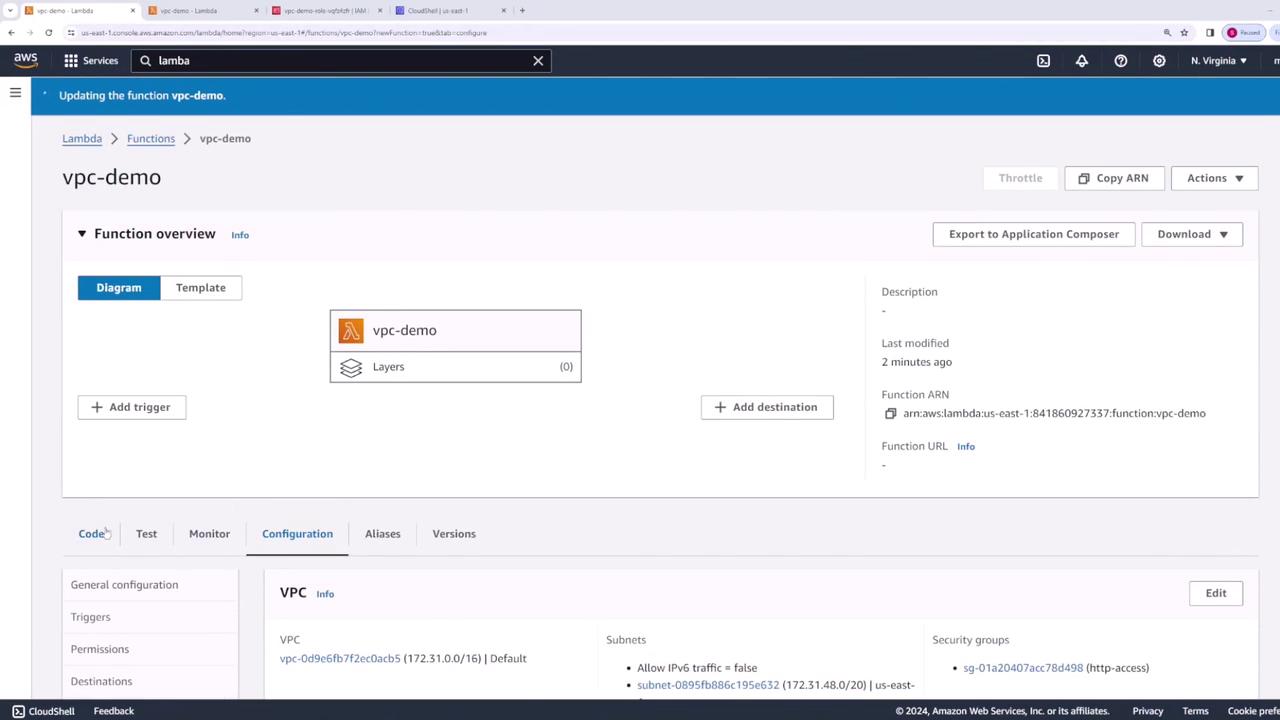

After saving the configuration, review the VPC settings in your Lambda function. Verify that the selected VPC, configured subnets, and chosen security group (along with its rules) correctly reflect your intended setup.

Step 5: Test and Validate Network Interfaces

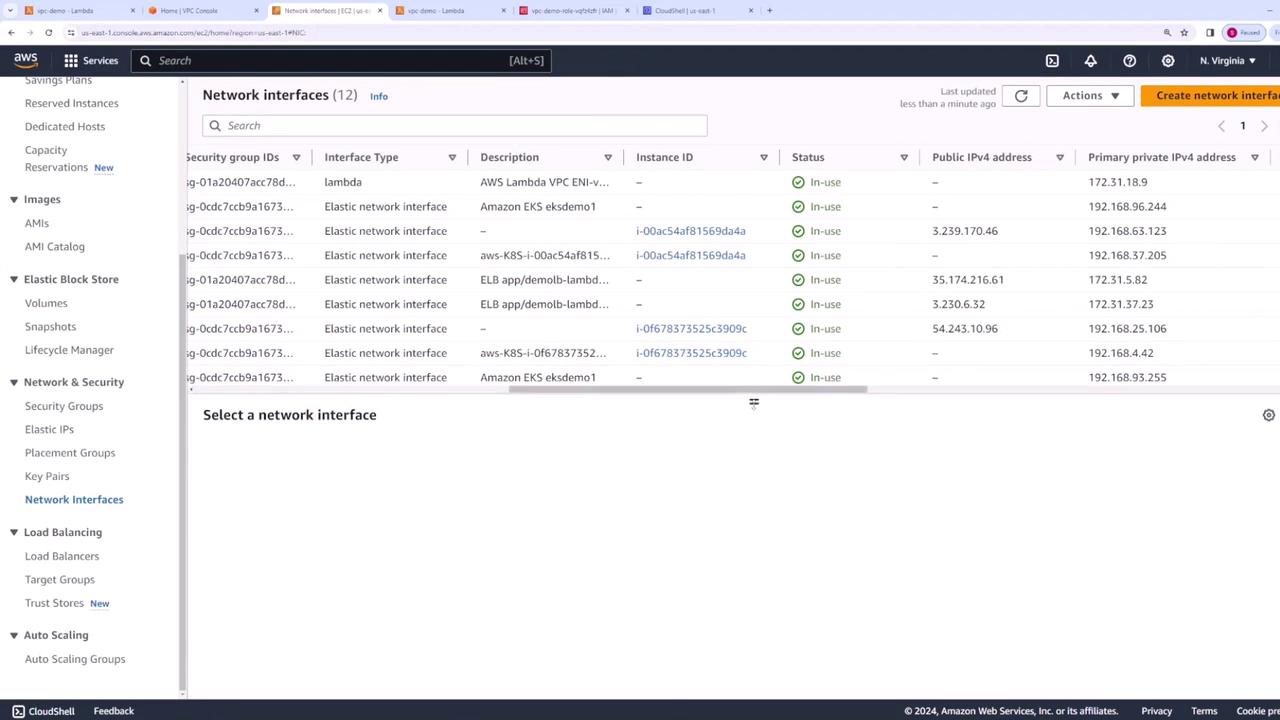

To ensure that your Lambda function is successfully connected to the VPC, run a test to confirm that your code executes as expected. Then, proceed to the EC2 console and inspect the network interfaces. You should observe one or more network interfaces associated with your Lambda function in the default VPC.

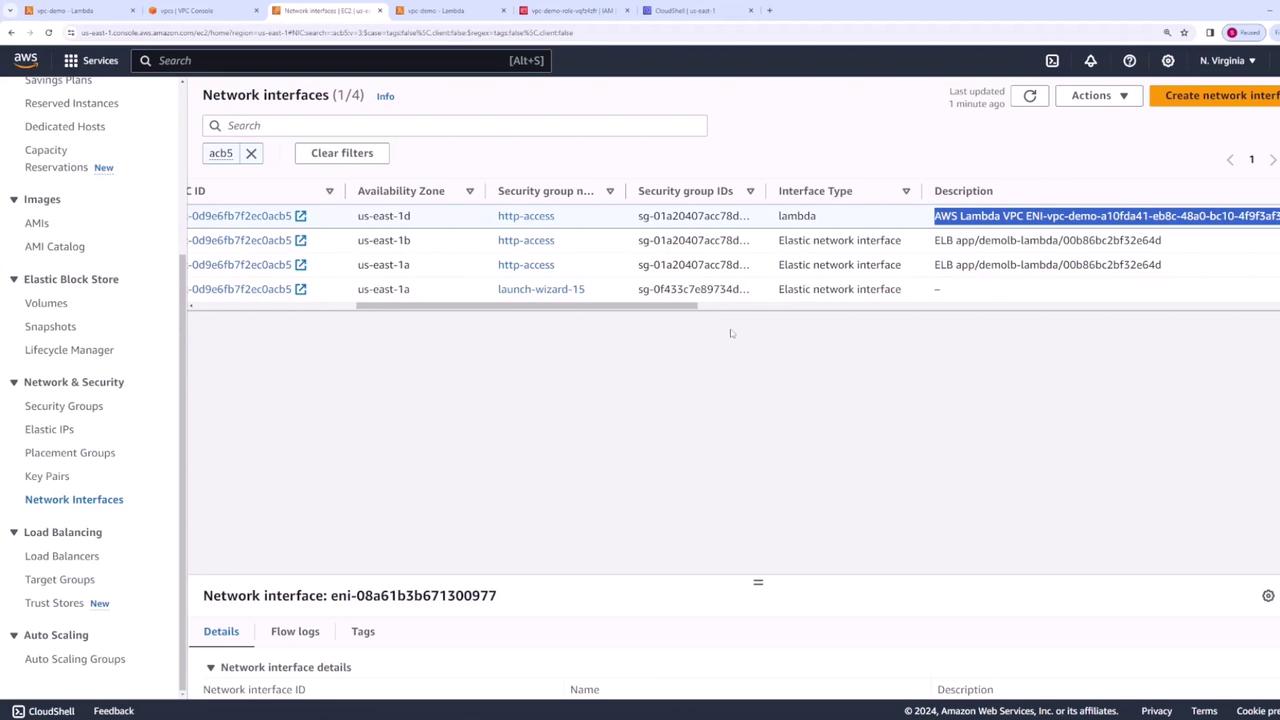

For a refined view, filter by the default VPC to display only the relevant network interfaces created for your Lambda function along with their configuration details.

Once the network interfaces are in place, your Lambda function can securely communicate with resources located within the VPC.

This concludes our lesson on configuring an AWS Lambda function to run within a VPC. With proper VPC settings and updated execution role permissions, your Lambda function can reliably access internal AWS resources.
