API Management Policies

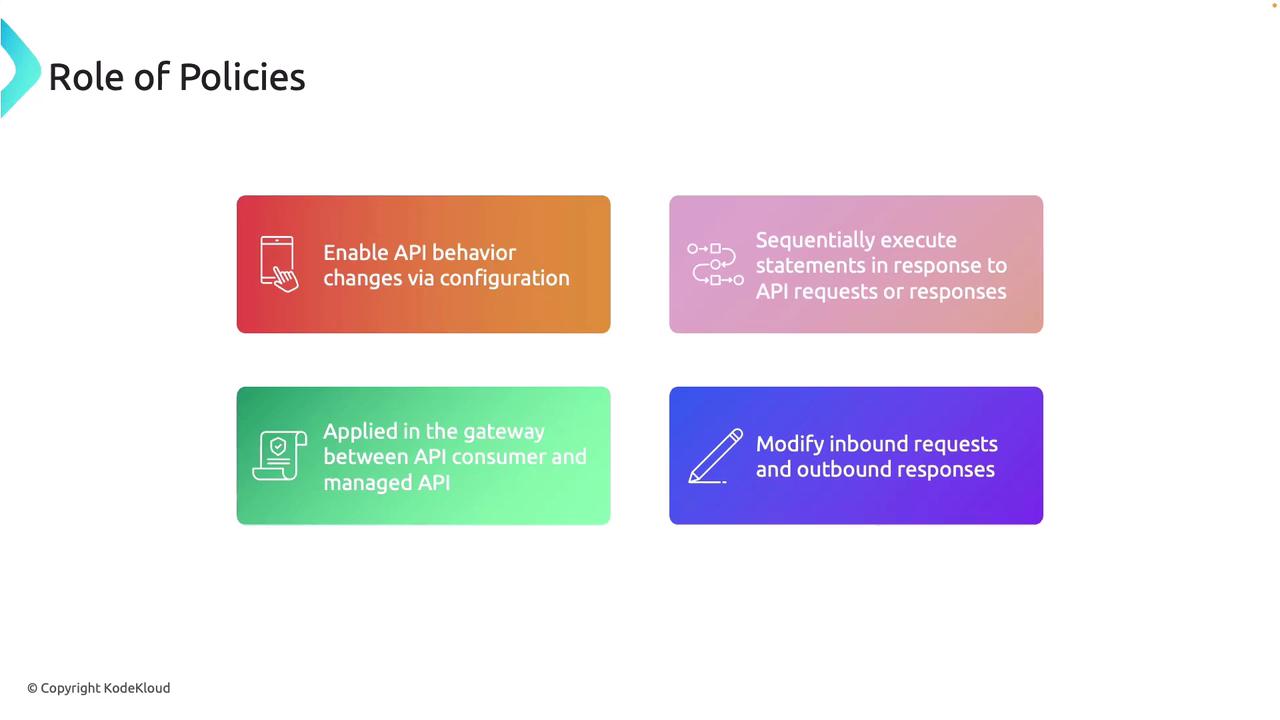

API Management policies empower you to dynamically change the behavior of your APIs at runtime without modifying the underlying code. In this guide, we will explore the role of these policies in controlling request and response flows, enabling quick adaptations for security, data modification, and error handling.

Policies execute sequentially as an API processes requests and responses. They are applied at the API Management level to control the flow of traffic between consumers and backend services, ensuring efficient customization and robust response handling.

Overview of Policy Segments

Policies are expressed in XML and structured to manage various scenarios through four primary segments:

• Inbound: Handles rules for processing incoming requests.
• Backend: Applies policies before forwarding the request to the backend service.
• Outbound: Modifies the outgoing response.
• Error: Contains steps to execute if an error occurs (defined in the <on-error> block).

If an error occurs during processing, the system halts the standard flow and triggers the instructions specified in the error block.

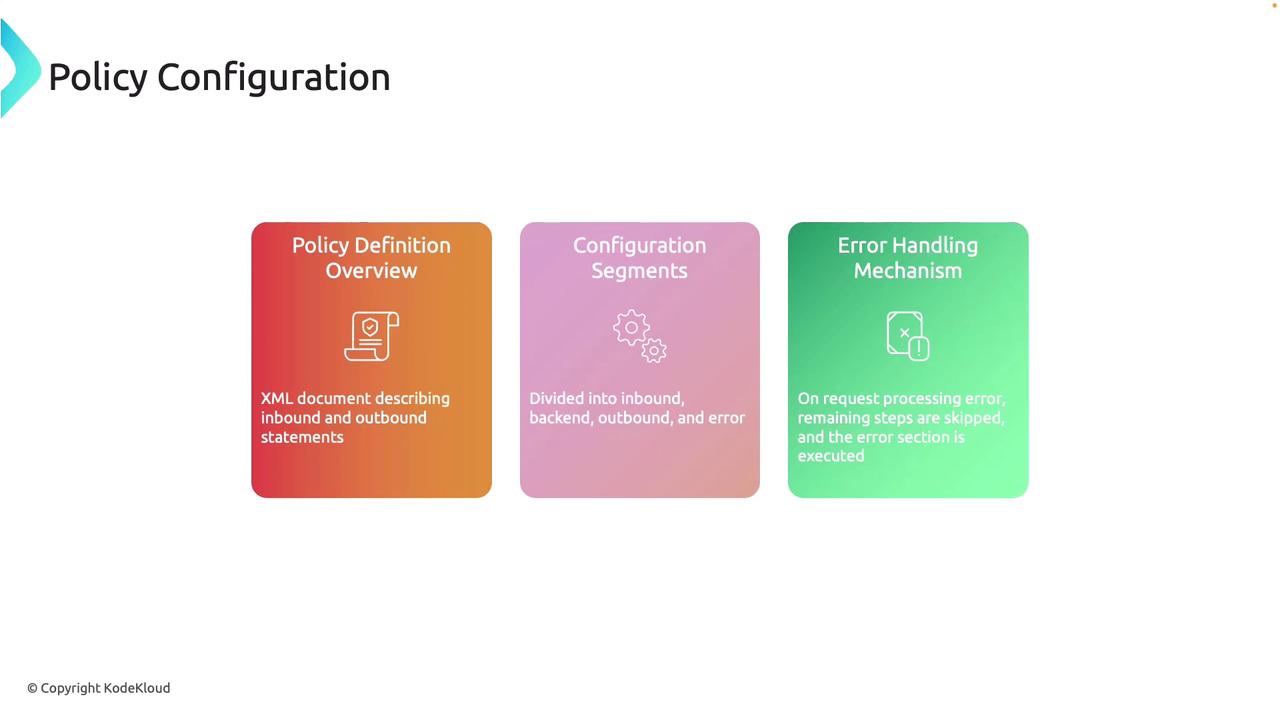

Policy Configuration Diagram

The diagram below presents the key components of policy configuration in API Management:

Basic Policy Structure

Below is an example of a fundamental policy structure outlining the different processing segments:

<policies>
  <inbound>
    <!-- statements to be applied to the request go here -->
  </inbound>
  <backend>
    <!-- statements to be applied before the request is forwarded to the backend service go here -->
  </backend>
  <outbound>
    <!-- statements to be applied to the response go here -->
  </outbound>
  <on-error>
    <!-- statements to be applied if there is an error condition go here -->
  </on-error>
</policies>

For example, consider a simple find-and-replace policy implemented in the inbound section. This policy modifies the incoming request by replacing a specific string value:

<policies>
  <inbound>
    <cross-domain />
    <base />
    <find-and-replace from="xyz" to="abc" />
  </inbound>
</policies>

This XML configuration demonstrates how API Management gives you granular control over API behaviors. This design supports improved security, performance, and flexibility without changing the backend code.

Real-World Scenario: Employee API

Let's examine how policies are applied in a real-world scenario through the Azure Portal. Consider an API Management instance with multiple backend services, such as the Employee API and the Flight Logs API. The following inbound policy example shows how the Employee API routes requests to a specific backend service:

<policies>
  <inbound>
    <base />
    <set-backend-service id="apim-generated-policy" backend-id="WebApp.employedetailsaz204" />
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>

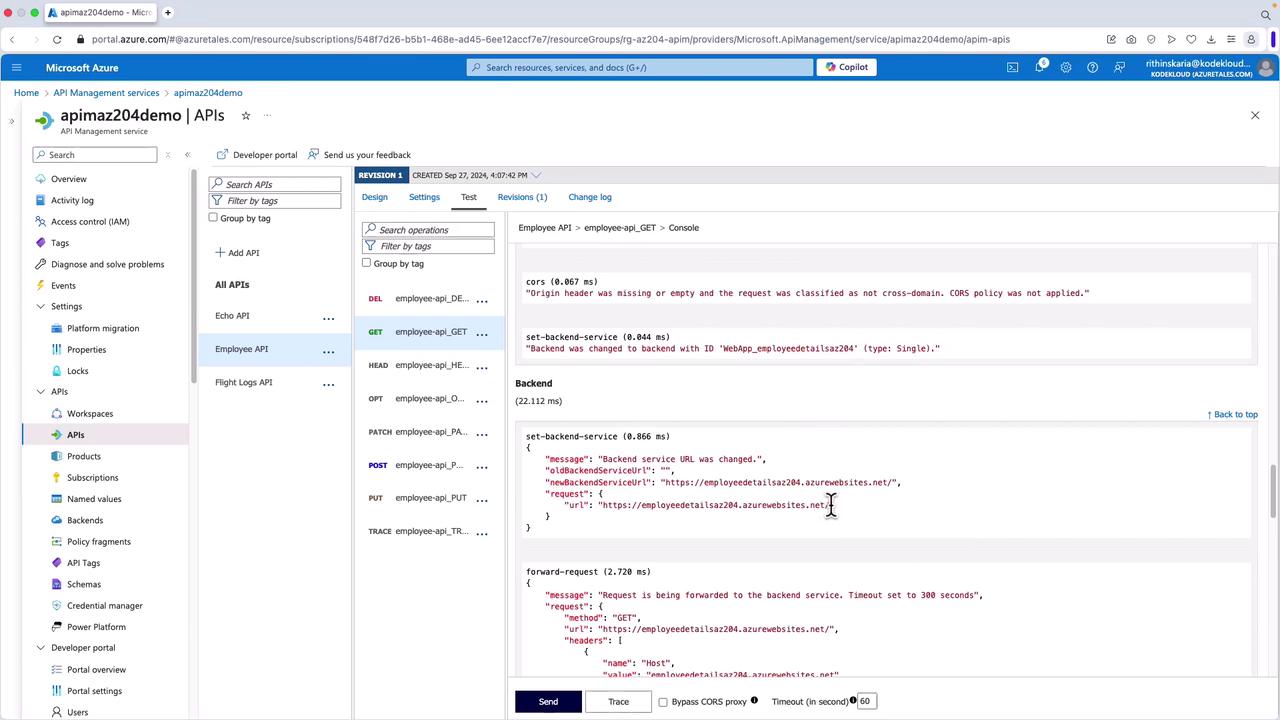

When testing the Employee API via the test tab in the Azure Portal, you might execute a GET request like this:

GET https://apimaz204edemo.azure-api.net/api/employee/ HTTP/1.1

Resulting in an error response similar to:

HTTP/1.1 404 Not Found
content-length: 0
date: Fri, 27 Sep 2024 13:10:36 GMT
vary: Origin
x-powered-by: ASP.NET

The error can occur if the inbound policy, such as URI rewriting, is missing or misconfigured. The backend service URL might not match the intended API path.

To address this issue, advanced policies like URI rewriting can be applied. A rewrite URI policy updates the request URL to match the correct backend endpoint. Here is the policy syntax:

<rewrite-uri template="uri template" copy-unmatched-params="true | false" />

This policy allows you to dynamically modify request paths. For example, if you need to ensure that the request includes "/api/employee", you can adjust the URI accordingly.

Advanced Policy Examples

The following example demonstrates a more complex policy with URI rewriting to include multiple parameters:

<policies>
  <inbound>
    <base />
    <rewrite-uri template="/V2/US/hardware/{storenumber}?{ordernumber}?City={city}&State={state}" />
  </inbound>
  <outbound>
    <base />
  </outbound>
</policies>

Another example shows how an incoming request path can be rewritten to target a different operation:

<!-- Assuming incoming request is /get?a=b&c=d and the operation template is set to /get?a={b} -->
<policies>
  <inbound>
    <rewrite-uri template="/put" />
  </inbound>
  <outbound>
    <base />
  </outbound>
</policies>

Conclusion

API Management policies crafted through XML provide a robust mechanism to control API behavior effectively. They allow you to implement security protocols, modify requests and responses dynamically, and gracefully handle errors—all while keeping the backend code intact. By leveraging these policies, organizations can ensure efficient API management, smoother scaling, and enhanced user experiences.
