Microsoft Authentication Library MSAL

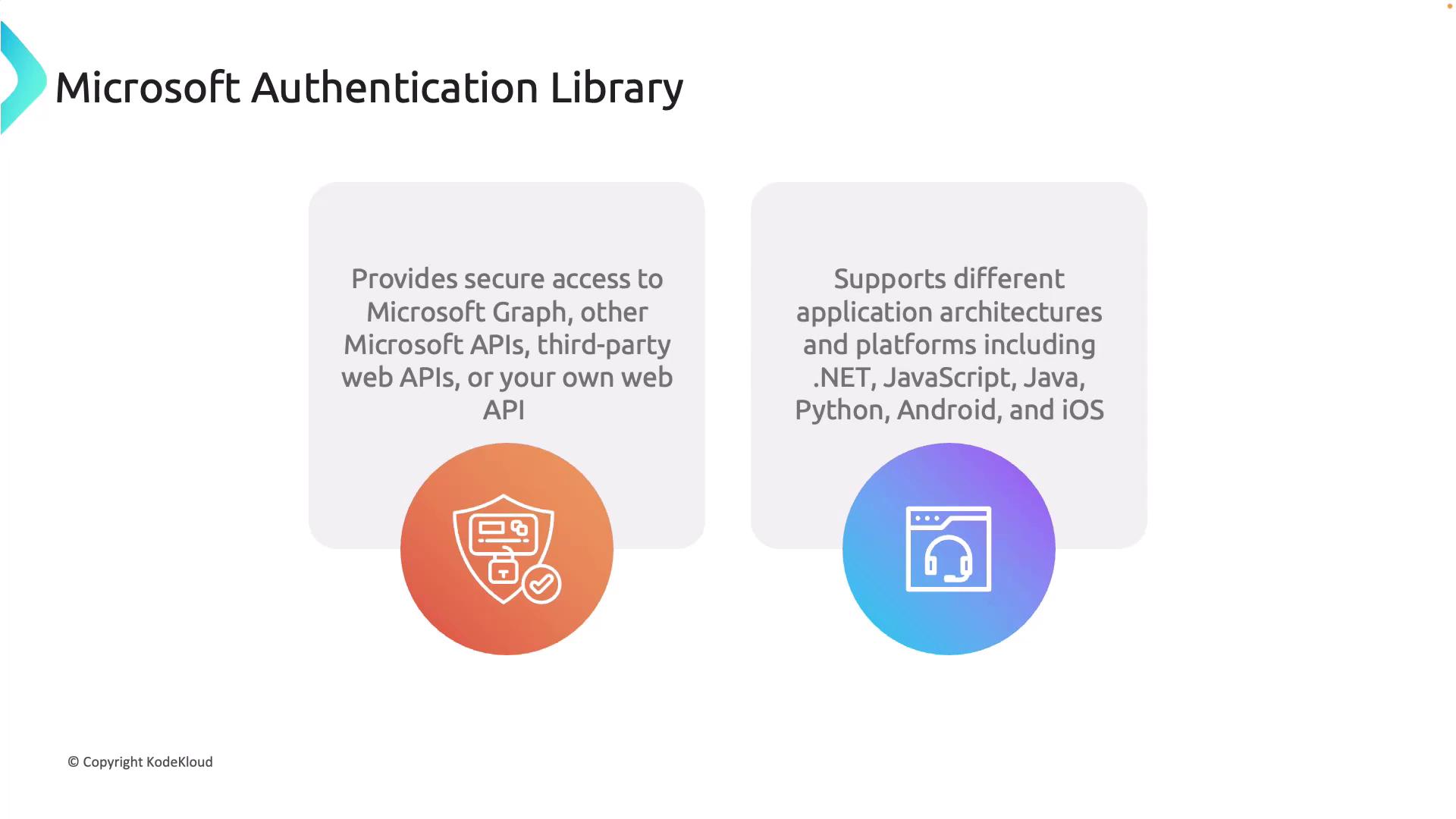

The Microsoft Authentication Library (MSAL) is a comprehensive framework that delivers secure access to Microsoft services. It enables applications to authenticate users seamlessly across multiple environments, ensuring robust security for APIs regardless of where they are hosted. MSAL supports an extensive range of application architectures and platforms, making it a versatile choice for modern software development.

Whether you’re developing for .NET, JavaScript, Java, Python, Android, or iOS, MSAL's flexibility makes it a widely adopted solution in today’s application development landscape.

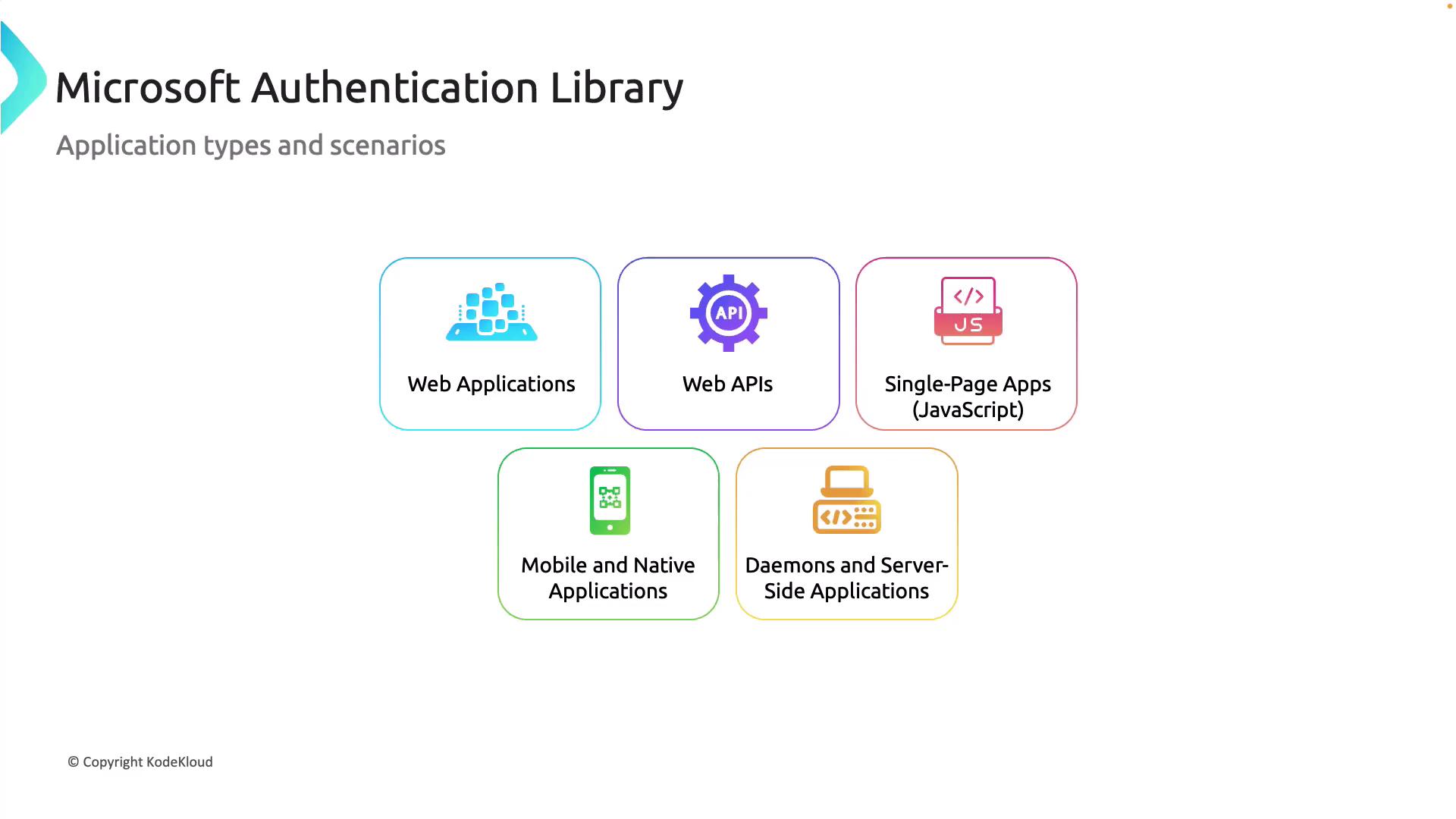

Application Types and Scenarios

MSAL is designed to meet various authentication needs in diverse scenarios, including:

• Web Applications: Secure authentication for standard web-based applications.
• Web APIs: Token-based access control to secure and authorize API requests.
• Single-Page Applications (SPAs): Modern JavaScript frameworks can efficiently handle authentication flows managed by MSAL.
• Mobile and Native Applications: Ensures secure and seamless user authentication on iOS and Android platforms.
• Daemons or Server-Side Applications:

  For backend processes where user interaction is not possible, MSAL supports robust, token-based authentication for server-side applications and daemons.

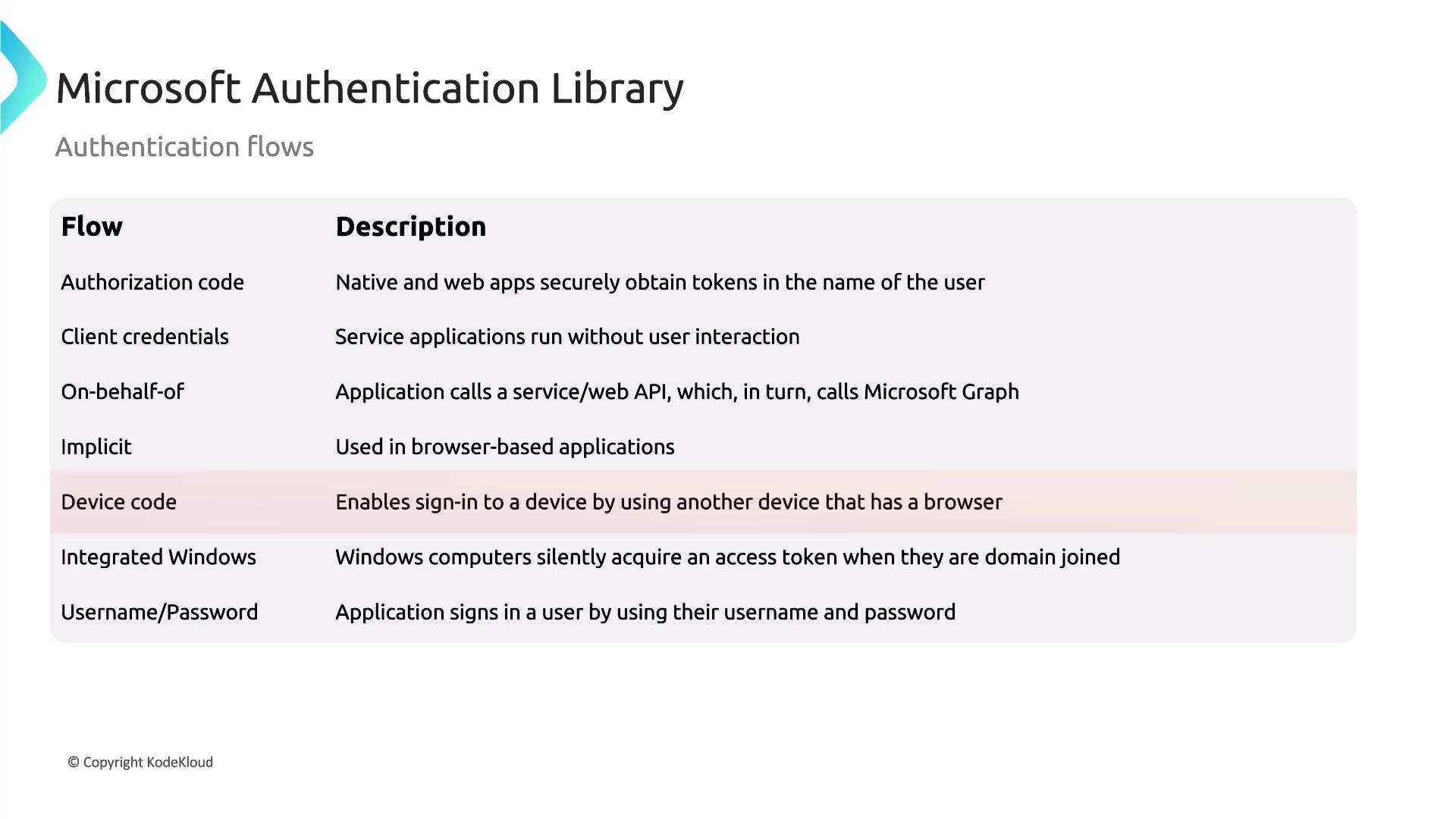

Authentication Flows

MSAL supports multiple secure authentication flows designed to accommodate a variety of application needs and operating environments.

1. Authorization Code Flow

This is the most commonly used flow for both native and web applications. In this flow, applications redirect users to a login page. Once the user logs in, MSAL retrieves an authorization code, which is then exchanged for an access token. For example, when a user logs into applications such as Microsoft Teams or Outlook, tokens are securely acquired using this method.

2. Client Credentials Flow

Ideal for service or daemon applications that run without user interaction, the client credentials flow allows an application to authenticate using a client ID paired with a client secret or certificate. For instance, an application accessing Azure Key Vault to retrieve secrets would leverage this approach.

3. On-Behalf-Of (OBO) Flow

The on-behalf-of flow enables an application to access another service on behalf of a signed-in user. This is particularly useful when one API needs to call Microsoft Graph on behalf of a user—such as fetching emails from Outlook or querying user data—with the user’s identity.

4. Implicit Flow

Designed for single-page applications, the implicit flow retrieves tokens immediately without intermediary server involvement. However, due to enhanced security concerns, modern applications typically favor the authorization code flow with Proof Key for Code Exchange (PKCE).

5. Device Code Flow

This flow is tailored for devices with limited input capabilities, such as IoT devices or smart TVs. With device code flow, users are required to visit a URL and enter a unique code to authenticate. This method is commonly utilized in scenarios like signing in on a Microsoft Xbox, where the code is provided via a terminal command (e.g., from azcopy).

6. Integrated Windows Flow

Suited for organizations leveraging Windows Active Directory or Azure AD (Microsoft Entra ID), the integrated Windows flow enables domain-joined devices to automatically authenticate without prompting for credentials. For example, users on Windows machines connected to a corporate network can access work applications seamlessly.

7. Username/Password Flow

This flow directly collects a user's credentials and exchanges them for tokens. Although it is the simplest method, it poses significant security risks, such as the potential for compromised passwords. Modern applications are encouraged to transition to more secure authentication methods.

Conclusion

This article has provided an overview of Microsoft Authentication Library (MSAL), emphasizing its extensive support for multiple application types and various secure authentication flows. In the next segment, we will demonstrate how to initialize client applications using the Azure CLI and generate tokens with the .NET SDK, further illustrating these concepts.

Happy coding!
