Regions and Availability Zones

Bella Innovation is expanding its global footprint by deploying applications closer to its users. This strategy not only boosts performance and user experience but also ensures compliance with data residency requirements. While the company's main office is in London, soon customers in Singapore, Melbourne, Chicago, Dubai, and other major cities will benefit from reduced latency through Azure Regions.

Azure Regions empower Bella Innovation to deploy applications in multiple strategic locations without the need to invest in local data centers. By leveraging regional clusters, applications can be managed centrally from locations like London while still providing a local feel to the end user.

Understanding Azure Regions

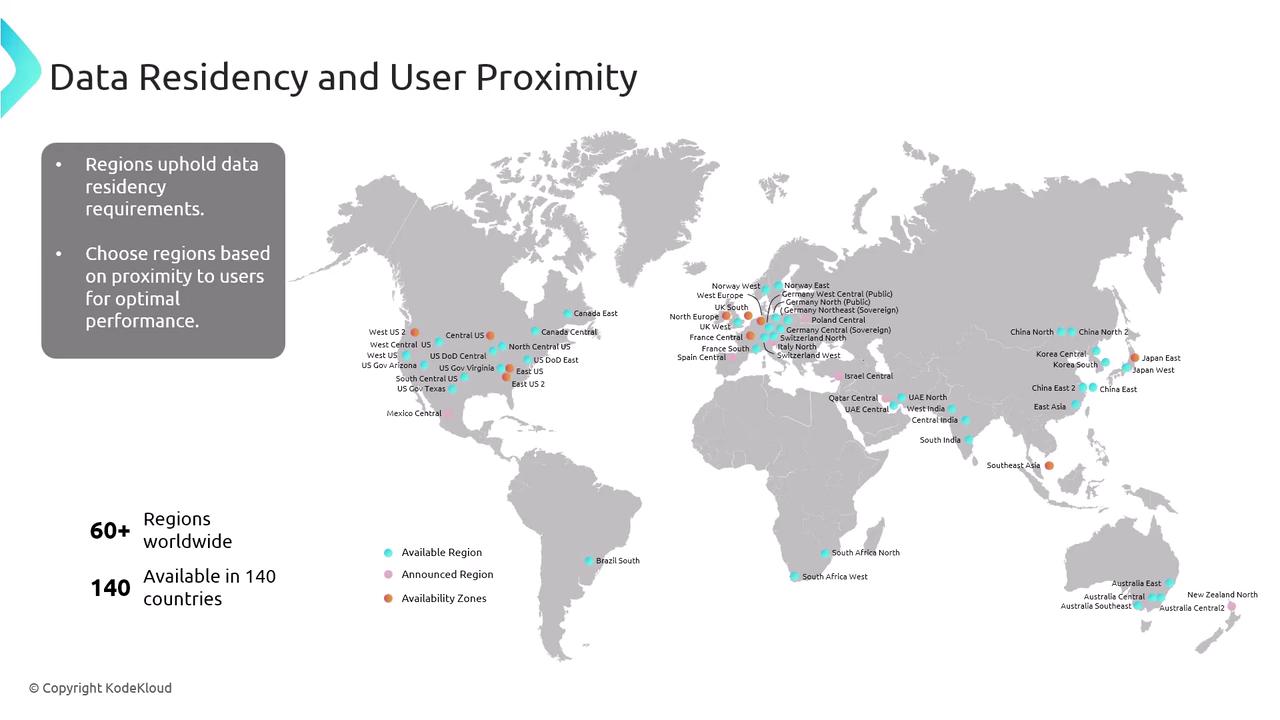

Azure Global Infrastructure is organized into regions—clusters of data centers interconnected via a dedicated, low-latency network. This design delivers high scalability, exceptional flexibility, and robust disaster recovery options. With over 60 regions across more than 140 countries (and growing annually), Microsoft ensures compliance with local data residency laws by enabling users to choose regions close to their customers.

For instance, regulatory restrictions may require a military organization in Australia to store confidential data locally. Instead of using regions in China or Singapore, they can select from Australian data centers like Australia East, Australia Central, or Southeast, thereby ensuring sensitive data remains within national boundaries.

Optimizing region selection is critical. For example, users in India experience lower latency and enhanced performance when connected to servers in South, Central, or West India instead of those in the United States. Always verify the availability of specific Azure services in your chosen region, as some offerings might be region-specific.

Availability Zones

Moving beyond regions, Availability Zones are a key aspect of Azure’s architecture, offering enhanced resilience and high availability within each region. Their benefits include:

• Mitigating Downtime Risks: Zones act as independent pillars ensuring applications remain operational during disruptions.
• Physical Separation: Each zone is an independent data center equipped with separate power, cooling, and networking systems. This design ensures that if one zone is affected by a power outage or equipment failure, the others continue functioning seamlessly.
• Robust Connectivity: A private fiber-optic network ensures low latency and high-speed communication between zones, further enhancing system reliability.

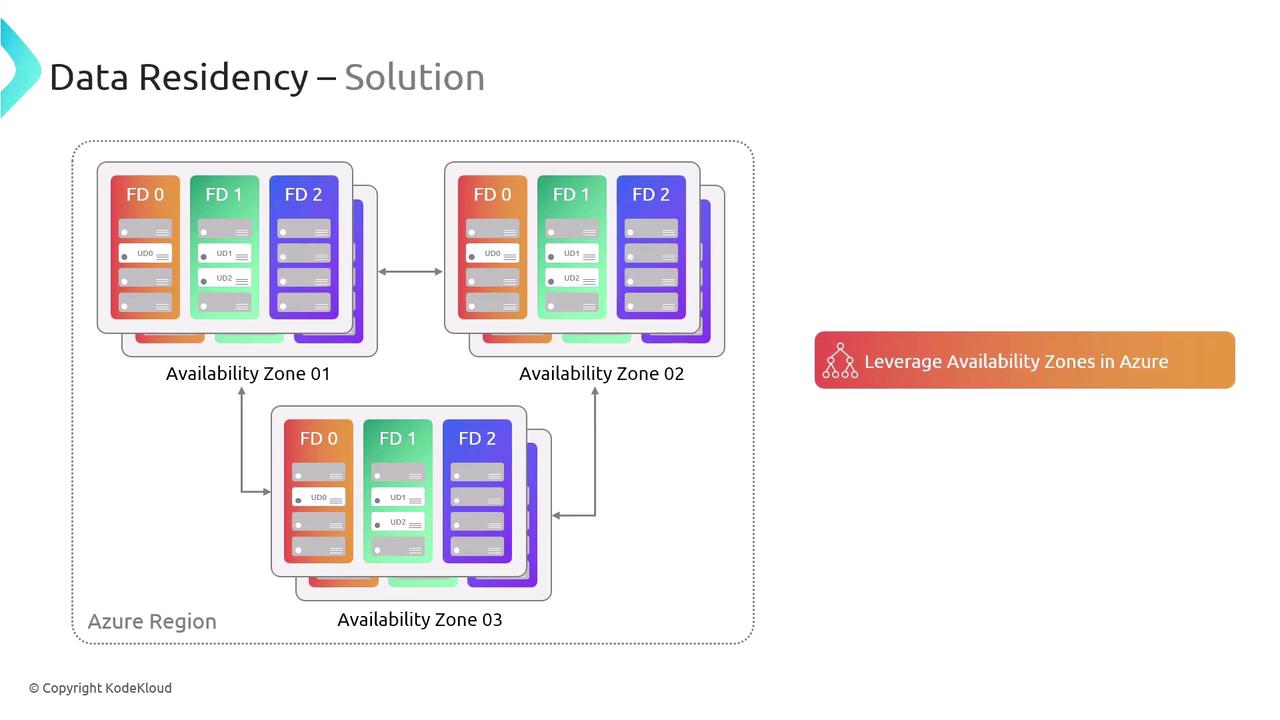

Consider the diagram below, which illustrates a data residency solution utilizing Azure Availability Zones:

By incorporating Availability Zones into its strategy, Bella Innovation can guarantee continuous service availability, even during localized disruptions.

Disaster Recovery and Azure Regional Pairs

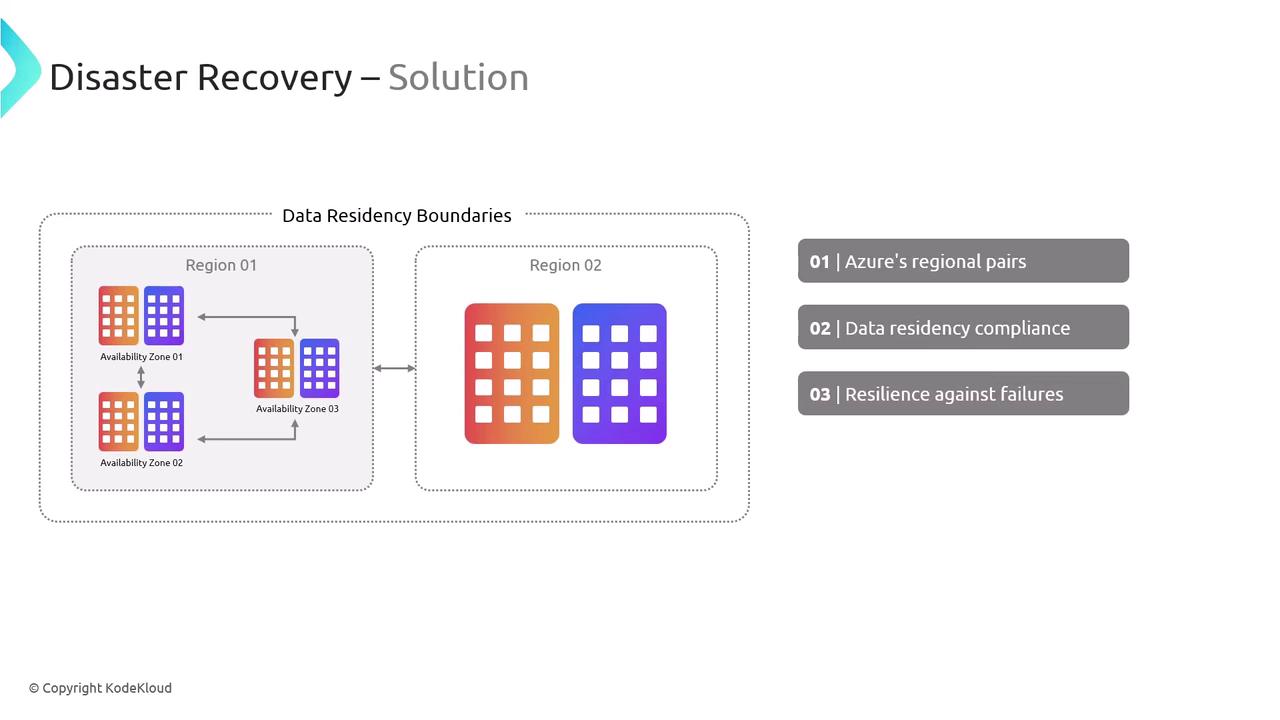

While Availability Zones address intra-region outages, Azure Regional Pairs offer a broader disaster recovery solution for scenarios where an entire region may be affected by disasters.

For example, Bella Innovation needs to manage critical user data that must remain within the Singapore region due to strict residency rules. Azure Regional Pairs allow for efficient disaster recovery by designating a partner region as a backup. This pairing ensures that if one region goes down, the other can sustain operations without breaching data residency requirements.

Key benefits of Azure Regional Pairs include:

• Data Residency Compliance: Paired regions help maintain adherence to local data laws.
• Geographical Separation: Each pair is located at least 300 miles apart, reducing simultaneous disruption risks.
• Automated Replication: Services like geo-redundant storage replicate data automatically across paired regions.
• Prioritized Recovery: Recovery efforts are focused to minimize downtime in the event of a widespread outage.
• Sequential Updates: Azure services receive updates in sequence across paired regions, preventing concurrent disruptions.

Sovereign Regulations and Azure Sovereign Regions

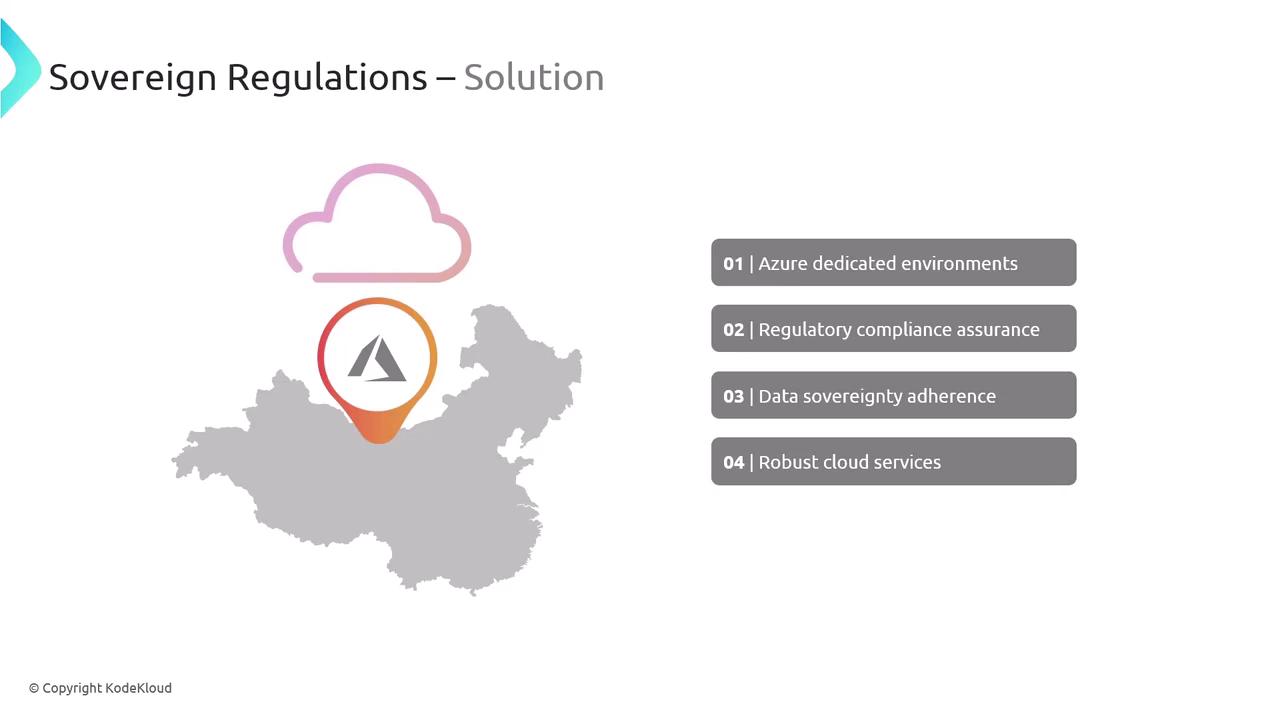

As Bella Innovation expands into regions with stringent regulatory constraints, such as China, Azure sovereign cloud solutions become indispensable. These sovereign regions are designed to meet strict security, compliance, and privacy standards.

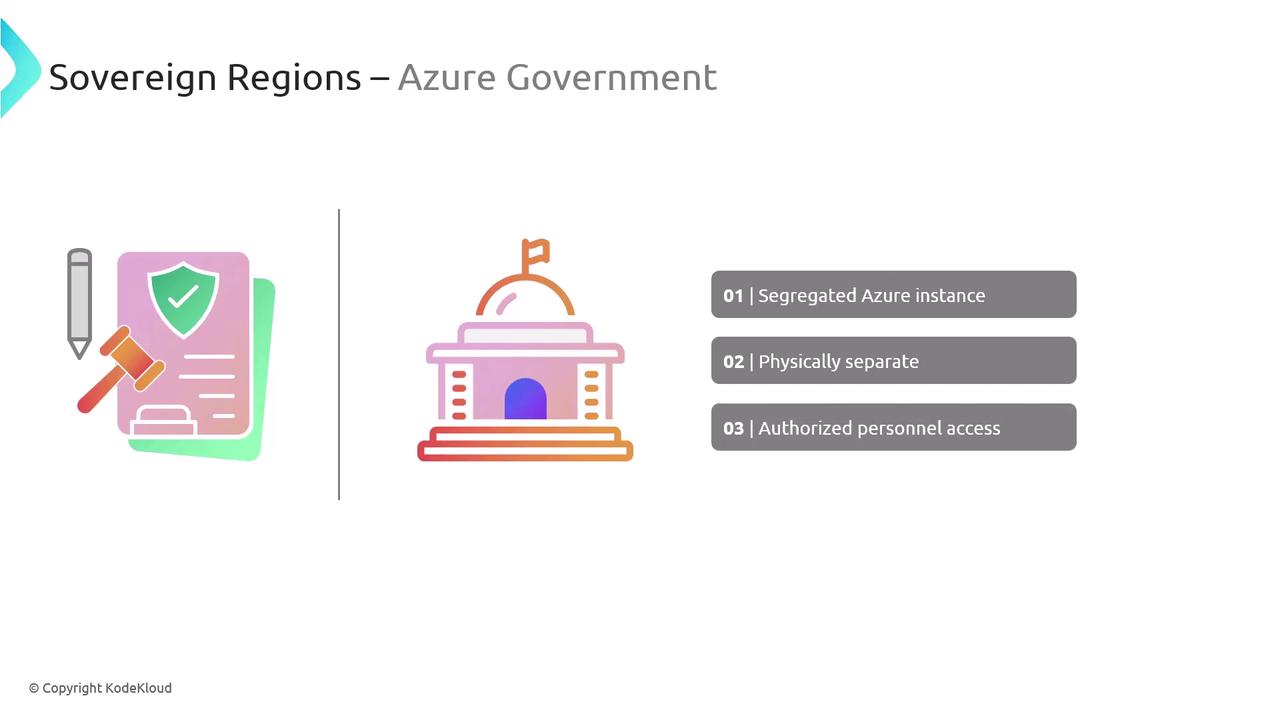

Azure Government

• Purpose: Tailored for US federal government entities, ensuring enhanced security.
• Features: Provides physical and logical isolation from non-governmental deployments for increased protection.

Azure China

• Purpose: Offers a fully independent instance of Azure through a partnership with 21VNET.
• Data Residency: Guarantees that all data remains within China’s borders to comply with local regulations.

These sovereign cloud solutions ensure that Bella Innovation can navigate local regulatory landscapes while harnessing the power of Azure cloud services.

Exploring the Global Infrastructure

To gain deeper insights into Azure's expansive network, explore the Global Infrastructure Experience. This interactive digital globe showcases Azure data center locations, connectivity details, and regional configurations such as availability zones, compliance standards, disaster recovery setups, and regional pairings.

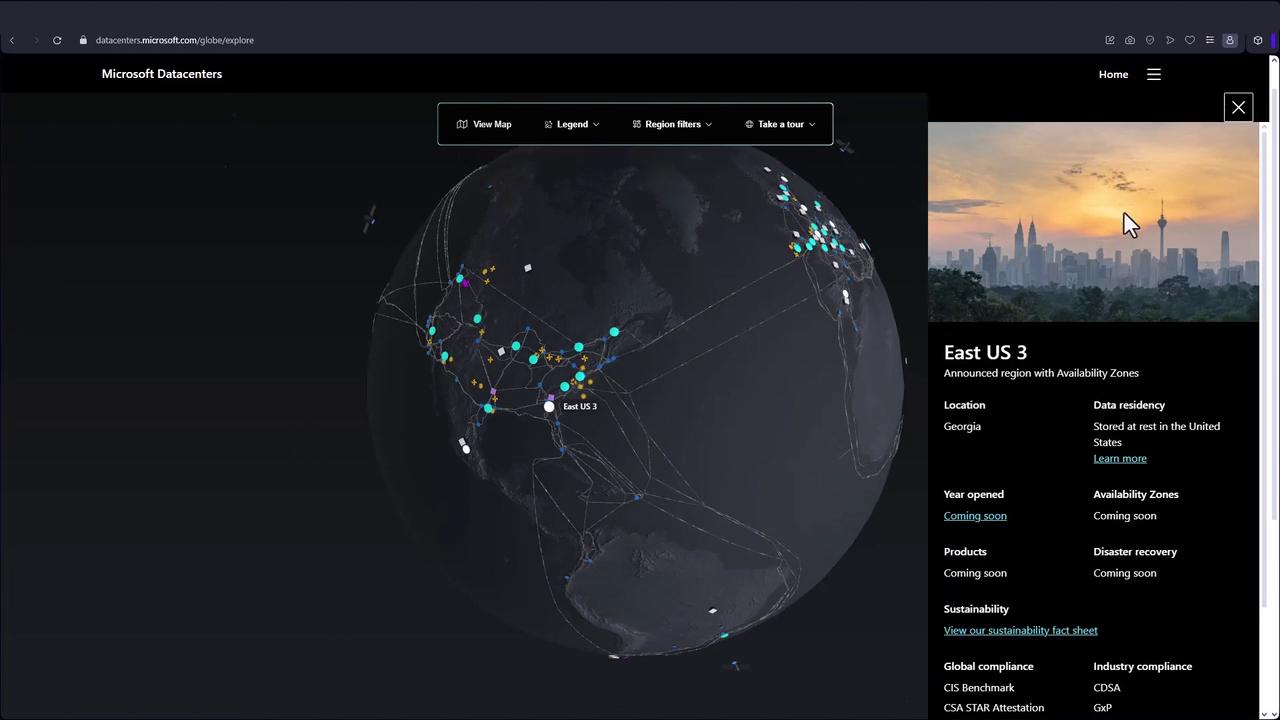

For example, selecting the "East US 3" region reveals details about its location, the configuration of availability zones, and compliance information:

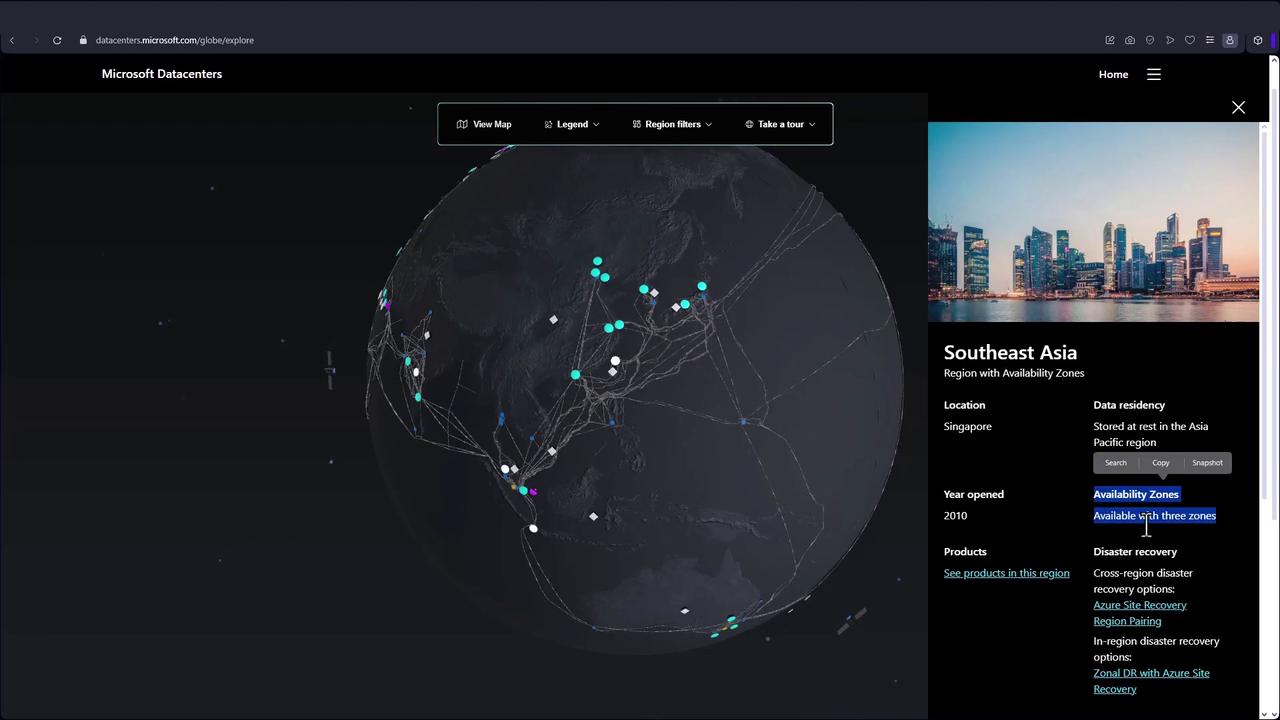

Similarly, you can explore Southeast Asia's data center region in Singapore, which serves as a practical example for Bella Innovation's deployment strategy:

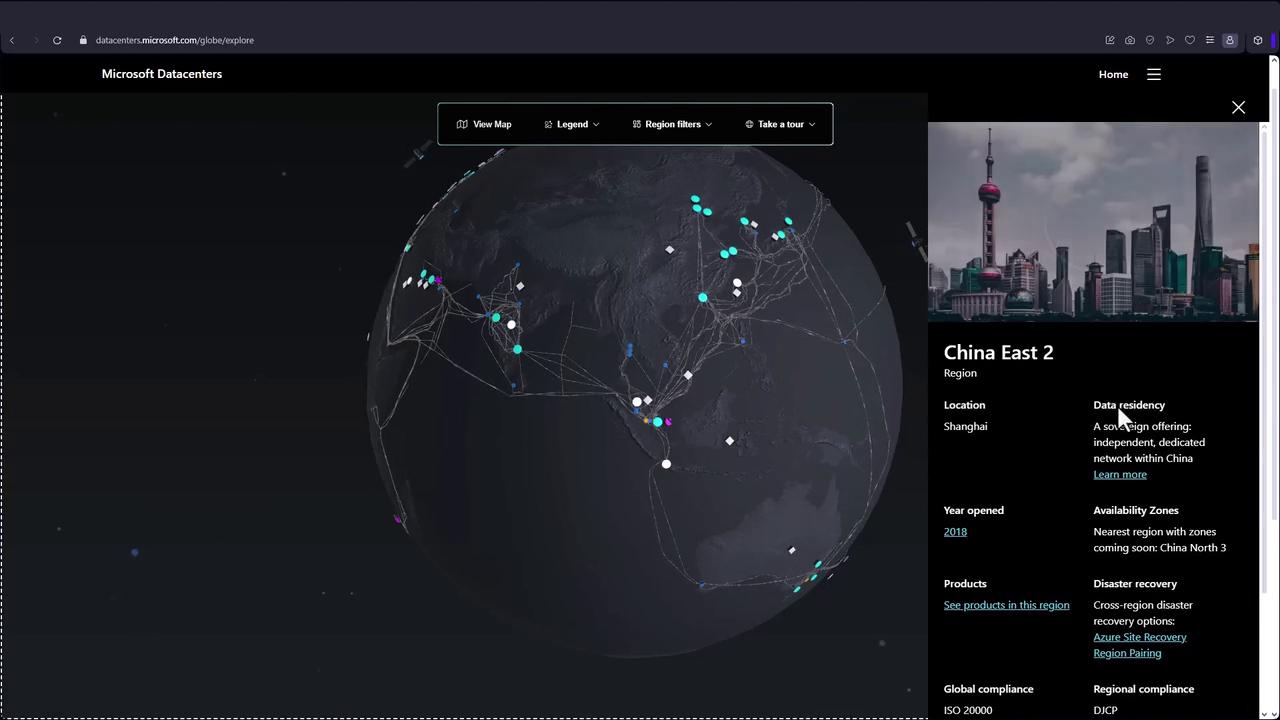

Additionally, review data about sovereign cloud regions such as China East 2 to understand how regional offerings vary based on local requirements:

This interactive view not only reveals regional locations but also provides insights into connectivity, points of presence, and sustainability projects, demonstrating how the Azure Global Infrastructure is aligned for optimal connectivity and high availability.

Conclusion

This article explored critical Azure concepts including Regions, Availability Zones, and Regional Pairs, as well as sovereign cloud solutions for regulatory compliance. By strategically leveraging these components, Bella Innovation can achieve high performance, maintain data residency compliance, ensure robust disaster recovery, and secure operational resilience in the Azure cloud.

Happy learning!
