Demo Access EC2 Instance web console SSH Key

In this tutorial, you’ll learn multiple ways to connect to your Amazon EC2 instance—from the AWS Management Console and directly from your terminal using an SSH key pair.

Connection Methods Overview

Method	Use Case	Requirements
EC2 Instance Connect	Browser-based SSH via public or private IP	IAM permissions, Instance Connect enabled
Session Manager	SSH-less console access without open inbound ports	SSM Agent installed, IAM role with SSM perms
SSH Client (Key Pair)	CLI-based SSH from local machine	`.pem` key file, SSH client
EC2 Serial Console	Low-level troubleshooting (console, BIOS, boot issues)	Explicit IAM permission, Nitro-based instances

1. Select Your EC2 Instance

Open the AWS Management Console and navigate to EC2 > Instances.
Select your running instance (e.g., “demo”).
Click the Connect button in the top right.

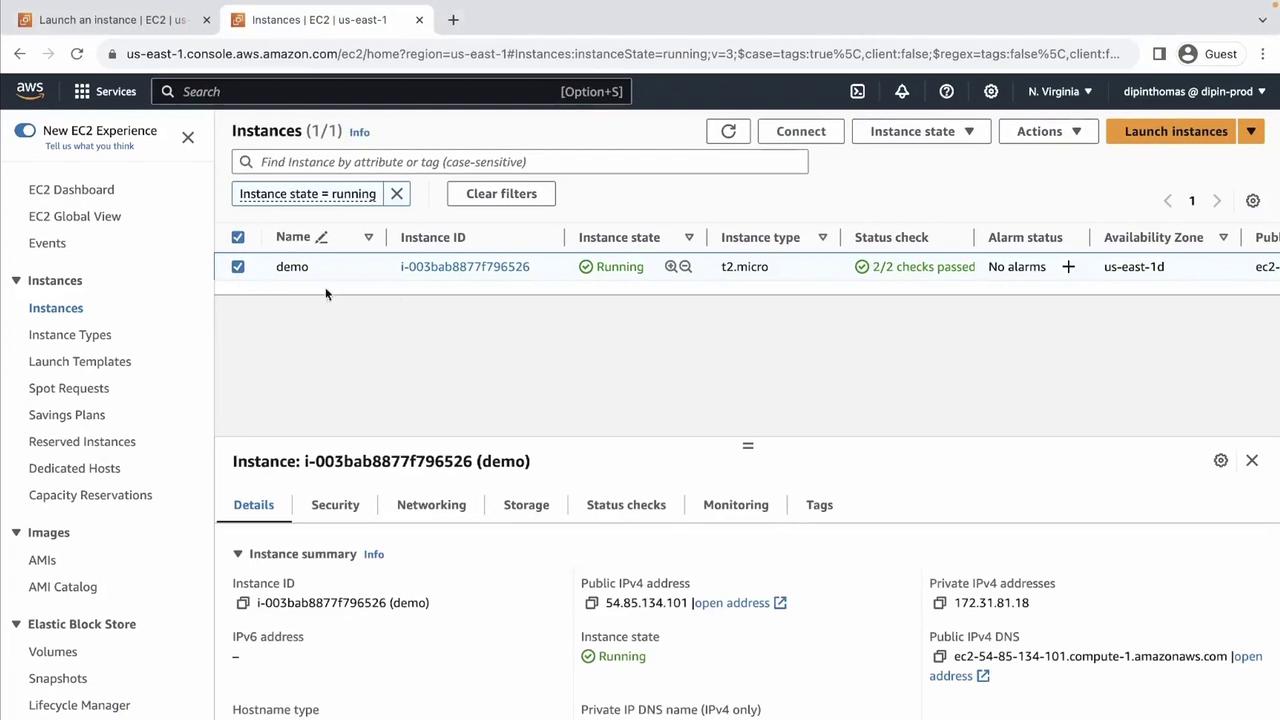

The image shows an AWS EC2 management console with a running instance named "demo," displaying details like instance ID, type, and IP addresses.

You’ll now see all available connection options.

2. EC2 Instance Connect (Browser SSH)

EC2 Instance Connect provides a quick, browser-based SSH session—no local keys required.

In the Connect dialog, choose EC2 Instance Connect.
Confirm the Username (default is ec2-user on Amazon Linux).
Click Connect.

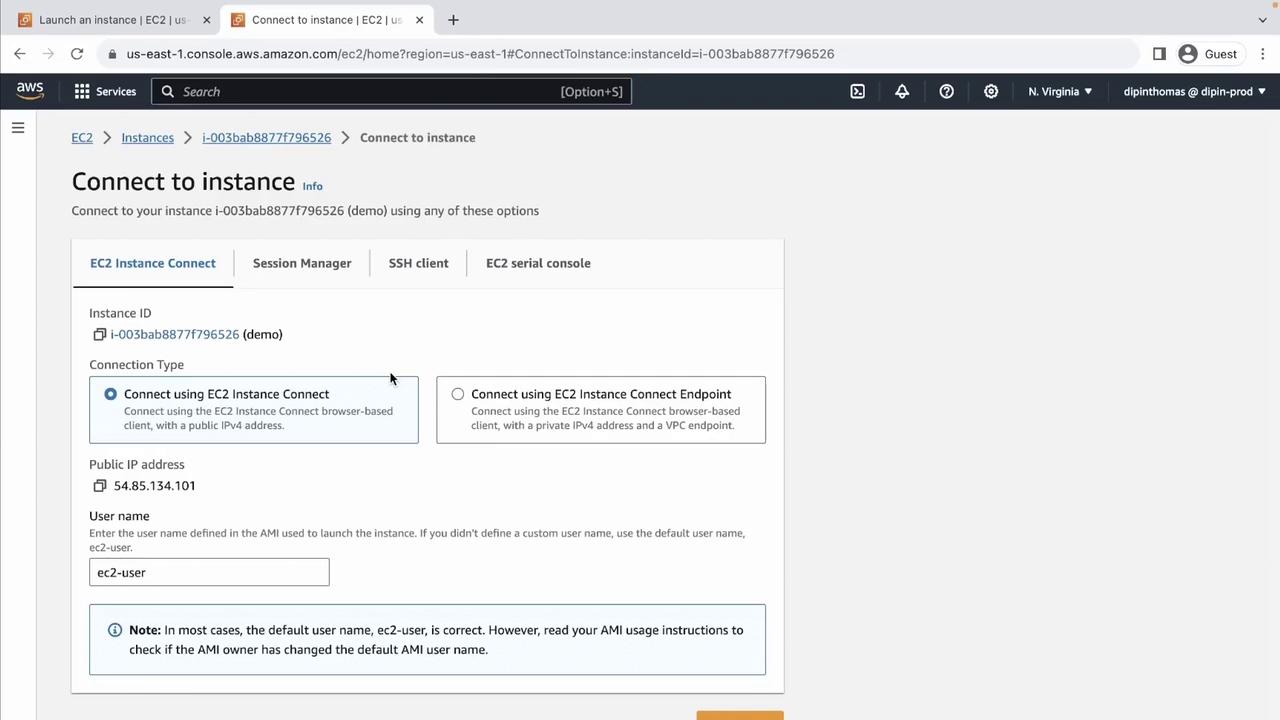

The image shows an AWS EC2 console interface for connecting to an instance, with options for connection type and details like instance ID and public IP address.

A new tab opens with your SSH shell. Verify connectivity:

[ec2-user@ip-172-31-81-18 ~]$ ping -c 4 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=53 time=1.05 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=53 time=1.07 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=53 time=1.09 ms

--- 8.8.8.8 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2003ms

To disconnect, simply close the browser tab.

3. EC2 Instance Connect (Private IP)

If your instance lacks a public IP but sits in a network-accessible subnet (VPN, Direct Connect), you can still launch EC2 Instance Connect over its private IP:

Select Connect over private IP in the same dialog.

Note

You must be within the same VPC (or have network routing configured) for private IP SSH sessions.

4. AWS Systems Manager Session Manager

Session Manager lets you establish a shell session without SSH keys or opening inbound ports.

Note

Ensure your instance has:

The SSM Agent installed
An IAM role attached with AmazonSSMManagedInstanceCore policy

No additional network configuration is required. Just select Session Manager in the Connect dialog.

5. SSH Client Using a PEM Key Pair

To SSH from your workstation, use the .pem file downloaded when you launched the instance.

Set secure permissions on the key:
```
chmod 400 demo.pem
```
Connect via SSH:
```
ssh -i "demo.pem" [email protected]
```

Accept the fingerprint when prompted:

The authenticity of host 'ec2-54-85-134-101.compute-1.amazonaws.com (100.82.78.53)' can't be established.
ED25519 key fingerprint is SHA256:TTVrUr5IXAYZa2vFYtPx90hNGkphIpubYjaNHm9uYLs.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes

Test network connectivity:

[ec2-user@ip-172-31-81-18 ~]$ ping -c 4 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=53 time=1.01 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=53 time=1.07 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=53 time=1.09 ms

--- 8.8.8.8 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2002ms

Exit the session:
```
exit
```

6. EC2 Serial Console (Low-Level Access)

For troubleshooting boot or BIOS issues, use the EC2 Serial Console.

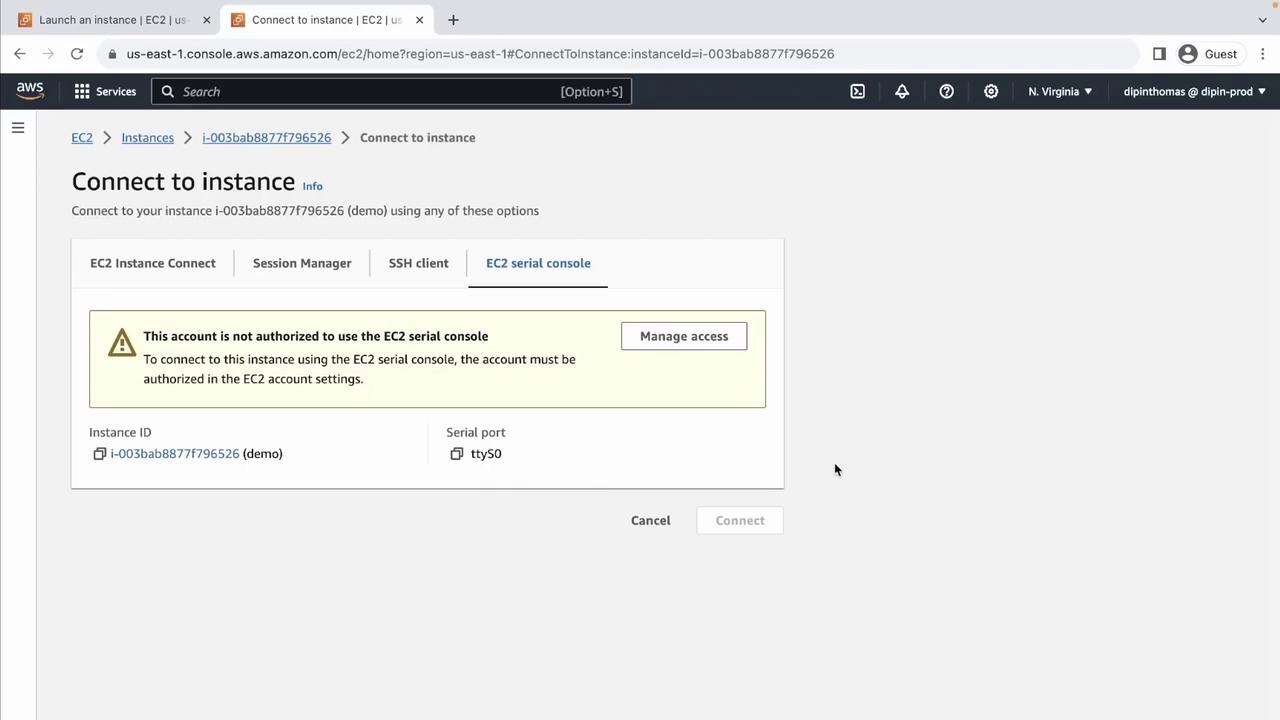

The image shows an AWS EC2 console screen with a message indicating that the account is not authorized to use the EC2 serial console. There are options for connecting to an instance using different methods.

Warning

Your IAM principal must have explicit permission (ec2-instance-connect:SendSerialConsoleSSHPublicKey) to use the EC2 Serial Console.
