Network Access Control Lists (Network ACLs or NACLs) are an essential network-layer security feature in Amazon VPCs. While Security Groups enforce host-level traffic rules, NACLs apply stateless, subnet-level filters. This makes them ideal for isolating resources—such as placing databases in a separate subnet and only allowing traffic from your application subnet.

Note

Network ACLs are stateless: you must explicitly configure both inbound and outbound rules to allow return traffic. In contrast, Security Groups are stateful and automatically permit responses.

Network ACLs consist of ordered rule entries that either allow or deny specific traffic. Rules are evaluated by ascending rule number, and processing stops when a match is found.

Field	Description
Rule Number	Integer from 1–32,766, determining evaluation order
Protocol	`TCP`, `UDP`, `ICMP` or `ALL`
Port Range	Single port or range (e.g., `80` or `1024–65535`)
CIDR Block	IPv4/IPv6 network (source for inbound, destination for outbound)
Action	`ALLOW` or `DENY`

Inbound vs. Outbound Rules

Inbound rules filter traffic entering the subnet.
Outbound rules filter traffic leaving the subnet.

Example: Allowing Ephemeral Port Traffic

In this scenario, an application subnet (10.10.1.0/24) must communicate with a database subnet. We allow TCP traffic on ephemeral ports (1024–65535) and deny all other traffic.

Inbound Rules

Rule #  Protocol  Port Range     Source CIDR        Action
100     TCP       1024–65535     10.10.1.0/24       ALLOW
*       ALL       ALL            0.0.0.0/0          DENY

Outbound Rules

Rule #  Protocol  Port Range     Destination CIDR   Action
100     TCP       1024–65535     10.10.1.0/24       ALLOW
*       ALL       ALL            0.0.0.0/0          DENY

Warning

Always include a catch-all DENY rule (*) to block unwanted traffic. Omitting it can leave your subnet exposed.

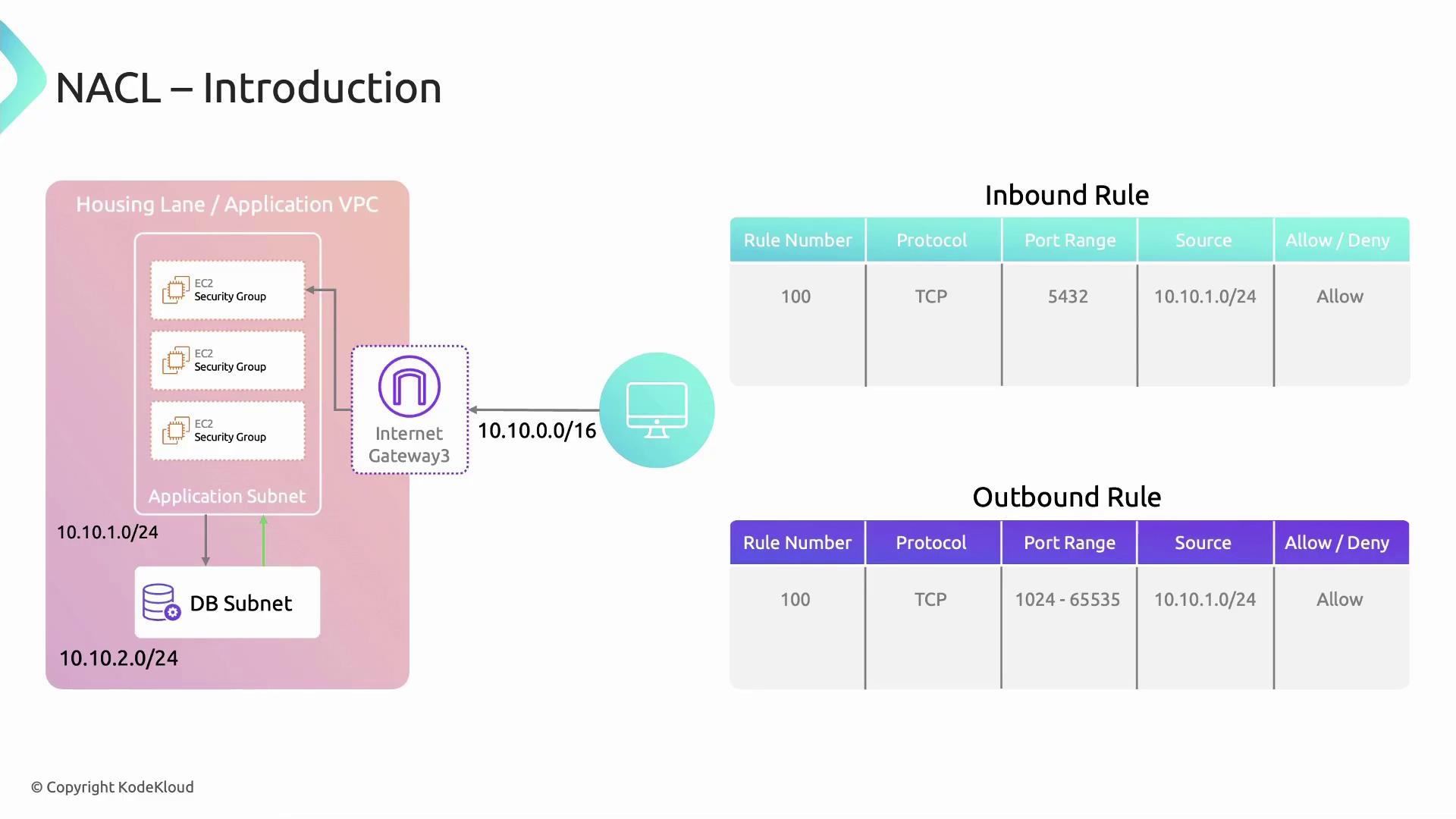

The image illustrates a network setup with a VPC containing EC2 security groups, an internet gateway, and subnets, alongside tables showing inbound and outbound NACL rules.

Combine Security Groups (stateful) and Network ACLs (stateless) for layered defense.
Use specific rule numbers to group similar rules.
Regularly audit NACL logs via VPC Flow Logs.
