Demo Presigned URLs

Pre-signed URLs are a powerful feature of Amazon S3 that allow you to grant time-limited access to private objects without changing your bucket’s ACL or policy. This walkthrough explains how to:

• Create an S3 bucket with secure default settings
• Upload and verify objects
• Generate pre-signed URLs via the AWS Management Console
• Demonstrate permission boundaries with a restricted IAM user

1. Create an S3 Bucket

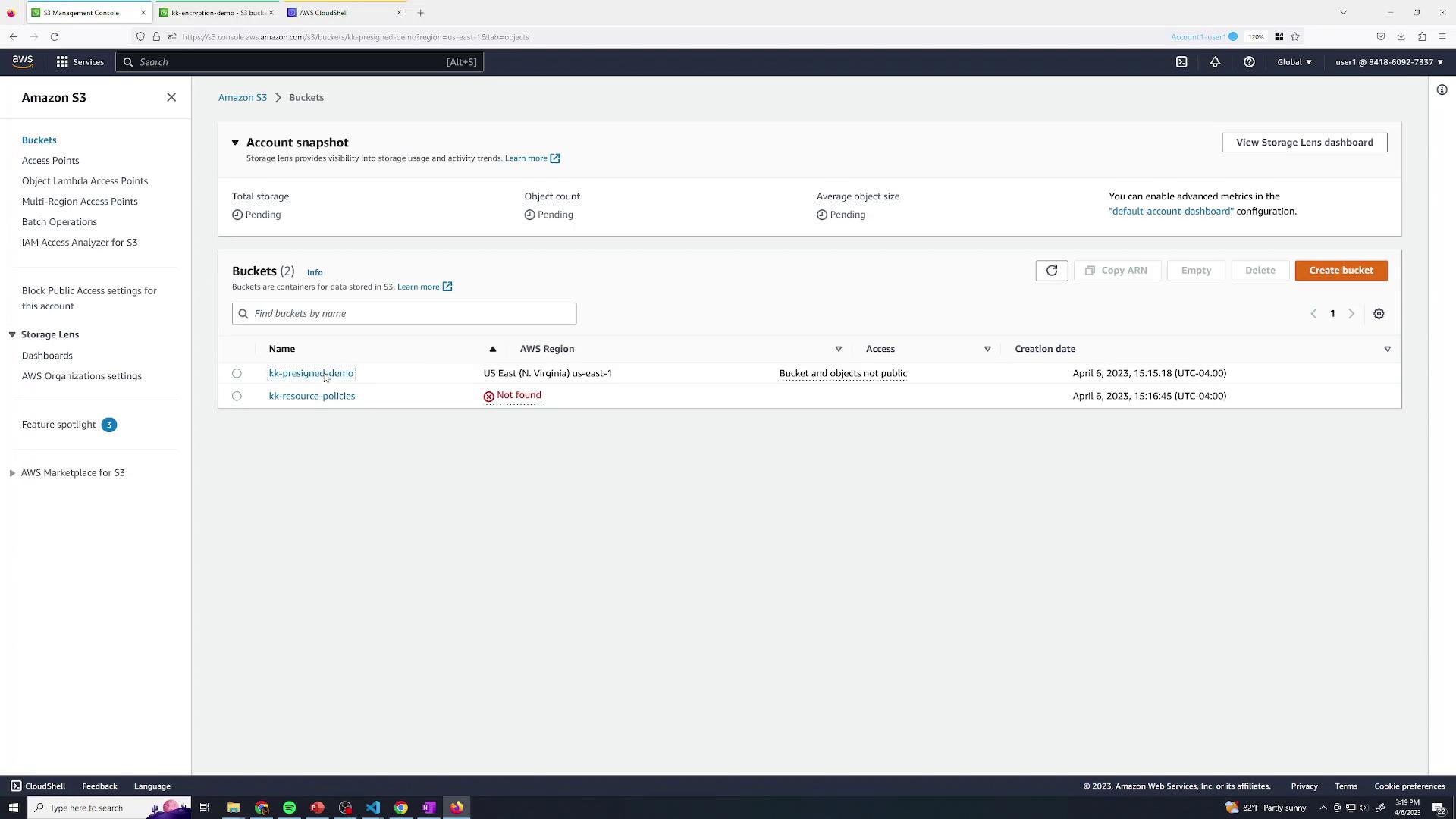

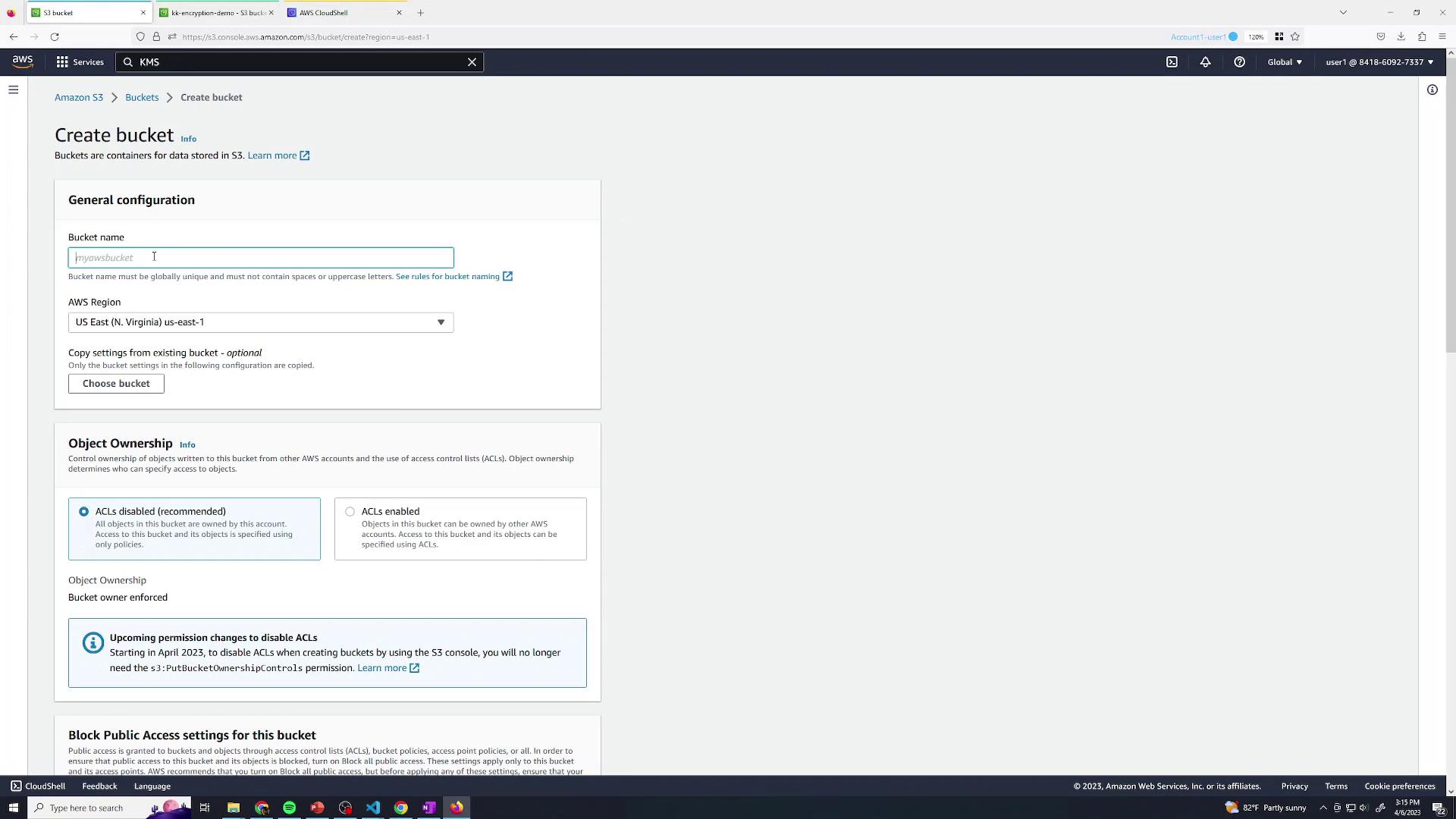

Start by creating a new S3 bucket using default settings:

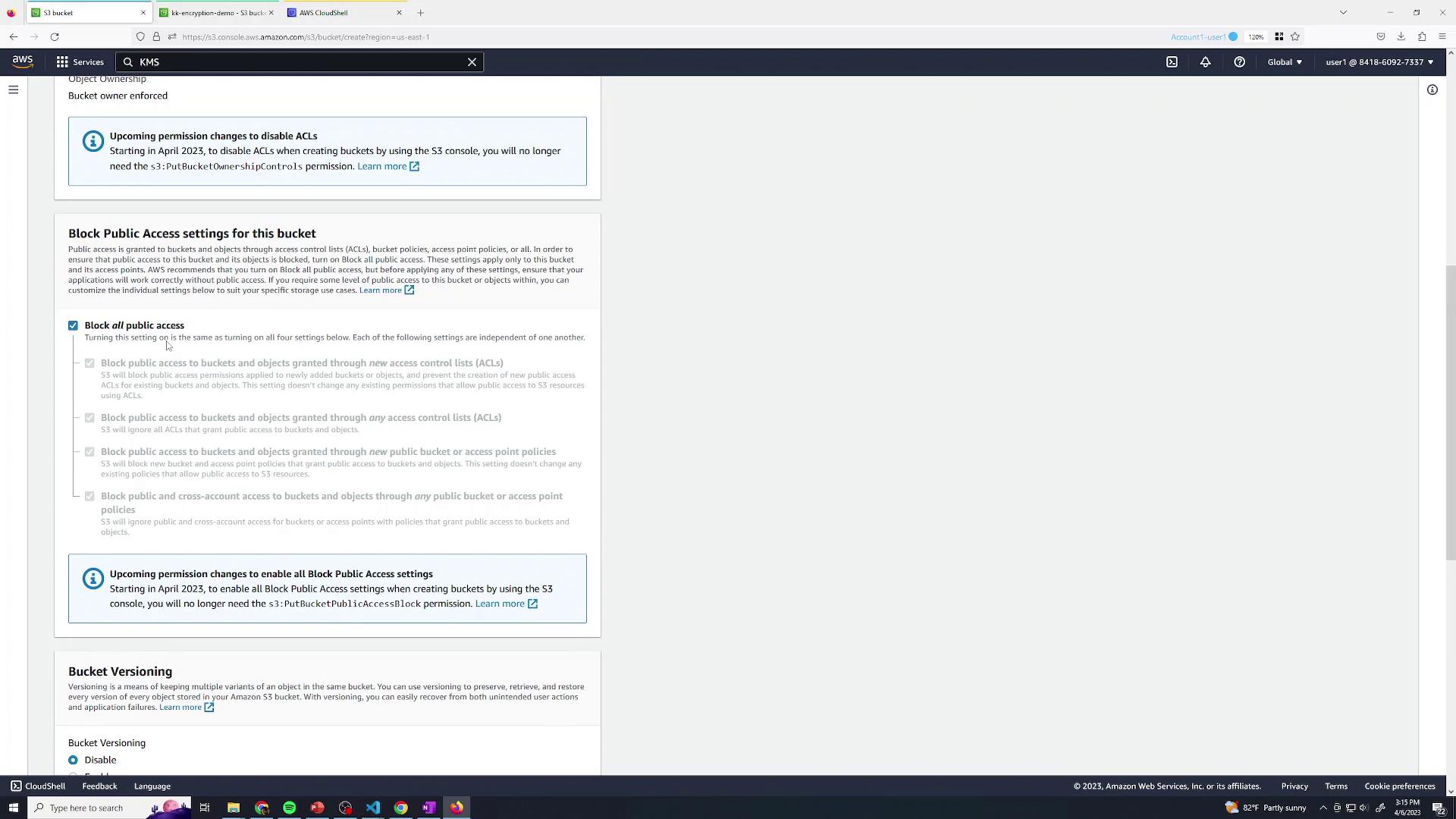

Ensure all options remain at their defaults and block public access for enhanced security:

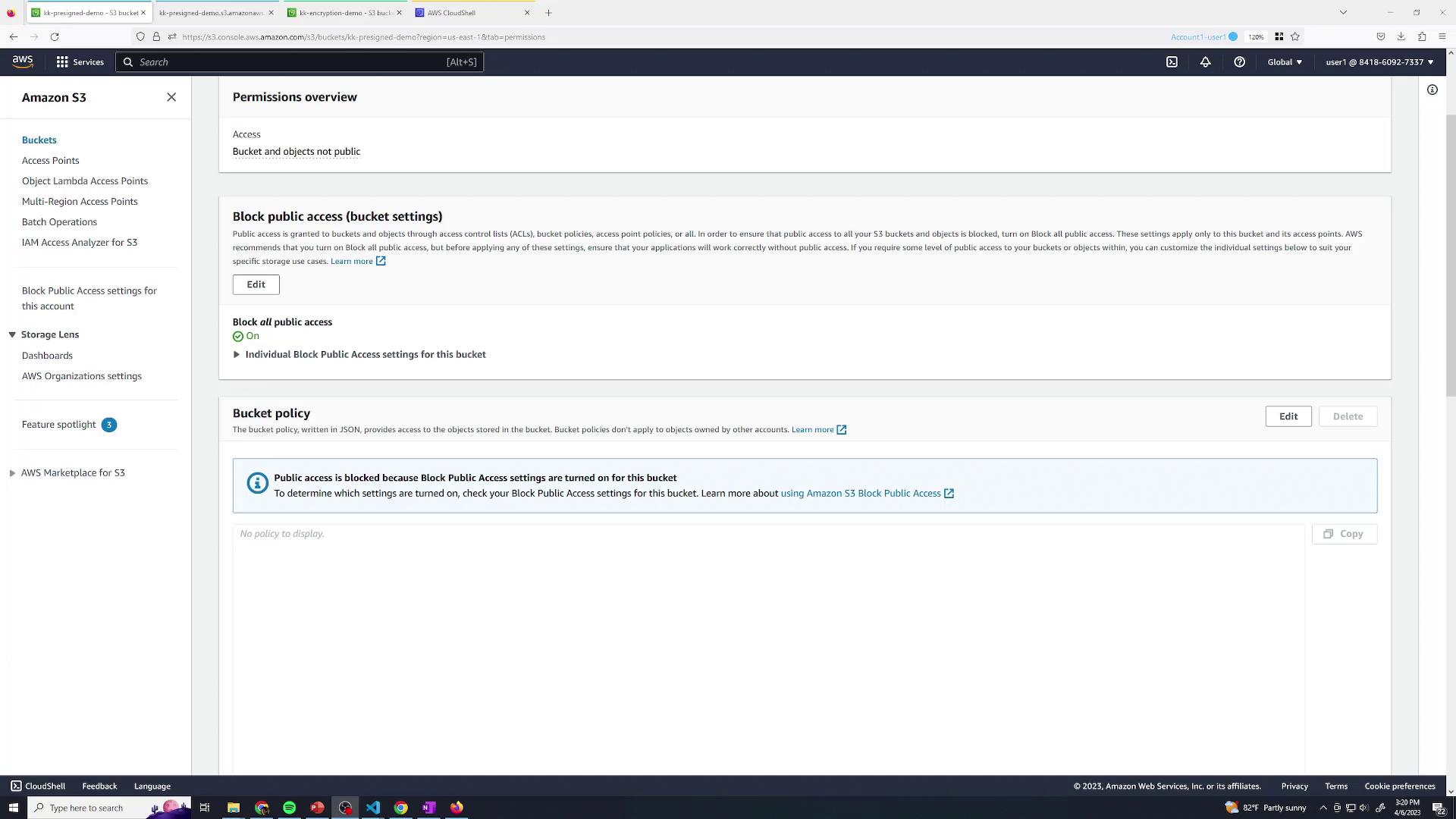

At this point, only your AWS account (root user or explicitly granted IAM identities) can access the bucket.

2. Upload an Object

Next, upload a test file (e.g., boat.jpg) to your bucket:

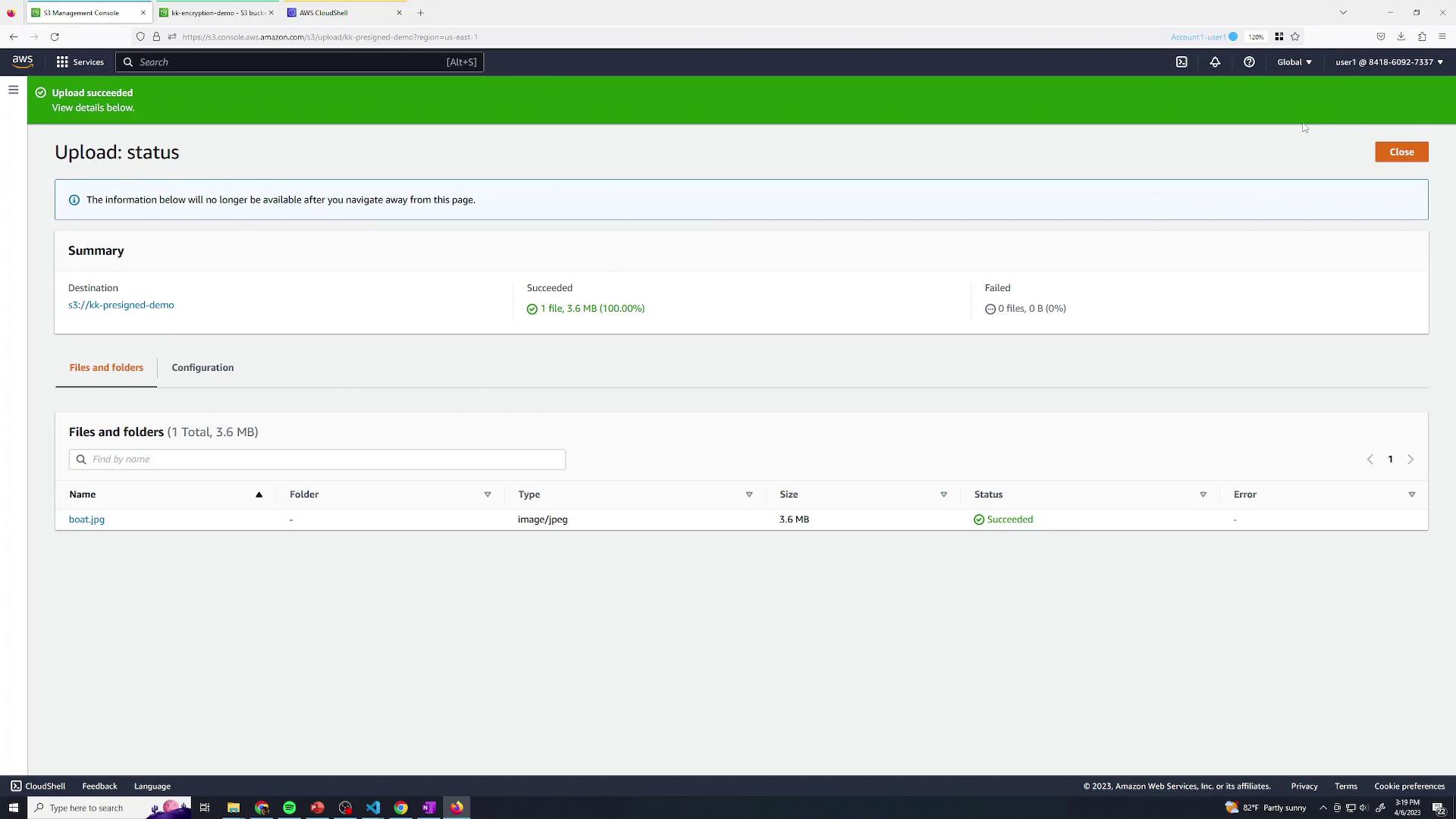

After initiating the upload, watch for the completion notification:

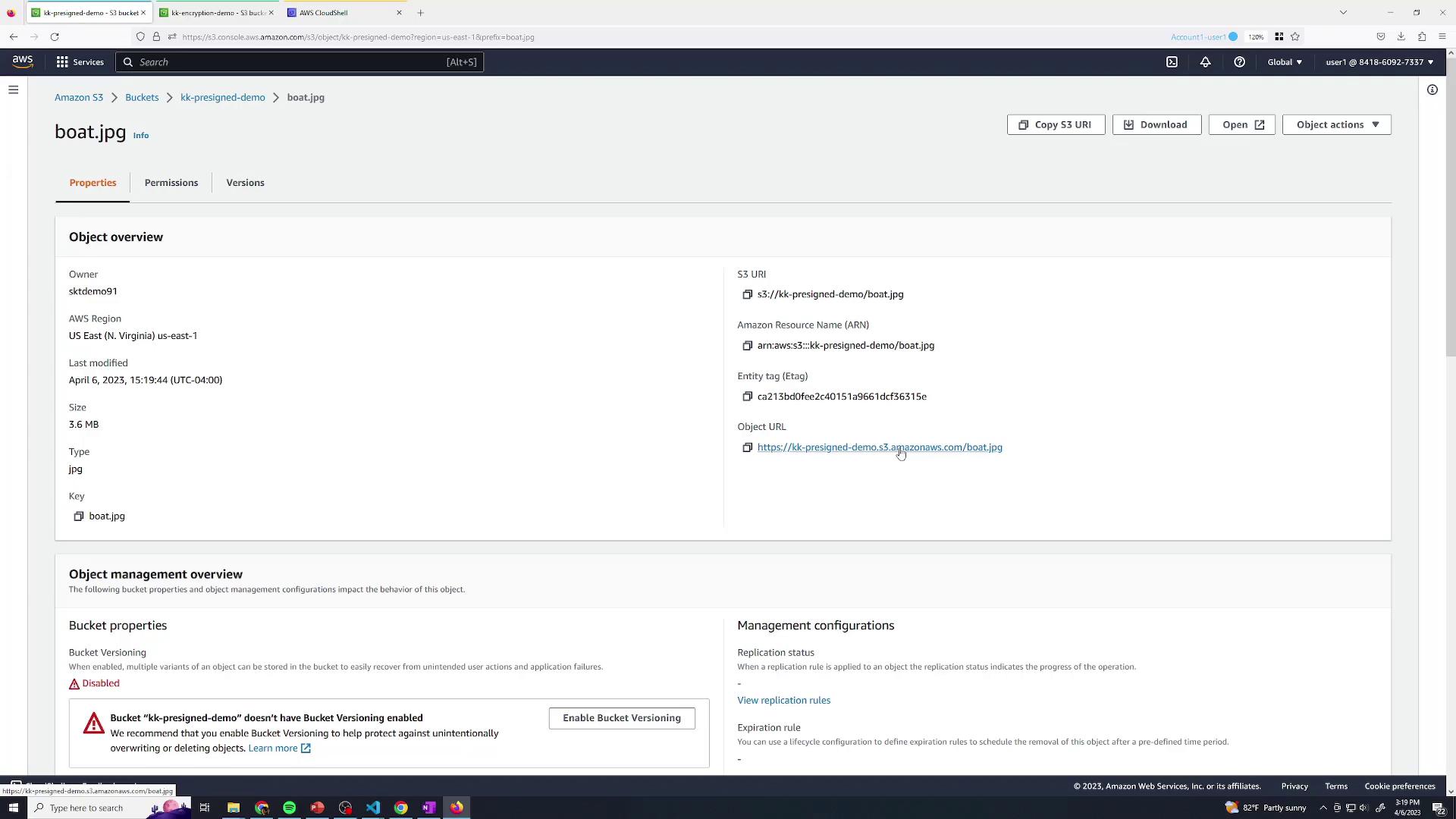

You can view the object details as an authenticated user:

If you open the S3 URL in a private browser session, you’ll see an Access Denied error since the object is private.

3. Generate a Pre-Signed URL via AWS Console

To share your object temporarily without altering bucket policies, generate a pre-signed URL:

1. Open the object’s detail page and click Share with a pre-signed URL:



2. In the sharing dialog, set an expiration (e.g., 30 minutes) and click Create pre-signed URL:



3. The generated URL is automatically copied to your clipboard. Any user with this link can retrieve boat.jpg until it expires.

While the Console is great for one-off sharing, production workflows typically use the AWS SDK or AWS CLI to programmatically issue pre-signed URLs.

4. Permission Demo with a Restricted IAM User

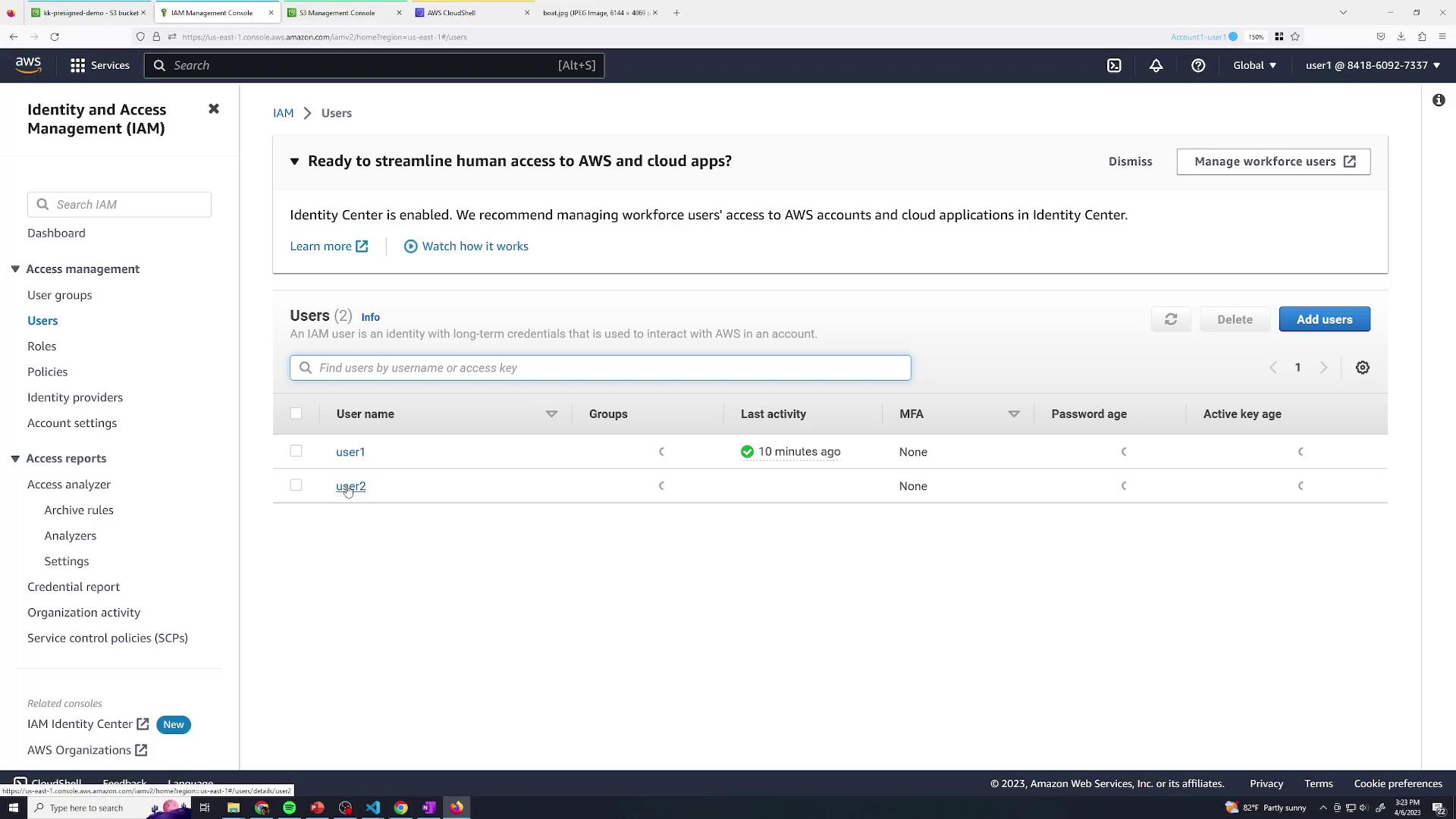

Let’s illustrate how IAM policies affect pre-signed URLs. We have a user named user2 who only has permissions to list buckets:

Below is the policy attached to user2:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor",
            "Effect": "Allow",
            "Action": [
                "s3:ListAllMyBuckets",
                "s3:ListBucket"
            ],
            "Resource": "*"
        }
    ]
}

Since user2 lacks s3:GetObject, they receive an Access Denied error when directly accessing boat.jpg:

<Error>
  <Code>AccessDenied</Code>
  <Message>Access Denied</Message>
  <RequestId>AHK7JSNDOI93/Y4/RequestId</RequestId>
  <HostId>ABN4lmOqPyYoV2StMdc9DlyhwFJxl.XoDAp1LhYgoKC8W0</HostId>
</Error>

If user2 generates a pre-signed URL (30-minute expiration) and an anonymous user tries to use it, they encounter the same Access Denied response:

<Error>
  <Code>AccessDenied</Code>
  <Message>Access Denied</Message>
  <RequestId>5648S6RRMZ5F1S5T</RequestId>
  <HostId>1gXiuD2vm6W7cG7iWcRjdmxisz7sj6FtH8D9ArtnX3i2hdyg42IRzBTrFe0Zmg=</HostId>
</Error>

5. Conclusion

Amazon S3 pre-signed URLs offer a secure way to grant temporary, explicit access to private objects without exposing your entire bucket. They respect existing IAM and bucket policies, ensuring your data remains protected.
