Variable Scope

In this article, we explore the concept of variable scope in Ansible and explain how the location where variables are defined determines their accessibility.

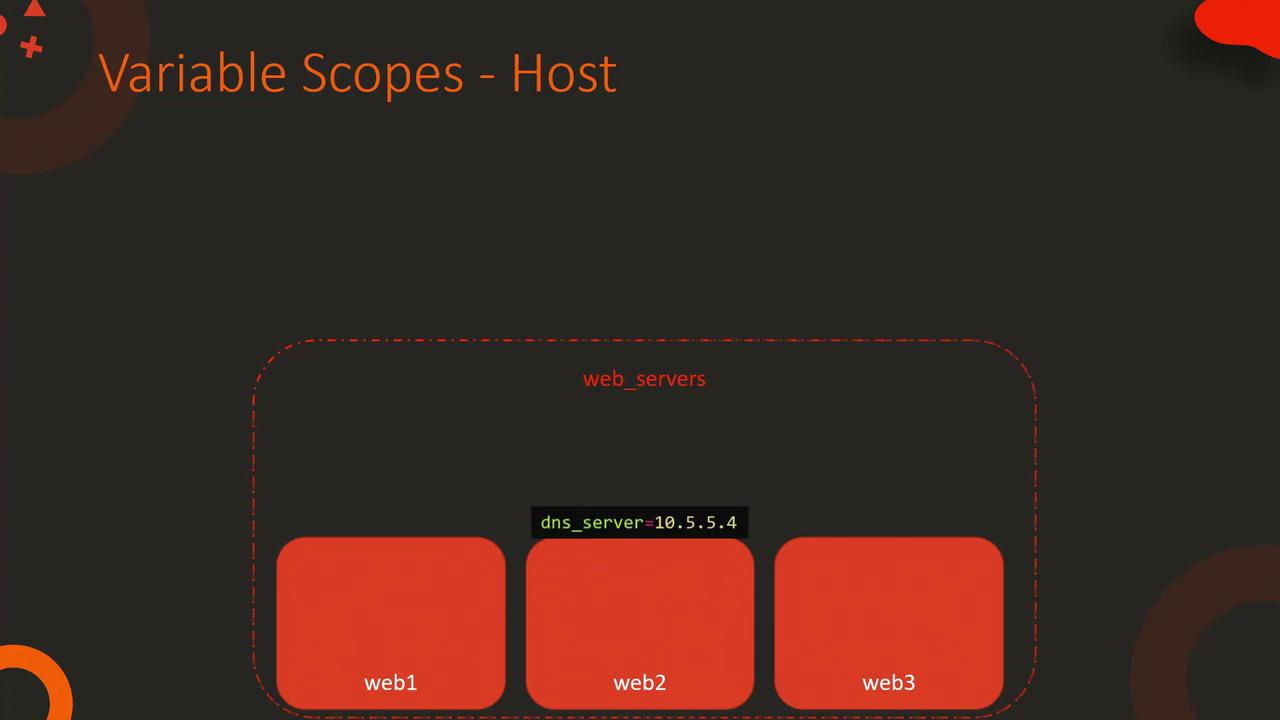

Host-Level Variables

Consider an inventory file where the DNS server is specified only for the host web2:

/etc/ansible/hosts
web1 ansible_host=172.20.1.100
web2 ansible_host=172.20.1.101 dns_server=10.5.5.4
web3 ansible_host=172.20.1.102

In this example, running a playbook that prints the dns_server variable for all hosts results in the variable being defined only for web2:

---
- name: Print DNS Server
  hosts: all
  tasks:
    - debug:
        msg: "{{ dns_server }}"

The output will be:

PLAY [Check /etc/hosts file] *********************************************************
TASK [debug] *********************************************************************
ok: [web1] => {
    "dns_server": "VARIABLE IS NOT DEFINED!"
}
ok: [web2] => {
    "dns_server": "10.5.5.4"
}
ok: [web3] => {
    "dns_server": "VARIABLE IS NOT DEFINED!"
}

This demonstrates the host scope: each host only accesses the variables defined specifically for it.

When a playbook runs, Ansible associates variables with each host based on inventory and group variable files. By default, the primary scope during playbook execution is the host scope.

Play-Level Variables

Next, consider a scenario where a variable is defined within a play. In the following playbook, the variable ntp_server is defined only in the first play, making it accessible there but not in the second play:

---
- name: Play1
  hosts: web1
  vars:
    ntp_server: 10.1.1.1
  tasks:
    - debug:
        var: ntp_server

- name: Play2
  hosts: web1
  tasks:
    - debug:
        var: ntp_server

The output will be:

PLAY [Play1] *********************************************************************
TASK [debug] *********************************************************************
ok: [web1] => {
    "ntp_server": "10.1.1.1"
}

PLAY [Play2] *********************************************************************
TASK [debug] *********************************************************************
ok: [web1] => {
    "ntp_server": "VARIABLE IS NOT DEFINED!"
}

This example illustrates the play scope: variables defined in one play do not automatically carry over to subsequent plays.

Global Variables

Global (or extra) variables are available throughout the entire execution of a playbook. For instance, if you run the playbook with an extra variable like so:

$ ansible-playbook playbook.yml --extra-vars "ntp_server=10.1.1.1"

And use this playbook:

---
- name: Play1
  hosts: web1
  vars:
    ntp_server: 10.1.1.1
  tasks:
    - debug:
        var: ntp_server

- name: Play2
  hosts: web1
  tasks:
    - debug:
        var: ntp_server

Both plays will have access to the ntp_server variable, producing the following output:

PLAY [Play1] *****************************************************************
TASK [debug] ******************************************************************
ok: [web1] => {
  "ntp_server": "10.1.1.1"
}

PLAY [Play2] *****************************************************************
TASK [debug] ******************************************************************
ok: [web1] => {
  "ntp_server": "10.1.1.1"
}

Conclusion

Understanding variable scopes—host, play, and global—is essential for managing configurations and troubleshooting within Ansible playbooks. Each scope offers a level of variable visibility that can be strategically utilized to create efficient and modular playbooks.

Thank you for reading, and happy automating!
