CDKTF Introduction

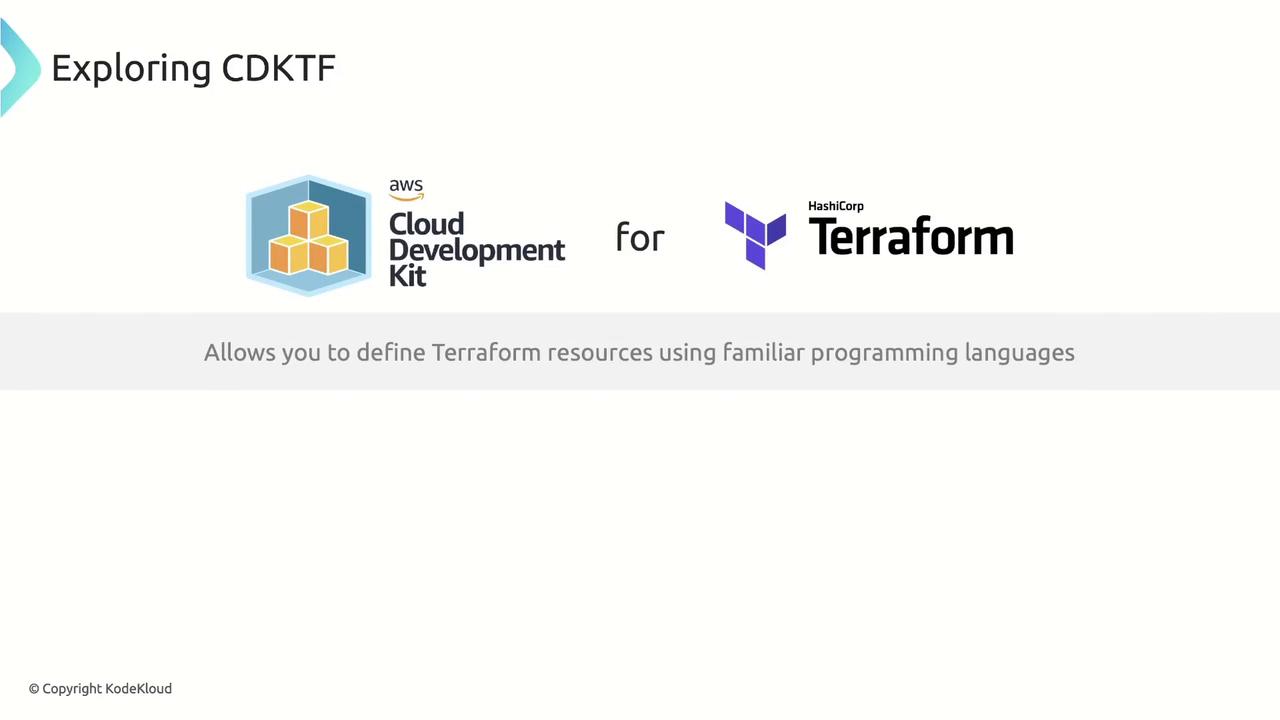

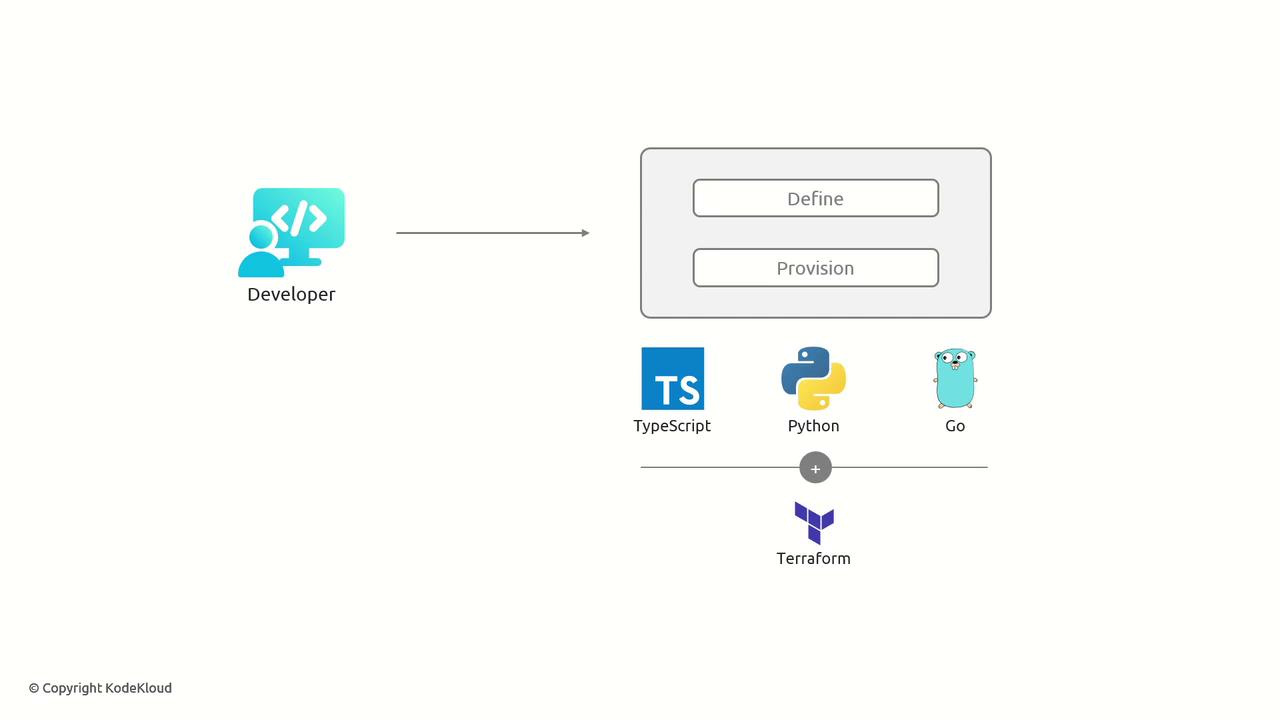

Welcome to the CDKTF introductory guide. In this article, you'll learn how the Cloud Development Kit for Terraform (CDKTF) enables you to define and provision infrastructure using familiar programming languages like TypeScript, Python, or Go, while leveraging Terraform's robust Infrastructure as Code capabilities.

CDKTF allows you to combine Terraform's declarative configuration management with the flexibility of modern programming constructs. Building on prior discussions of TypeScript fundamentals, we will now demonstrate how to use that knowledge to provision real infrastructure with CDKTF.

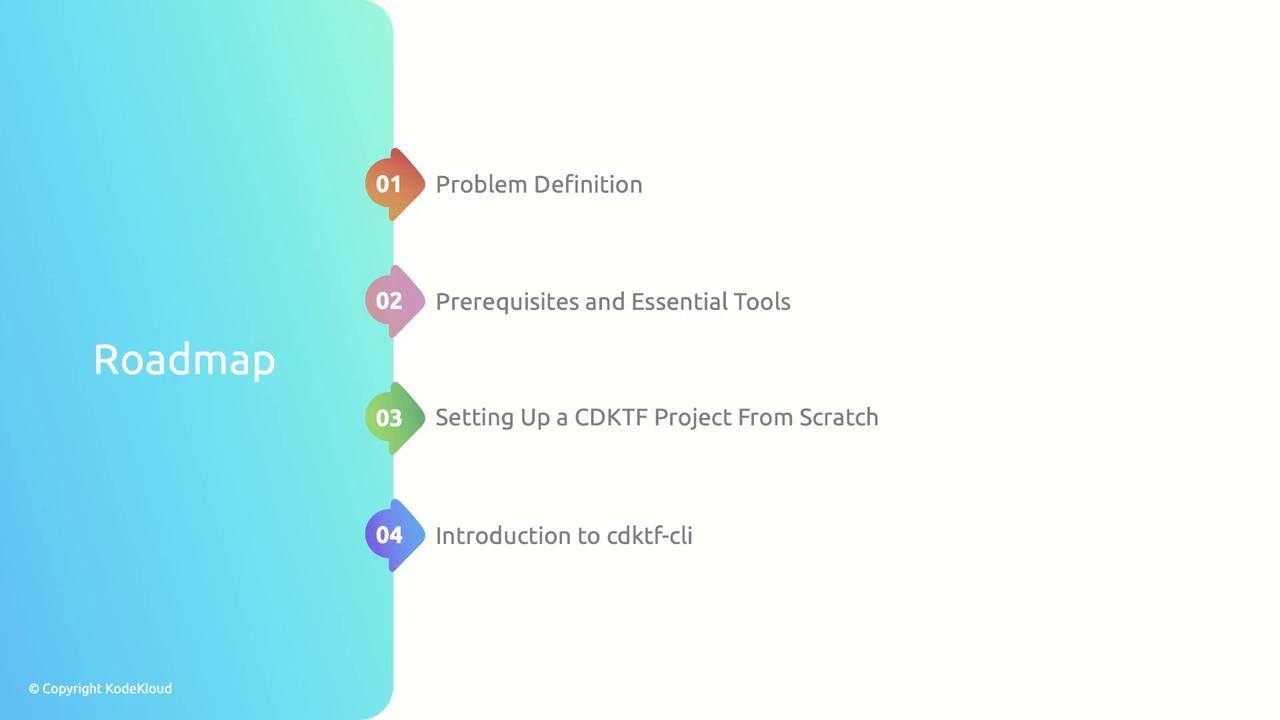

In this guide, we will cover:

• A practical problem that CDKTF can solve
• Prerequisites and essential tools for setting up your environment
• Creating a new CDKTF project from scratch
• An introduction to the CDKTF CLI and core commands

No previous Terraform experience is necessary, though it may provide useful context. As you follow along, you will notice comparisons between CDKTF and native Terraform implementations. This tutorial also demonstrates how to automate local project creation with a practical example.

Problem Definition: Automating Local Project Setups

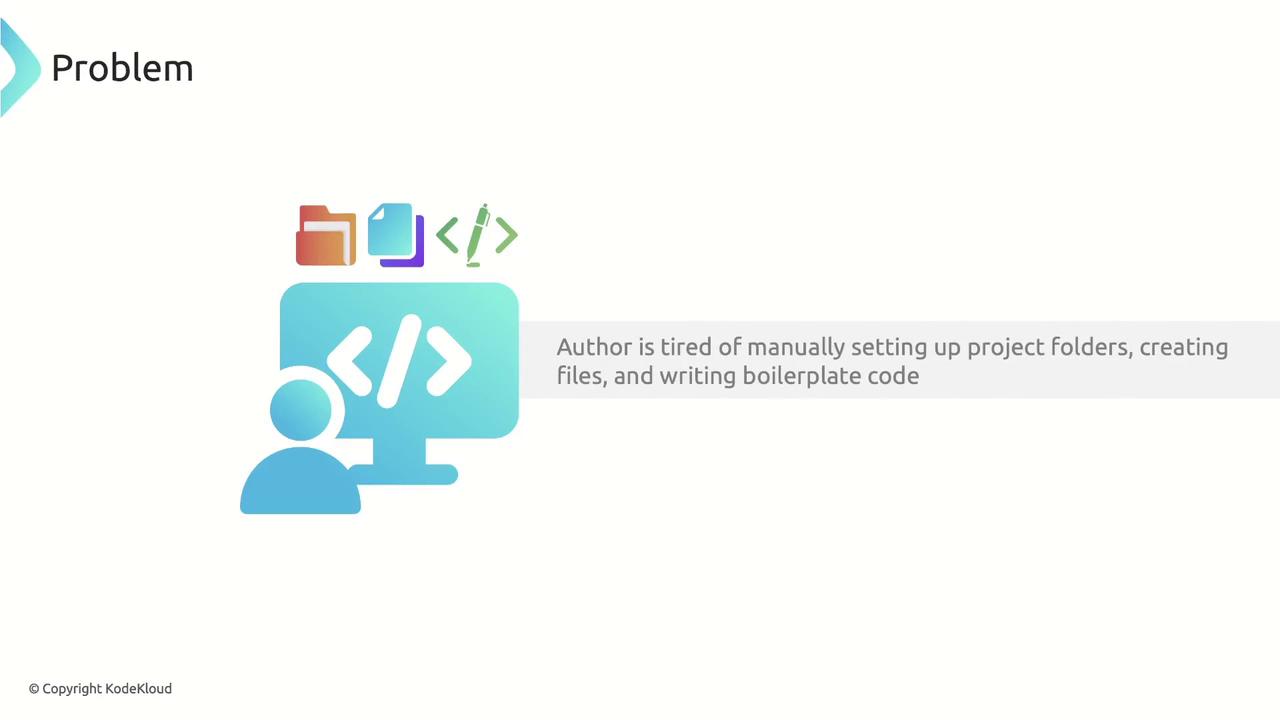

Meet Arthur, a developer who frequently starts new projects. Arthur is frustrated with repetitive tasks such as creating project folders and adding boilerplate files like .gitignore, package.json, and README. In every new Node.js project, Arthur needs to:

• Create a .gitignore file
• Generate a package.json file containing the project name and standard boilerplate
• Create a README file with project details

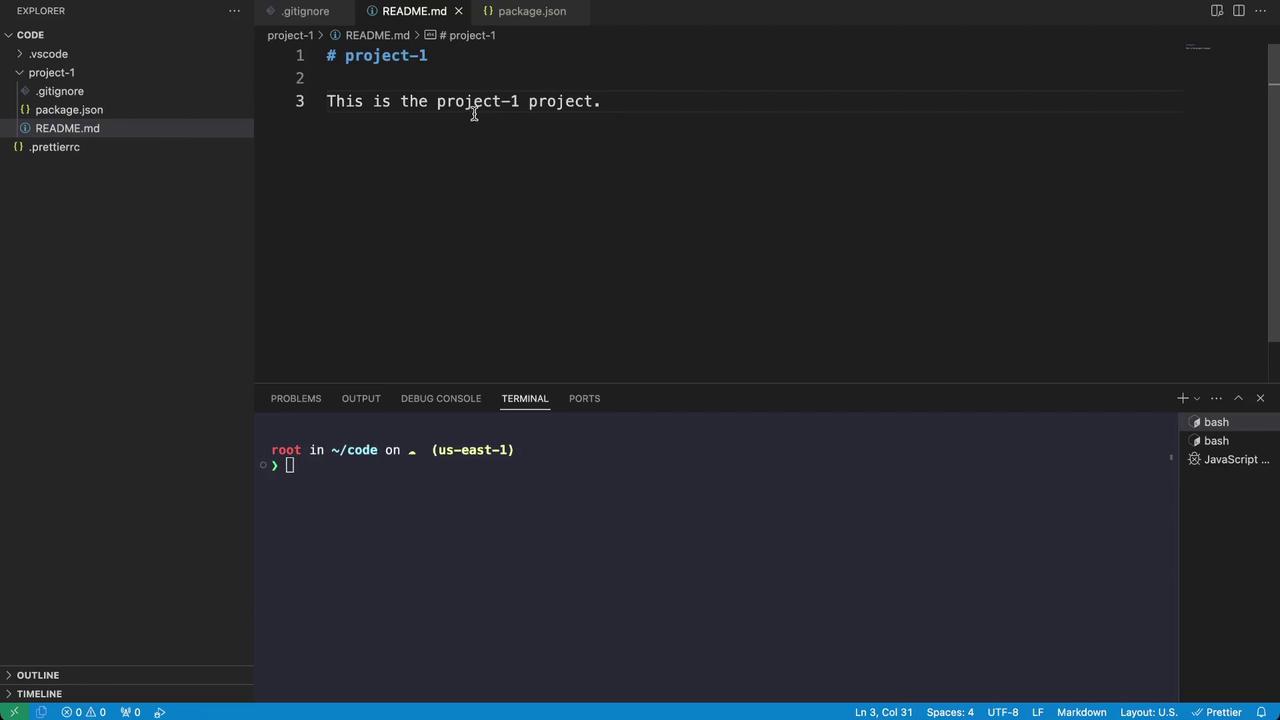

After manually setting up a sample project, Arthur decides to automate the process to handle these repetitive tasks more efficiently.

Although a simple bash script could simplify the task, this example serves to introduce the capabilities of CDKTF. In this demonstration, we deploy files locally with Terraform’s local provider. In the next module, deployment on AWS will be explored.

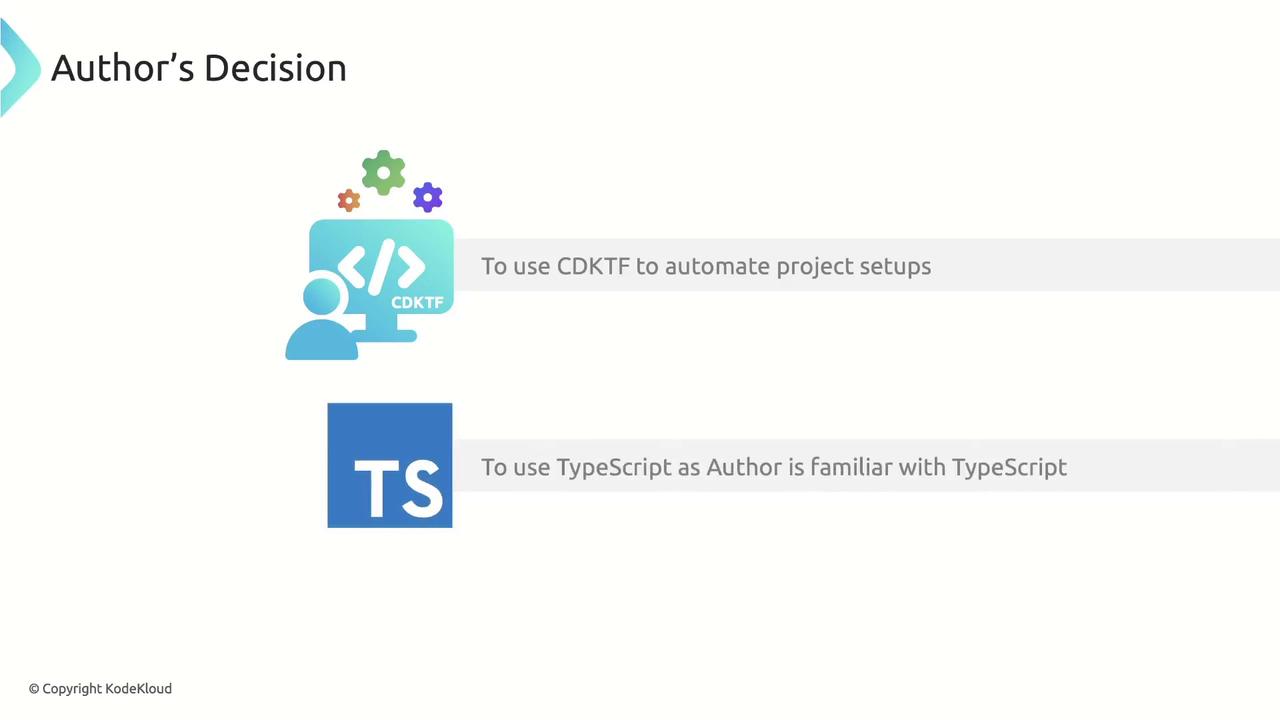

Arthur discovers that with CDKTF, he can define Terraform resources using his familiar programming language. Since he is comfortable with TypeScript, he opts to use CDKTF with TypeScript for automating his project setup.

As a summary, CDKTF combines coding flexibility with Terraform’s proven infrastructure management capabilities.

Setup and Prerequisites

Before you can start using CDKTF with TypeScript, ensure that you have the following prerequisites installed:

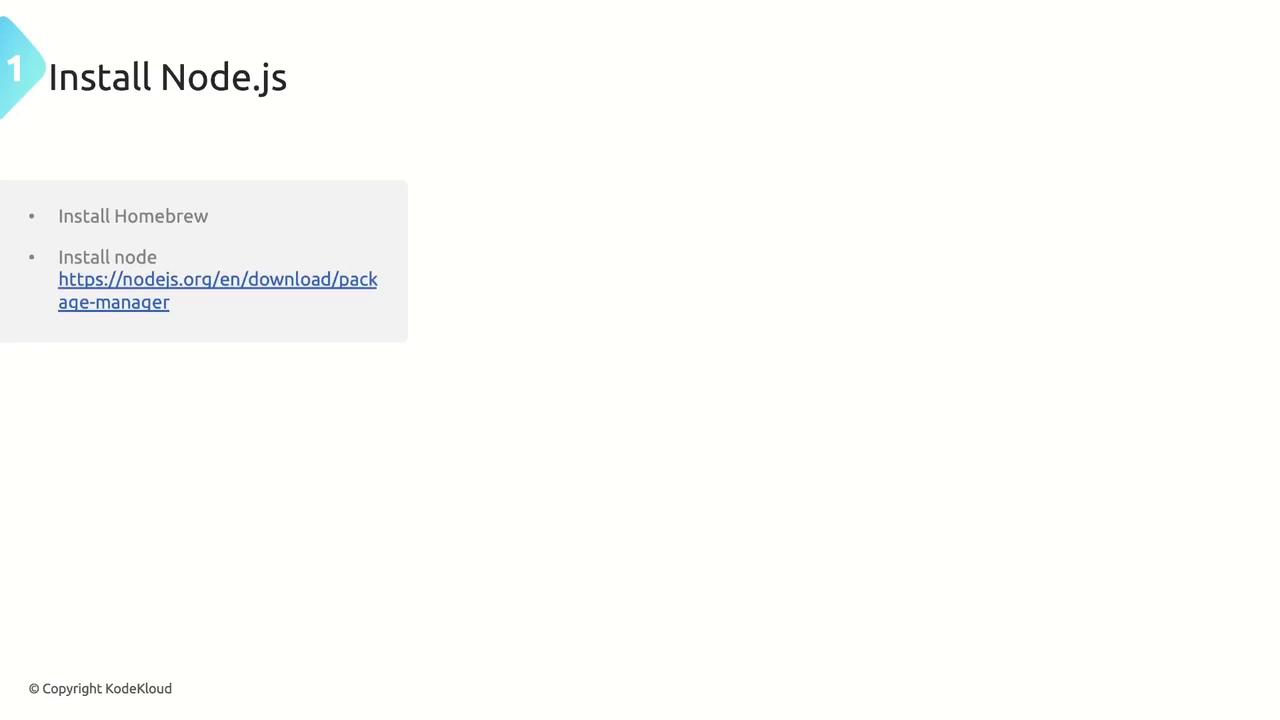

1. Node.js: Needed to run TypeScript and manage packages.


2. Terraform: Install Terraform using appropriate commands (e.g., via Homebrew). Updating Homebrew before installation is recommended to get the latest version.

3. CDKTF CLI: Install the CDKTF CLI globally using npm. Verify the installation with these commands:

Note: Installing CDKTF CLI
Run the following commands in your terminal:

npm install -g cdktf-cli
cdktf --version

Creating a New CDKTF Project

To create a new CDKTF project, navigate to an empty directory in your terminal and run:

npm install -g cdktf-cli
cdktf init --template=typescript

During initialization, a CLI wizard will prompt you with several questions. An example session might look like this:

npm install -g cdktf-cli
# in an empty directory
cdktf init --template=typescript

Note: The local storage mode isn't recommended for storing the state of your stacks.
? Do you want to continue with Terraform Cloud remote state management? no
? Project Name cdktf-project-builder
? Project Description A simple getting started project for cdktf.
? Do you want to start from an existing Terraform project? no
? Do you want to send crash reports to the CDKTF team? [information URL] no
Note: You can always add providers using 'cdktf provider add' later on
? What providers do you want to use? local
added 2 packages, and audited 58 packages in 1s

This command sets up your CDKTF project, generating configuration files such as tsconfig.json, and installing necessary dependencies. A typical tsconfig.json file may resemble:

{
  "compilerOptions": {
    "alwaysStrict": true,
    "declaration": true,
    "experimentalDecorators": true,
    "inlineSourceMap": true,
    "inlineSources": true,
    "lib": [
      "es2018"
    ],
    "module": "CommonJS",
    "noEmitOnError": true,
    "noFallthroughCasesInSwitch": true,
    "noImplicitAny": true,
    "noImplicitReturns": true
  }
}

During initialization, you might see log entries similar to:

[2024-10-18T22:21:21.168] [INFO] default - Checking whether pre-built provider exists for the following constraints:
provider: local
version: latest
language: typescript
cdktf : 0.20.9
[2024-10-18T22:21:21.262] [INFO] default - Found pre-built provider.
[2024-10-18T22:21:21.268] [INFO] default - Installing package @cdktf/provider-local @ 10.1.1 using npm.
[2024-10-18T22:21:25.601] [INFO] default - Package installed.

Your package.json will also include important dependencies and devDependencies:

{
  "dependencies": {
    "@cdktf/provider-local": "10.1.1",
    "cdktf": "^0.20.9",
    "constructs": "^10.4.2"
  },
  "devDependencies": {
    "@types/jest": "^29.5.13",
    "@types/node": "^22.7.6",
    "jest": "^29.7.0",
    "ts-jest": "^29.2.5",
    "ts-node": "^10.9.2",
    "typescript": "^5.6.3"
  }
}

Switching to Yarn (Optional)

If you prefer Yarn for its speed and modern tooling, you can switch by running:

corepack prepare yarn@stable --activate

After activation, remove the package-lock.json file and create a new yarn.lock file:

touch yarn.lock
yarn install

Verify Yarn installation with:

yarn -v

For Git users, remember to update your .gitignore file to exclude Yarn-specific files. If your IDE encounters package recognition issues, refreshing your workspace or reloading the browser window can help.

Here is a sample main file (main.ts) that is auto-generated during the CDKTF project setup:

import { Construct } from "constructs";
import { App, TerraformStack } from "cdktf";

class MyStack extends TerraformStack {
  constructor(scope: Construct, id: string) {
    super(scope, id);
    // define resources here
  }
}

const app = new App();
new MyStack(app, "cdktf-project-builder");
app.synth();

Installing the CDKTF CLI as a Dev Dependency (Optional)

To pin the version of the CDKTF CLI for your CI/CD pipelines, you can also install it locally:

yarn add -D cdktf-cli

This installation method is optional if you already have a global installation.

Exploring the CDKTF Project Structure

After project initialization, you'll notice several key files and directories:

1. main.ts
   Imports CDKTF constructs to define your infrastructure. An App is created and a custom stack (extending TerraformStack) is added.

2. cdktf.json
   This configuration file specifies how your CDKTF application is executed. For example:

   {
     "language": "typescript",
     "app": "npx ts-node main.ts",
     "projectId": "41d8912e-1850-4ff8-bbc1-af7df07e7407",
     "sendCrashReports": "false",
     "terraformProviders": [],
     "terraformModules": [],
     "context": {}
   }


   If you prefer using Yarn, change the app command to "yarn ts-node main.ts".

3. Terraform Output Synthesis
   Running app.synth() in main.ts synthesizes your TypeScript code into Terraform configuration files (typically in a .tf.json format), which are stored in the cdktf.out directory.

For example, to output a simple value from your stack, modify the file as follows:

import { Construct } from "constructs";
import { App, TerraformOutput, TerraformStack } from "cdktf";

class MyStack extends TerraformStack {
  constructor(scope: Construct, id: string) {
    super(scope, id);
    new TerraformOutput(this, 'helloWorld', {
      value: "Hello World"
    });
  }
}

const app = new App();
new MyStack(app, "code");
app.synth();

When synthesized, you will obtain Terraform JSON similar to:

{
  "//": {
    "metadata": {
      "backend": "local",
      "stackName": "code",
      "version": "0.20.9"
    },
    "outputs": {
      "helloWorld": "helloWorld"
    }
  },
  "output": {
    "helloWorld": {
      "value": "Hello World"
    }
  },
  "terraform": {
    "backend": {}
  }
}

Synthesizing and Deploying with CDKTF

To generate Terraform configuration files from your CDKTF application, run:

yarn cdktf synth

This command synthesizes your app, creating a directory (e.g., cdktf.out) that contains the Terraform configuration for your stack (in this example, named "code").

To deploy your infrastructure, execute:

yarn cdktf deploy

This command first synthesizes the code, then applies the Terraform configuration similar to running terraform apply. You will be prompted to confirm the changes. After deployment, Terraform creates a state file locally. A typical local state file may look like:

{
  "version": 3,
  "terraform_version": "1.9.5",
  "backend": {
    "type": "local",
    "config": {
      "path": "/root/code/terraform.code.tfstate",
      "workspace_dir": null
    }
  },
  "hash": 1057242983
}

The deployment output will include:

helloWorld = "Hello World"

Summary

In this guide, we explored the following key topics:

• Problem definition using Arthur’s example of automating local project setups
• Essential prerequisites and tools for working with CDKTF
• Creating a new CDKTF project from scratch using TypeScript
• An introduction to the CDKTF CLI and its commands such as synth and deploy

In the next section, we'll continue Arthur's journey to further automate his local project setups using more advanced features of CDKTF.
