What is Helm

Helm is a package manager for Kubernetes designed to simplify application deployment and management. While Kubernetes is highly effective at orchestrating complex infrastructures, managing individual resources for complex applications can quickly become tedious.

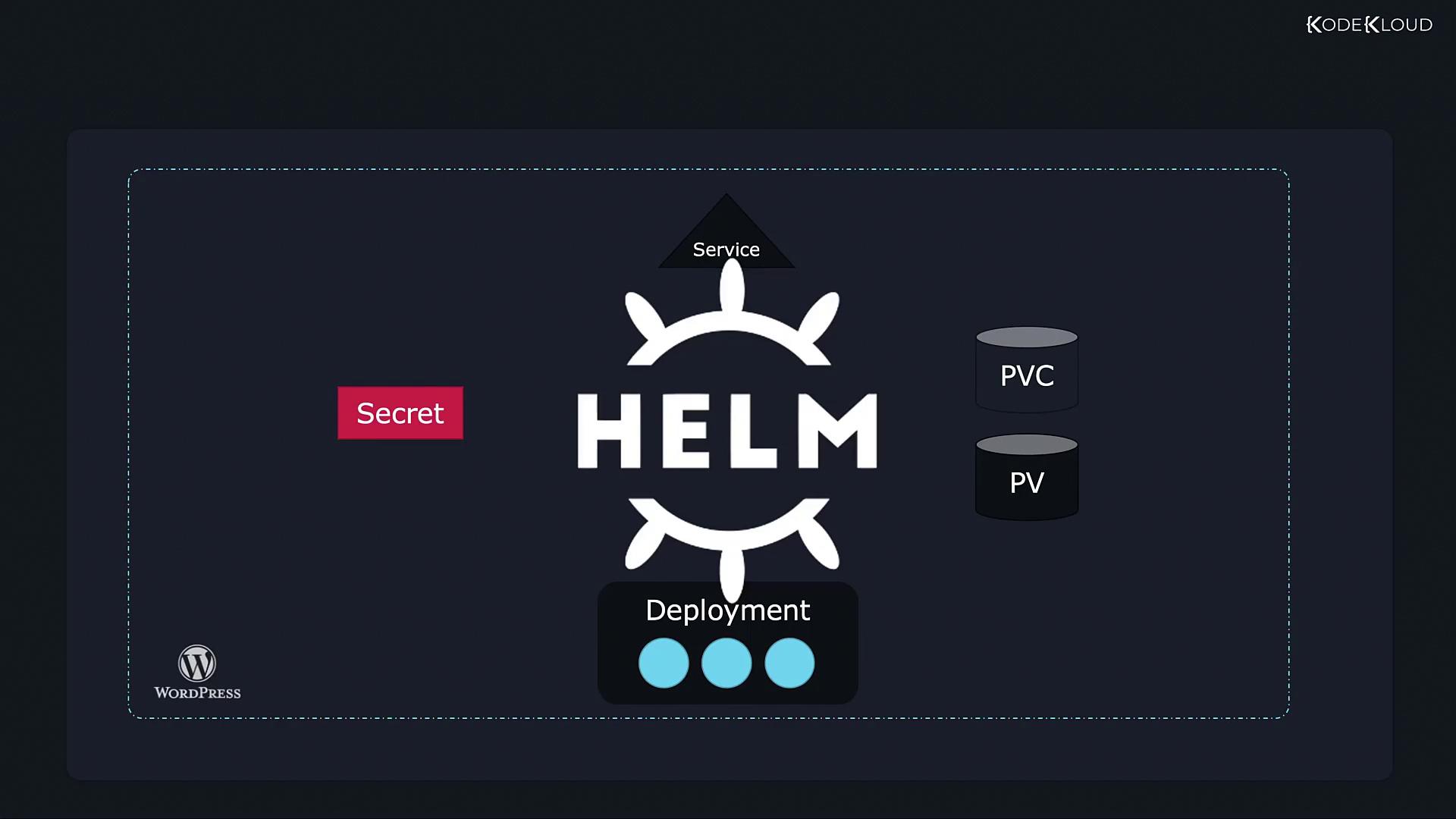

Consider a WordPress site that may require multiple interconnected Kubernetes objects, such as:

• A Deployment to run Pods (e.g., MySQL database servers or web servers)
• A PersistentVolume (PV) to store data
• A PersistentVolumeClaim (PVC) to access the storage
• A Service to expose the web server to the internet
• A Secret to store credentials like admin passwords
• Additional components like Jobs for periodic backups

Without Helm, you would create and maintain separate YAML files for each object and apply them using individual kubectl commands. For example:

apiVersion: v1
kind: Secret
metadata:
  name: wordpress-admin-password
data:
  key: CalksdIkeBgmxcv23kjsdIkjr==

apiVersion: v1
kind: Service
metadata:
  name: wordpress
  labels:
    app: wordpress
spec:
  ports:
    - port: 80
  selector:
    app: wordpress
    tier: frontend
  type: LoadBalancer

apiVersion: apps/v1
kind: Deployment
metadata:
  name: wordpress-mysql
  labels:
    app: wordpress
spec:
  selector:
    matchLabels:
      app: wordpress
      tier: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: wordpress
        tier: mysql
    spec:
      containers:
        - image: mysql:5.6

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: wp-pv-claim
  labels:
    app: wordpress
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv0003
spec:
  capacity:
    storage: 20Gi
  volumeMode: Filesystem
  accessModes:
    - ReadWriteOnce

Even if all declarations are combined into a single file, the complexity increases as the file grows, making troubleshooting more challenging.

Enter Helm

Helm treats related resources as a single application package, enabling you to deploy and manage your entire Kubernetes application with a single command. For instance, to install a WordPress package, simply run:

$ helm install wordpress

With Helm, configuration settings are centralized in a file like values.yaml, allowing you to customize your deployment effortlessly. An example configuration might look like this:

wordpressUsername: user
# Application password (defaults to a random 10-character alphanumeric string if not set)
# wordpressPassword:
# Admin email (see: https://github.com/bitnami/bitnami-wordpress)
wordpressEmail: [email protected]
# First name (see: https://github.com/bitnami/bitnami-wordpress)
wordpressFirstName: FirstName
# Last name (see: https://github.com/bitnami/bitnami-wordpress)
wordpressLastName: LastName
# Blog name (see: https://github.com/bitnami/bitnami-wordpress)
wordpressBlogName: User's Blog!

Helm also streamlines the upgrade process:

$ helm upgrade wordpress

$ helm rollback wordpress

When it's time to remove the application, Helm ensures that all associated Kubernetes objects are tracked and deleted automatically:

$ helm uninstall wordpress

Summary

In summary, Helm acts as both an install/uninstall wizard and a release manager. It abstracts the complexity of managing individual Kubernetes resources, allowing deployments to be treated as single cohesive entities. This approach substantially reduces operational overhead and minimizes the risk of errors during deployment, upgrades, or removal.

This guide provides a brief introduction to Helm. In upcoming lessons, we will explore Helm commands and functionalities in more depth, enabling you to manage Kubernetes applications more efficiently.
