What is Helm

Helm is a package manager and release management tool designed for Kubernetes applications. While Kubernetes excels at orchestrating complex infrastructures, managing a multitude of interdependent YAML files for a single application can quickly become overwhelming. Consider a basic WordPress deployment, which might involve multiple Kubernetes objects such as:

• Deployment: Runs Pods for services like MySQL or web servers.
• Persistent Volume (PV) and Persistent Volume Claim (PVC): Provides storage for databases.
• Service: Exposes the web server to the Internet.
• Secret: Stores sensitive data like admin passwords.
• Job: Handles periodic tasks like backups.

Each of these resources requires its own YAML configuration file and separate kubectl apply commands. For instance, a simplified collection of YAML definitions may look like this:

apiVersion: v1
kind: Secret
metadata:
  name: wordpress-admin-password
data:
  key: CalksdlkeB6mxcv23kjsdkljke==
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: wordpress-mysql
  labels:
    app: wordpress
spec:
  selector:
    matchLabels:
      app: wordpress
      tier: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: wordpress
        tier: mysql
    spec:
      containers:
        - image: mysql:5.6
---
apiVersion: v1
kind: Service
metadata:
  name: wordpress
  labels:
    app: wordpress
spec:
  ports:
    - port: 80
  selector:
    app: wordpress
    tier: frontend
  type: LoadBalancer
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: wp-pv-claim
  labels:
    app: wordpress
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv0003
spec:
  capacity:
    storage: 20Gi
  volumeMode: Filesystem
  accessModes:
    - ReadWriteOnce

Managing these files individually can be tedious, especially when default configurations such as storage size need to be updated or changed. If you download YAML files from an external source, modifying each file to fit your needs can be labor-intensive. Furthermore, as your application evolves, you might have to update numerous configurations repeatedly.

The Cumbersome Approach: Multiple YAML Files

Imagine updating your application configuration over time. For example, you might modify several YAML files and then apply them individually:

1. Update the Secret:

   apiVersion: v1
   kind: Secret
   metadata:
     name: wordpress-admin-password
   data:
     key: CaklsdIkEeB6mxcv23kjsdIkljke==


   $ kubectl apply -f wp-secret.yaml


2. Update the Deployment:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: wordpress-mysql
     labels:
       app: wordpress
       tier: mysql
   spec:
     strategy: Recreate
     template:
       metadata:
         labels:
           app: wordpress
           tier: mysql
       spec:
         containers:
         - image: mysql:5.6


   $ kubectl apply -f wp-deploy.yaml


3. Update the Service:

   apiVersion: v1
   kind: Service
   metadata:
     name: wordpress
     labels:
       app: wordpress
   spec:
     ports:
       - port: 80
     selector:
       app: wordpress
   type: LoadBalancer


   $ kubectl apply -f wp-svc.yaml


4. Update the PersistentVolumeClaim:

   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: wp-pv-claim
     labels:
       app: wordpress
   spec:
     accessModes:
       - ReadWriteOnce
     resources:
       requests:
         storage: 20Gi


   $ kubectl apply -f wp-pvc.yaml


5. Update the PersistentVolume:

   apiVersion: v1
   kind: PersistentVolume
   metadata:
     name: pv003
   spec:
     capacity:
       storage: 20Gi
     volumeMode: Filesystem
     accessModes:
       - ReadWriteOnce


   $ kubectl apply -f wp-pv.yaml


Later, when it comes time to upgrade or delete parts of the application, the process involves updating or removing each object—a process that can be both time-consuming and error-prone.

Introducing Helm

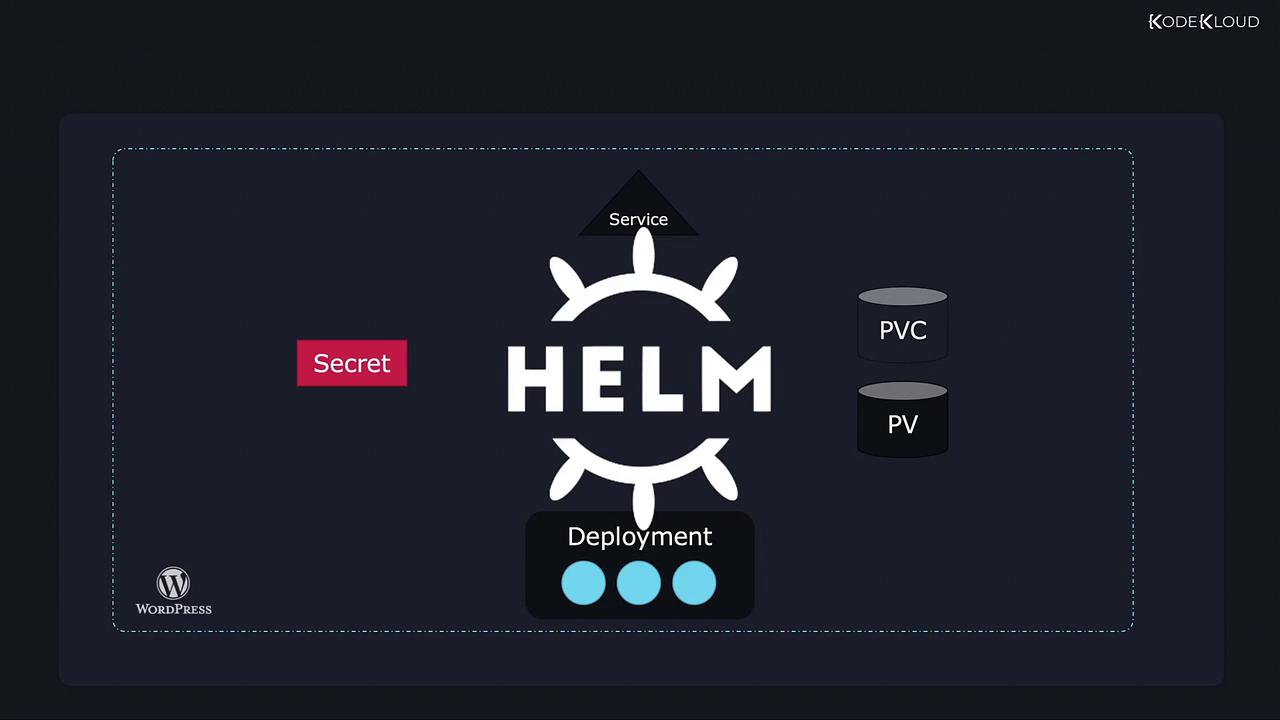

Helm transforms the management of Kubernetes applications by packaging all the necessary objects—Persistent Volumes, Deployments, Secrets, Services, and more—into a single, cohesive unit. This means you no longer have to manage individual YAML files for each component.

With Helm, you work with the entire application as a single package. Installing your WordPress app, for example, becomes as simple as executing:

$ helm install wordpress

Key Benefits of Helm

• Centralized Configuration: Customize your application using a single values.yaml file. This file can store essential settings such as:

  Parameter	Description	Example Value
  wordpressUsername	The WordPress admin username	user
  wordpressPassword	The WordPress admin password (defaults to random)	(optional)
  wordpressEmail	The admin email address	[email protected]
  wordpressFirstName	The admin's first name	FirstName
  wordpressLastName	The admin's last name	LastName
  wordpressBlogName	The name of the blog	"User's Blog!"

  An example values.yaml file might look like this:

  wordpressUsername: user
  ## Application password
  ## Defaults to a random 10-character alphanumeric string if not set
  # wordpressPassword:
  ## Admin email
  wordpressEmail: [email protected]
  ## First name
  wordpressFirstName: FirstName
  ## Last name
  wordpressLastName: LastName
  ## Blog name
  wordpressBlogName: "User's Blog!"


• Streamlined Upgrades and Rollbacks: Helm allows you to:

  • Upgrade your application effortlessly with:

    $ helm upgrade wordpress


  • Roll back to a previous release quickly using:

    $ helm rollback wordpress


• Simplified Uninstallation: Remove all associated resources with a single command:

  $ helm uninstall wordpress


In Summary

Helm acts as both a package manager and a release manager for Kubernetes. It provides an elegant solution for bundling together the various objects that make up complex applications. By doing so, Helm drastically simplifies the processes of installation, configuration, upgrade, rollback, and deletion.

This introduction to Helm sets the stage for more advanced topics that will be explored in upcoming lessons. Stay tuned as we delve deeper into Helm's features and commands, and learn how to harness its full power to manage your Kubernetes applications efficiently.

For further information, check out the Helm documentation and keep exploring the world of Kubernetes package management.
