Components

In this lesson, you will learn about a powerful Kustomize feature called components. Components allow you to define reusable configuration logic that can be seamlessly integrated into multiple overlays. This approach is especially beneficial for applications that support optional features activated only in selected overlays.

For instance, if you have common configurations that apply to every overlay, you would include them in your Base configuration. However, if specific features need to be enabled only in particular overlays, duplicating the configurations in each overlay quickly becomes unscalable and error-prone. Components address this challenge by letting you define the configuration once and reuse it where needed, minimizing duplication and preventing configuration drift.

Visual Example

Imagine deploying an application in three variations: Development, Premium (for premium customers), and Self-Hosted (for customers who manage their own hosting). These variations correspond to three overlay folders, which all reference a shared Base configuration folder.

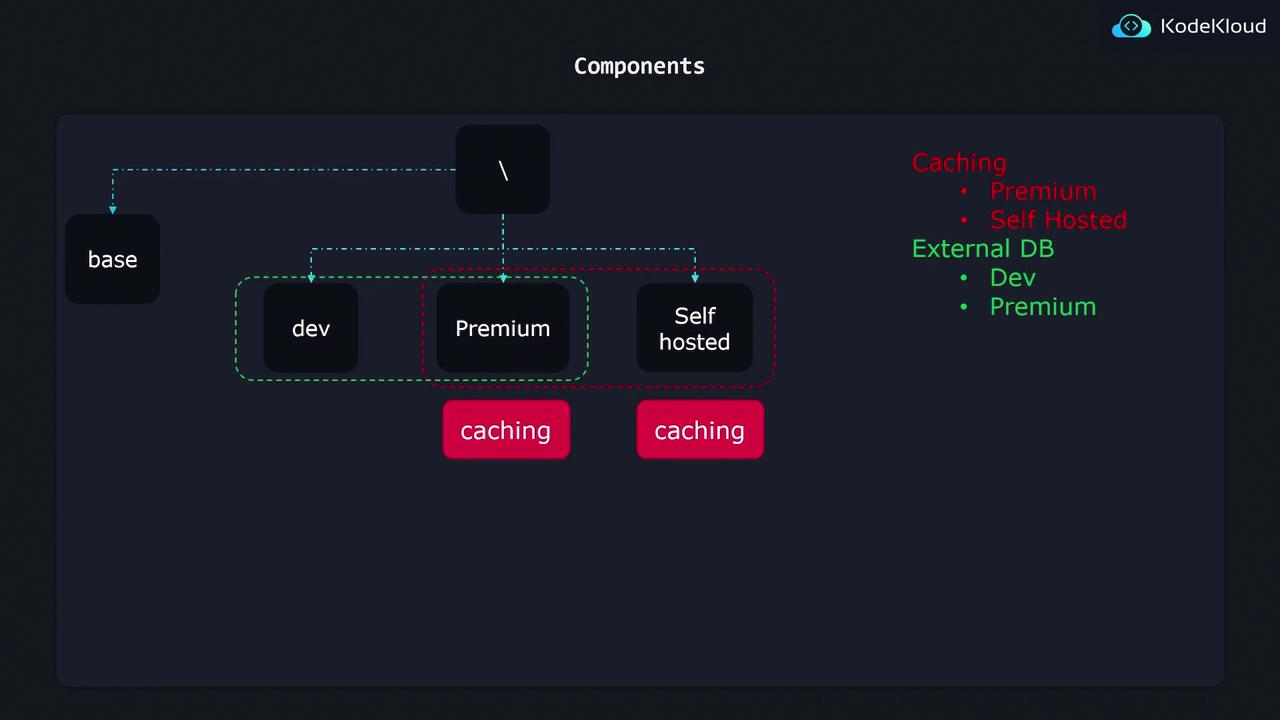

Suppose the application offers two optional features: caching and an external Postgres database. The caching feature, which includes configuration details for a Redis database, should only be applied to the Premium and Self-Hosted overlays. In contrast, the external database is only relevant for the Development and Premium overlays.

Placing the caching configuration in the Base folder would inadvertently activate it across all overlays, while copying it individually into the Premium and Self-Hosted overlays risks inconsistencies during future updates. Components solve this problem by encapsulating the caching configuration in a reusable block that is imported only by the overlays that require it.

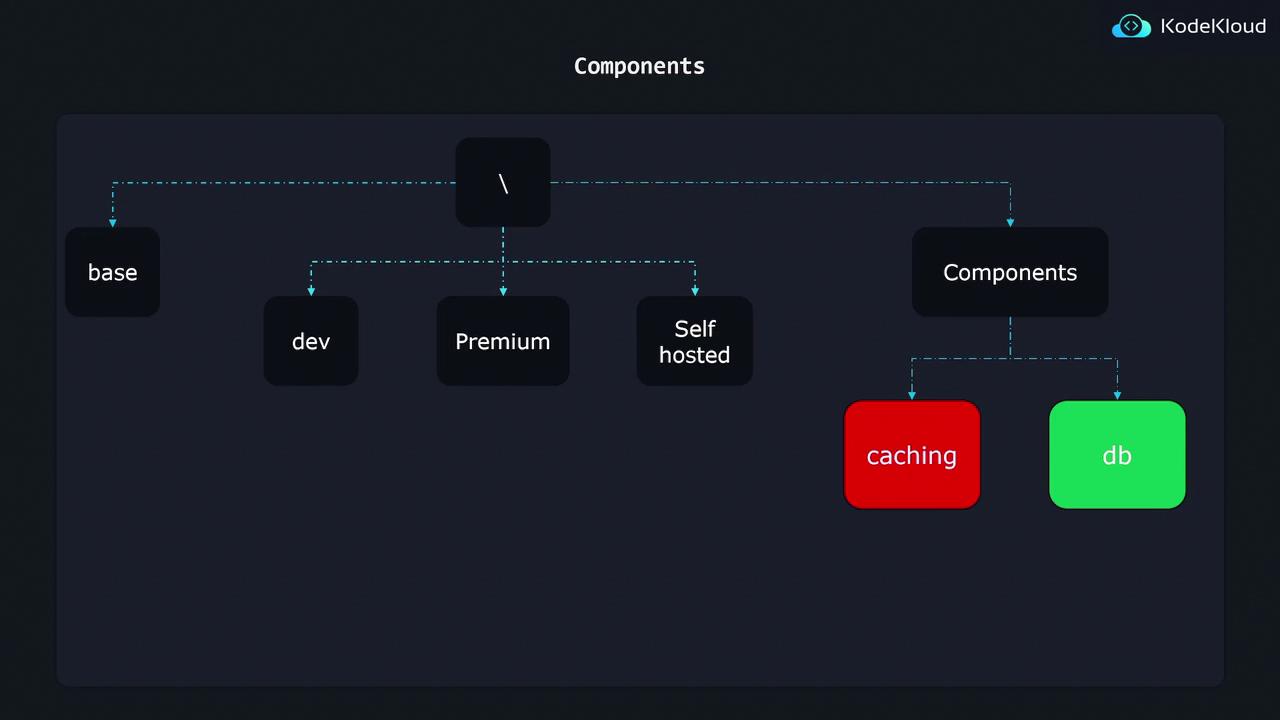

The overall project hierarchy is structured so that the Base configuration is common to all overlays, while each overlay selectively includes components for features like caching or an external database.

Organizing Your Project Structure

To effectively implement components, consider adding a dedicated folder for components in your project structure. A typical folder layout may resemble the following structure:

k8s/
├── base/
│   ├── kustomization.yaml
│   └── api-depl.yaml
├── components/
│   ├── caching/
│   │   ├── kustomization.yaml
│   │   ├── deployment-patch.yaml
│   │   └── redis-depl.yaml
│   └── db/
│       ├── kustomization.yaml
│       ├── deployment-patch.yaml
│       └── postgres-depl.yaml
└── overlays/
    ├── dev/
    │   └── kustomization.yaml
    ├── premium/
    │   ├── kustomization.yaml
    │   └── standalone/
    │       └── kustomization.yaml

In the structure above, the components folder houses dedicated subdirectories for each optional feature (e.g., caching and database). Each component subfolder includes all relevant Kubernetes configurations such as deployments, patches, configuration maps, and secrets. Overlays can import these components as required, ensuring that configurations remain centralized, reusable, and easy to maintain.

Implementing a Component

Let's focus on the database component. Within the db folder, the following three files are present:

• kustomization.yaml
• deployment-patch.yaml
• postgres-depl.yaml

The postgres-depl.yaml file defines the deployment for a Postgres database, which is the sole required Kubernetes resource for the external database feature:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      component: postgres
  template:
    metadata:
      labels:
        component: postgres
    spec:
      containers:
        - name: postgres
          image: postgres

The Component's kustomization.yaml

The kustomization.yaml file inside the database component is slightly different from standard configuration files. It indicates that this is a Component:

apiVersion: kustomize.config.k8s.io/v1alpha1
kind: Component
resources:
  - postgres-depl.yaml
secretGenerator:
  - name: postgres-cred
    literals:
      - password=postgres123
patches:
  - deployment-patch.yaml

This file accomplishes the following:

• Imports the Postgres deployment defined in postgres-depl.yaml.
• Generates a secret named postgres-cred containing the database password.
• Applies patches from deployment-patch.yaml to update the base configuration (for example, by integrating an environment variable for the database password).

The Deployment Patch

The deployment-patch.yaml file constitutes a strategic merge patch that updates the base API deployment configuration. Specifically, it introduces a new environment variable for the database password:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-deployment
spec:
  template:
    spec:
      containers:
        - name: api
          env:
            - name: DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: postgres-cred
                  key: password

Importing Components in Overlays

To activate a component in an overlay, include its reference in the overlay’s kustomization.yaml file. For example, the kustomization.yaml in the dev overlay might be configured as follows:

bases:
  - ../../base
components:
  - ../../components/db

In this configuration:

• The base configuration is imported first.
• The database component is then imported, enabling the external database feature for that overlay.

This same import pattern can be applied to any overlay needing external database functionality or caching, ensuring that optional features are defined once and consistently reused across all environments.

By leveraging components in Kustomize, you can maintain consistency and reduce redundancy by defining optional features only once. This modularity not only promotes reusability but also simplifies managing configurations across multiple overlays.
