Scheduling

Labels and Selectors

Welcome to this comprehensive guide on labels, selectors, and annotations in Kubernetes. In this article, we will explore how labels and selectors help group and filter items effectively, and we will also discuss how annotations are used to store additional metadata. By the end, you'll understand how these key concepts are applied to manage resources in a Kubernetes environment.

Introduction to Labels and Selectors

Labels and selectors offer a systematic approach to categorizing items. Think of a scenario where you have various species of animals, and you need to filter them based on attributes such as class, kind, or color. For example, you might want to filter for all green animals or just the green birds. By attaching labels like class, kind, and color to each animal, you can later use selectors to efficiently filter and display the items that meet your criteria.

The image shows animal icons with labels for class, kind, and color, illustrating selectors for categorization.

In everyday applications, labels and selectors are ubiquitous. They function similarly to keywords in YouTube videos or blog posts, aiding users in finding relevant content. In online stores, labels empower customers to filter products based on various characteristics.

Labels and Selectors in Kubernetes

In Kubernetes, labels and selectors are instrumental in managing an array of objects such as Pods, Services, ReplicaSets, and Deployments. As the number of objects in a cluster grows, these tools become essential for grouping and selecting objects by application, functionality, or type.

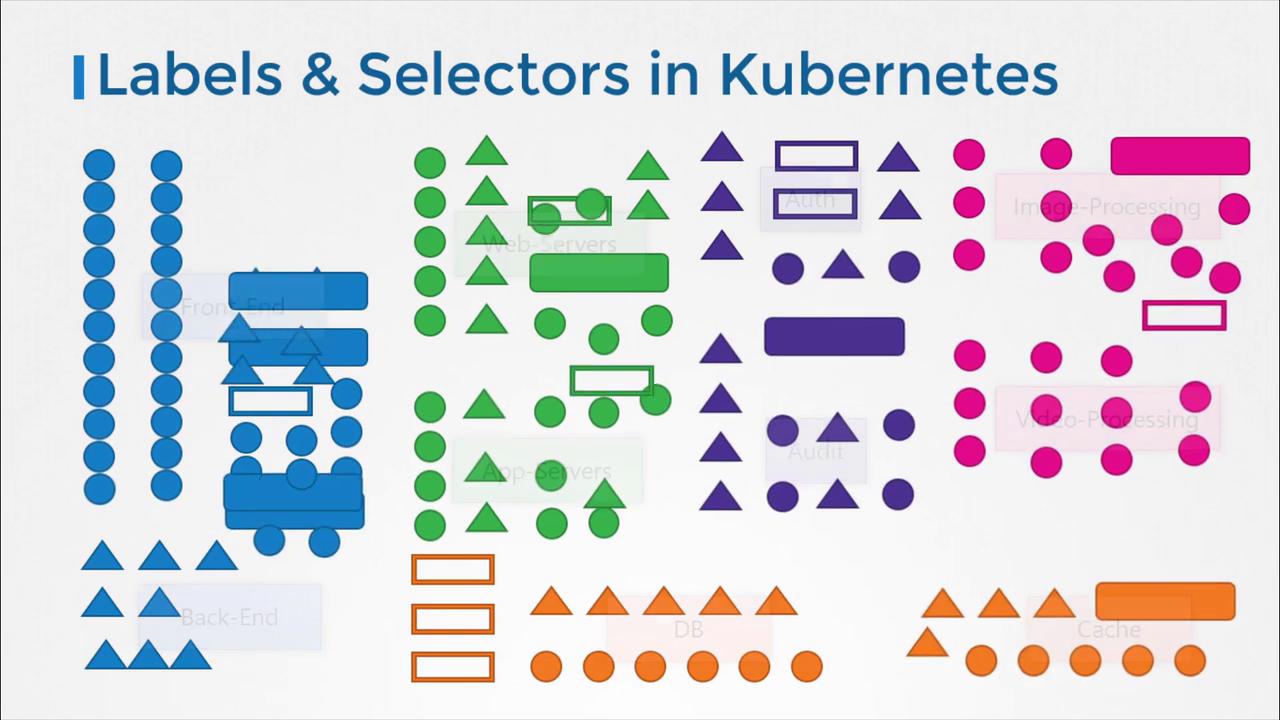

The image illustrates the use of labels and selectors in Kubernetes, featuring various colored shapes representing different components or services.

For instance, you might attach labels like "app" or "function" to your Kubernetes objects and later use selectors to filter objects based on specific conditions (e.g., app equals "App1").

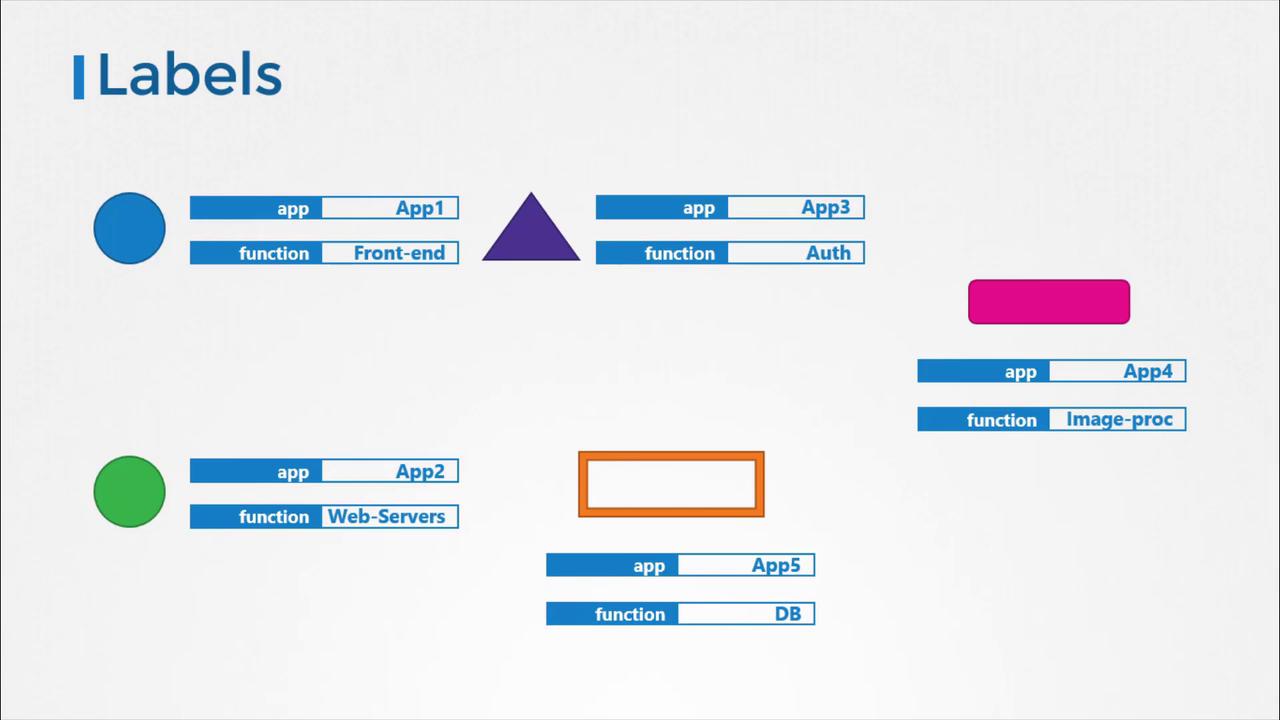

The image shows labeled shapes representing different apps and functions, including front-end, authentication, web servers, image processing, and databases.

Specifying Labels in Kubernetes

To apply labels to a Kubernetes object such as a Pod, include a labels section under the metadata field in its definition file. Consider the following Pod definition example:

apiVersion: v1
kind: Pod
metadata:
  name: simple-webapp
  labels:
    app: App1
    function: Front-end
spec:
  containers:
  - name: simple-webapp
    image: simple-webapp
    ports:
    - containerPort: 8080

After creating the Pod, you can retrieve it using the kubectl get pods command with a selector. For example:

kubectl get pods --selector app=App1
NAME            READY   STATUS      RESTARTS   AGE
simple-webapp   0/1     Completed   0          1d

Tip

Using selectors with kubectl commands helps you filter and manage resources in large clusters with ease.

Using Labels and Selectors with ReplicaSets

In Kubernetes, internal mechanisms utilize labels and selectors to connect different objects. When creating a ReplicaSet to manage three Pods, you first label the Pod definitions and then use a selector in the ReplicaSet definition to ensure the correct Pods are grouped together.

A ReplicaSet definition includes labels in two key areas:

  1. Within the ReplicaSet's metadata (allowing other objects to reference the ReplicaSet).
  2. Within the template of the ReplicaSet's specification (applying the labels to the Pods).

By setting the selector field in the ReplicaSet specification to match the labels defined on the Pods, you ensure that the ReplicaSet manages the intended Pods. Below is an example configuration:

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: simple-webapp
  labels:
    app: App1
    function: Front-end
spec:
  replicas: 3
  selector:
    matchLabels:
      app: App1
  template:
    metadata:
      labels:
        app: App1
        function: Front-end
    spec:
      containers:
      - name: simple-webapp
        image: simple-webapp

Note

If you require more granular control for selecting Pods, you can list multiple labels in the matchLabels section.

Annotations

Annotations differ from labels and selectors in that they are used to store additional metadata that is not intended for selection. This metadata might include details such as tool versions, build information, or contact information. Below is an example of a ReplicaSet configuration that includes an annotation:

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: simple-webapp
  labels:
    app: App1
    function: Front-end
  annotations:
    buildversion: "1.34"
spec:
  replicas: 3
  selector:
    matchLabels:
      app: App1
  template:
    metadata:
      labels:
        app: App1
        function: Front-end
    spec:
      containers:
      - name: simple-webapp
        image: simple-webapp

When the ReplicaSet is created, it matches the Pods based on labels, ensuring that only the intended Pods are managed. The same mechanism is used when creating Services, where the Service's selector matches the labels set on the Pods.

Conclusion

This article has provided an in-depth look at labels, selectors, and annotations in Kubernetes. These concepts are essential for effectively managing and grouping objects within your clusters. For further hands-on practice, navigate to the coding exercises section and start working with labels and selectors today.
