Resource Limits

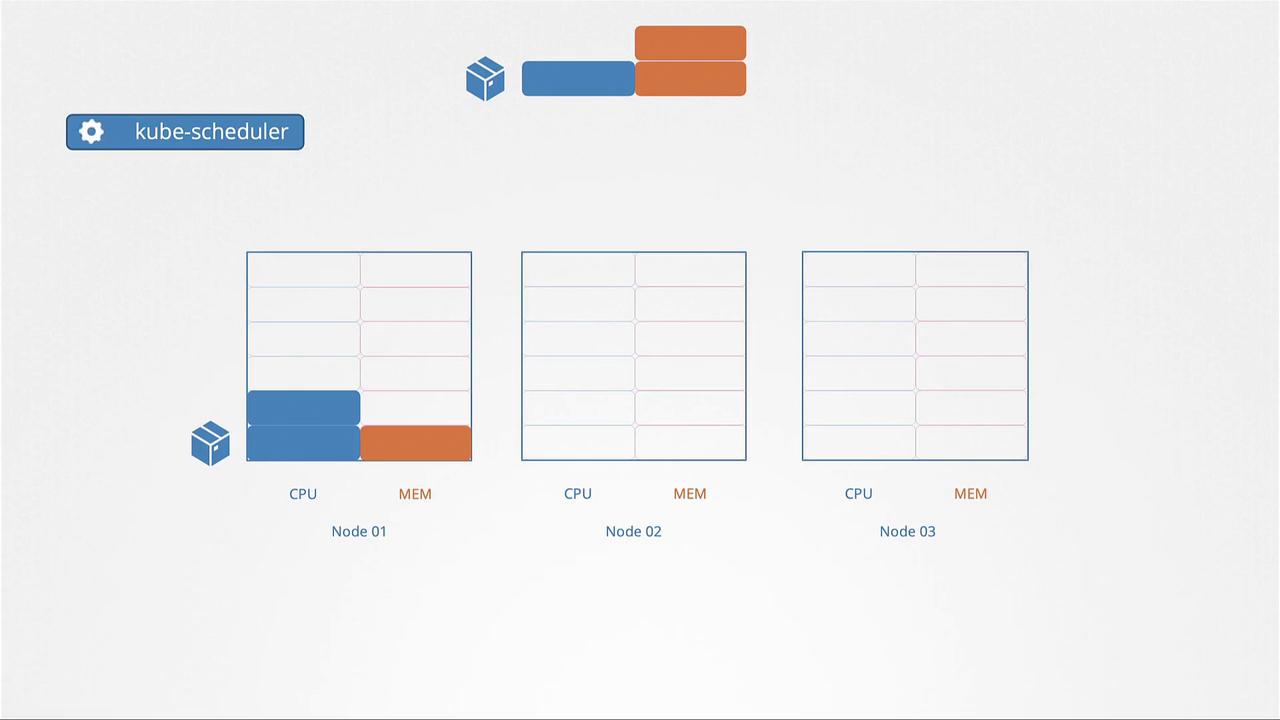

In this lesson, we explore resource requirements in Kubernetes by examining a scenario with a three-node cluster. Each node has a specific amount of CPU and memory available. When a pod is scheduled, it consumes a portion of its node's resources based on the specifications in its definition—such as needing 2 CPUs and 1 memory unit.

The Kubernetes scheduler decides which node will host the pod by evaluating the requested resources against what each node can offer. If, for example, Node 2 has sufficient capacity, the scheduler assigns the pod there. Otherwise, if no node meets the requirements, the pod remains in a pending state. You can inspect pod events using the command kubectl describe pod, which may reveal messages like this when resources (such as CPU) are insufficient:

NAME              READY   STATUS    RESTARTS   AGE
Nginx             0/1     Pending   0          7m
Events:
  Reason           Message
  ------           -------
  FailedScheduling  No nodes are available that match all of the following predicates:: Insufficient cpu (3).

Resource Requests

Resource requests define the minimum CPU and memory a container is guaranteed when scheduled. Specifying a request, for instance, of 1 CPU and 1 GB memory in a pod definition ensures that the pod will only be scheduled on a node that can provide these minimum resources. The Kubernetes scheduler searches for a node that meets these requirements, guaranteeing the pod access to the declared resources.

Below is an example snippet of a pod definition with resource requests set to 4 Gi of memory and 2 CPU cores:

apiVersion: v1
kind: Pod
metadata:
  name: simple-webapp-color
  labels:
    name: simple-webapp-color
spec:
  containers:
  - name: simple-webapp-color
    image: simple-webapp-color
    ports:
    - containerPort: 8080
    resources:
      requests:
        memory: "4Gi"
        cpu: 2

Remember, it is possible to use fractional CPU values. For example, 0.1 CPU is equivalent to 100m (where "m" denotes milli, meaning 0.001 of a CPU). One CPU core is typically equivalent to one vCPU in cloud environments like AWS, GCP, or Azure.

Resource Limits

By default, a container in a pod can consume all the available resources on its node if no limits are set. However, you can restrict its usage by defining resource limits. Setting a limit, such as 1 vCPU, prevents the container from using more than that allocation. Similarly, memory limits restrict its maximum memory usage. Note that while CPU usage is throttled when a pod reaches its limit, memory usage is not. If a pod exceeds its memory limit, it may be terminated due to an Out Of Memory (OOM) error.

Below is an example of a pod definition that includes both resource requests and limits for memory and CPU:

apiVersion: v1
kind: Pod
metadata:
  name: simple-webapp-color
  labels:
    name: simple-webapp-color
spec:
  containers:
  - name: simple-webapp-color
    image: simple-webapp-color
    ports:
    - containerPort: 8080
    resources:
      requests:
        memory: "1Gi"
        cpu: 1
      limits:
        memory: "2Gi"
        cpu: 2

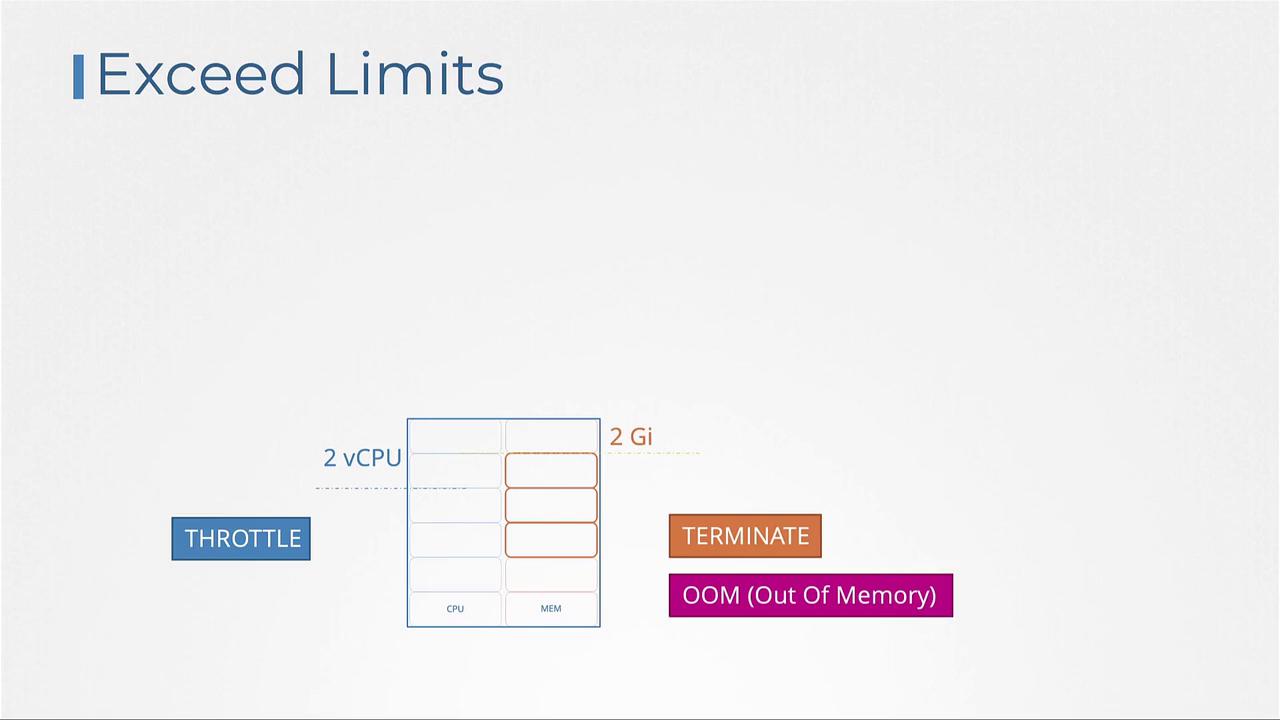

If a container exceeds its CPU limit, Kubernetes throttles its CPU usage. Conversely, if a container uses more memory than allowed, the pod will be terminated and an OOM error will be logged.

Default Behavior and Scenarios

By default, Kubernetes does not enforce CPU or memory requests and limits. This means a pod without specified limits can consume all available resources on its node, potentially affecting other pods and system processes.

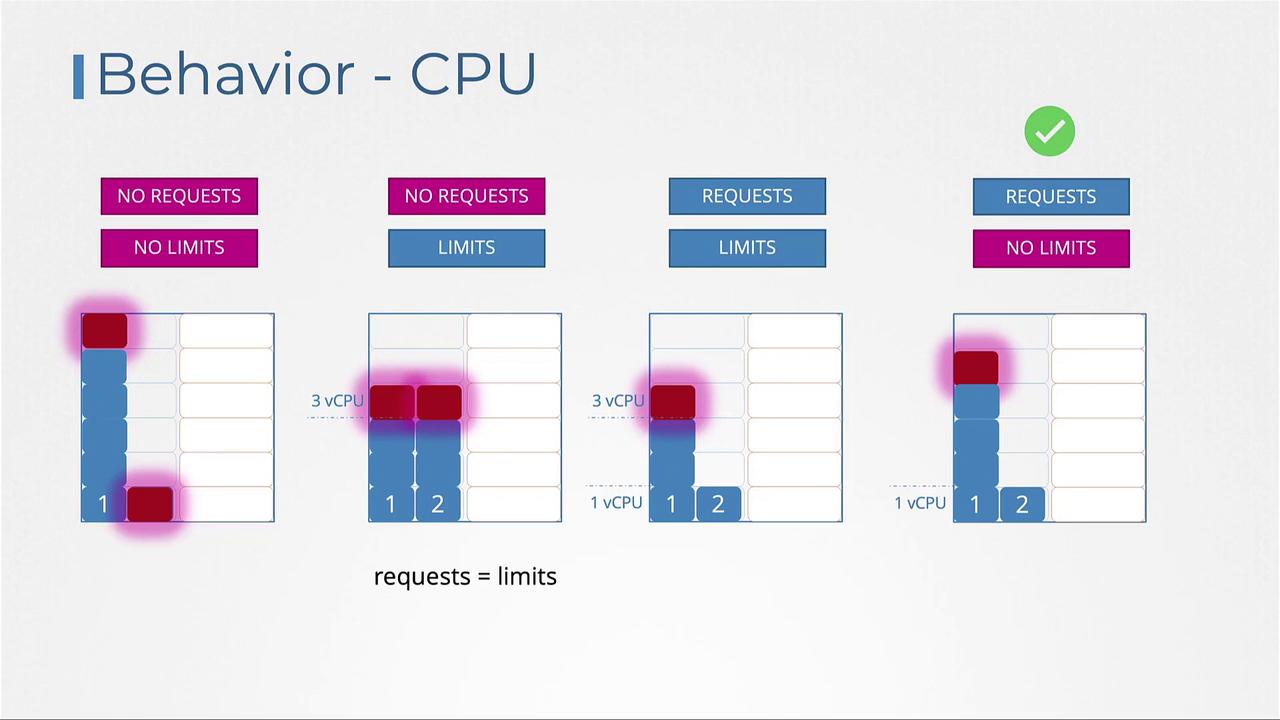

Below are several scenarios for CPU configurations:

1. No Requests or Limits:
   A container can utilize all available CPU, potentially starving other pods.
2. Limits Specified Without Requests:
   Kubernetes assumes the request value is equal to the limit (e.g., setting a limit of 3 vCPUs results in a request of 3 vCPUs).
3. Both Requests and Limits Defined:
   The container is guaranteed its requested amount (e.g., 1 vCPU) but can use additional CPU up to its defined limit (e.g., 3 vCPUs).
4. Requests Defined Without Limits:
   The container is guaranteed its requested CPU value, with access to additional cycles if available, which allows for efficient utilization of idle resources.

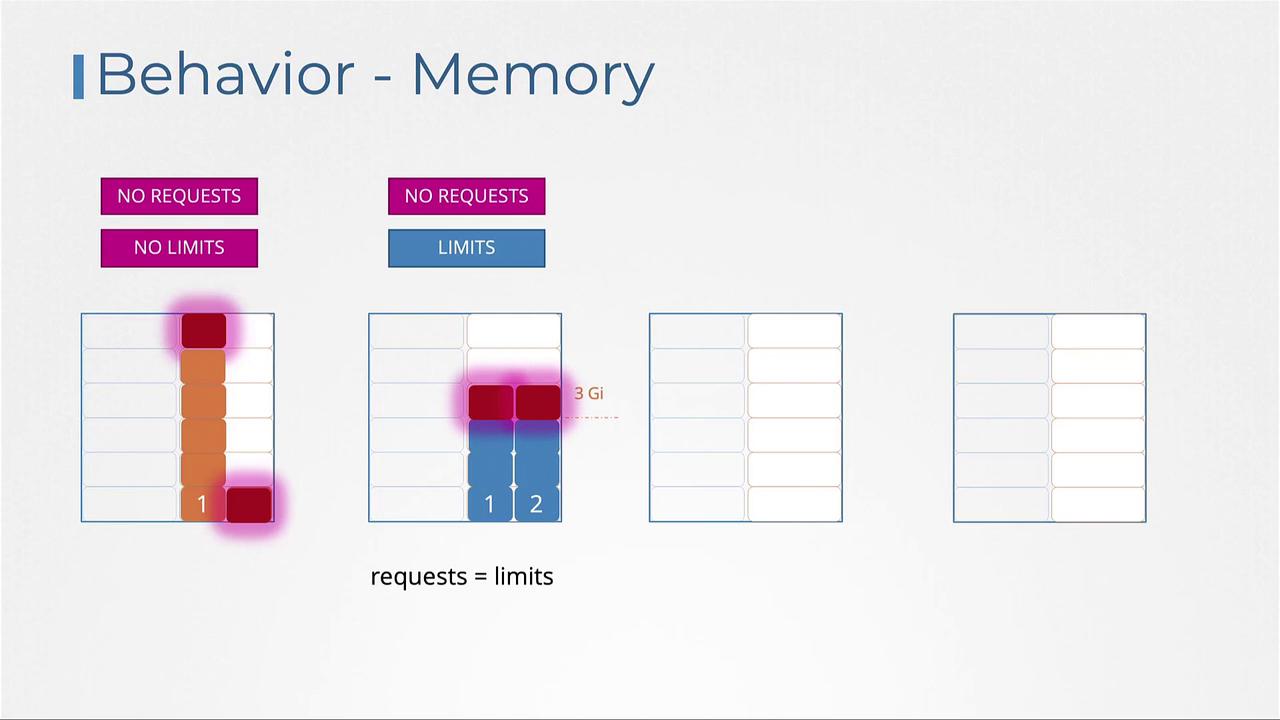

Similar configurations apply for memory:

• Without any resource configurations, a single pod may monopolize node memory.
• When only limits are specified, Kubernetes sets the memory request equal to the limit.
• With both requests and limits, the pod is allocated a guaranteed memory amount and can burst up to the limit.
• Only specifying requests guarantees the pod a base amount of memory but might let it consume more, potentially leading to termination if memory usage becomes excessive.

Limit Ranges

For example, you can create a LimitRange to enforce CPU constraints:

# limit-range-cpu.yaml
apiVersion: v1
kind: LimitRange
metadata:
  name: cpu-resource-constraint
spec:
  limits:
    - default:
        cpu: 500m
      defaultRequest:
        cpu: 500m
      max:
        cpu: "1"
      min:
        cpu: 100m
      type: Container

Likewise, to set memory constraints, use the following configuration:

# limit-range-memory.yaml
apiVersion: v1
kind: LimitRange
metadata:
  name: memory-resource-constraint
spec:
  limits:
    - default:
        memory: 1Gi
      defaultRequest:
        memory: 1Gi
      max:
        memory: 1Gi
      min:
        memory: 500Mi
      type: Container

Keep in mind that changes to a LimitRange affect only new pods created after the LimitRange is applied or updated.

Resource Quotas

Resource Quotas allow you to restrict the overall resource consumption for all applications within a namespace. By setting a Resource Quota, you can define hard limits on the aggregate consumption—such as restricting total CPU requests to 4 vCPUs and total memory to 4 GB, while also defining maximum limits (for example, 10 vCPUs and 10 GB) across all pods.

This approach helps maintain balanced resource allocation within a namespace even if individual pods lack explicit limits.

Conclusion

In this lesson, we covered the essential concepts of resource requests and limits in Kubernetes. We learned how to declare resource requests to ensure pods receive the necessary resources and how setting resource limits prevents any single pod from overwhelming its node. Additionally, we discussed the implementation of LimitRanges to provide default values within a namespace and Resource Quotas to control aggregate resource usage.

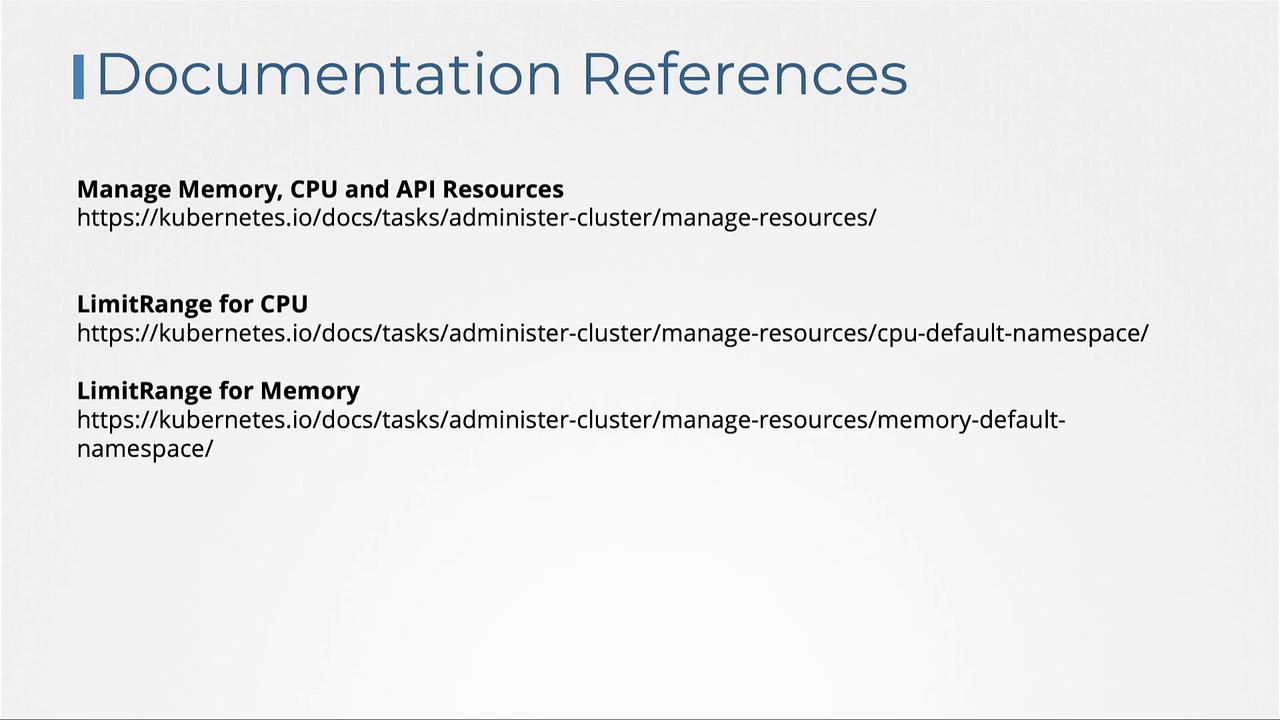

For more detailed information, refer to the official Kubernetes documentation, and consider practicing these configurations in your own Kubernetes environments.
