Static Pods

In this lesson, we explore static pods in Kubernetes and how they operate independently of control plane components. Previously, we reviewed the Kubernetes architecture and explained the role of the kubelet as a primary component. Typically, the kubelet receives instructions from the kube-apiserver about which pods to run on its node. These decisions, made by the kube-scheduler and stored in the etcd data store, are standard in a clustered environment. But what happens when the kube-apiserver, kube-scheduler, and other control plane components are absent? How does the node function on its own?

Imagine being isolated at sea with no master or other nodes nearby. Can the kubelet still guide the node? The answer is yes. When the kubelet and a container runtime (such as Docker) are installed directly on the host without a Kubernetes cluster, the kubelet can independently manage the node. In this scenario, because there is no API server to provide pod details, you must supply the pod definition files directly to the kubelet.

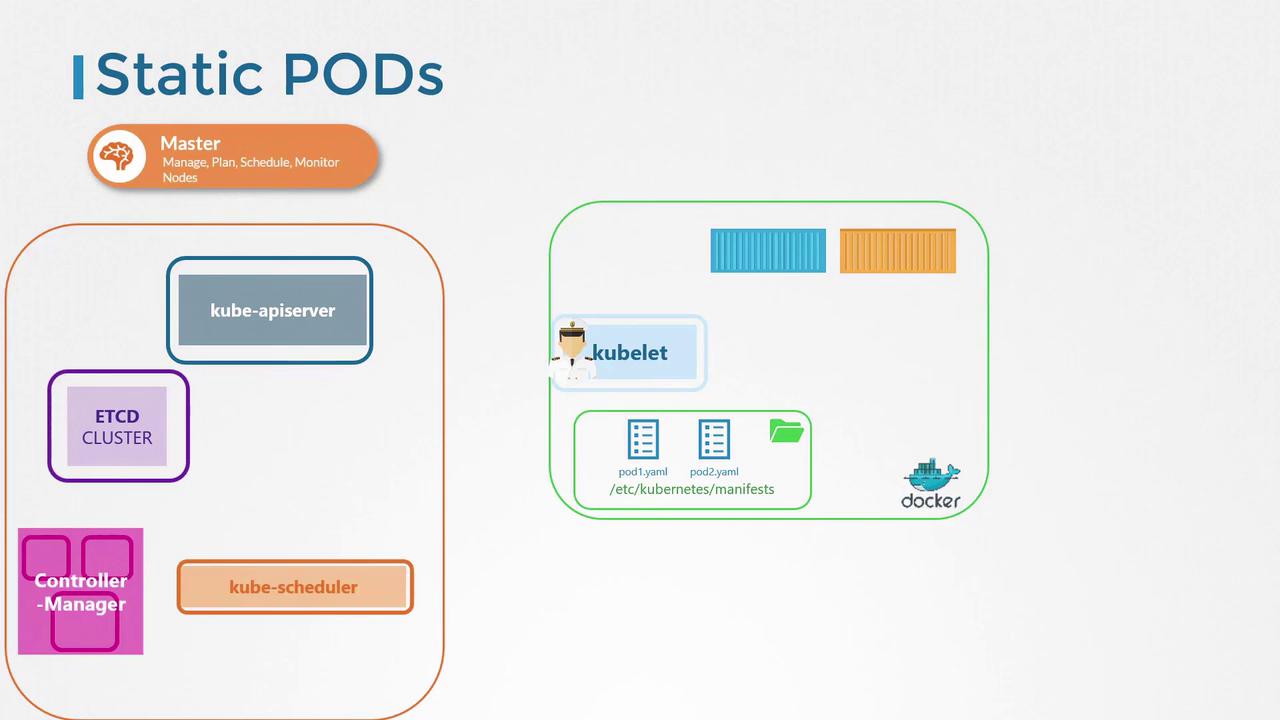

The kubelet is configured to monitor a designated directory on the host where pod definition files are stored. The kubelet periodically scans this directory, reads available files, and creates the corresponding pods. It also monitors these pods and ensures they remain running. For example, if an application crashes, the kubelet restarts it; if an updated file is detected, the kubelet recreates the pod to apply the changes; and if a file is removed, the corresponding pod is also deleted. These pods, created solely by the kubelet, are known as static pods.

It's important to note that only pod-level resources can be created this way. Higher-level abstractions such as ReplicaSets, Deployments, or Services depend on other control plane components (e.g., the replication and deployment controllers) and cannot be managed via the static pod definition files.

Configuring the Static Pods Directory

You can place static pods in any directory on the host. The directory location is provided to the kubelet at startup by using the --pod-manifest-path option. Below is an example configuration in the kubelet service file:

ExecStart=/usr/local/bin/kubelet \
  --container-runtime=remote \
  --container-runtime-endpoint=unix:///var/run/containerd/containerd.sock \
  --pod-manifest-path=/etc/kubernetes/manifests \
  --kubeconfig=/var/lib/kubelet/kubeconfig \
  --network-plugin=cni \
  --register-node=true \
  --v=2

Alternatively, you can specify a configuration file that includes the manifest directory path. For example:

# kubelet.service
ExecStart=/usr/local/bin/kubelet \
  --container-runtime=remote \
  --container-runtime-endpoint=unix:///var/run/containerd/containerd.sock \
  --config=kubeconfig.yaml \
  --kubeconfig=/var/lib/kubelet/kubeconfig \
  --network-plugin=cni \
  --register-node=true \
  --v=2

# kubeconfig.yaml
staticPodPath: /etc/kubernetes/manifests

Many clusters created using kubeadm adopt this approach. When inspecting an existing cluster, first check for the --pod-manifest-path option in the kubelet service file. If it is not present, look for the --config option to locate the configuration file and check its staticPodPath setting.

You can verify the status of static pods using container runtime commands. For instance, running the Docker command below on a host shows the containers spawned by static pods:

docker ps
CONTAINER ID        IMAGE                   COMMAND                  CREATED             STATUS              PORTS               NAMES
8e5d4c4db7b6        busybox                 "sh -c 'echo Hello K…'"  20 seconds ago      Up 20 seconds       k8s_myapp-container_myapp-pod-host01_default_48e37fb432f2e06350e76786bd0bac66_0
f6737e1149cb        k8s.gcr.io/pause:3.1     "/pause"                 24 seconds ago      Up 23 seconds       k8s_POD_myapp-pod-host01_default_48e37fb432f2e06350e76786bd0bac66_0

In a standalone scenario, use docker ps because the kube-apiserver is not available to process Kubernetes API requests.

Behavior When Part of a Cluster

When a node is part of a Kubernetes cluster, the kube-apiserver instructs the kubelet to create pods via its HTTP API endpoint. In this mixed mode, the kubelet handles pod definitions provided both from the static pod directory and from the API server. Whenever the kubelet creates a static pod in this configuration, it also creates a mirror object in the kube-apiserver. This mirror object is read-only and can be viewed with kubectl get pods, but you cannot modify or delete it through the API. To update a static pod, modify the file in the node’s manifest directory.

For example, running the command below on the master node will display the static pod mirror:

kubectl get pods
NAME                READY   STATUS              RESTARTS   AGE
static-web-node01   0/1     ContainerCreating   0          29s

Notice that the pod name includes the node name (e.g., "node01") to indicate its origin.

Static Pods vs. DaemonSets

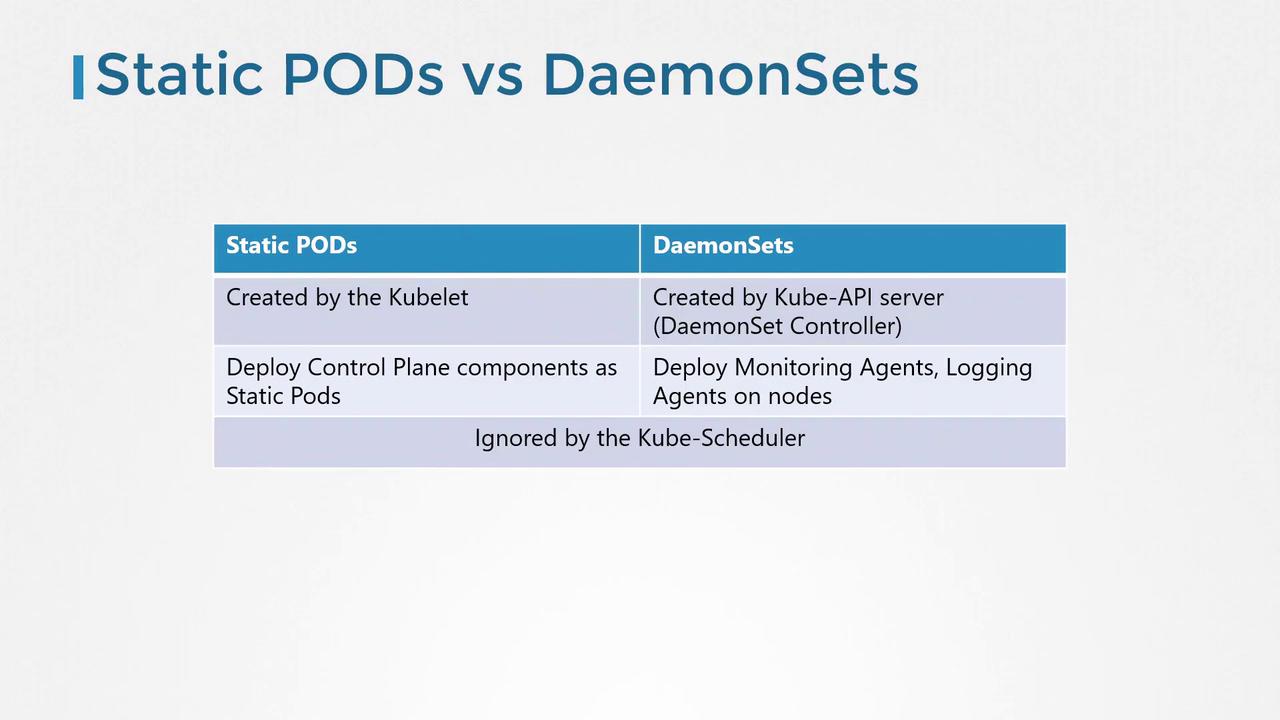

A common question that arises is how static pods differ from DaemonSets. The table below summarizes the key differences between the two:

Static pods are especially useful for deploying control plane components themselves. Once the kubelet is installed on all master nodes, you can create pod definition files for essential components like the API server and controller manager. By placing these files in the designated manifest folder, the kubelet ensures they are running as pods and restarts them automatically if they fail. When you check the pods in the kube-system namespace, you'll see these control plane components running as pods—a standard configuration in clusters set up using kubeadm.

That concludes this detailed discussion on static pods. Be sure to review and practice working with static pods in your upcoming tests to reinforce these concepts.
