Operator Framework 2025 Updates

In this article, we explore the operator framework and its role in simplifying the deployment and management of applications on Kubernetes. Traditionally, you would create a Custom Resource Definition (CRD) and a custom controller separately. After manually defining the CRD and associated resources, you would deploy the controller as a pod or Deployment. With the operator framework, however, these components are packaged together and deployed as a single entity.

For example, when deploying the flight operator, the framework automatically creates the CRD, provisions the required resources, and deploys the custom controller as a Deployment. Consider the CRD definition and deployment command below:

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  name: flighttickets.flights.com
spec:
  scope: Namespaced
  group: flights.com
  names:
    kind: FlightTicket
    singular: flightticket
    plural: flighttickets
    shortnames:
      - ft
  versions:
    - name: v1
      served: true
      storage: true

kubectl create -f flight-operator.yaml

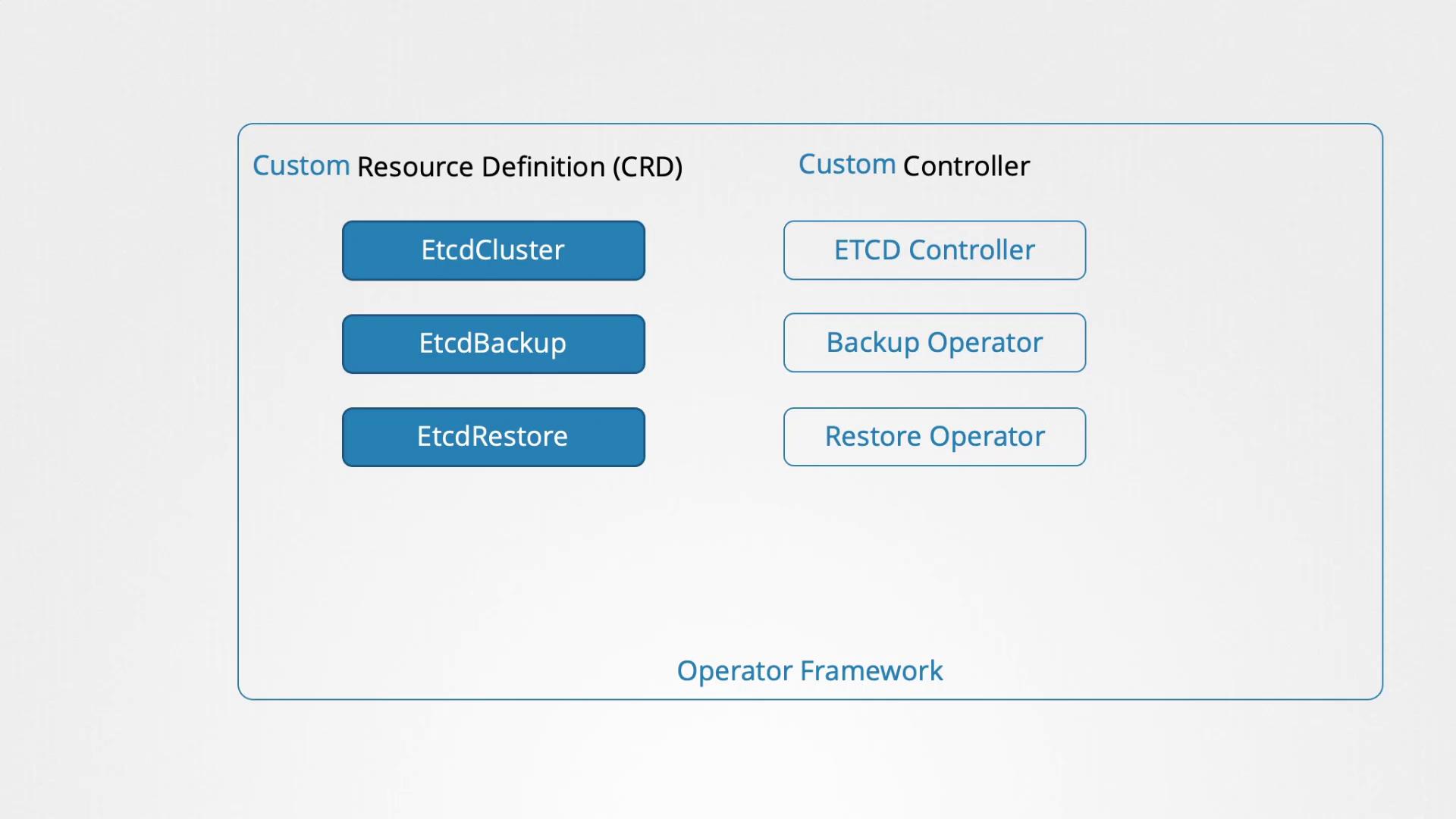

The operator framework offers more than simply deploying a CRD and a controller. A notable real-world example is the etcd operator, widely used for deploying and managing etcd clusters in Kubernetes. The etcd operator includes:

• A CRD to define an etcd cluster.
• A custom controller that monitors and manages etcd deployments.
• Backup and restore functionalities enabled via corresponding CRDs that trigger specialized operators to handle these tasks.

Kubernetes operators perform many tasks traditionally handled by human operators, such as installing applications, conducting regular backups, restoring from backups during disasters, and troubleshooting issues.

Operators are available on the Operator Hub, where you can select operators for popular applications like etcd, MySQL, Prometheus, Grafana, Argo CD, and Istio. Installation instructions are provided on each operator's page, and deploying an application typically involves these three steps:

1. Install the Operator Lifecycle Manager.
2. Install the desired operator.
3. Allow the operator to automatically manage the application.

Below are some shell commands that showcase how to install the Operator Lifecycle Manager and deploy an operator:

curl -sL https://github.com/operator-framework/operator-lifecycle-manager/releases/download/v0.19.1/install.sh | bash -s v0.19.1

kubectl create -f https://operatorhub.io/install/etcd.yaml

kubectl get csv -n my-etcd

For more in-depth knowledge, consider exploring the following resources:

• Kubernetes Basics
• Kubernetes Documentation
• Operator Lifecycle Manager Installation Guide

Thank you for reading, and see you in the next article!
