Buildpack Layers

In this lesson, we explore how buildpack layers can create efficient, reusable build processes. By leveraging layers, you can optimize Dockerfile commands, speed up build times, and reduce redundant work.

Understanding Layers in Dockerfiles

Each significant command in a Dockerfile produces a layer. Consider the following Dockerfile example:

# Use Node 20.16 alpine as base image
FROM node:20.16-alpine3.19 AS base

# Copy the package.json and package-lock.json files to the /build directory
COPY package*.json ./

# Install production dependencies and clean the cache
RUN npm ci --omit=dev && npm cache clean --force

# Copy the entire source code into the container
COPY . .

# Start the application
CMD ["node", "src/server.js"]

Every step—from the base image selection to setting the entry point—creates a separate layer. This layering mechanism allows caches to be reused in subsequent builds. For example, if the Node.js installation layer remains unchanged, it is reused from cache, significantly reducing build time and workload.

Currently, our buildpack script builds everything in one layer. If any part of the process changes, the whole build must be repeated. Separating components into multiple layers—such as one for Node.js and another for dependencies—ensures that unchanged parts are cached and reused.

Below is an excerpt from our build script that downloads and extracts Node.js, installs dependencies, and leverages caching:

#!/usr/bin/env bash
set -euo pipefail
echo "Building image using my-js-buildpack buildpack"
default_node_js_version="18.18.0"

# Retrieve the user's desired Node.js version
node_js_version=$(cat "${CNB_BP_PLAN_PATH}" | yj -t | jq -r '.entries[] | select(.name == "node-js") | .metadata.version' || echo ${default_node_js_version})
echo "nodejs version: ${node_js_version}"

echo "--> Downloading and extracting NodeJS"
node_js_url=https://nodejs.org/dist/v${node_js_version}/node-v${node_js_version}-linux-x64.tar.xz
wget -q -O - "${node_js_url}" | tar -xJf - --strip-components 1

echo "--> Installing Application Dependencies"
npm ci

By caching downloaded components in separate layers, subsequent builds skip redundant steps, resulting in faster and more efficient build processes.

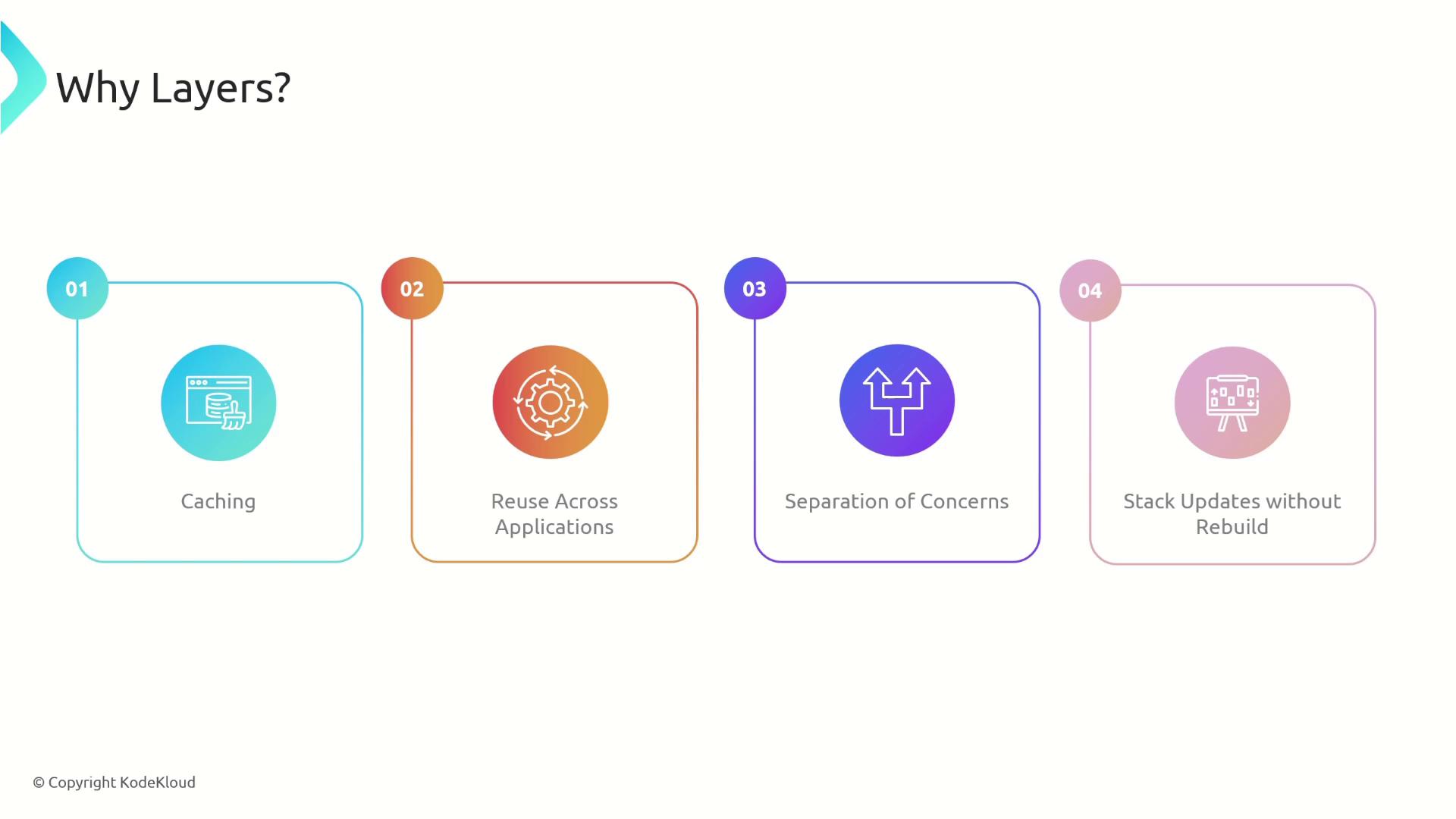

Benefits of Using Layers in Build Processes

Utilizing layers in your build process offers several key benefits:

Creating Layers in Buildpacks

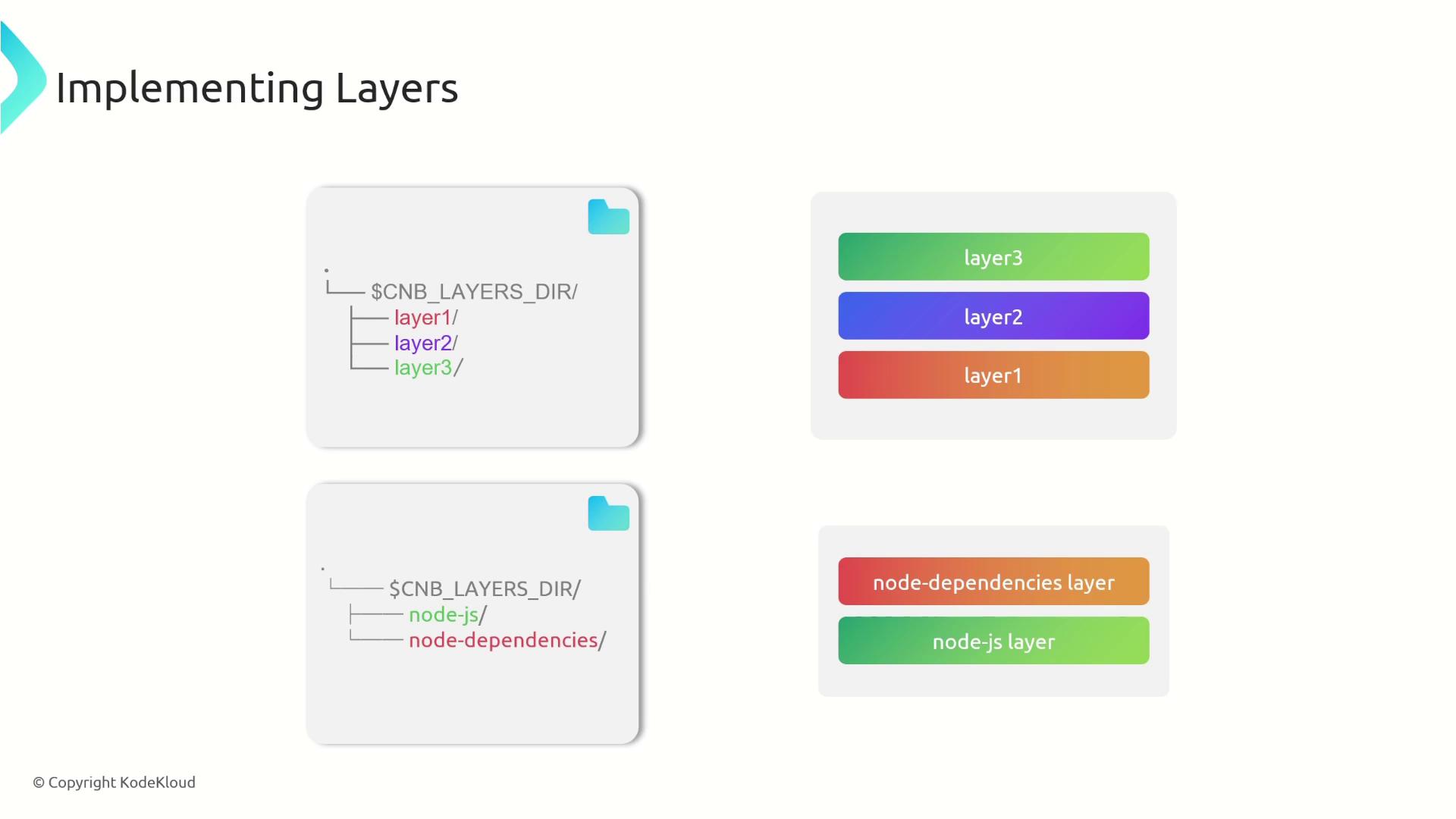

Buildpacks implement layers by structuring subdirectories under the environment variable directory CNB_LAYERS_DIR. Each subdirectory represents a layer in the final image. For example:

├── $CNB_LAYERS_DIR/
│   ├── layer1/
│   ├── layer2/
│   └── layer3/

For instance, to separate concerns, you may create one layer for the Node.js runtime and another for application dependencies. When Node.js is downloaded, its binaries can be stored in the "node-js" directory, while npm-installed dependencies reside in "node-dependencies". Each layer is then configured with its corresponding metadata file.

Layer Metadata

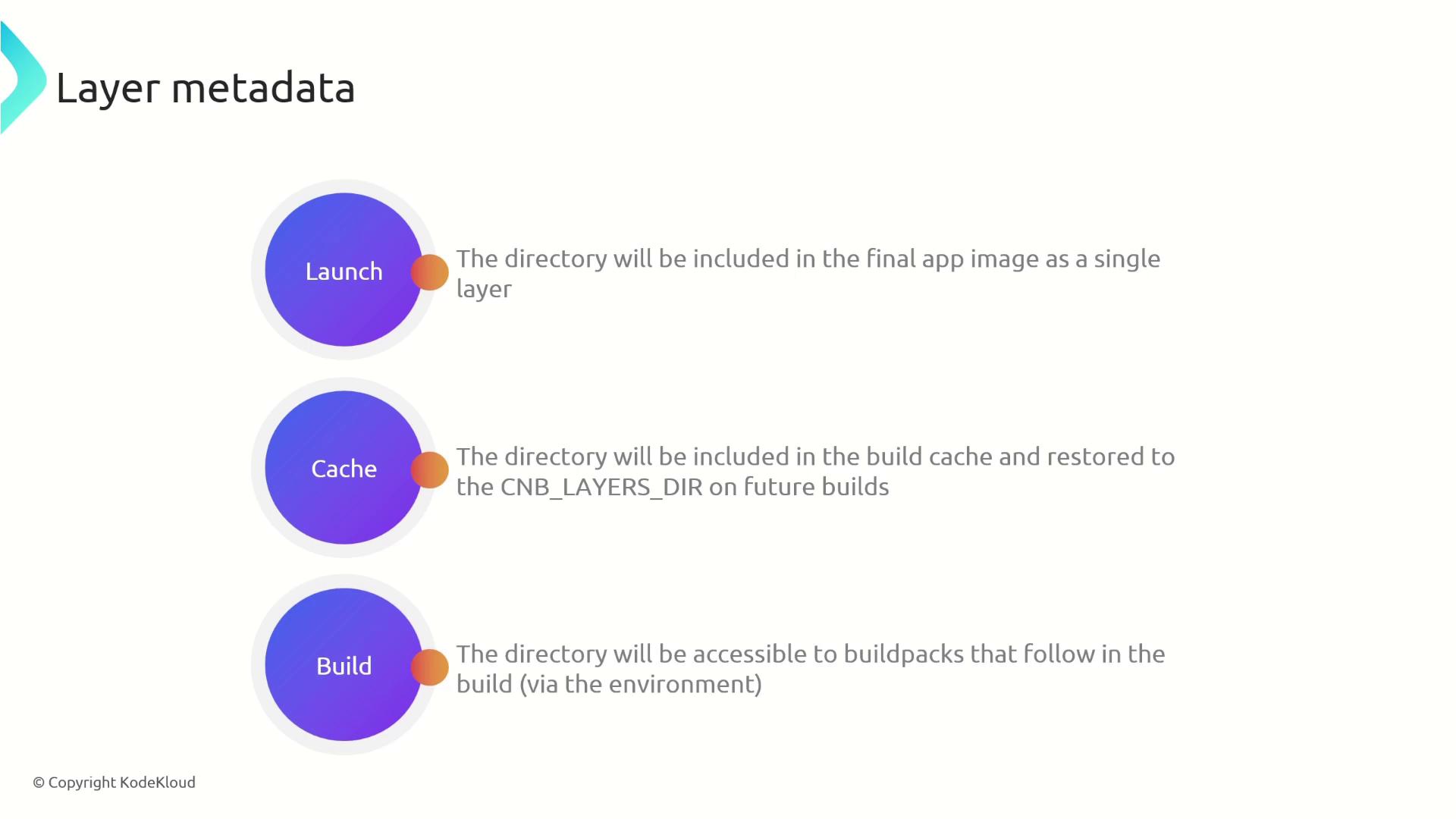

Each layer uses a TOML configuration file (named identically to the layer with a .toml extension) to dictate its behavior. The metadata includes three primary settings:

• launch: If set to true, the layer is included in the final application image.
• cache: Determines whether the layer is stored in the build cache.
• build: Indicates if the layer should be available to subsequent buildpacks during the build phase.

For runtime layers like Node.js and application dependencies, set launch to true.

A typical TOML configuration for a runtime layer might look like this:

launch = true
cache = false
build = false

Implementing the Node.js and Dependencies Layers

Below are step-by-step instructions to create two distinct layers for your buildpack: one for the Node.js runtime and one for your application dependencies.

Node.js Runtime Layer

Create a folder for the Node.js runtime layer under CNB_LAYERS_DIR and download Node.js into that directory. Then create the corresponding metadata file:

# Create the Node.js runtime layer directory
node_js_layer="${CNB_LAYERS_DIR}/node-js"
mkdir -p "${node_js_layer}"

default_node_js_version="18.18.0"
# Retrieve the user's desired Node.js version
node_js_version=$(cat "$CNB_BP_PLAN_PATH" | yj -t | jq -r '.entries[] | select(.name == "node-js") | .metadata.version' || echo ${default_node_js_version})
echo "nodejs version: ${node_js_version}"

echo "---> Downloading and extracting NodeJS"
node_js_url=https://nodejs.org/dist/v${node_js_version}/node-v${node_js_version}-linux-x64.tar.xz
wget -q -O "${node_js_url}" | tar -xJf - --strip-components 1 -C "${node_js_layer}"

# Configure the Node.js layer to be available at launch time
cat > "${CNB_LAYERS_DIR}/node-js.toml" << EOL
[types]
build = false
launch = true
cache = false
EOL

Node Modules (Dependencies) Layer

Create a separate layer for your Node.js dependencies. By copying package files, installing dependencies in the layer, and creating a symbolic link to the working directory, you ensure that dependencies are efficiently managed and available at runtime:

workdir=$(pwd)
# Create layer for the node_modules
node_modules_layer="${CNB_LAYERS_DIR}/node-dependencies"
mkdir -p "${node_modules_layer}"

echo "---> Installing Application Dependencies"
# Copy package.json and package-lock.json to the layer
cp package*.json "${node_modules_layer}"

# Install dependencies in the layer
cd "${node_modules_layer}"
npm ci
cd "$workdir"

# Symlink to make the node_modules directory available in the working directory
ln -s "${node_modules_layer}/node_modules" "/workspace/node_modules"

# Configure the node_dependencies layer metadata
cat > "${node_modules_layer}.toml" << EOL
[types]
build = false
launch = true
cache = false
EOL

Conclusion

Organizing your buildpack with dedicated layers for the Node.js runtime and application dependencies offers significant advantages:

• Faster and more efficient builds through effective caching.
• Reduced bandwidth usage and improved reuse across applications.
• Logical separation that simplifies updates and maintenance.

Utilizing these practices will help you achieve consistent, reproducible builds while optimizing your containerization workflow. For further reading on Docker optimization and buildpack strategies, refer to the Docker Documentation and Buildpacks Documentation.

Happy building!
