Resilience and Disaster Recovery

In this final section of our security architecture guide, we dive into resilience and disaster recovery. This guide covers critical topics such as high availability, disaster recovery planning, and leveraging cloud-based tools to ensure overall business continuity.

The image has a gradient blue background with the text "Resilience and Recovery" on it. It also includes a copyright notice for KodeKloud.

Key considerations include designing for high availability, understanding downtime measurements, and selecting appropriate disaster recovery sites.

High Availability

High availability is achieved by constructing an architecture that minimizes downtime through fault tolerance and redundancy across servers, routers, switches, and data centers.

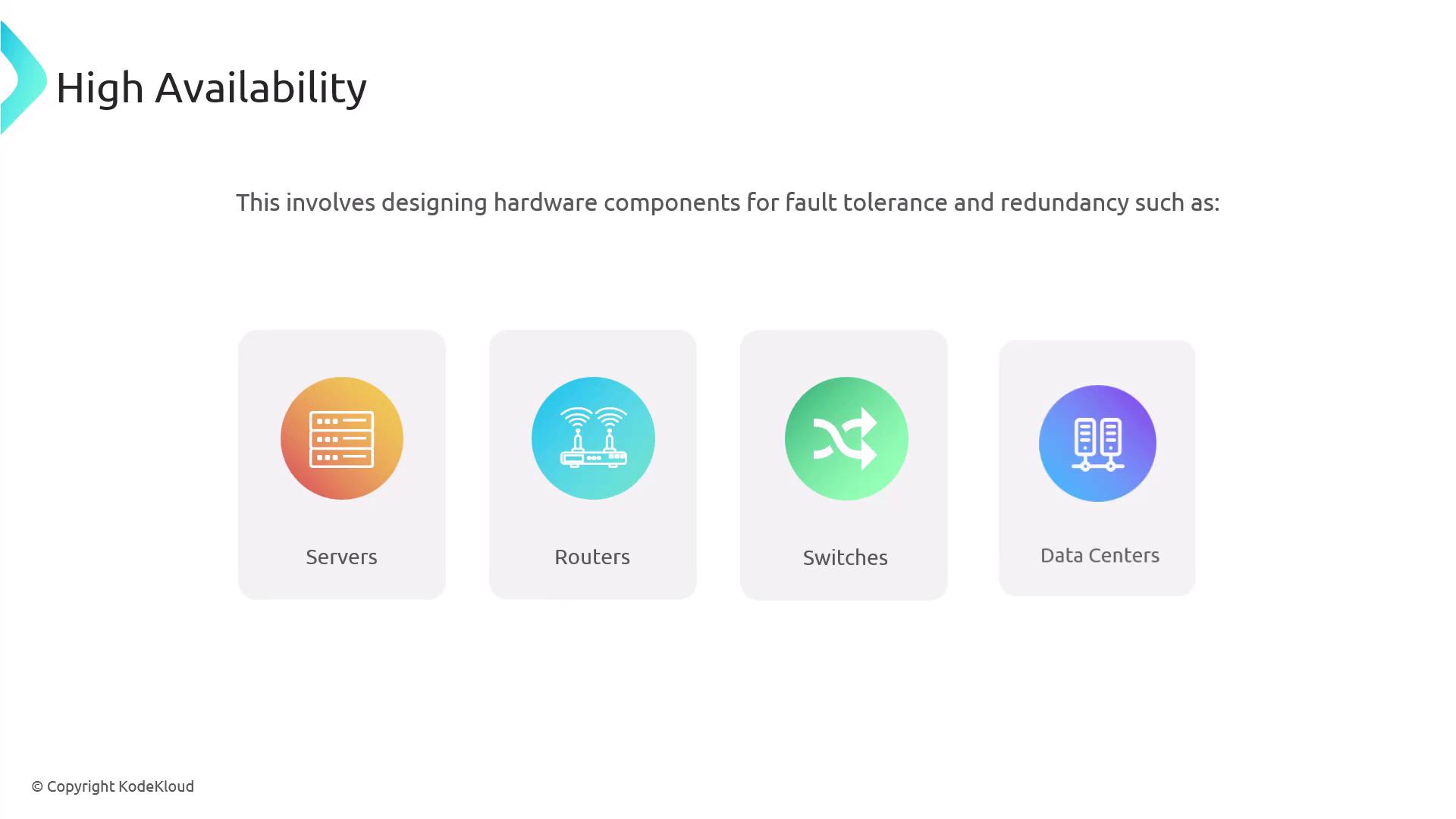

The image is about "High Availability" and shows icons for servers, routers, switches, and data centers, highlighting their role in fault tolerance and redundancy.

Systems designed for high availability are typically measured in "nines." For a system expected to run 24 hours a day, 365 days a year, the goal is near 100% uptime by subtracting the total allowed downtime. For example:

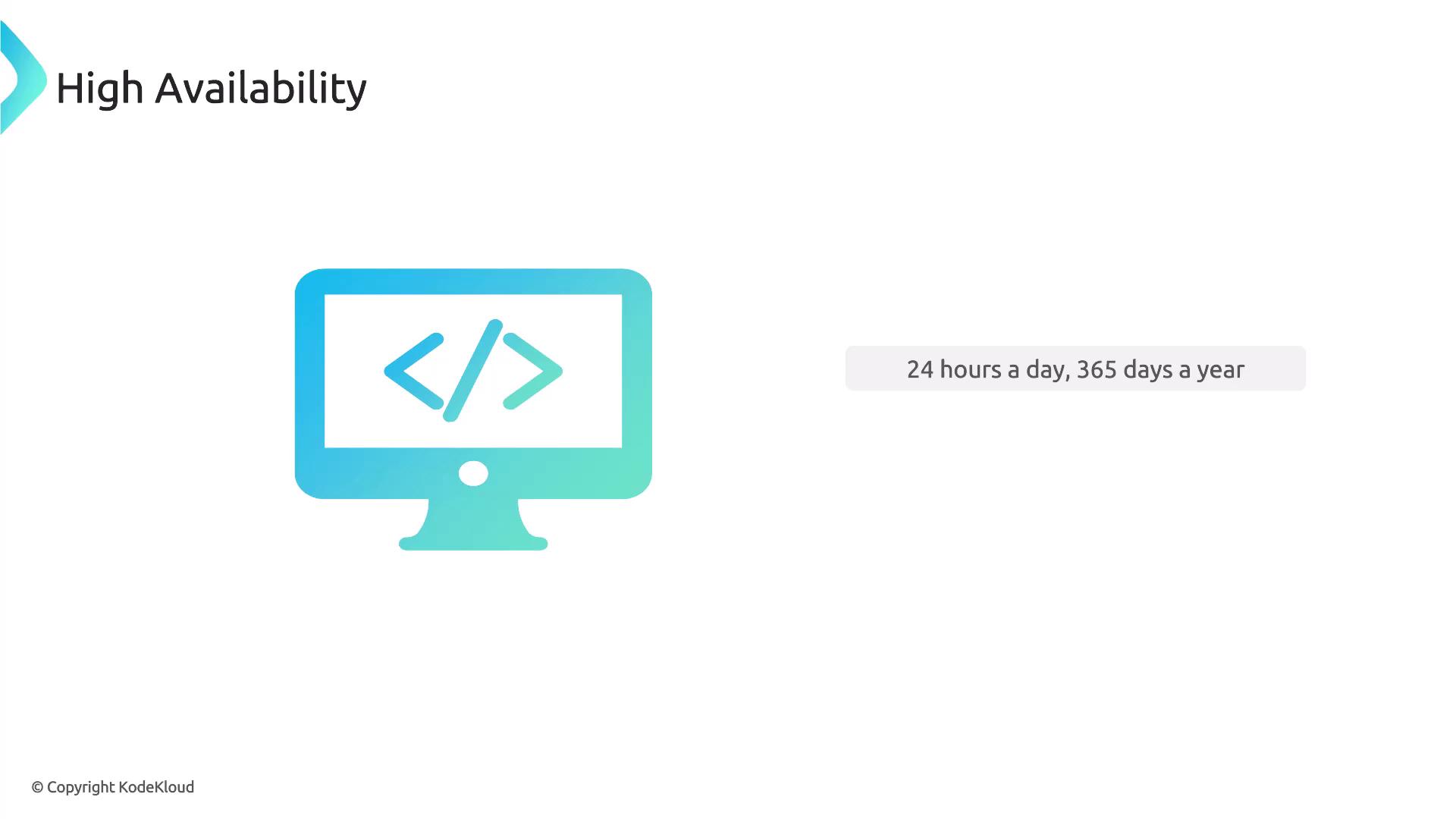

The image features a computer monitor icon with code symbols, labeled "High Availability," and a note stating "24 hours a day, 365 days a year."

99.999% uptime ("five nines") permits approximately 5 minutes and 15 seconds of downtime per year.
99.99% uptime ("four nines") allows roughly 52 minutes and 34 seconds of downtime annually.

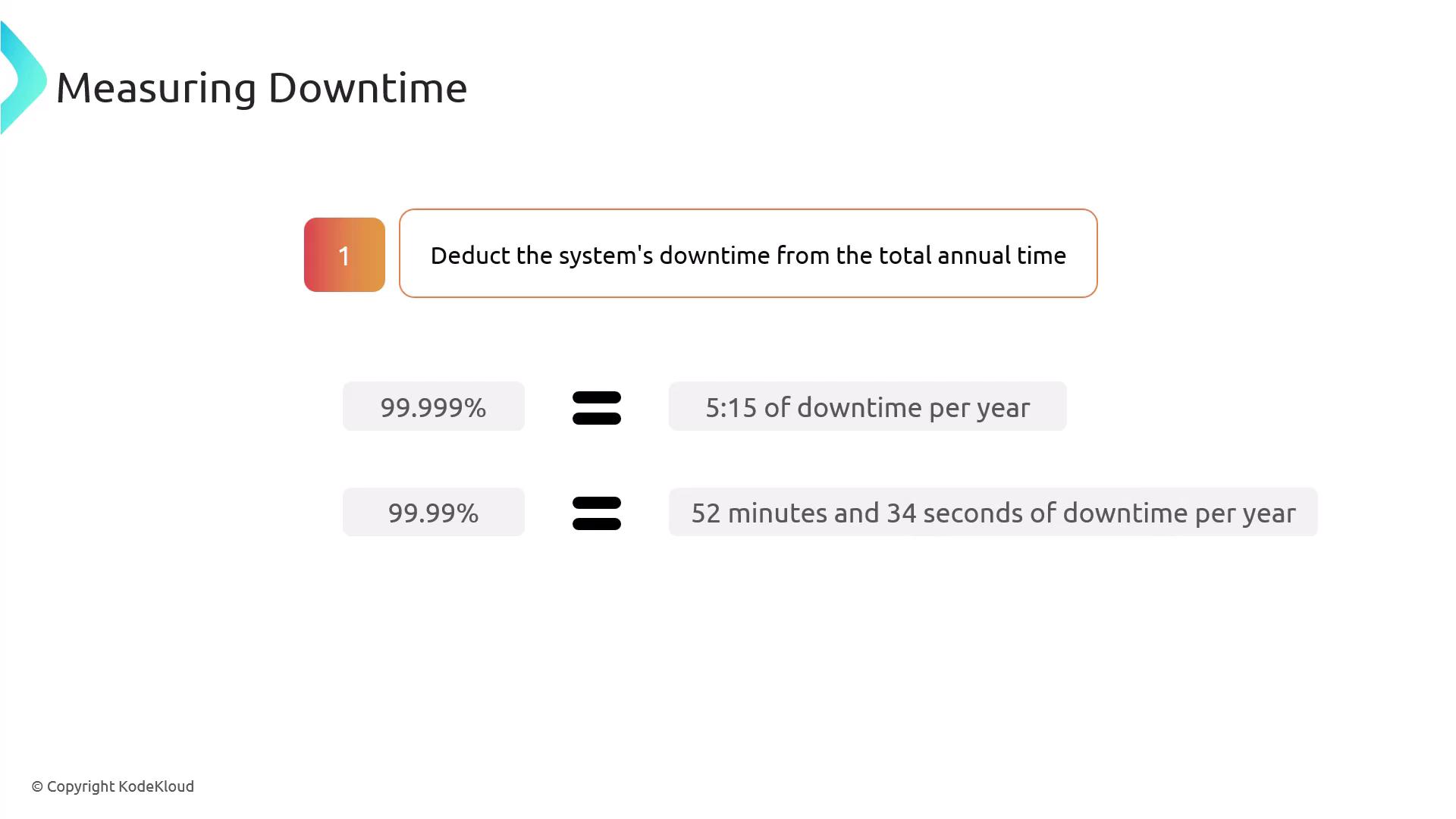

The image explains how to measure system downtime, showing that 99.999% uptime equals 5 minutes and 15 seconds of downtime per year, while 99.99% uptime equals 52 minutes and 34 seconds of downtime per year.

Note

When designing for high availability, consider the impact on the attack surface. Introducing redundancy can increase potential vulnerability areas, so ensure that the same security controls protecting your primary systems are equally applied to redundant resources.

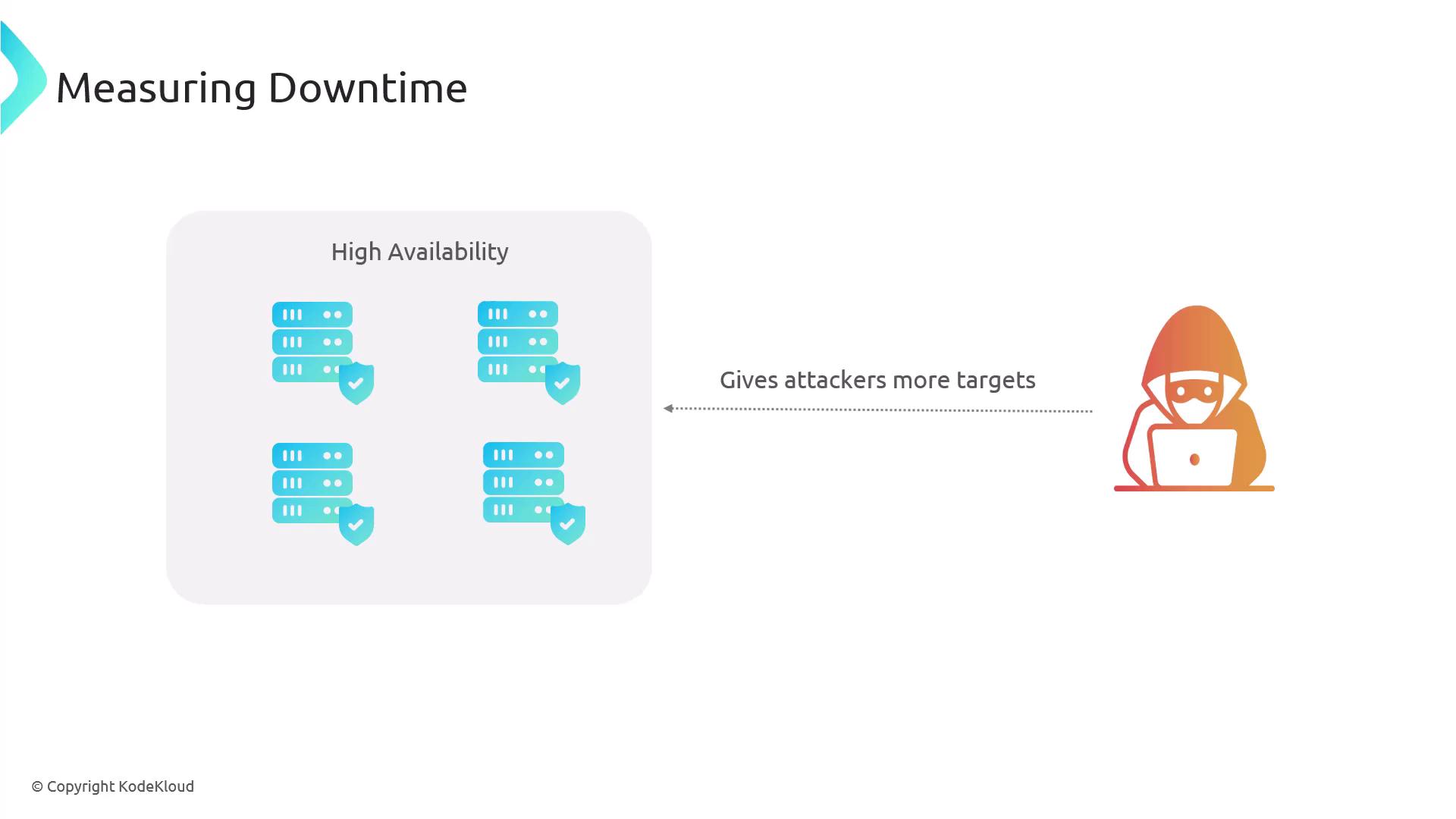

The image illustrates the concept of high availability with multiple servers, suggesting that it provides more targets for attackers, represented by a hacker icon.

Furthermore, it is essential to design efficient recovery processes. An optimal high-availability setup not only minimizes downtime but also streamlines the procedures for restoration in case of failures.

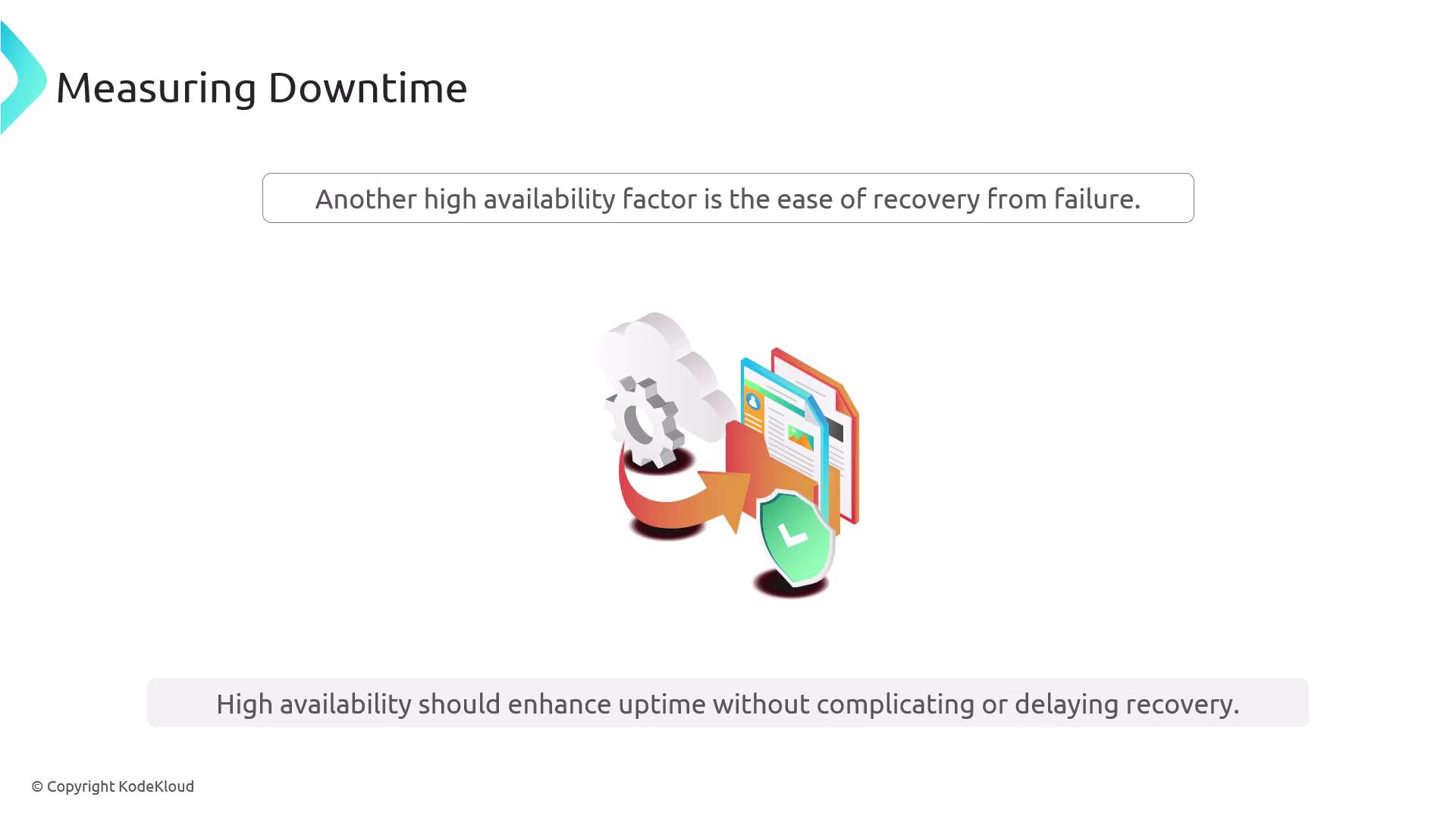

The image discusses "Measuring Downtime" and emphasizes the importance of high availability and ease of recovery from failure, featuring an illustration of cloud computing and security.

Scalability, Fault Tolerance, and Redundancy

Scalability denotes a system's capability to dynamically adjust its resources to match fluctuating demands. For instance, during peak times when customer requests surge, the system should seamlessly allocate additional resources. This flexibility is commonly referred to as elasticity.

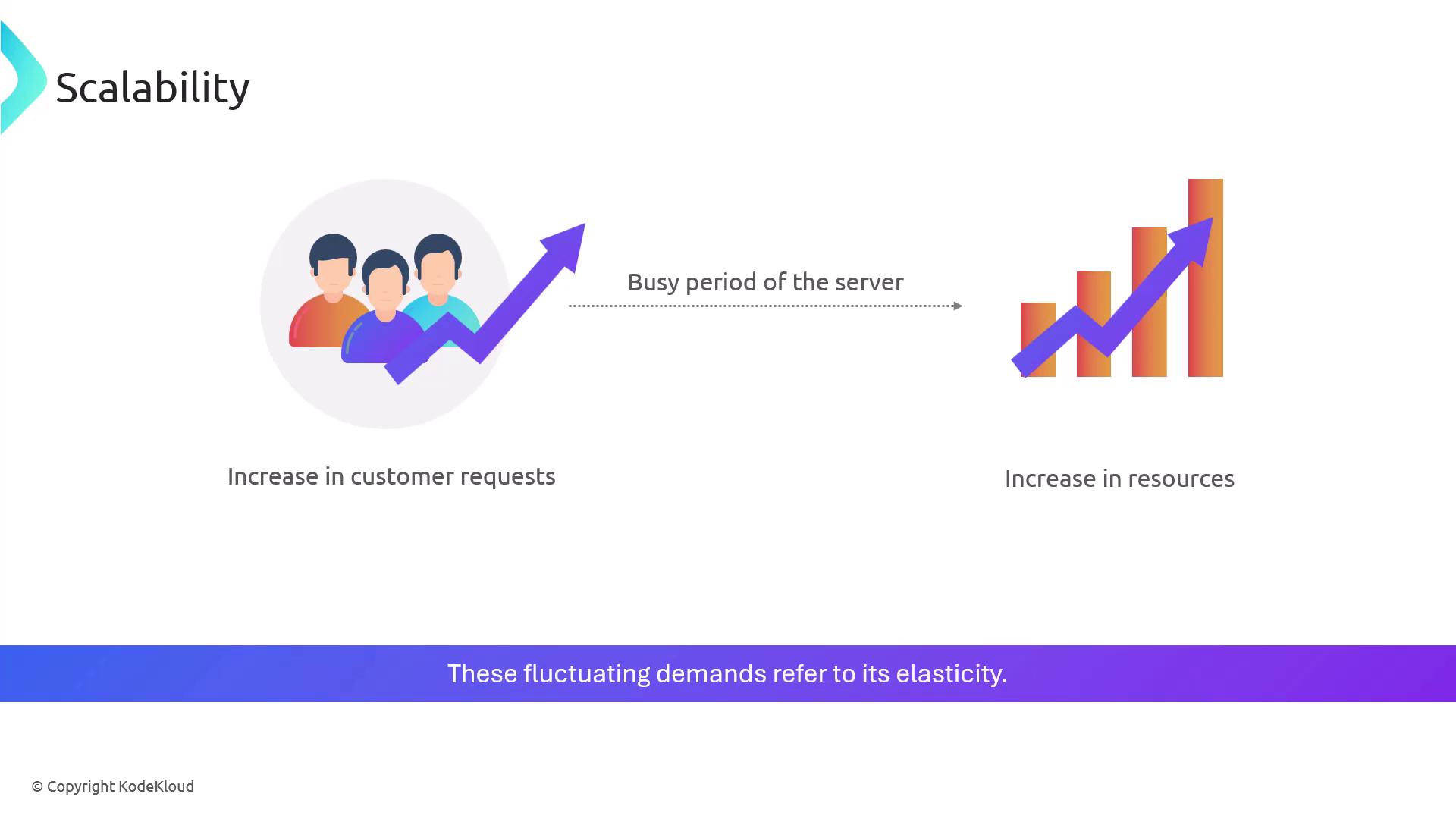

The image illustrates scalability, showing an increase in customer requests leading to a busy server period and a corresponding increase in resources, highlighting elasticity.

Fault tolerance ensures that systems continue operating normally even when one or more components fail. Implementing fault tolerance usually requires integrating redundant components that can immediately take over if a failure occurs.

Disaster Recovery Sites

Disaster recovery planning involves identifying and preparing backup sites that can take over in the event of a major incident. There are three primary types of disaster recovery sites:

Cold Site:
A location with no pre-installed equipment. All necessary components must be transported and configured during an emergency. This option typically incurs the longest recovery time.
Warm Site:
A site that comes with some pre-installed equipment that can be activated when a disaster strikes, offering faster recovery than a cold site.
Hot Site:
A fully operational site that runs concurrently with the primary site. In a crisis, either site can assume full workload responsibilities without delay.

The image illustrates three types of site considerations: Cold Site, Warm Site, and Hot Site, with a note that in an emergency, either site can handle 100% of the workload.

When selecting a disaster recovery site, ensure it is geographically distant enough from the primary location to avoid being affected by the same disaster event. Ideally, the failover site should be located in a different state or even another country.

Conclusion

Designing a resilient system requires a holistic approach that incorporates high availability, scalability, fault tolerance, redundancy, and robust disaster recovery strategies. Each element is crucial in maintaining operational continuity and ensuring rapid recovery from unexpected failures.
