Serving Data

It’s December and the November orders have arrived. Your pipeline can ingest, clean, and transform automatically — but the job isn’t finished until people can use the results. This lesson explains why serving data matters, who consumes pipeline outputs, what a minimal README should include, and how to produce and save simple visualizations with Matplotlib so non-technical teammates can act on your work. Why serving data matters

Engineers build pipelines; everyone else needs answers. Serving makes your outputs accessible, understandable, and reusable.
Good serving practices increase trust, speed handoffs, and make analytics repeatable and shareable.

Common consumers and their needs

Consumer	Typical deliverable	Tools they use
Data analysts	Clean CSV or SQL-ready tables for dashboards	`Power BI`, `Tableau`
Product managers	Simple charts to include in slide decks	PNG or SVG images
Back-end developers	Structured data via APIs (JSON or SQL)	Backend services
Departments (finance, marketing)	Curated data marts or slice-specific exports	CSV, SQL views

Serving is about packaging your work so each consumer can use it without needing to run your pipeline or know Pandas or Python. Primary serving strategy (low friction)

CSV summaries readable by any tool
Simple visual charts (PNG) for quick insights
A concise README that explains what was produced and where to find it

Serve script overview Create a serve.py script that converts DataFrame summaries into CSV files and simple bar-chart PNGs. Import Matplotlib at the top and wrap the logic in a run function so your pipeline runner can call it. High-level responsibilities of run:

Save top_products and top_customers as CSV files into the output folder.
Create bar-chart PNGs for each summary and save them alongside the CSVs.

A compact, complete example of serve.py:

# serve.py
import os
import matplotlib.pyplot as plt

def run(top_products, top_customers, output_folder):
    # Ensure output folder exists
    os.makedirs(output_folder, exist_ok=True)

    # Save summaries to CSV
    tp_csv = os.path.join(output_folder, "top_products.csv")
    tc_csv = os.path.join(output_folder, "top_customers.csv")
    top_products.to_csv(tp_csv, index=False)
    top_customers.to_csv(tc_csv, index=False)
    print(f"Saved analytics to: {tp_csv} and {tc_csv}")

    # Create bar chart for top products
    plt.figure(figsize=(8, 4))
    plt.bar(top_products["product_name"], top_products["total_revenue"], color="skyblue")
    plt.title("Top Products by Revenue")
    plt.ylabel("Revenue")
    plt.xticks(rotation=45, ha="right")
    plt.tight_layout()
    products_chart = os.path.join(output_folder, "top_products.png")
    plt.savefig(products_chart)
    plt.close()
    print(f"Saved product chart to: {products_chart}")

    # Create bar chart for top customers
    plt.figure(figsize=(8, 4))
    plt.bar(top_customers["customer_name"], top_customers["total_spend"], color="salmon")
    plt.title("Top Customers by Spend")
    plt.ylabel("Spend")
    plt.xticks(rotation=45, ha="right")
    plt.tight_layout()
    customers_chart = os.path.join(output_folder, "top_customers.png")
    plt.savefig(customers_chart)
    plt.close()
    print(f"Saved customer chart to: {customers_chart}")

Notes on Matplotlib usage

Build charts in layers: create a figure, plot the data, add title/labels, adjust layout with tight_layout(), then savefig() and close().
Rotate x-axis labels with plt.xticks(rotation=45, ha="right") to prevent overlap when names are long.
Keep charts simple and readable — these are for quick insights or slide decks, not exploratory notebooks.

Connecting the serve step to the pipeline Import and call serve.run from your pipeline orchestration script (e.g., run_pipeline.py). Use consistent variable names for paths and outputs so each stage knows where to read and write. A concise example of run_pipeline.py that runs ingest → clean → transform → serve:

# run_pipeline.py
import os
from pipeline import ingest, clean, transform, serve

# Define folders and paths
data_folder = "data"
archive_folder = os.path.join(data_folder, "archive")
insights_folder = os.path.join(data_folder, "insights")
logs_folder = "logs"

products_path = os.path.join(data_folder, "products.csv")
customers_path = os.path.join(data_folder, "customers.csv")
log_path = os.path.join(logs_folder, "ingest_log.csv")

def run_pipeline():
    # Step 1: Find a new orders file to process
    files = [f for f in os.listdir(data_folder) if f.startswith("orders") and f.endswith(".csv")]
    file_name = files[0] if files else None

    if not file_name:
        print("🚫 No orders file found - exiting.")
        return

    print(f"🛠️ Starting pipeline for: {file_name}")

    try:
        # Each stage returns or writes its outputs in a predictable place
        output_folder = ingest.run(file_name, data_folder, archive_folder, insights_folder, log_path)
        clean.run(products_path, customers_path, output_folder)
        top_products, top_customers = transform.run(products_path, customers_path, output_folder)
        serve.run(top_products, top_customers, output_folder)

        print(f"✅ Pipeline completed for: {file_name}")
    except Exception as e:
        print(f"❗ Pipeline failed: {e}")

if __name__ == "__main__":
    run_pipeline()

When you run the pipeline for November you’ll see console output confirming each stage and messages from the serve step indicating that CSVs and PNG charts were saved to the output folder.

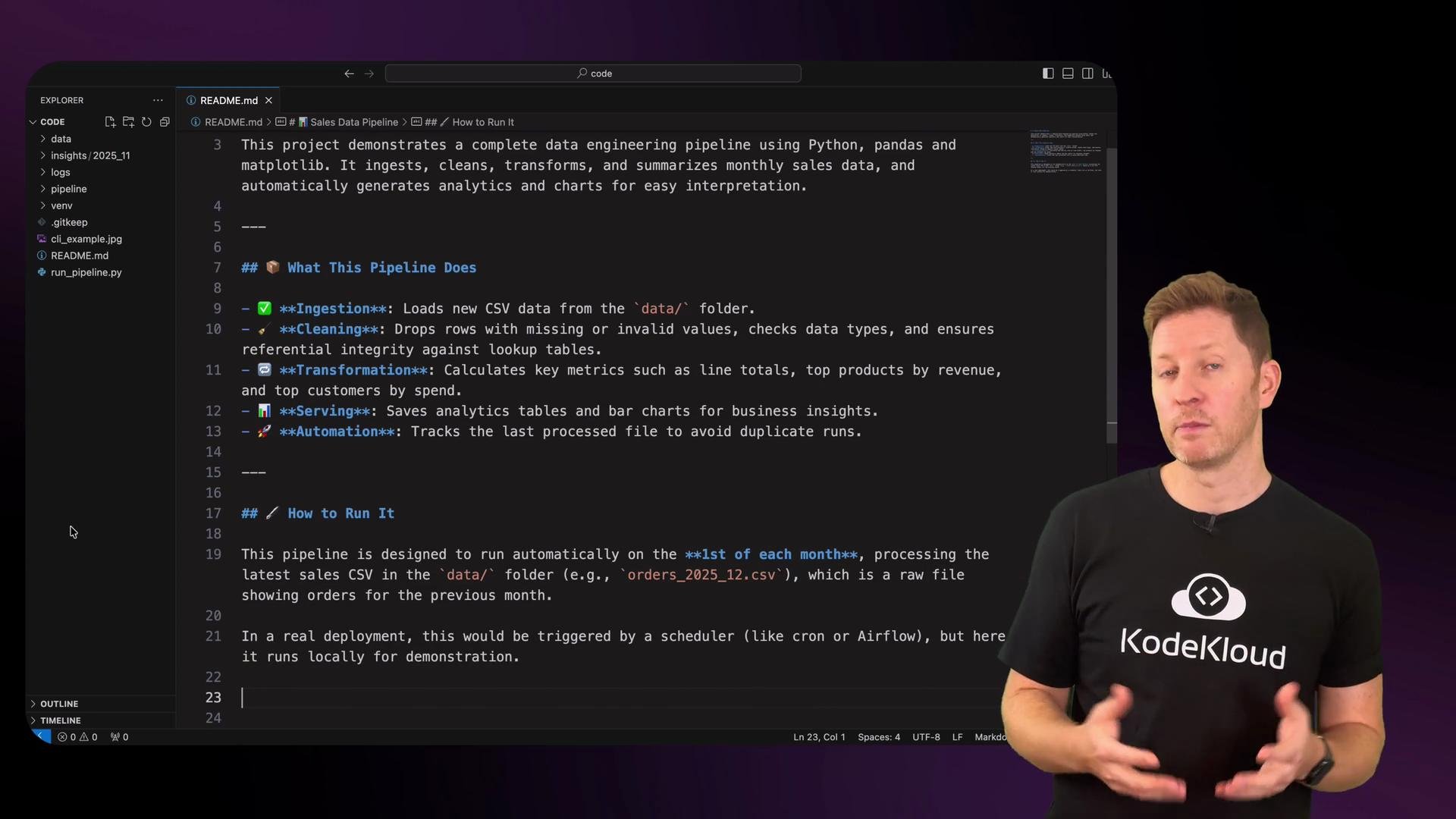

The image shows a person in front of a computer screen displaying code related to a data engineering pipeline project. The project involves data ingestion, cleaning, transformation, serving, and automation using Python, pandas, and matplotlib.

README: make it useful and short A README should tell someone what the project does, how to run it, and where to find outputs — in a few lines. Essential sections

Project summary (1–2 sentences)
Pipeline steps (ingest, clean, transform, serve)
How to run locally (command)
Outputs and folder structure
Quick troubleshooting or notes (optional)
Example screenshots (optional)

Example README content (Markdown):

## What it does
Ingests monthly orders CSVs, cleans and enriches the data, computes top products and top customers, and saves CSV summaries and PNG charts.

## Pipeline steps
1. ingest: locate and archive new orders, update ingest log
2. clean: normalize product and customer data
3. transform: compute summaries (top products/customers)
4. serve: save CSVs and charts to the output folder

## Run locally
```bash
python run_pipeline.py
```text

## Outputs
- data/insights/YYYY-MM-DD/top_products.csv
- data/insights/YYYY-MM-DD/top_customers.csv
- data/insights/YYYY-MM-DD/top_products.png
- data/insights/YYYY-MM-DD/top_customers.png

Keep the README short and focused: how to run, what to expect, and where to find results. Example screenshots and a brief folder tree are helpful.

Version control Commit your README and pipeline code to Git so others can reproduce and contribute. Minimal workflow:

git add .
git commit -m "Add serving step and README"
git push origin main

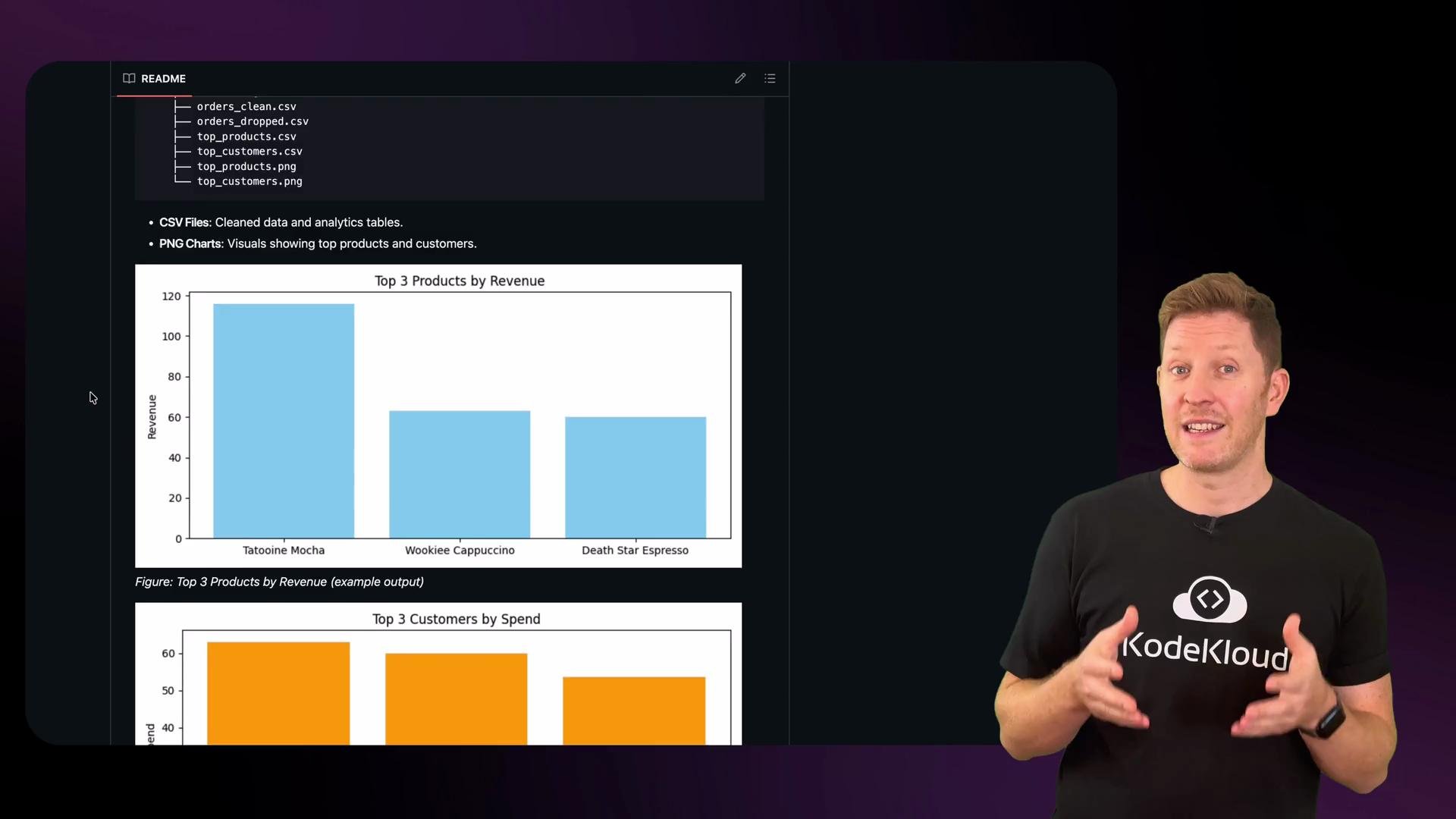

The image shows a person standing in front of a screen displaying a README file with CSV file listings and bar charts illustrating the top products by revenue and top customers by spend.

Why this matters

Clear outputs and a short README make your pipeline usable by analysts, product managers, and developers.
CSVs are interoperable; PNGs are easy to preview and paste into reports.
Version-controlled code ensures reproducibility and easy collaboration.

Recap

Serving turns pipeline outputs into usable assets: CSV summaries, PNG charts, and concise documentation.
Use Matplotlib to convert numeric summaries into clear visuals saved as PNGs.
Keep README focused: what it does, steps, how to run, and where outputs live.
Commit to Git so your work is shareable and reproducible.

Congratulations — you delivered a working data pipeline and made its outputs accessible to others.
