Nameserver

DNS resolvers operate like skilled detectives, tracking down IP addresses with the help of authoritative nameservers that maintain the definitive records for specific domains. Essentially, DNS maps user-friendly domain names to the underlying IP addresses of the servers hosting the service. Without DNS, users would be forced to remember numerical IP addresses for every website, making the Internet much less accessible.

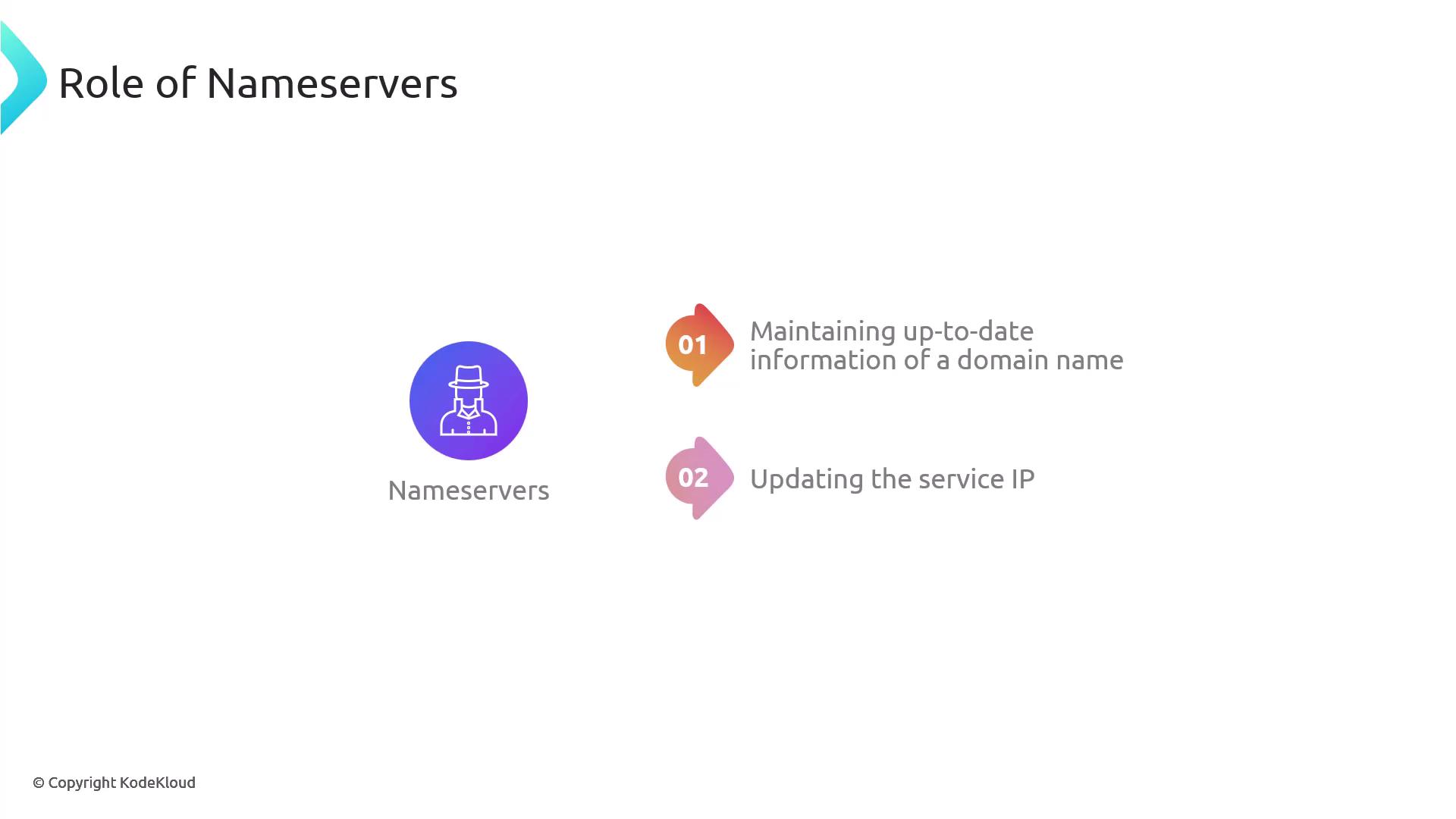

Nameservers play a crucial role in maintaining up-to-date information about domain names, ensuring each domain is correctly associated with its server IP address.

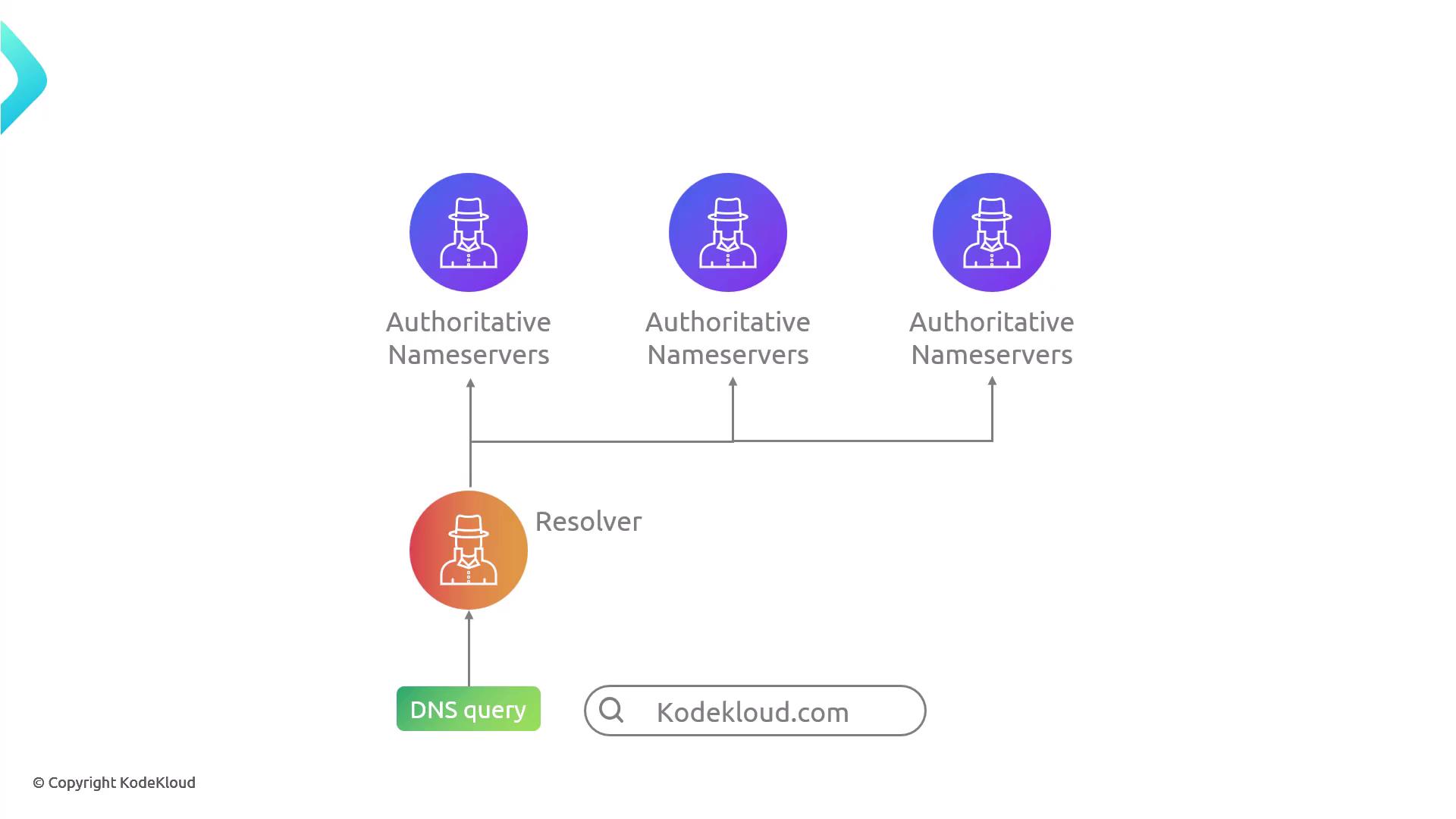

How DNS Query Works

When you type a domain name into your browser, a DNS query is initiated. Your resolver, acting as the detective, begins investigating by communicating with the authoritative nameservers—the official source for the domain’s records—to obtain the correct IP address.

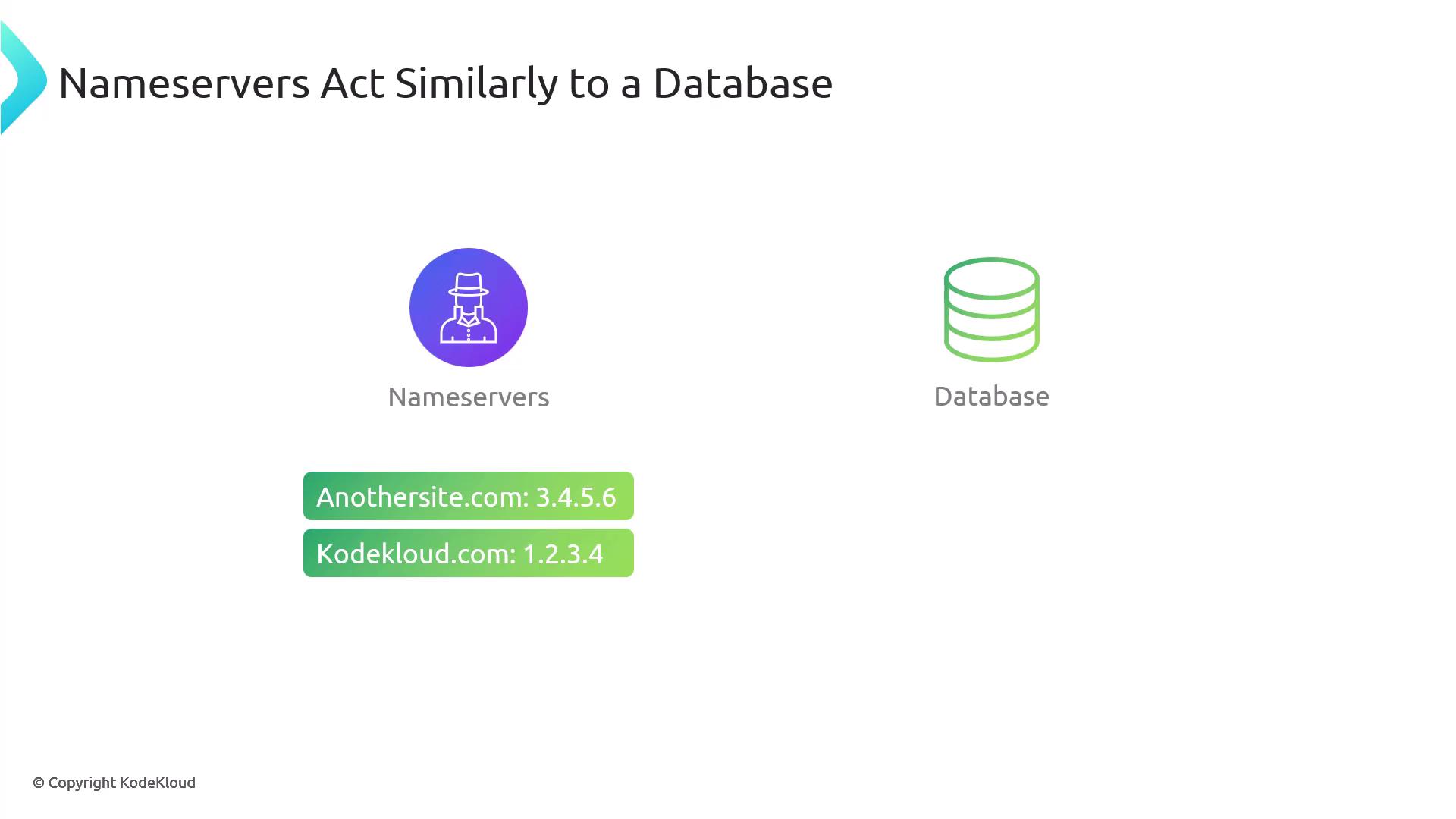

Nameservers as a Database

Nameservers function similarly to databases by storing and managing domain names along with their associated IP addresses. This design follows established principles of database management.

Distributed Architecture and Sharding

In large-scale database systems, effective data management strategies—like sharding—are used to split a vast database into manageable parts. This approach not only enhances performance but also bolsters reliability by ensuring each server only handles its designated portion of the data.

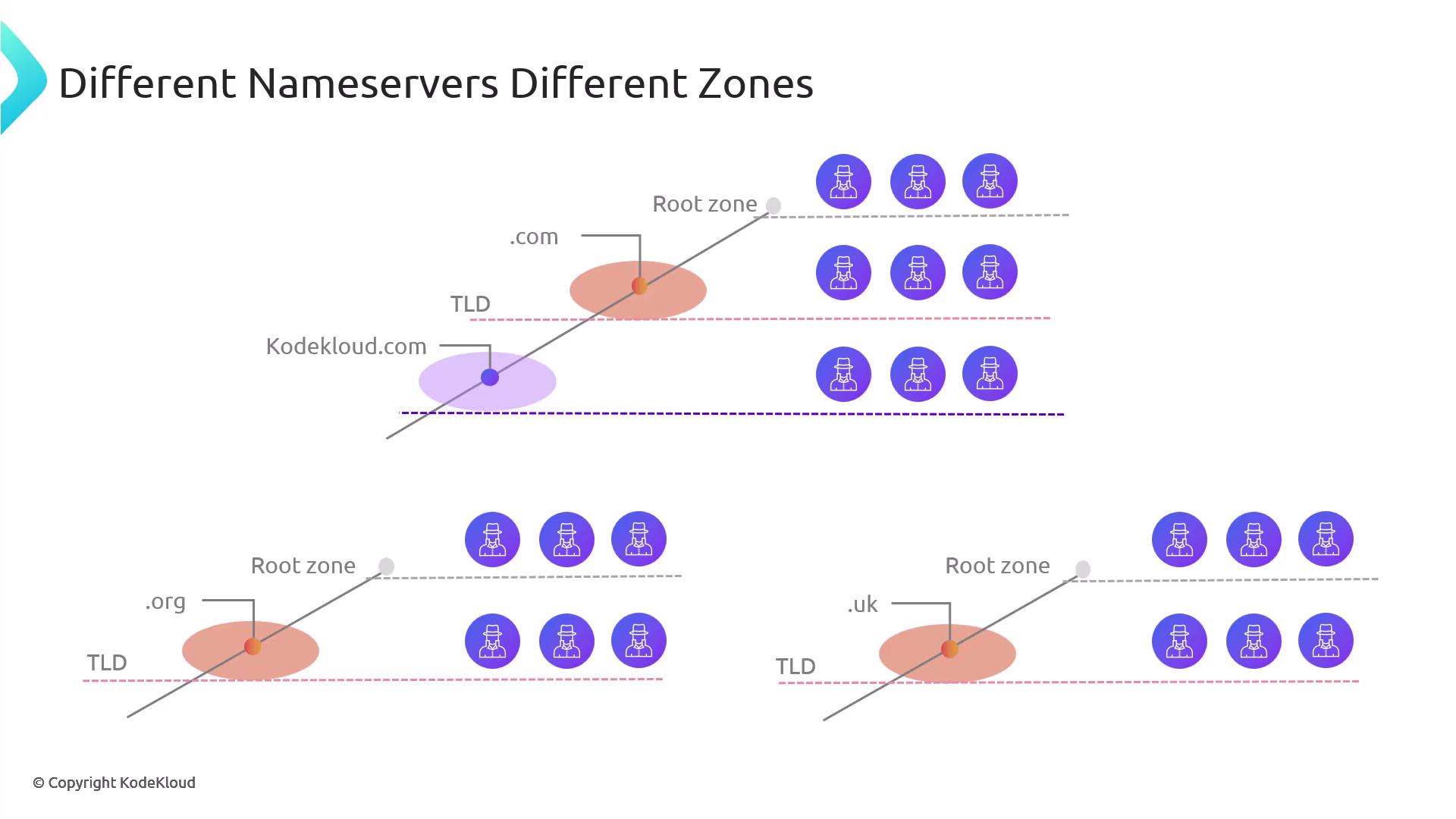

Similarly, the DNS system adopts a distributed architecture. Rather than one server managing every domain record on the Internet, nameservers are assigned to different zones. For example, some nameservers are in charge of .com domains, others handle .org, and still others manage country-specific domains like .uk. This design ensures seamless performance even if one nameserver faces issues.

Zone Files Explained

Each nameserver maintains zone files in a defined format containing various resource records. Below is an example of a basic zone file:

$TTL 86400
@ IN SOA ns1.example.com. admin.example.com. (
    2024111001 ; Serial
    3600       ; Refresh
    1800       ; Retry
    604800     ; Expire
    86400 )    ; Minimum TTL

          IN NS ns1.example.com.
          IN NS ns2.example.com.
@         IN A  192.0.2.1
www       IN A  192.0.2.1
mail      IN A  192.0.2.2

In this zone file:

• A records map domain names to IPv4 addresses.
• NS records specify the authoritative nameservers for the domain.
• Redundancy is ensured by having at least two nameservers per domain.

Real-World Example: Querying Google's Nameservers

To demonstrate the concept of redundancy, consider querying Google's nameservers using the dig command. The following command retrieves the NS records for google.com:

$ dig google.com NS
; <<>> DiG 9.18.28-0ubuntu0.24.04.1-Ubuntu <<>> google.com NS
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 32582
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 9

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 512
;; QUESTION SECTION:
;google.com.            IN      NS

;; ANSWER SECTION:
google.com.      302892  IN      NS      ns2.google.com.
google.com.      302892  IN      NS      ns4.google.com.
google.com.      302892  IN      NS      ns3.google.com.
google.com.      302892  IN      NS      ns1.google.com.

;; ADDITIONAL SECTION:
ns3.google.com.  302892  IN      A       216.239.36.10
ns3.google.com.  302892  IN      AAAA    2001:4860:4802:36::a
ns2.google.com.  302892  IN      A       216.239.32.10
ns2.google.com.  302892  IN      AAAA    2001:4860:4802:32::a
ns1.google.com.  302892  IN      A       216.239.36.10
ns1.google.com.  302892  IN      AAAA    2001:4860:4802:34::a
ns4.google.com.  302892  IN      A       216.239.38.10
ns4.google.com.  302892  IN      AAAA    2001:4860:4802:38::a

;; Query time: 20 msec
;; SERVER: 10.255.255.254#53(10.255.255.254) (UDP)
;; WHEN: Thu Nov 24 14:11:48 CST 2024
;; MSG SIZE  rcvd: 287

The output above confirms that Google uses four nameservers. This redundancy is a common strategy used by large organizations to ensure that DNS queries are consistently resolved, even if one of the servers becomes unreachable.

Primary Nameserver and SOA Record

One of the nameservers is designated as the primary nameserver. Think of this primary nameserver as the lead agent that maintains the master copy of the zone data, distributing updated information to its peers through replication. You can identify the primary nameserver using the SOA (Start of Authority) record. For example:

$ dig google.com SOA
;; <<>> DiG 9.10.6 <<>> google.com SOA
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 12311
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
;; EDNS: version: 0, flags:; udp: 512
;; QUESTION SECTION:
;google.com.            IN      SOA

;; ANSWER SECTION:
google.com.             35      IN      SOA     ns1.google.com. dns-admin.google.com. 698728253
                              900     ; Refresh
                              900     ; Retry
                              1800    ; Expire
                              60      ; Minimum TTL

;; Query time: 29 msec
;; SERVER: 10.255.255.254#53(10.255.255.254) (UDP)
;; WHEN: Thu Nov 28 14:17:19 CST 2024
;; MSG SIZE  rcvd: 89

In this example, ns1.google.com is identified as the primary nameserver. It holds the master copy of the zone data and replicates its records across other nameservers. This design guarantees that all nameservers offer consistent and up-to-date information, even if one server encounters an issue.

Conclusion

The distributed and redundant design of nameservers is essential for ensuring reliable Internet functionality. Through strategies like distributed management, zone file maintenance, and zone transfers, nameservers work together to provide continuous and accurate domain resolution—even in the face of individual server failures.

For more detailed information on DNS and related topics, consider exploring additional resources such as Kubernetes Documentation and Docker Hub.
