Apache Tomcat

In this article, we will explore Apache Tomcat, a popular web server and servlet container primarily used to host Java-based web applications. Before beginning, ensure that Java is installed on your system.

Installing Apache Tomcat on CentOS

Follow these steps to install Apache Tomcat on a CentOS machine. In a production environment, it's recommended to create dedicated users for Tomcat and configure it as a service.

1. Install Java:

   yum install java-1.8.0-openjdk-devel


2. Download the Tomcat package:

   wget https://downloads.apache.org/tomcat/tomcat-8/v8.5.53/bin/apache-tomcat-8.5.53.tar.gz


3. Extract the package:

   tar xvf apache-tomcat-8.5.53.tar.gz


4. Start Tomcat using the startup script in the bin directory:

   ./apache-tomcat-8.5.53/bin/startup.sh

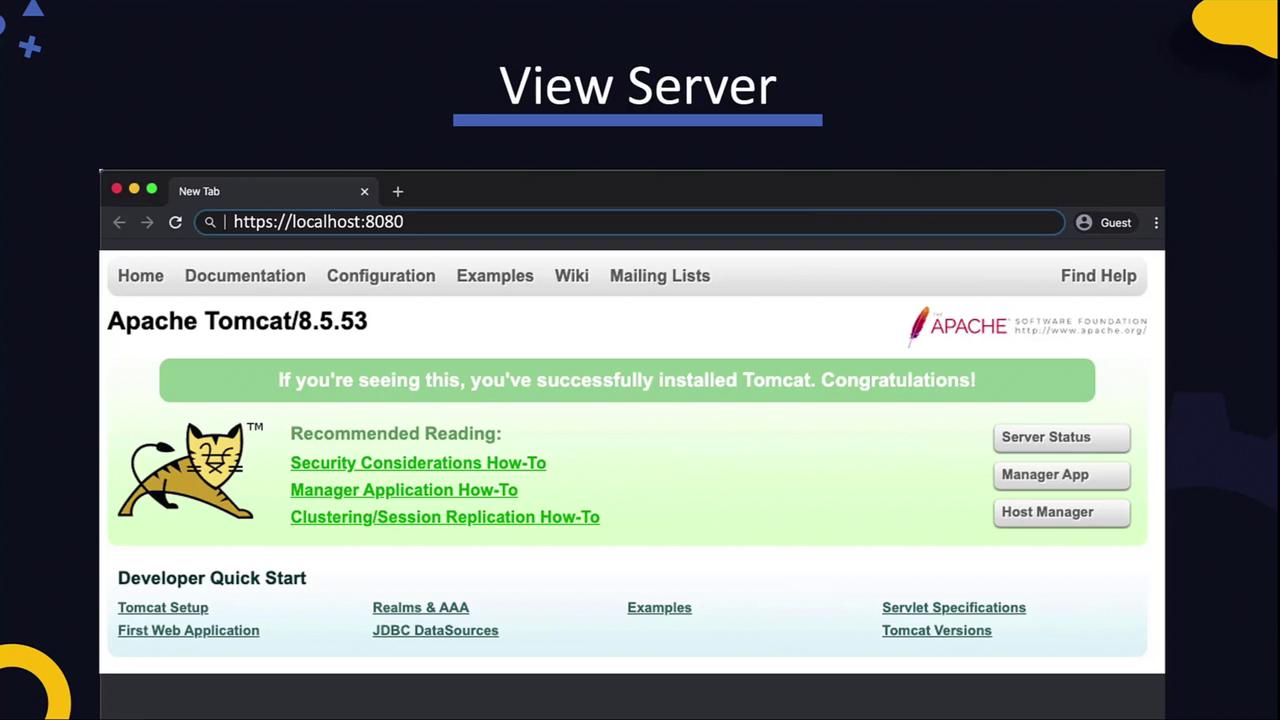

After the server starts, open your web browser and navigate to port 8080 on your host. You should see the default Apache Tomcat welcome page:

Exploring the Tomcat Directory Structure

After extracting the Tomcat package, examine its directory structure with the following command:

ls -l apache-tomcat-8.5.53

Example output:

-rw-r-----  1 19318 Mar 11 10:06 BUILDING.txt
-rw-r-----  1  5408 Mar 11 10:06 CONTRIBUTING.md
-rw-r-----  1 57011 Mar 11 10:06 LICENSE
-rw-r-----  1  1726 Mar 11 10:06 NOTICE
-rw-r-----  1  3255 Mar 11 10:06 README.md
-rw-r-----  1  7136 Mar 11 10:06 RELEASE-NOTES
-rw-r-----  1 16262 Mar 11 10:06 RUNNING.txt
drwxr-x---  2  4096 Mar 18 10:17 bin
drwxr-x---  2  4096 Mar 18 10:06 conf
drwxr-x---  2  4096 Mar 11 10:03 lib
drwxr-x---  7  4096 Mar 11 10:04 logs
drwxr-x---  2  4096 Mar 11 10:03 temp
drwxr-x---  2  4096 Mar 11 10:03 webapps
drwxr-x---  2  4096 Mar 11 10:03 work

Key Directories

• bin: Contains scripts for starting and stopping Tomcat. Windows users should use the .bat files, while Unix/Linux users should use the .sh scripts.
• conf: Contains essential configuration files such as server.xml and web.xml. The server.xml file defines the "Connector" element that sets the port (default is 8080) on which Tomcat listens. Any changes require a restart of the service.
• logs: Stores server logs.
• webapps: The default deployment directory for web applications. Placing a WAR file here triggers automatic extraction and deployment.
• lib, temp, and work: Manage libraries, temporary files, and work data respectively.

Below is an excerpt from the server.xml file demonstrating how connectors are configured:

<!-- A "Connector" represents an endpoint for receiving requests and returning responses.
     For details on connectors, see the [Java HTTP Connector documentation](/docs/connectors/)
     and the [Java AJP Connector documentation](/docs/apr/).
-->
<Connector port="8080" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

<!-- A "Connector" using the shared executor -->
<Connector executor="tomcatThreadPool"
           port="8080" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

Deploying a Web Application

Deploying a web application on Tomcat is straightforward. Follow these steps:

1. Package Your Application

First, package your application's source code into a WAR file. You can use the jar utility or build tools such as Maven or Gradle:

jar -cvf app.war *
mvn package
gradle build

2. Deploy the WAR File

Copy the WAR file (e.g., app.war) to the webapps directory of your Tomcat server. If Tomcat is running, it will automatically detect the new file, extract it, and deploy the application into a folder corresponding to the WAR file name (for example, /app).

3. Verify the Deployment

To confirm deployment, review the Tomcat logs located in the logs directory. Check the contents of catalina.out with:

cat ~/apache-tomcat-8.5.53/logs/catalina.out

Example log output:

18-Mar-2020 10:43:32.769 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [/home/vagrant/apache-tomcat-8.5.53/webapps/ROOT] has finished in [13] ms
18-Mar-2020 10:43:32.783 INFO [main] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [/home/vagrant/apache-tomcat-8.5.53/webapps/manager] has finished in [14] ms
18-Mar-2020 10:43:32.789 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-nio-8080"]
18-Mar-2020 10:43:32.789 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in 407 ms
18-Mar-2020 11:21:23.560 INFO [localhost-startStop-2] org.apache.catalina.startup.HostConfig.deployWAR Deployment of web application archive [/home/vagrant/apache-tomcat-8.5.53/webapps/app.war] has finished in [57] ms

Once deployed, access your application by navigating to:

http://your-hostname:8080/app

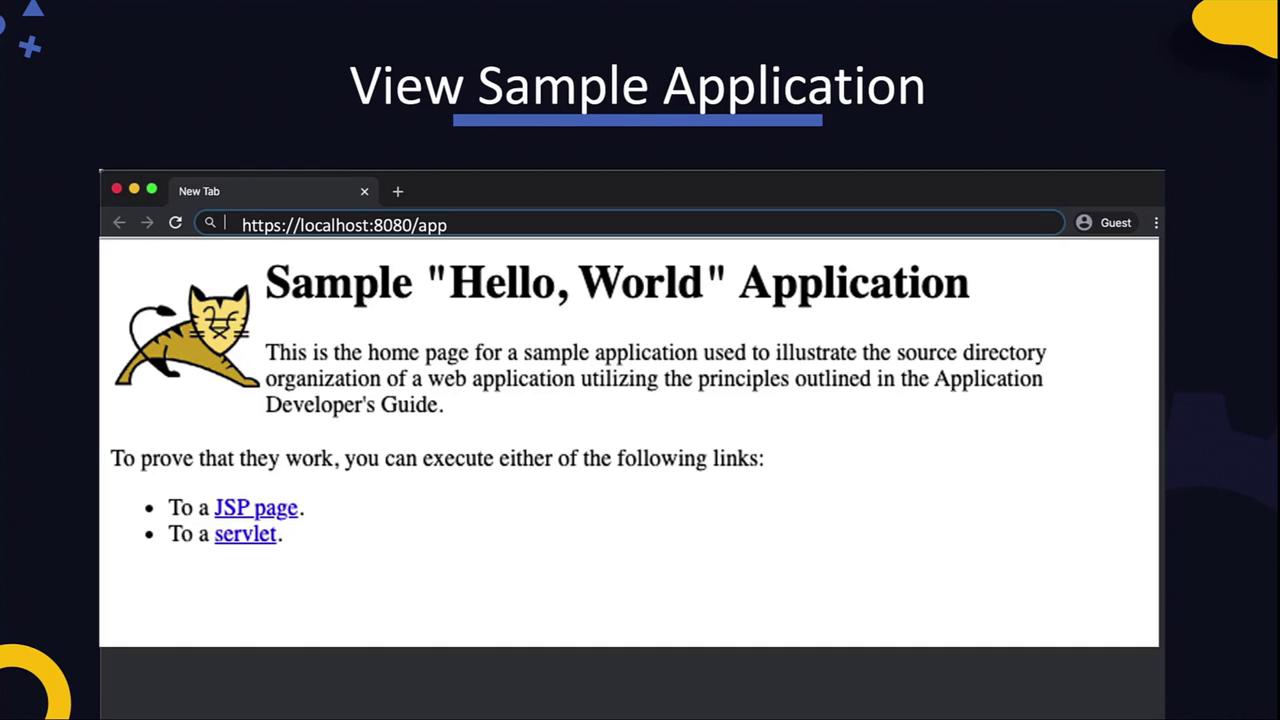

For example, if your application displays a "Hello, World" message, its homepage will appear similar to the following:

Conclusion

This guide provided an overview of installing Apache Tomcat, exploring its directory structure, and deploying a web application. Make sure to implement additional security measures, performance tuning, and service management configurations when deploying in production environments.

Happy deploying, and see you in the next lesson!
