Deploy apps using HELM Chart 2

This article explains how to deploy a Helm chart using ArgoCD and demonstrates how to manage Helm charts from multiple sources. The GitOps ArgoCD repository includes a Helm chart that defines three Kubernetes resources: a ConfigMap, a Deployment, and a Service. The chart dynamically replaces template values using the configurations specified in the values.yaml file.

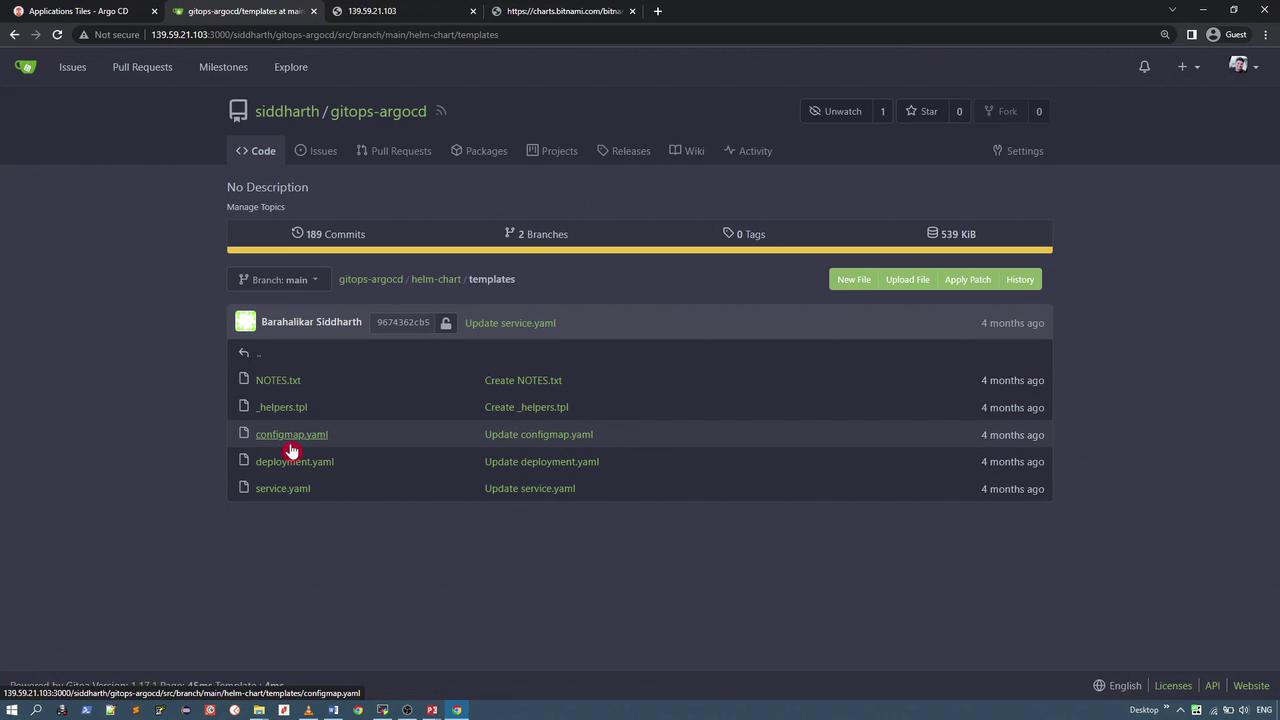

The image shows a web interface of a Git repository named "gitops-argocd" with a list of files and recent commit messages. The interface includes options for creating, uploading, and applying patches to files.

Helm Chart Templates

Deployment Template

The Deployment template leverages values from the values.yaml file for settings such as the replica count and container image details. Below is an excerpt from the Deployment template:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Release.Name }}-deploy
  labels:
    {{- include "random-shapes.labels" . | indent 4 }}
spec:
  replicas: {{ .Values.replicaCount }}
  selector:
    matchLabels:
      {{- include "random-shapes.selectorLabels" . | indent 6 }}
  template:
    metadata:
      {{- with .Values.podAnnotations }}
      annotations:
        {{- toYaml . | indent 8 }}
      {{- end }}
      labels:
        {{- include "random-shapes.selectorLabels" . | indent 8 }}
    spec:
      containers:
        - name: {{ .Chart.Name }}
          image: {{ .Values.image.repository }}
          imagePullPolicy: {{ .Values.image.pullPolicy }}

ConfigMap Template

The ConfigMap template assigns color values for each shape as defined in the values.yaml file. This configuration overrides the default shape colors, as shown below:

apiVersion: v1
kind: ConfigMap
metadata:
  name: {{ .Release.Name }}-configmap
data:
  CIRCLE_COLOR: {{ .Values.color.circle }}
  OVAL_COLOR: {{ .Values.color.oval }}
  SQUARE_COLOR: {{ .Values.color.square }}
  TRIANGLE_COLOR: {{ .Values.color.triangle }}
  RECTANGLE_COLOR: {{ .Values.color.rectangle }}

Default values.yaml

The default values.yaml file provides hardcoded configurations such as the replica count, image credentials, and default colors for shapes. Notably, all shapes are initially set to black and the service is configured as type ClusterIP:

replicaCount: 1
image:
  repository: siddharth67/php-random-shapes:v1
  pullPolicy: IfNotPresent
  # Overrides the image tag whose default is the chart appVersion.
  tag: ""
imagePullSecrets: []
nameOverride: ""
fullnameOverride: ""

service:
  type: ClusterIP
  port: 80
  targetPort: 80

color:
  circle: black
  oval: black
  triangle: black
  rectangle: black
  square: black

Deploying the Application with ArgoCD CLI

You can create an application in ArgoCD using either the CLI or the UI. In this example, the CLI is used to create an application named "helm-random-shapes". The command specifies the repository URL, path, and overrides some default values via the --helm-set parameter. For instance, the command sets the replica count to 2, updates the colors for the circle and square to pink and green respectively, and changes the service type to NodePort.

argocd app create helm-random-shapes \
  --repo http://139.59.21.103:3000/siddharth/gitops-argocd \
  --path helm-chart \
  --helm-set replicaCount=2 \
  --helm-set color.circle=pink \
  --helm-set color.square=green \
  --helm-set service.type=NodePort \
  --dest-namespace default \
  --dest-server https://kubernetes.default.svc

After creating the application, the CLI returns a confirmation message:

application 'helm-random-shapes' created

You can verify the deployment by accessing the ArgoCD UI. The new application may initially show an out-of-sync status until you click "Synchronize" to deploy the resources.

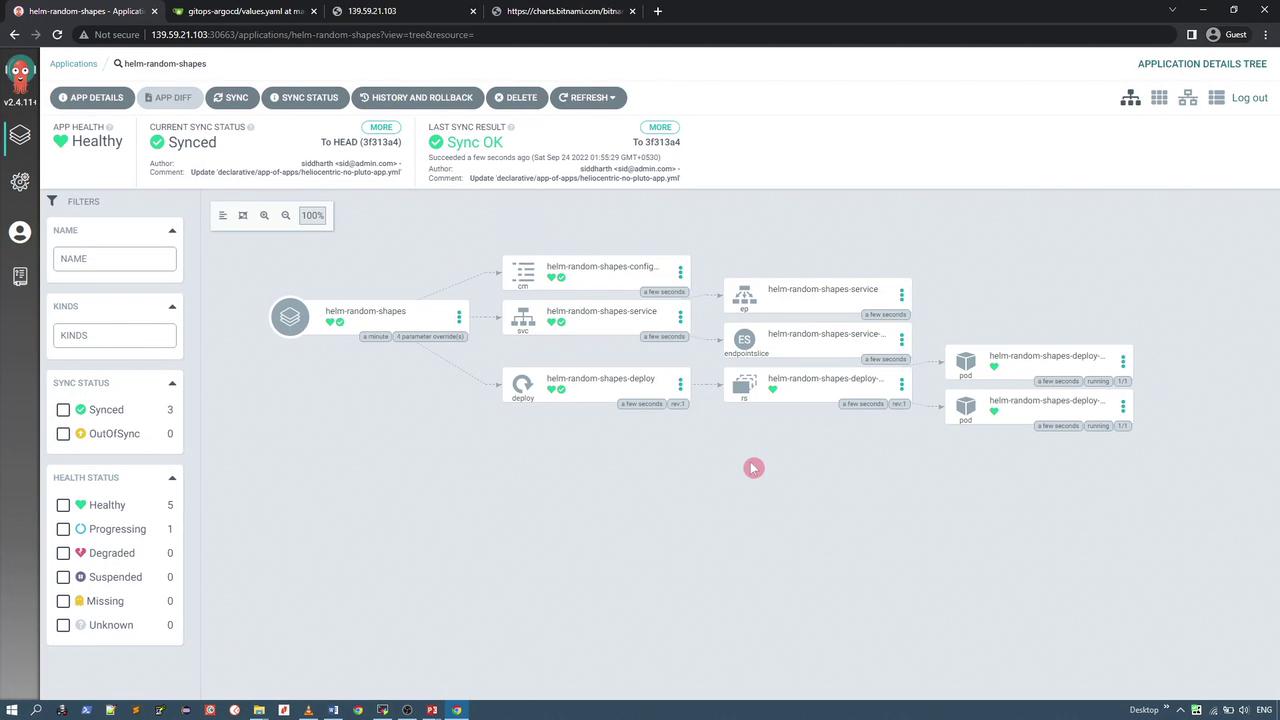

The image shows a dashboard interface of a software application, displaying the status and configuration of a Helm deployment with nodes representing different components and their health and sync status.

Reviewing the Application Manifest

To inspect the application manifest, navigate to the application details in the ArgoCD UI and click on "Manifest". The manifest confirms Helm as the source and includes the parameters set with the --helm-set flags:

project: default
source:
  repoURL: 'http://139.59.21.103:3000/siddharth/gitops-argocd'
  path: helm-chart
helm:
  parameters:
    - name: replicaCount
      value: '2'
    - name: color_circle
      value: pink
    - name: color_square
      value: green
    - name: service.type
      value: NodePort
destination:
  server: 'https://kubernetes.default.svc'
  namespace: default

Note

The service is now listening on a specific NodePort (e.g., 32142). Among the five shapes, the circle and square are overridden to pink and green, while the remaining shapes retain the default black color.

Once ArgoCD deploys the Helm chart, it assumes full management of the application. Consequently, running a standard helm ls command will not display the application, since it is exclusively managed by ArgoCD.

Checking Application Metadata via ArgoCD

To view detailed metadata for the deployed Helm chart, such as resources, health status, and source/target details, execute the following command:

argocd app get helm-random-shapes

The output will include details similar to:

Name:              helm-random-shapes
Project:           default
Server:            https://kubernetes.default.svc
Namespace:         default
URL:               http://10.98.110.228:443/applications/helm-random-shapes
Repo:              http://139.59.21.103:3000/siddharth/gitops-argocd
Path:              helm-chart
Sync Window:       Sync Allowed
Sync Policy:       <none>
Sync Status:       Synced to (3f313a4)
Health Status:     Healthy

And a detailed resource list:

GROUP         KIND             NAMESPACE       NAME                              STATUS  HEALTH     HOOK      MESSAGE
apps          ConfigMap        default         helm-random-shapes-configmap       Synced  Healthy              configmap/helm-random-shapes-configmap created
              Service          default         helm-random-shapes-service         Synced  Healthy              service/helm-random-shapes-service created
              Deployment       default         helm-random-shapes-deploy          Synced  Healthy              deployment.apps/helm-random-shapes-deploy created

Managing Helm Charts from Helm Repositories

ArgoCD can also manage Helm charts hosted in external repositories such as Bitnami. For example, you might deploy an application using the Bitnami Nginx chart.

Example Bitnami Helm Chart Specification

Below is an excerpt of a Helm chart specification from Bitnami that demonstrates how charts include metadata, dependencies, and other parameters:

apiVersion: v1
entries:
  airflow:
    - annotations:
        category: WorkFlow
      apiVersion: v2
      appVersion: 2.3.4
      created: "2022-09-21T10:26:03.089700388Z"
      dependencies:
        - condition: redis.enabled
          name: redis
          repository: https://charts.bitnami.com/bitnami
          version: 17.x.x
        - condition: postgresql.enabled
          name: postgresql
          repository: https://charts.bitnami.com/bitnami
          version: 11.x.x
        - name: common
          repository: https://charts.bitnami.com/bitnami
          tags:
            - bitnami-common
          version: 2.x.x
      description: Apache Airflow is a tool to express and execute workflows as directed
        acyclic graphs (DAGs). It includes utilities to schedule tasks, monitor task
        progress and handle task dependencies.
      digest: f128dfb6320c79d19cca88384412389f7a0a7cdf9ec459de9bdc2f8fa086d
      home: https://github.com/bitnami/charts/tree/master/bitnami/airflow
      icon: https://bitnami.com/assets/stacks/airflow/img/airflow-stack-220x234.png
      keywords:
        - apache
        - airflow
        - workflow
        - dag
      maintainers:
        - name: Bitnami

Another example, for the Discourse chart, is shown below:

tags:
  - bitnami-common
version: 1.x.x
description: Discourse is an open source discussion platform with built-in moderation
  and governance systems that let discussion communities protect themselves from
  bad actors even without official moderators.
digest: sha256:d52bdba510f98909bf3fee38b9eecc106d6ded76737351422d1161880f4837
home: https://github.com/bitnami/charts/tree/master/bitnami/discourse
icon: https://bitnami.com/assets/stacks/discourse/img/discourse-stack-220x234.png
keywords:
  - community
  - forum
maintainers:
  - email: [email protected]
    name: Bitnami
  - email: [email protected]
    name: paulzcan
  - email: [email protected]
    name: lucaprete
name: discourse
sources:
  - https://github.com/bitnami/bitnami-docker-discourse
  - https://github.com/spinnaker
  - https://www.discourse.org/
urls: https://charts.bitnami.com/bitnami/discourse-7.0.16.tgz
version: 7.0.16
annotations:
  category: Forum
  apiVersion: v2
  appVersion: 2.8.3
  created: "2022-04-19T13:33:08.1651570512Z"
dependencies:
  condition: redis.enabled
  name: redis
repository: https://charts.bitnami.com/bitnami

Configuring the Helm Repository in ArgoCD

Configure the Helm repository in ArgoCD by providing the repository URL (for example, charts.bitnami.com), selecting the repository type (Helm), and including any necessary credentials. The diagram below illustrates the repository connection interface:

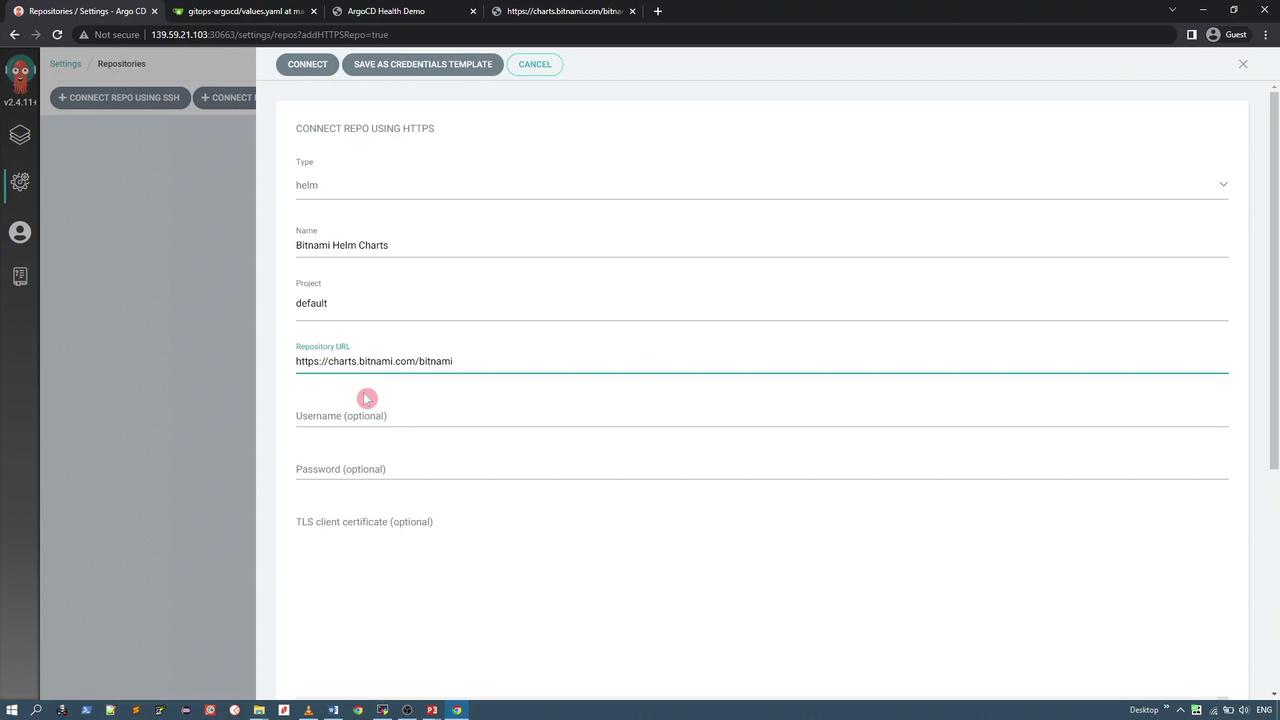

The image shows a web interface for connecting a repository using HTTPS in Argo CD, with fields for type, name, project, repository URL, and optional credentials. The repository URL is set to Bitnami Helm Charts.

Deploying an Application from the Bitnami Helm Repository

For this demonstration, we deploy the Bitnami Nginx chart. Using the ArgoCD UI, create an application by selecting the Bitnami Helm repository and choosing the desired chart (e.g., Nginx). You can specify the chart version (such as 12.0.3) and set the destination namespace (e.g., Bitnami). Override any necessary parameters; for example, change the service type from LoadBalancer to NodePort if not using a cloud-based service.

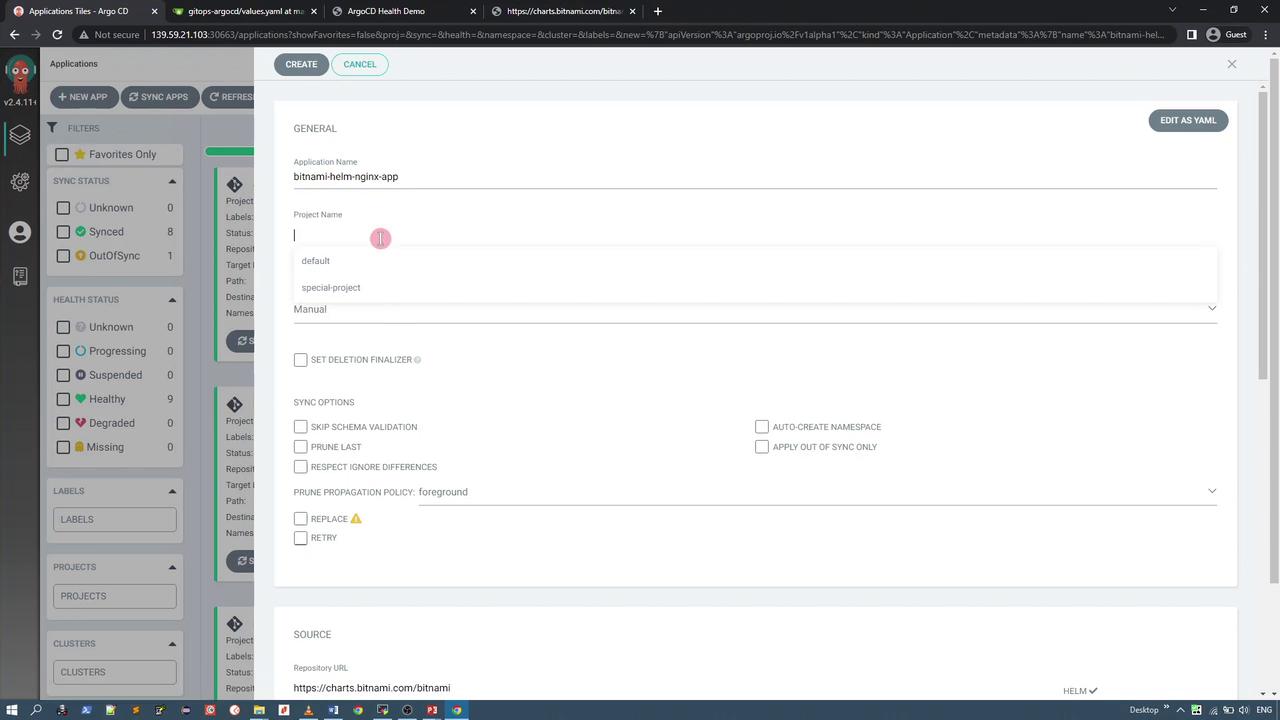

The image shows a web interface for creating or managing an application in Argo CD, with fields for application and project names, and various sync options. The left sidebar displays application statuses and filters.

After setting your parameters, the application manifest displays a configuration similar to the following:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: bitnami-helm-nginx-app
spec:
  destination:
    name: bitnami
    server: 'https://kubernetes.default.svc'
  source:
    path: chart
    repoURL: 'https://charts.bitnami.com/bitnami'
    targetRevision: 12.0.3
  helm:
    parameters:
      - name: service.type
        value: NodePort
  project: default
  syncPolicy:
    automated: null
    syncOptions:
      - CreateNamespace=true

Synchronize the application to deploy the resources. In this example, the deployment includes a Deployment and a Service. The Service is assigned a NodePort (for instance, 31640). Below is an excerpt of the deployed Service configuration:

apiVersion: v1
kind: Service
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: >
      {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app.kubernetes.io/instance":"bitnami-helm-nginx-app","app.kubernetes.io/managed-by":"Helm","app.sh/chart":"nginx-12.0.3"},"name":"bitnami-helm-nginx-app"},"namespace":"bitnami","resourceVersion":"111583"}
  name: bitnami-helm-nginx-app
  namespace: bitnami
  resourceVersion: "111583"
spec:
  clusterIP: 10.181.99.14
  clusterIPs:
    - 10.181.99.14
  externalTrafficPolicy: Cluster
  internalTrafficPolicy: Cluster
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  ports:
    - name: http
      nodePort: 31640
      port: 80
      protocol: TCP
      targetPort: http
  selector:
    app.kubernetes.io/instance: bitnami-helm-nginx-app
    app.kubernetes.io/name: nginx
  sessionAffinity: None
  type: NodePort

Once the deployment is healthy and the pod is running, you can access the NGINX homepage via the assigned NodePort, confirming a successful deployment.

Verifying Application Management

Even though Helm CLI commands (e.g., helm ls) may not display these applications because ArgoCD manages them exclusively, you can still retrieve comprehensive details using the ArgoCD CLI:

argocd app get helm-random-shapes
argocd app get bitnami-helm-nginx-app

The output provides metadata such as resource names, health statuses, and sync states. An example output for the helm-random-shapes application is as follows:

Name:                   helm-random-shapes
Project:                default
Server:                 https://kubernetes.default.svc
Namespace:              default
URL:                    http://10.98.110.228:443/applications/helm-random-shapes
Repo:                   http://139.59.21.103:3000/siddharth/gitops-argocd
Path:                   helm-chart
Sync Window:            Sync Allowed
Sync Policy:            <none>
Sync Status:            Synced to (3f313a4)
Health Status:          Healthy

GROUP         KIND             NAMESPACE       NAME                              STATUS   HEALTH   HOOK  MESSAGE
apps          ConfigMap        default         helm-random-shapes-configmap       Synced   Healthy         configmap/helm-random-shapes-configmap created
              Service          default         helm-random-shapes-service         Synced   Healthy         service/helm-random-shapes-service created
              Deployment       default         helm-random-shapes-deploy          Synced   Healthy         deployment.apps/helm-random-shapes-deploy created

Similarly, the Bitnami Nginx application details can be viewed with:

argocd app get bitnami-helm-nginx-app

Conclusion

In this article, we have demonstrated how to deploy and manage Helm charts using ArgoCD. We covered two key scenarios: deploying a Helm chart stored in a Git repository and managing a chart sourced from an external repository like Bitnami. With ArgoCD managing these deployments, you can ensure that your applications remain in-sync and healthy—even if standard Helm CLI commands do not list them.

Thank you for reading.
