Consul Snapshot Agent Enterprise

Consul’s Snapshot Agent is an enterprise-only, long-running daemon that automates cluster backups. While open-source users must script snapshots via cron or CI/CD, the Snapshot Agent provides built-in scheduling, retention, and storage management.

Warning

The Snapshot Agent requires Consul Enterprise. If you’re on OSS Consul, implement external scripting for snapshots.

Key Features

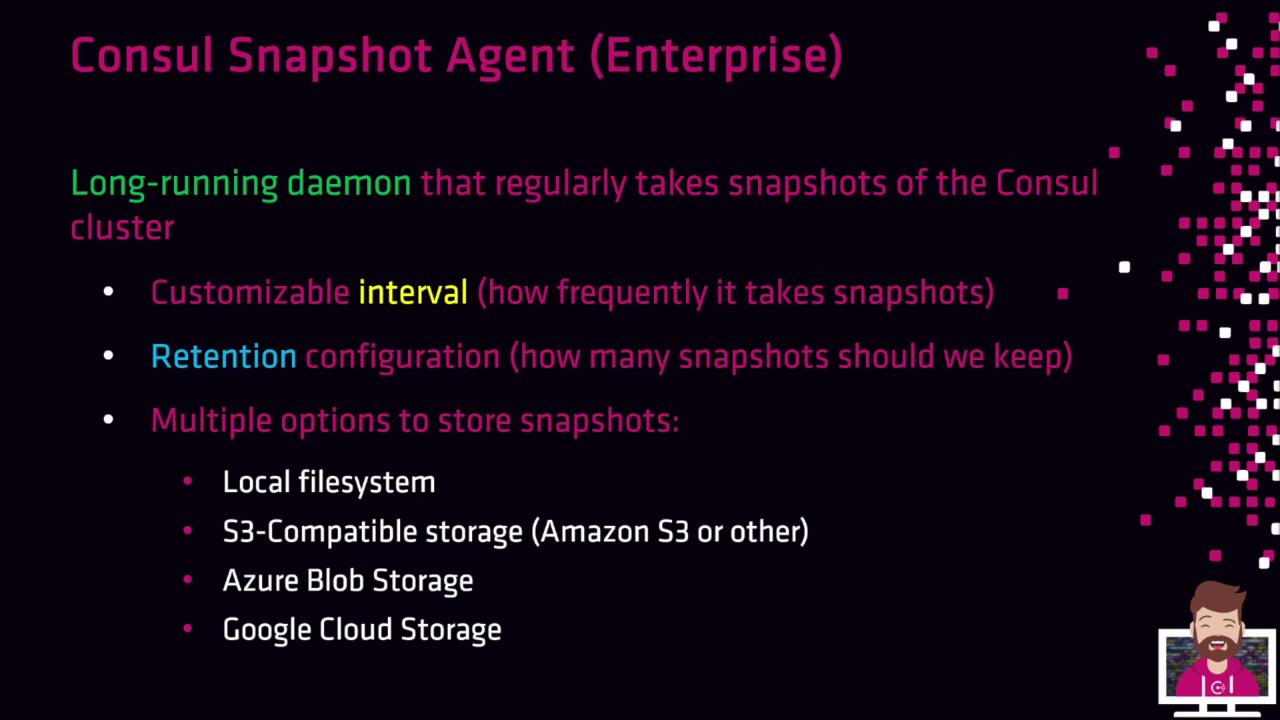

The image is a slide about the Consul Snapshot Agent (Enterprise), describing its features such as customizable intervals, retention configuration, and multiple storage options including local filesystem, S3-compatible storage, Azure Blob Storage, and Google Cloud Storage.

Custom intervals: e.g., hourly, six-hourly, daily
Retention policies: automatically purge old snapshots
Storage backends: local filesystem, S3-compatible (AWS S3, MinIO), Azure Blob, Google Cloud Storage

Note

Configure snapshot.interval (e.g., 24h) and snapshot.retain (e.g., 48) to control scheduling and purge behavior.

Supported Storage Backends

By default, manual snapshots are written locally. The Snapshot Agent lets you offload backups to resilient, off-node stores:

Backend	Use Case	Example Setting
S3-Compatible	AWS S3, MinIO, DigitalOcean Spaces	`aws_storage.s3_bucket = "consul-snapshots"`
Azure Blob Storage	Enterprise-grade Blob management	`azure_storage.account = "myaccount"`
Google Cloud Storage	GCS buckets for global redundancy	`gcs_storage.bucket = "consul-gcs-snapshots"`
Local Filesystem	On-node backups (default for CLI/API)	`filesystem.path = "/var/consul/snapshots"`

Benefits

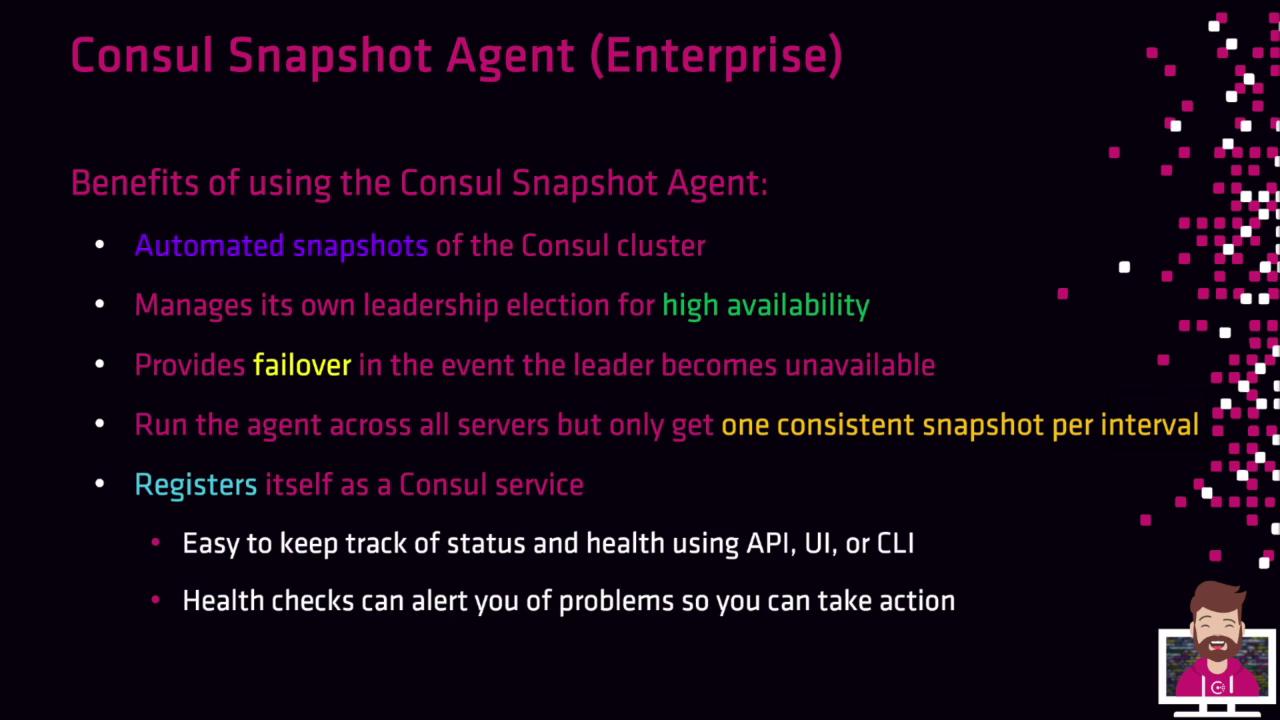

The image is an informational slide about the Consul Snapshot Agent (Enterprise), highlighting its benefits such as automated snapshots, high availability, failover, consistent snapshots, and health checks.

Automated snapshots on a defined schedule
High availability via agent-level leader election
Automatic failover: a new leader takes over if the current one fails
Consistent backups: only one snapshot per interval cluster-wide
Service registration & health checks for monitoring leader status

When the agent starts, it registers a Consul service with health checks. You can alert on missing leaders or failed snapshot jobs using your monitoring tools.

Configuration

Setup involves two files: a JSON config for the agent and a systemd unit to manage the service.

1. Snapshot Agent JSON

Save as /etc/snapshot.d/snapshot.json:

{
  "snapshot_agent": {
    "http_addr": "127.0.0.1:8500",
    "token": "your-acl-token",
    "datacenter": "dc1",
    "snapshot": {
      "interval": "30m",
      "retain": 336,
      "deregister_after": "8h"
    },
    "aws_storage": {
      "s3_region": "us-east-1",
      "s3_bucket": "consul-snapshots"
    }
  }
}

Fields:

http_addr: Consul HTTP API address
token: ACL token with snapshot scope
datacenter: Optional target datacenter
snapshot.interval: Interval between snapshots
snapshot.retain: Number of snapshots to keep
snapshot.deregister_after: Deregister unhealthy agent after this duration
Storage blocks: one of aws_storage, azure_storage, gcs_storage, or filesystem

Refer to the Consul Snapshot Agent docs for full details.

2. systemd Unit

Create /etc/systemd/system/consul-snapshot.service:

[Unit]
Description=Consul Snapshot Agent
Documentation=https://www.consul.io/
Requires=network-online.target
After=consul.service
ConditionFileNotEmpty=/etc/snapshot.d/snapshot.json

[Service]
User=consul
Group=consul
ExecStart=/usr/local/bin/consul snapshot agent -config-dir=/etc/snapshot.d/
KillMode=process
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

Then reload and enable:

sudo systemctl daemon-reload
sudo systemctl start consul-snapshot
sudo systemctl enable consul-snapshot

Process Overview

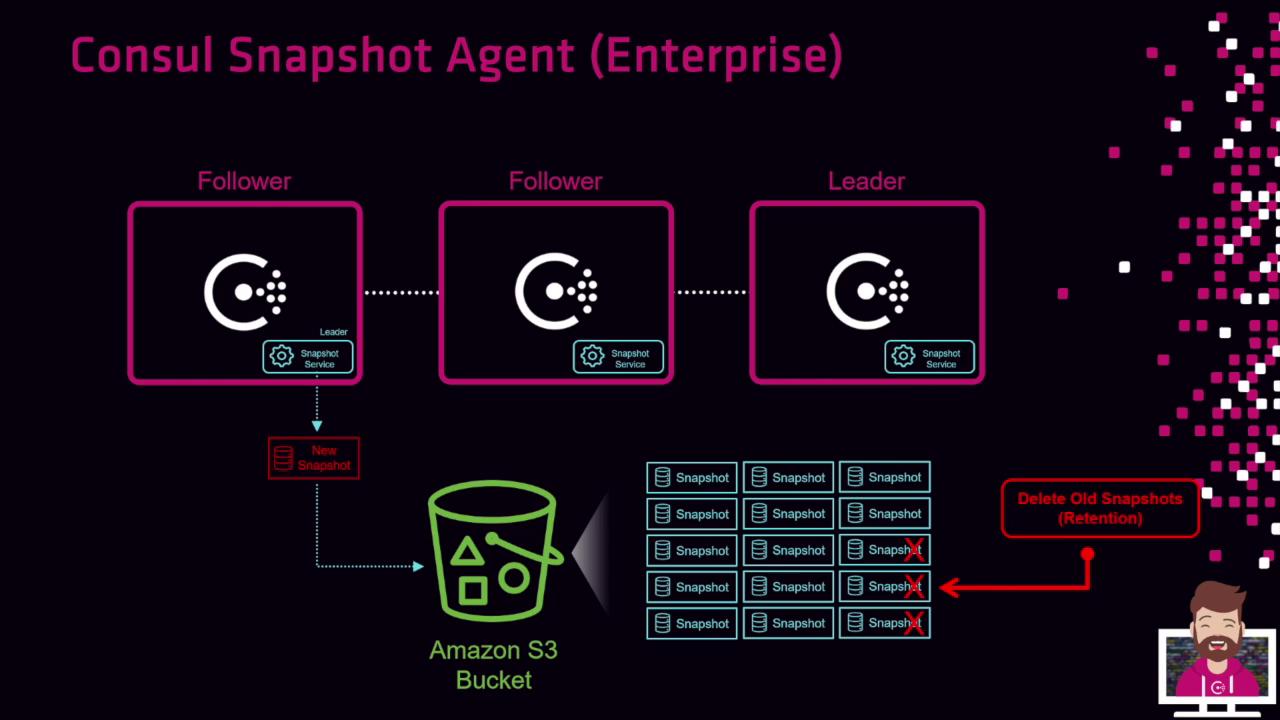

The image illustrates the Consul Snapshot Agent (Enterprise) process, showing how snapshots are created by a leader node and stored in an Amazon S3 bucket, with old snapshots being deleted for retention.

All nodes run the Snapshot Agent.
Agents hold a leader election each interval.
The leader captures the snapshot and uploads it to storage (e.g., S3).
The retention policy deletes older snapshots beyond the configured limit.

Summary

The Consul Snapshot Agent simplifies enterprise-grade backup automation with scheduled snapshots, multi-backend support, and built-in high availability. It ensures consistent, recoverable cluster state without external scripting.

This functionality will be demonstrated in the accompanying lab.
