Introduction to Consul Snapshots

Consul snapshots provide an atomic, point-in-time backup of your cluster’s Raft state. They are the primary mechanism for disaster recovery (DR) and allow you to restore:

Key-value entries in the KV store
Service catalog definitions
Prepared queries
Active sessions
Access Control Lists (ACLs)
Internal metadata

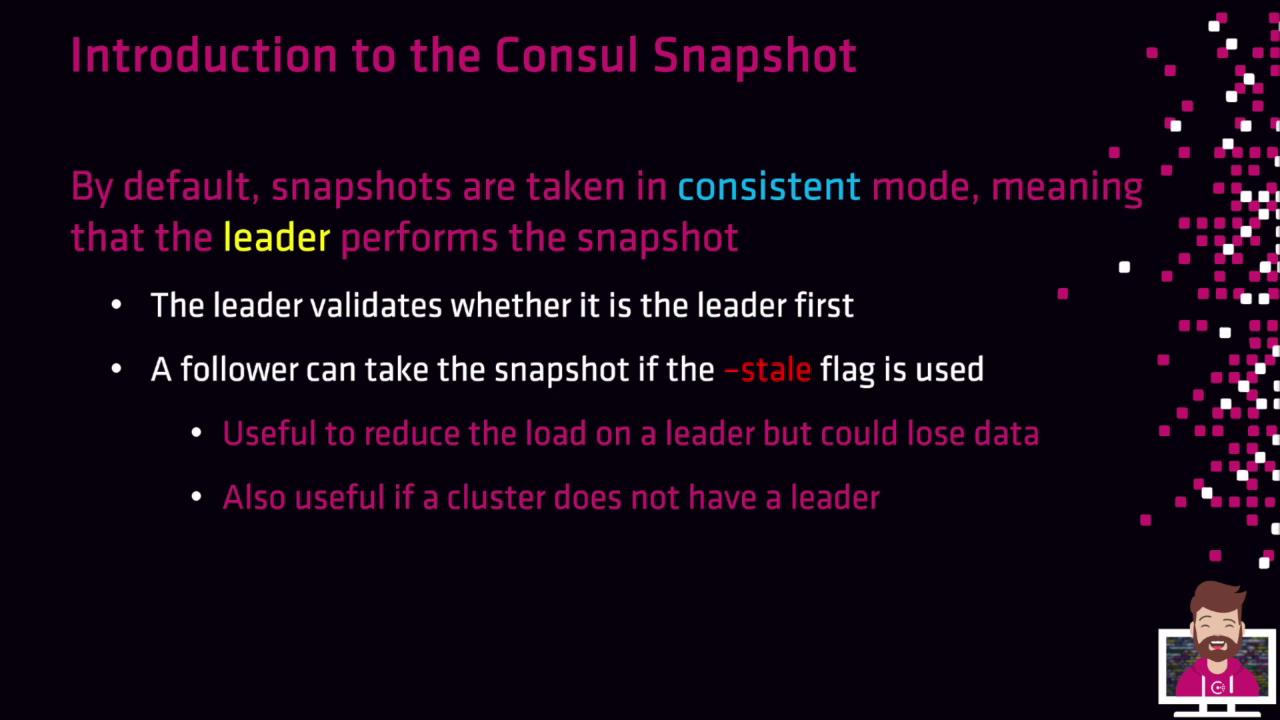

Consistent snapshots ensure that all committed log entries across the Raft quorum are captured by the leader before the archive is created.

Note

By default, snapshots run in consistent mode. The cluster leader coordinates the process to guarantee data integrity.

Taking a Snapshot on the Leader

Run the following command on the current leader to save a consistent snapshot:

consul snapshot save /path/to/consul-snapshot.gz

This will:

Verify leader status.
Generate a gzipped tar archive at the specified path.

Offloading to a Follower with `-stale`

If you need to reduce load on the leader—or capture state when quorum is lost—you can offload snapshot creation to a follower:

consul snapshot save -stale /path/to/consul-snapshot.gz

Warning

Using -stale may omit unreplicated log entries from the follower, potentially resulting in data loss. Only use this option when leader performance or cluster availability is impacted.

When to Use Stale Snapshots

Offload resource-intensive backup tasks from the leader
Capture cluster state after quorum loss, to restore in a new cluster

Snapshot Contents

Component	Description
KV Store Entries	All key-value data
Service Catalog	Registered services and metadata
Prepared Queries	User-defined queries saved for repeatable lookups
Active Sessions	Locks and leader election sessions
ACLs	Access Control policies and tokens
Internal Metadata	Raft indexes, configuration, and other system details
