Demo Prepared Queries

In this guide, we’ll cover how to leverage Consul Prepared Queries for metadata-driven traffic routing. You’ll learn to create, inspect, and update prepared queries to shift traffic seamlessly between service versions.

Consul Cluster Overview

Start by verifying your cluster members on a server node:

consul members

Sample output:

Node            Address               Status  Type    Build      Protocol  DC          Segment
consul-node-a   10.0.101.110:8301     alive   server  1.9.3+ent  2         us-east-1   <all>
consul-node-b   10.0.101.248:8301     alive   server  1.9.3+ent  2         us-east-1   <all>
web-server-01   10.0.101.177:8301     alive   client  1.9.3+ent  2         us-east-1   <default>
web-server-02   10.0.101.114:8301     alive   client  1.9.3+ent  2         us-east-1   <default>

For clarity, here’s the same data in a table:

Each client hosts an Apache-based e-commerce front end, registering the front-end-eCommerce service with version tags.

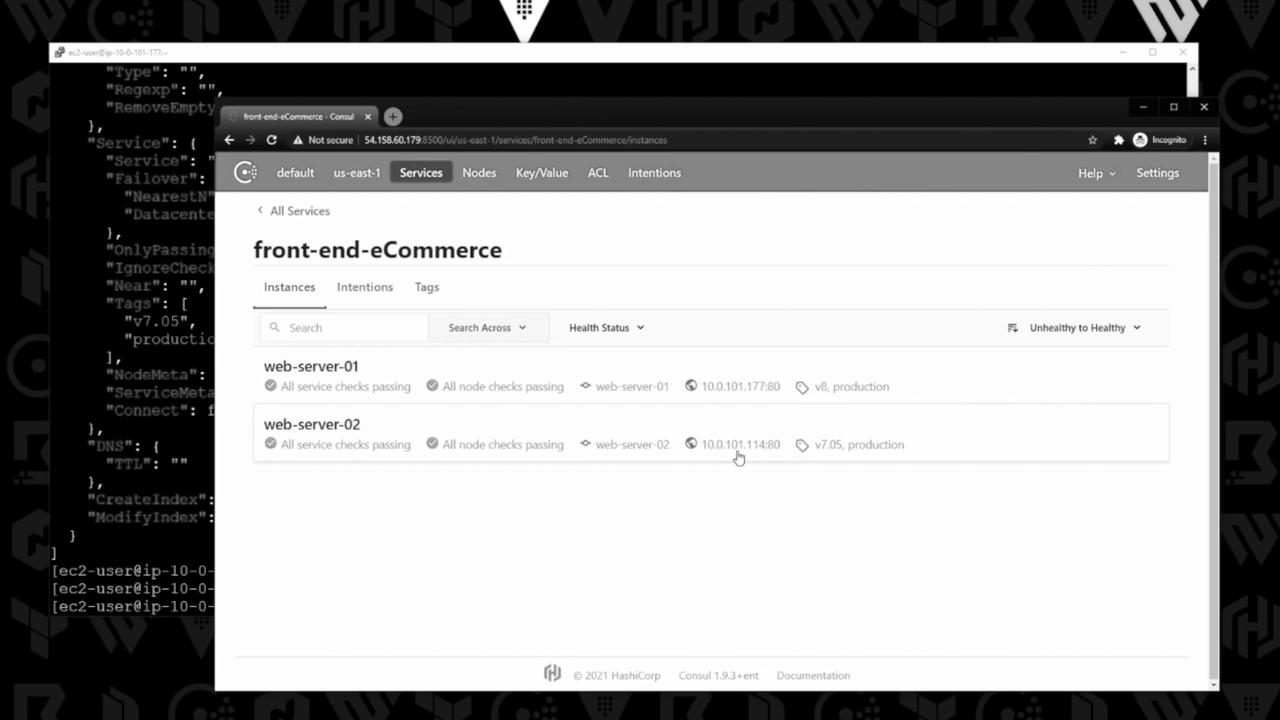

Service Registration in the Consul UI

In the Consul web interface, you’ll see two instances of front-end-eCommerce. One is tagged v7.05 and the other v8, both in the production environment.

Creating a Prepared Query

1. Save this JSON as prepared-query.json:

   {
     "Name": "eCommerce",
     "Service": {
       "Service": "front-end-eCommerce",
       "Tags": ["v7.05", "production"]
     }
   }


2. Register the query via Consul’s HTTP API:

   curl --request POST --data @prepared-query.json http://10.0.101.110:8500/v1/query | jq


   Response:

   {
     "ID": "b34f3b89-68be-9285-8f3e-c05d5d09f7le"
   }


3. Inspect the full query definition:

   curl http://10.0.101.110:8500/v1/query/b34f3b89-68be-9285-8f3e-c05d5d09f7le | jq


   {
     "ID": "b34f3b89-68be-9285-8f3e-c05d5d09f7le",
     "Name": "eCommerce",
     "Service": {
       "Service": "front-end-eCommerce",
       "Failover": { "NearestN": 0, "Datacenters": null }
     },
     "OnlyPassing": false,
     "Tags": ["v7.05", "production"]
     // ... other fields ...
   }


Querying via DNS

Consul exposes prepared queries under the *.query.consul DNS domain. Run:

dig @10.0.101.110 -p 8600 eCommerce.query.consul

You should see the IP of the v7.05 instance:

;; ANSWER SECTION:
eCommerce.query.consul. 0 IN A 10.0.101.114

Updating the Prepared Query to v8

When it’s time to shift traffic to version v8, update prepared-query.json:

{
  "Name": "eCommerce",
  "Service": {
    "Service": "front-end-eCommerce",
    "Tags": ["v8", "production"]
  }
}

Apply the update with a PUT request (replace the ID):

curl --request PUT --data @prepared-query.json \
  http://10.0.101.110:8500/v1/query/b34f3b89-68be-9285-8f3e-c05d5d09f7le

Then verify with DNS again:

dig @10.0.101.110 -p 8600 eCommerce.query.consul

;; ANSWER SECTION:
eCommerce.query.consul. 0 IN A 10.0.101.177

Conclusion

Consul Prepared Queries enable you to route client requests based on service metadata without touching client configurations. By updating the query payload, you can perform zero-downtime version rollouts and A/B testing with ease.
