Compare and Configure Secrets Engines

Demo KeyValue KV Version 2 Secrets Engine

In this guide, we’ll walk through using the HashiCorp Vault Key/Value Version 2 (KV v2) Secrets Engine. You’ll learn how to:

  • Upgrade an existing KV v1 mount to KV v2
  • Enable a new KV v2 mount
  • Write, read, and manage versioned secrets
  • Delete, undelete, and destroy secret versions
  • View and configure metadata (including custom metadata)
  • Define policies for KV v2 (data/ and metadata/ prefixes)
  • Interact with the Vault HTTP API for KV v2

1. List Existing Secrets Engines

First, verify which secrets engines are currently enabled:

$ vault secrets list
Path         Type      Accessor             Description
----         ----      --------             -----------
cubbyhole/   cubbyhole cubbyhole_9c6c2ca2   per-token private secret storage
identity/    identity  identity_e55fbf01     identity store
sys/         system    system_ae43616e       system endpoints for control, policy, and debugging
training/    kv        kv_1131683            n/a
transit/     transit   transit_5b3af5e       n/a

Here, training/ is mounted as KV v1. Let’s upgrade it to KV v2.


2. Upgrade an Existing KV v1 Mount to KV v2

2.1 Check Mount Details

$ vault secrets list --detailed
Path       Plugin  Accessor      Default TTL  Max TTL  Options  Description
----       ------  --------      -----------  -------  -------  -----------
training/  kv      kv_1d131683   n/a          n/a      map[]    n/a

The training/ mount shows kv_1d131683, indicating version 1.

2.2 Enable Versioning on the Mount

$ vault kv enable-versioning training/
Success! Tuned the secrets engine at: training/

Verify that versioning is now enabled:

$ vault secrets list --detailed
Path       Plugin  Accessor      Options        Description
----       ------  --------      -------        -----------
training/  kv      kv_1d131683   map[version:2] n/a

3. Enable a New KV v2 Mount

To start fresh with a KV v2 mount (for example, at kvv2/):

$ vault secrets enable -path=kvv2 kv-v2
Success! Enabled the kv-v2 secrets engine at: kvv2/

Confirm the new mount:

$ vault secrets list
Path       Type    Accessor       Description
----       ----    --------       -----------
kvv2/      kv      kv_0559442e    n/a

4. Write and Read Versioned Secrets

4.1 Write a Secret

Create an initial secret for a CircleCI application:

$ vault kv put kvv2/apps/circleci admin=password

The CLI hides the internal data/ prefix. You should see:

=== Metadata ===
Key              Value
---              -----
created_time     2022-03-25T14:18:15.817666Z
custom_metadata  <nil>
deletion_time    n/a
destroyed        false
version          1

4.2 Update the Secret

Rotate to a stronger password:

$ vault kv put kvv2/apps/circleci admin=P@ssw0rd!

A new version (version 2) is created.

4.3 Read the Latest Version

$ vault kv get kvv2/apps/circleci
==== Secret Path ====
kvv2/data/apps/circleci

==== Metadata ====
Key           Value
---           -----
created_time  2022-03-25T14:19:38.741912Z
version       2

==== Data ====
Key    Value
---    -----
admin  P@ssw0rd!

4.4 Read a Specific Version

$ vault kv get -version=1 kvv2/apps/circleci

This returns the original (version 1) data:

admin   password

5. Delete, Undelete, and Destroy Versions

5.1 Delete the Latest Version

$ vault kv delete kvv2/apps/circleci
Success! Data deleted (if it existed) at: kvv2/apps/circleci

A subsequent vault kv get kvv2/apps/circleci shows metadata only—no data—since version 2 is marked deleted.

5.2 Undelete a Version

$ vault kv undelete --versions=2 kvv2/apps/circleci
Success! Data written to: kvv2/undelete/apps/circleci

Now the data is restored:

$ vault kv get kvv2/apps/circleci
==== Data ====
Key    Value
---    -----
admin  P@ssw0rd!

Note

Undeleting a version does not create a new version; it simply unmarks the version as deleted.

5.3 Destroy a Version Permanently

Warning

Destroying a version is irreversible. Data cannot be recovered except via backup.

$ vault kv destroy --versions=1 kvv2/apps/circleci
Success! Data destroyed for version(s): [1]

Now version 1 is permanently gone (destroyed = true).


6. View and Tune Metadata

6.1 Show Metadata for a Path

$ vault kv metadata get kvv2/apps/circleci

Returns both engine settings and per-version status:

cas_required         false
created_time         2022-03-25T14:19:38.741912Z
current_version      2
delete_version_after 0s
max_versions         0
oldest_version       0
updated_time         2022-03-25T14:19:38.741912Z

Version 1: destroyed = true
Version 2: destroyed = false

6.2 Set Custom Metadata

$ vault kv metadata put -custom-metadata=env=prod,team=devops kvv2/apps/circleci
Success! Data written to: kvv2/metadata/apps/circleci

Verify in the secret output:

$ vault kv get kvv2/apps/circleci
==== Metadata ====
Key              Value
---              -----
custom_metadata  map[env:prod team:devops]

Query Metadata via JSON & jq

$ vault kv get -format=json kvv2/apps/circleci \
    | jq -r '.data.metadata.custom_metadata.env'
prod

7. Fully Delete a Secret Path

To remove all versions and metadata:

$ vault kv metadata delete kvv2/apps/circleci
Success! Data deleted (if it existed) at: kvv2/metadata/apps/circleci

After this, both vault kv list kvv2/apps and vault kv get kvv2/apps/circleci return nothing.


8. Vault UI: Create and Manage Secrets

Use the Vault UI for an interactive experience:

Note

In the Vault UI, navigate to the kvv2 engine, click Create secret, specify the path apps/artifactory, enter your key/value pairs, and save.

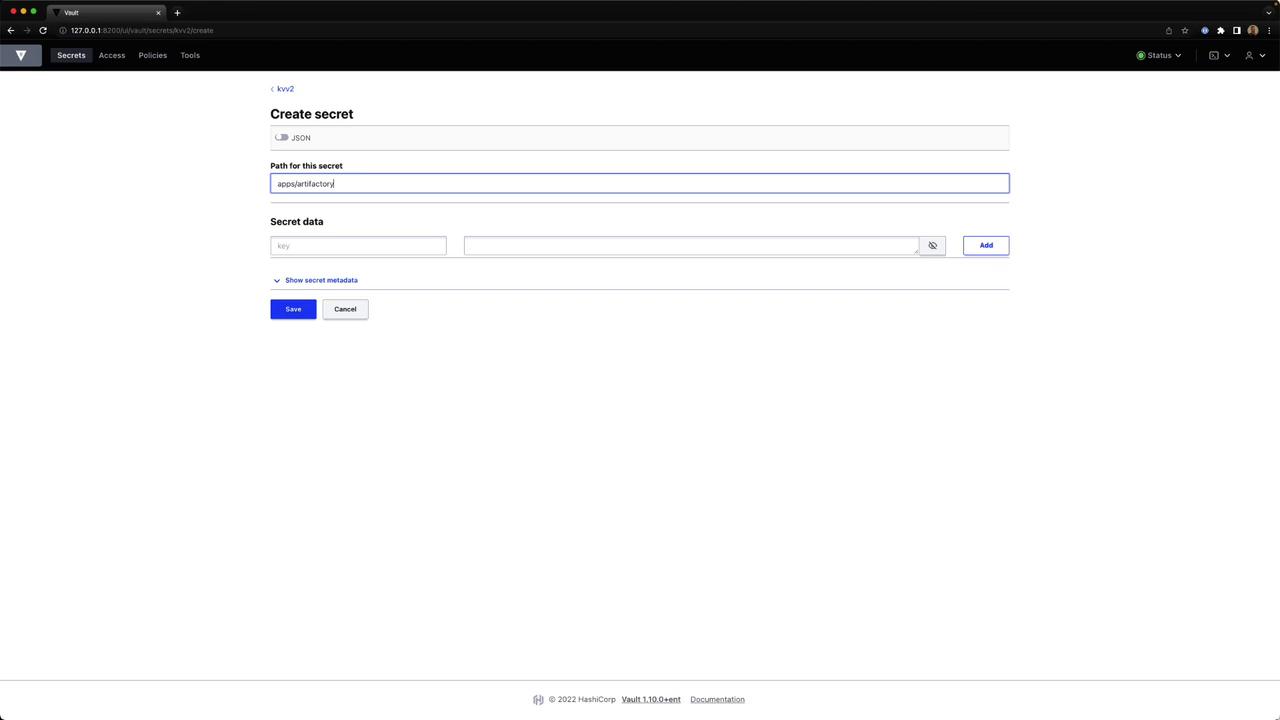

The image shows a web interface for creating a secret in HashiCorp Vault, with fields for specifying the path and secret data. There are options to save or cancel the entry.

After saving, you can view version history, metadata, delete or copy the secret, or create new versions:

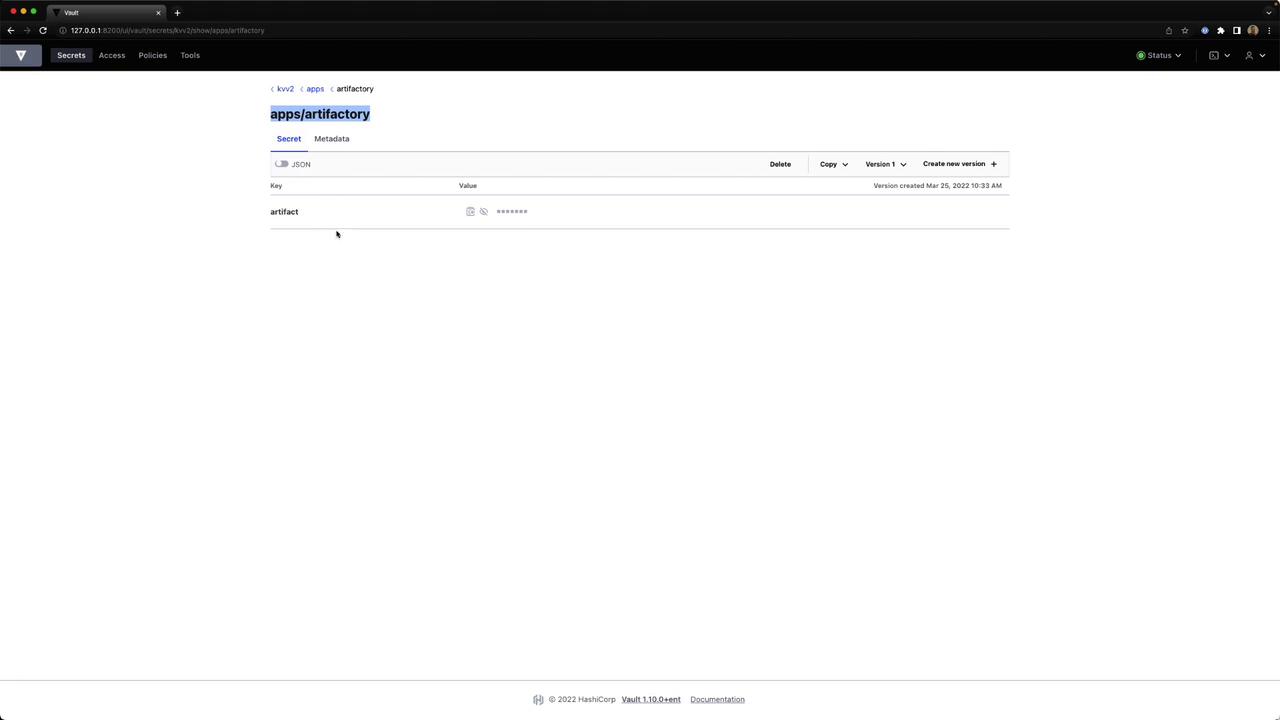

The image shows a web interface of HashiCorp Vault displaying a secret stored under the path "apps/artifactory" with a hidden value. The interface includes options for managing the secret, such as deleting, copying, and creating new versions.


9. Writing Policies for KV v2

Policies must reference the data/ and metadata/ prefixes explicitly:

path "kvv2/data/apps/artifactory" {
  capabilities = ["read"]
}

path "kvv2/metadata/apps/artifactory" {
  capabilities = ["read", "list"]
}

Requests without the correct prefix will be denied.


10. Calling the HTTP API

When using curl, include /v1/<mount>/data/… and set your token in the header:

export VAULT_TOKEN="s.yourRootToken"
curl --header "X-Vault-Token: $VAULT_TOKEN" \
     http://127.0.0.1:8200/v1/kvv2/data/apps/artifactory | jq

A sample JSON response:

{
  "data": {
    "data": {
      "artifact": "jenkins"
    },
    "metadata": {
      "version": 1,
      "custom_metadata": null,
      "created_time": "2022-03-25T14:33:10Z"
    }
  }
}

Conclusion

By now you should be familiar with:

  • Upgrading KV v1 to KV v2
  • Mounting and using new KV v2 engines
  • Writing, reading, deleting, undeleting, and destroying versioned secrets
  • Viewing and tuning metadata (including custom metadata)
  • Defining policies that use the data/ and metadata/ prefixes
  • Interacting with the KV v2 HTTP API

Explore these features in your Vault environment to build secure, versioned secret workflows.
