Demo Fault Injection

In this lesson, we demonstrate how to simulate service degradation by introducing a delay in the details service using Istio's fault injection capabilities. By doing so, you can evaluate how the overall product page responds to slow or failing services, helping you to plan coordinated responses to potential issues in your service mesh.

Step 1: Create a Destination Rule

Before applying the fault injection rule, it is essential to configure a Destination Rule. This rule defines a subset (in this case, "v1") of the details service required for the fault injection configuration.

Step 2: Set Up the Virtual Service

Begin by creating a Virtual Service named "details." Within the virtual service configuration, specify the affected service in the host section. Next, include a fault section under the HTTP protocol configuration. The following configuration delays 70% of the traffic destined for the "v1" subset of the details service by an extra 7 seconds:

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: details
spec:
  hosts:
    - details
  http:
    - fault:
        delay:
          percentage:
            value: 70.0
          fixedDelay: 7s
      route:
        - destination:
            host: details
            subset: v1

Apply the configuration with the following commands:

istiotraining@local istio-1.10.3 $ vi virtual-service-fault.yaml
istiotraining@local istio-1.10.3 $ kubectl apply -f virtual-service-fault.yaml
virtualservice.networking.istio.io/details created

This rule instructs Istio to inject a 7-second delay to 70% of the requests reaching the details service.

Step 3: Verify the Configuration in Kiali

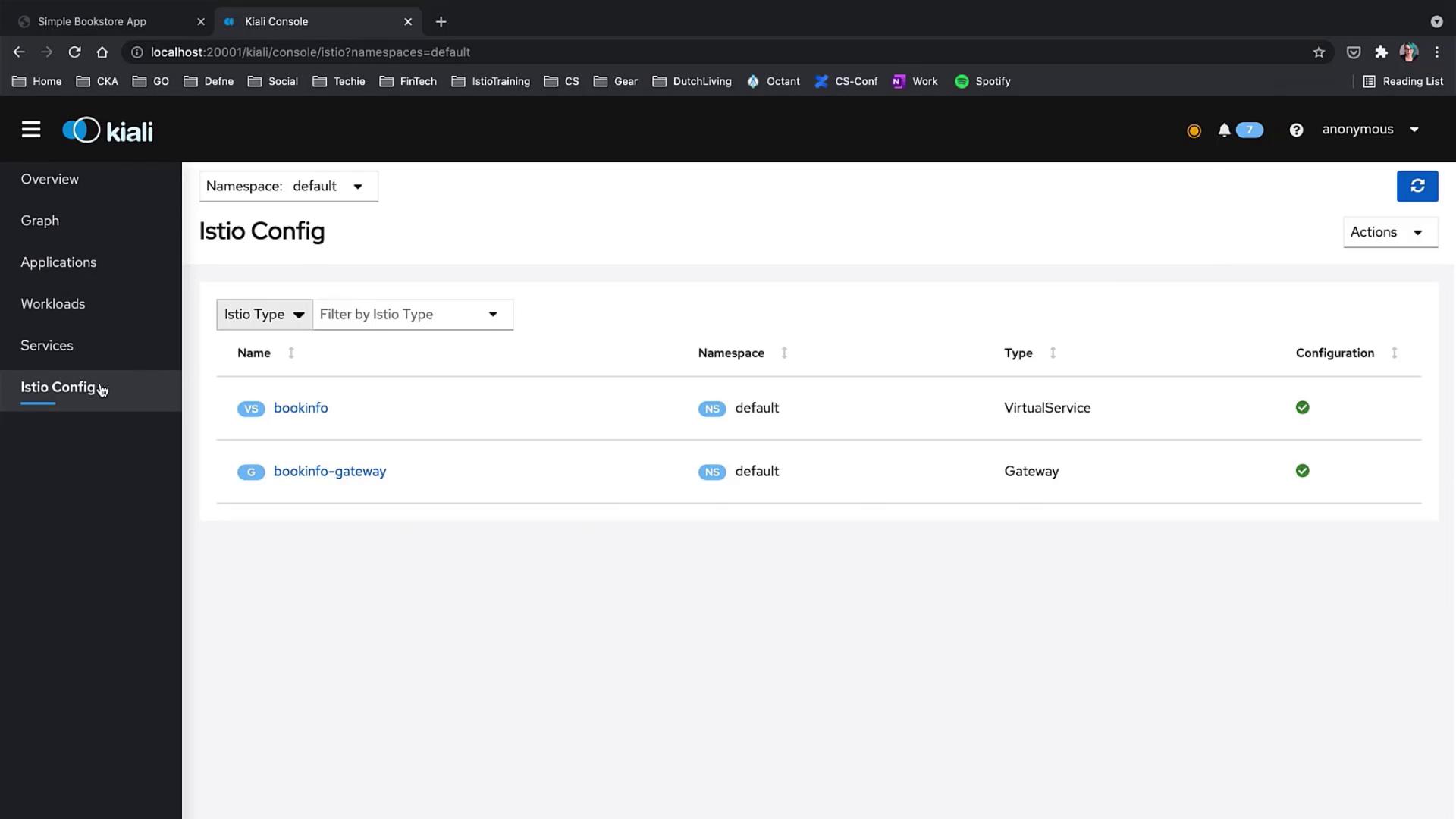

After applying the configuration, verify that the Virtual Service and associated settings are active and error-free within your service mesh. Kiali provides a visual confirmation of the Istio configurations in use:

Step 4: Observe the Impact on the Application

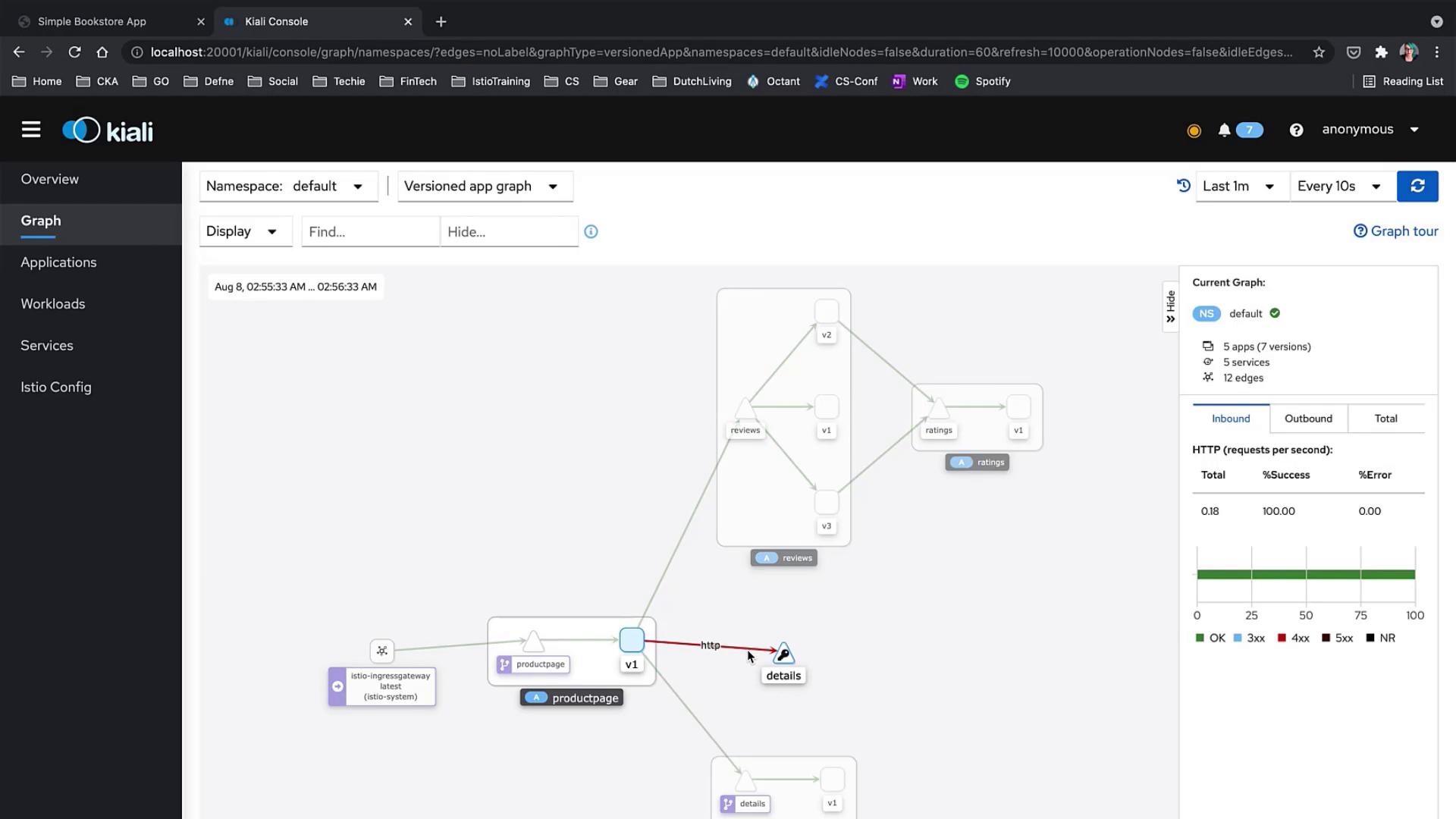

Navigate to the application to see the effect of the fault injection. In Kiali, you will observe that:

• The details service experiences performance degradation, as indicated by problematic connections from the product page.
• Some requests (approximately 30%) remain unaffected and continue to operate normally.

When you refresh the browser, you might notice that the details service occasionally fails to respond within the expected time frame due to the injected delay. Conversely, the healthy traffic (30%) may still provide timely responses.

Conclusion

This lesson has shown how to use Istio's fault injection to intentionally slow down a service, enabling you to examine the responses of the overall system under degraded conditions. Understanding these behaviors is key to improving the reliability and performance of your service mesh.
