Configuring Jenkins Pipeline for Kubernetes

In this tutorial, we demonstrate how to set up a robust CI/CD pipeline using Jenkins to deploy applications to both staging and production Kubernetes clusters. The pipeline automates the following steps:

1. Check out code.
2. Run tests.
3. Build the Docker image.
4. Push the image to Docker Hub.
5. Deploy the image to the staging cluster.
6. Execute acceptance tests.
7. Promote deployment to production if tests pass.

For performance testing in the staging environment, we use the K6 tool to simulate traffic and record metrics. If the performance metrics meet the predefined criteria, the image is promoted to production.

Jenkins Credentials

Within Jenkins, you need to create two sets of credentials for smooth operation:

• Kubectl configuration credentials: For authenticating with Kubernetes clusters.
• Docker Hub credentials: For pushing Docker images.

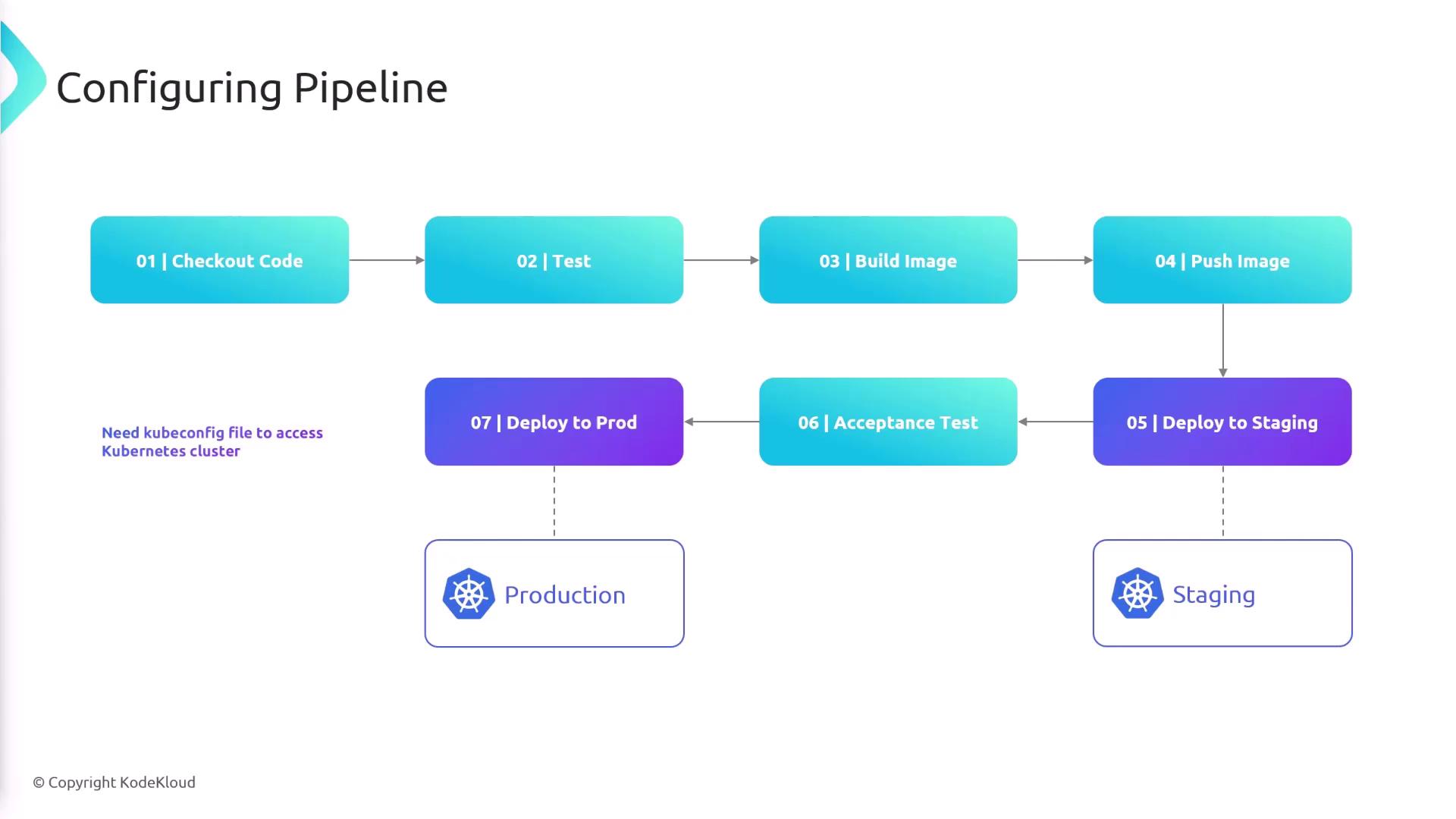

Pipeline Flow Diagram

The diagram below illustrates the complete pipeline flow, from code checkout through testing and image deployment, highlighting the essential role of the kubeconfig file for accessing Kubernetes clusters.

Environment Variables in the Pipeline

Jenkins pipelines use several environment variables for configuration. Below is a summary of the main variables:

Below is the initial pipeline configuration snippet with the necessary environment variables defined:

pipeline {
    agent any
    environment {
        IMAGE_NAME = 'sanjeevkt720/jenkins-flask-app'
        IMAGE_TAG = "${IMAGE_NAME}:${env.GIT_COMMIT}"
        KUBECONFIG = credentials('kubeconfig-credentials-id')
        AWS_ACCESS_KEY_ID = credentials('aws-access-key')
        AWS_SECRET_ACCESS_KEY = credentials('aws-secret-key')
    }
    // Further stages (e.g., Checkout, Test, Build, etc.) would follow here.
}

For clusters running on Amazon EKS, AWS access credentials are necessary, while for other Kubernetes clusters, only the kubeconfig is needed.

Docker Hub Login Stage

The pipeline installs dependencies using pip, runs tests with pytest, and logs into Docker Hub. Jenkins supplies the Docker credentials to build and push the image. The snippet below demonstrates the Docker Hub login stage:

stage('Login to Docker Hub') {
    steps {
        withCredentials([usernamePassword(credentialsId: 'docker-creds', usernameVariable: 'USERNAME', passwordVariable: 'PASSWORD')]) {
            sh 'echo ${PASSWORD} | docker login -u ${USERNAME} --password-stdin'
            echo 'Login successful'
        }
    }
}

Deployment to Staging

After pushing the Docker image to Docker Hub, the pipeline deploys it to the staging Kubernetes cluster by switching contexts, verifying the current context, and updating the deployment image:

stage('Deploy to Staging') {
    steps {
        sh 'kubectl config use-context <staging context>'
        sh 'kubectl config current-context'
        sh "kubectl set image deployment/flask-app flask-app=${IMAGE_TAG}"
    }
}

Running Acceptance Tests with K6

Once the staging deployment is updated, the pipeline retrieves the service endpoint and extracts the domain name and port from the running service. This information is then passed to K6 for acceptance testing:

stage('Acceptance Test') {
    steps {
        script {
            def service = sh(
                script: "kubectl get svc flask-app-service -o jsonpath='{.status.loadBalancer.ingress[0].hostname}:{.spec.ports[0].port}'",
                returnStdout: true
            ).trim()
            echo "${service}"
            sh "k6 run -e SERVICE=${service} acceptance-test.js"
        }
    }
}

Production Deployment

After successful acceptance tests, the pipeline switches to the production context and updates the deployment with the new Docker image:

stage('Deploy to Prod') {
    steps {
        sh 'kubectl config use-context <prod>'
        sh 'kubectl config current-context'
        sh "kubectl set image deployment/flask-app flask-app=${IMAGE_TAG}"
    }
}

This concludes the configuration of the Jenkins pipeline for deploying to Kubernetes clusters. Follow these steps carefully to ensure your deployments are automated efficiently and securely. For more detailed documentation, consider exploring Kubernetes Documentation and Docker Hub.
