Using the New Build Agent for a CICD Pipeline

In this guide, we will demonstrate how to configure and utilize a dedicated build agent within a Jenkins-based CICD pipeline. This setup is especially beneficial for scenarios involving applications that require specific operating systems, such as macOS apps or Linux-based testing environments.

Creating a New Pipeline Project

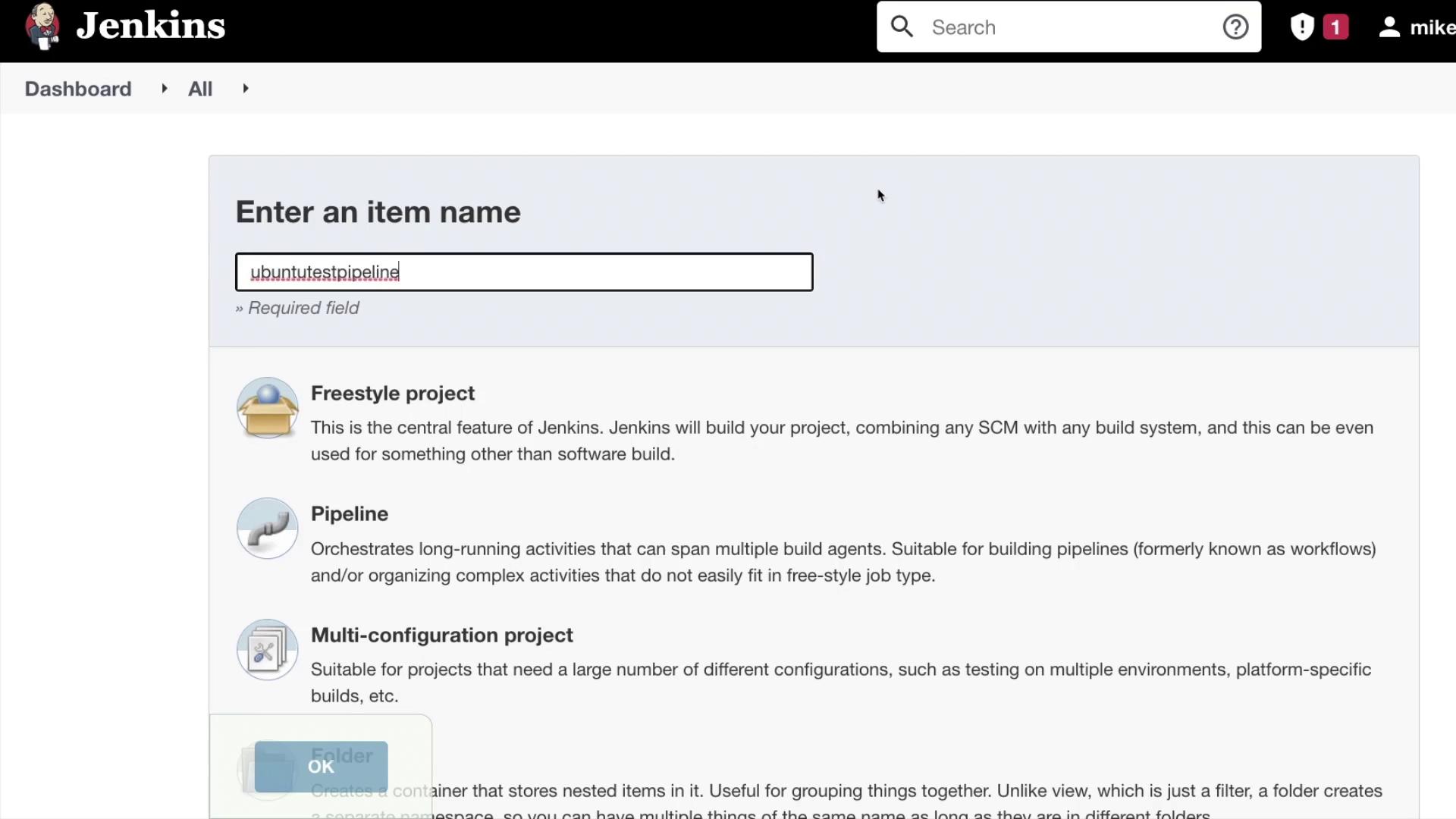

To start, log in to Jenkins and click on New Item. Provide a project name (for example, "Ubuntu Test Pipeline") and then select the Freestyle project option.

After selecting the project type, click OK to proceed.

Restricting the Project to a Specific Build Agent

In the project configuration page, enable the option Restrict where this project can be run. Enter the build agent name on which you want to execute the project. Jenkins will help by indicating if it finds a matching agent as you type.

For example, by entering "Ubuntu Agent" (or the exact matching identifier), Jenkins will confirm the availability of the agent for your project.

Configuring a Build Step

Next, test the build agent by adding a build step:

1. Scroll down to the Build section.
2. Select Execute shell as the build step.
3. Insert the following simple command to verify the functionality:

echo "testing to confirm the build agent works"

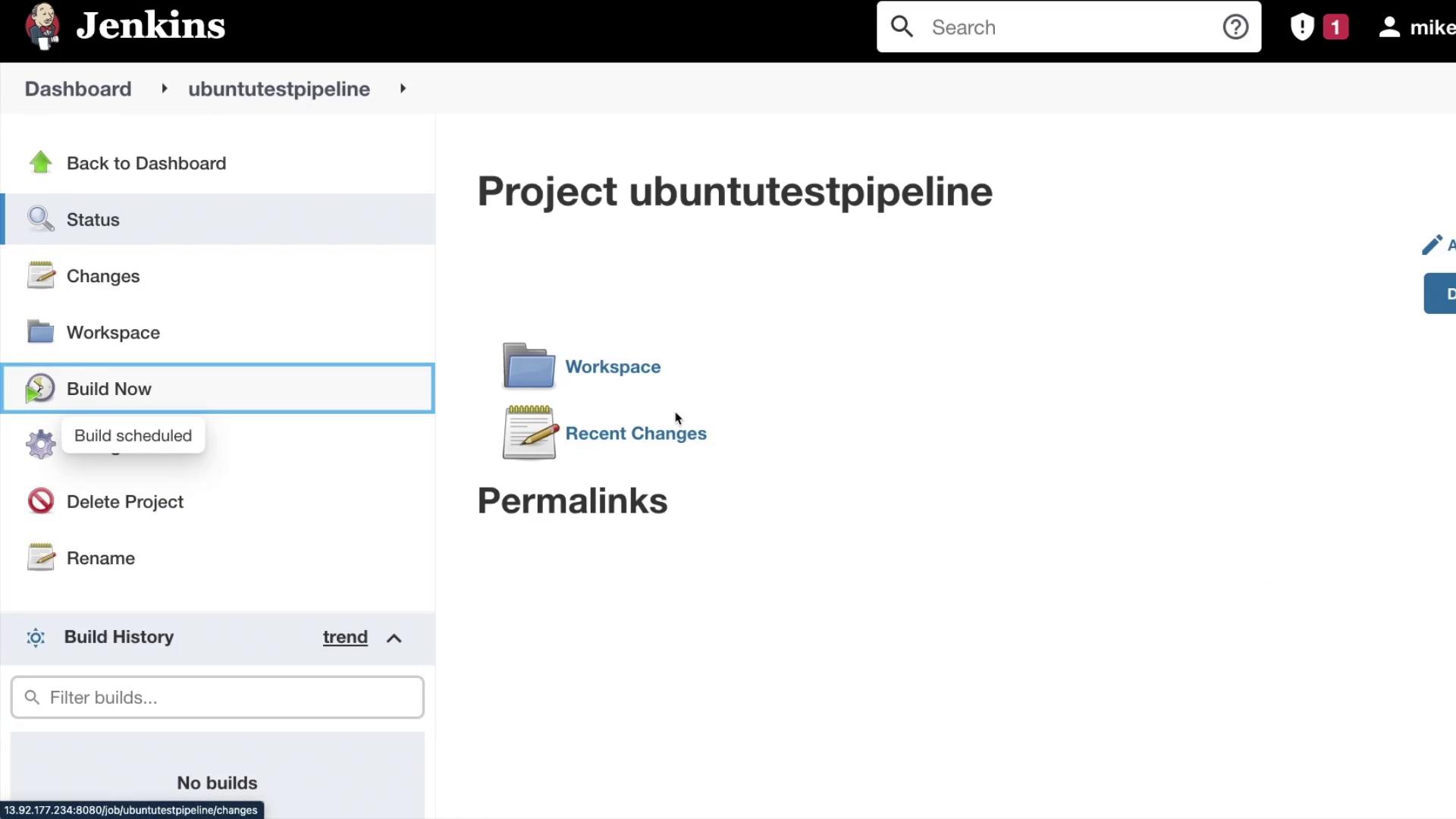

Once the build step is configured, click Save and then trigger the build by selecting Build Now.

Verifying the Build Outcome

After the build is initiated, inspect the console output to verify that the build executed on your designated "Ubuntu Agent." The console output should resemble the following:

Started by user mike
Running as SYSTEM
Building remotely on ubuntuagent in workspace /home/newuser/workspace/ubuntutestpipeline
[ubuntutestpipeline] $ /bin/sh -xe /tmp/jenkins1094049092160565796.sh
+ echo "testing to confirm the build agent works"
testing to confirm the build agent works
Finished: SUCCESS

This output confirms that the build agent is correctly configured and functioning as expected.
