Reloader

In modern Kubernetes environments, troubleshooting can become cumbersome when ConfigMap or Secret updates don't automatically trigger pod restarts. This guide introduces Reloader, a Kubernetes controller designed to automate rolling upgrades of your Deployments, DaemonSets, or StatefulSets whenever there's a change in ConfigMap or Secret objects.

Reloader continuously monitors for modifications in your ConfigMaps and Secrets. When a change is detected, it triggers a rolling upgrade, ensuring that your Kubernetes resources are immediately redeployed without any manual intervention.

How Reloader Works

To leverage Reloader in your Kubernetes cluster, add the following annotation to your Deployment, StatefulSet, or any applicable resource. This annotation instructs Reloader to monitor the associated ConfigMap(s) and Secret(s) for changes and automatically restart the resource when necessary.

kind: Deployment
metadata:
  annotations:
    reloader.stakater.com/auto: "true"
spec:
  template:
    metadata:
      # your pod metadata here

You can configure Reloader to monitor all associated ConfigMaps and Secrets or restrict its scope to specific ones. In this guide, we use the generic annotation for simplicity.

Deploying Reloader

Deploy the Reloader controller to your Kubernetes cluster using the vanilla manifest. While Helm is available for more complex deployments, the default manifest installation is straightforward:

kubectl apply -f https://raw.githubusercontent.com/stakater/Reloader/master/deployments/kubernetes

Once deployed (by default in the default namespace), verify its status using:

kubectl get pods

You should see an output similar to:

NAME                              READY   STATUS    RESTARTS   AGE
reloader-reloader-d88cf475-bbqhh   1/1     Running   0          3m12s

Integrating Reloader with Your Application

Consider a scenario where a web application relies on a ConfigMap named "web-message". This ConfigMap provides a greeting message for the application. Use the following command to deploy the Reloader components:

kubectl apply -f https://raw.githubusercontent.com/stakater/Reloaders/master/deployments/kubernetes/reloader.yaml

A sample output might be:

serviceaccount/reloader-reloader unchanged
clusterrole.rbac.authorization.k8s.io/reloader-reloader-role unchanged
clusterrolebinding.rbac.authorization.k8s.io/reloader-reloader-role-binding unchanged
deployment.apps/reloader-reloader unchanged

To inspect the pods and ConfigMaps in the production namespace, run:

kubectl get pods -n production

kubectl get cm -n production

For example, if your web application is configured with a ConfigMap value of "Hello, World", verify it by executing:

kubectl exec -n production -it web-app-58c4f787c-lm7s7 -- /bin/sh
# Inside the shell:
printenv | grep MESSAGE

If you see:

MESSAGE=Hello, World

then your application is using the expected configuration.

Adding the Reloader Annotation

To enable Reloader for your application, update your deployment definition with the Reloader annotation. Below is an example of a Deployment configuration with the necessary annotation:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-app
  namespace: production
  annotations:
    reloader.stakater.com/auto: "true"
    deployment.kubernetes.io/revision: "1"
  labels:
    app: ""
spec:
  replicas: 1
  selector:
    matchLabels:
      app: node-env-app
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
  template:
    metadata:
      labels:
        app: node-env-app
    spec:
      containers:
      - name: web-app
        image: rakshithraka/node-env-app
        ports:
        - containerPort: 3000
        envFrom:
        - configMapRef:
            name: web-message

After applying this update, Reloader will automatically initiate a restart of the deployment whenever there's a change to any associated ConfigMaps or Secrets. Apply the updated configuration by running:

kubectl apply -f https://raw.githubusercontent.com/stakater/Reloader/master/deployments/kubernetes/reloader.yaml

Then, inspect your production pods:

kubectl get pods -n production

You can also review your deployment details with:

kubectl edit deployments.apps -n production web-app

Updating a ConfigMap and Observing Reloader in Action

To demonstrate Reloader's functionality, update the ConfigMap to change the greeting message. Use the following updated ConfigMap configuration:

apiVersion: v1
kind: ConfigMap
metadata:
  name: web-message
  namespace: production
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","data":{"MESSAGE":"Hello, World"},"kind":"ConfigMap","metadata":{"name":"web-message","namespace":"production"}}
data:
  MESSAGE: Hello Reloader

After applying the updated ConfigMap, observe that the Deployment is immediately restarted—the old pods are terminated and new ones are created. Confirm the current state with:

kubectl get pods -n production

Then, connect to one of the new pods and check the environment variable:

kubectl exec -n production -it web-app-68547b8c9d-8vhtl -- /bin/sh
# Inside the shell:
printenv | grep MESSAGE

A successful update should display:

MESSAGE=Hello Reloader

Conclusion

Reloader streamlines the process of handling ConfigMap and Secret updates by automating the restart of Kubernetes resources. This automation not only simplifies troubleshooting but also reduces potential downtime in your applications. Use Reloader to enhance your Kubernetes deployment workflows and ensure smooth and continuous integration of configuration changes.

Happy deploying, and enjoy the benefits of automated rolling upgrades!

Further Reading and Resources

• Kubernetes Documentation

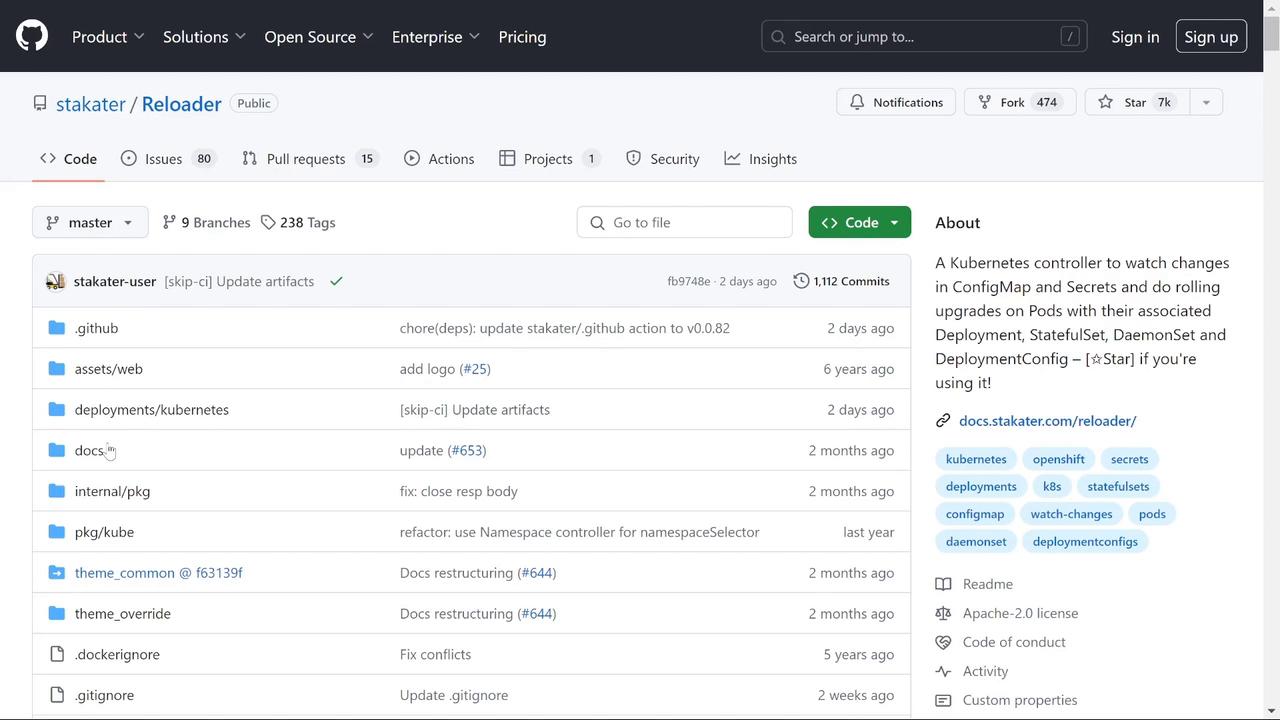

• GitHub Repository: stakater/Reloader
• Kubernetes Rolling Upgrades

For more information on Kubernetes best practices and troubleshooting, check out additional guides on Kubernetes Basics.
