CICD Pipeline Demo

In this article, we demonstrate how Argo CD automatically provisions resources in a Kubernetes cluster by continuously monitoring a Git repository for changes.

Verifying the Default Namespace

First, verify that no pods are running in the default namespace. Execute the following command:

nimeshajinarajadasa@Nimeshas-MacBook-Air ~ % kubectl get po
No resources found in default namespace.
nimeshajinarajadasa@Nimeshas-MacBook-Air ~ %

This confirms that the namespace is initially empty.

After waiting briefly, run the command again and notice that a pod is now being created:

nimeshajinarajadasa@Nimeshas-MacBook-Air ~ % kubectl get po
NAME                                 READY   STATUS              RESTARTS   AGE
nginx-deployment-6b7f675859-hx95j    0/1     ContainerCreating   0          18s
nimeshajinarajadasa@Nimeshas-MacBook-Air ~ %

This output indicates that the deployment YAML file has been successfully applied by Argo CD. Once the pod is fully operational, you can verify its healthy state with:

kubectl get po
NAME                                     READY   STATUS    RESTARTS   AGE
nginx-deployment-6b76765859-hx95j         1/1     Running   0          55s

Updating the Kubernetes Manifest

Next, update the Kubernetes manifest by increasing the number of replicas from one to three.

Original YAML File

Below is the original deployment YAML file:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80

After updating the replica count to three, save the file and commit the changes to your Git repository hosting the Kubernetes manifest. Argo CD will detect the update and provision the additional pods accordingly.

Observing Changes in the Argo CD UI

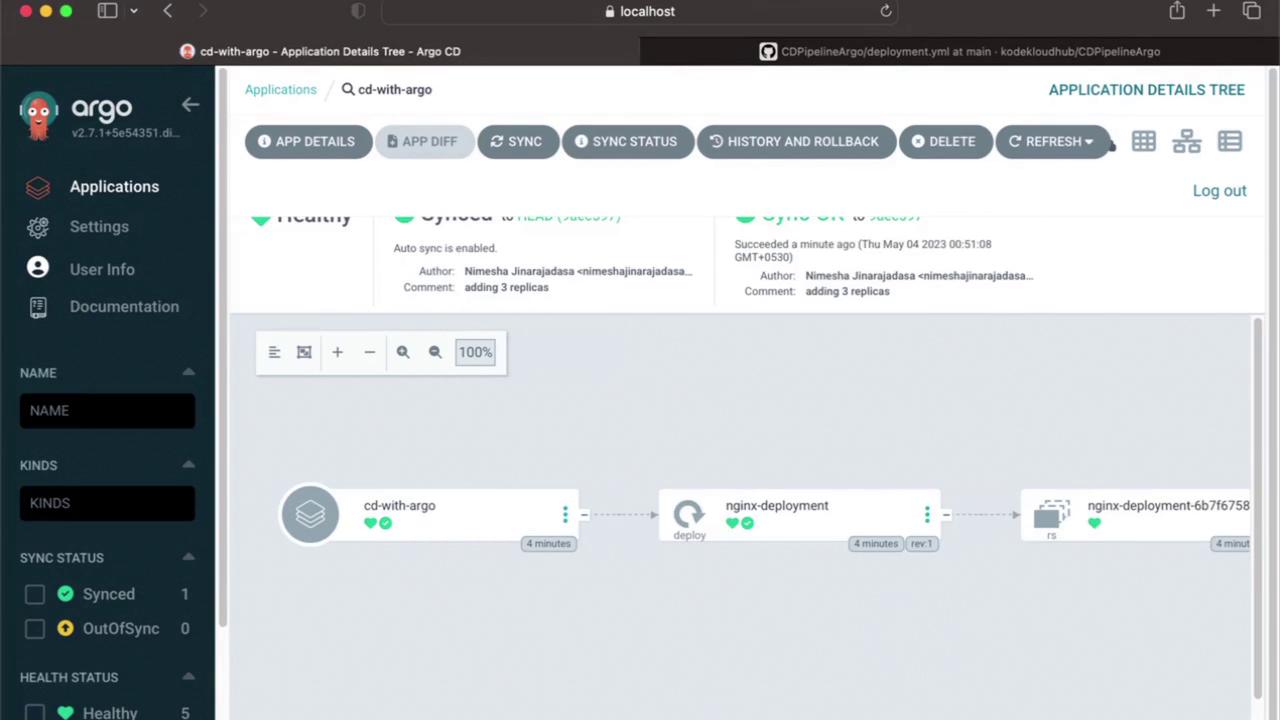

You can verify these changes in the Argo CD UI. The dashboard provides a visual representation of the application’s state, including the updated replica count:

By clicking on the application instance in the UI, you will observe that the number of replicas has increased from one to three.

Thank you for reading, and stay tuned for our next article!
