Service Accounts

Welcome to this comprehensive guide on Kubernetes service accounts. In this article, we will explore how service accounts work in Kubernetes, their role in security, and how to manage tokens. This guide is especially useful for exam preparation and practical usage. For more advanced security concepts, refer to the CKA Certification Course - Certified Kubernetes Administrator.

Kubernetes supports two main account types:

  • User Account: Used by humans, such as administrators and developers.
  • Service Account: Intended for machine-to-machine interactions; for example, monitoring tools like Prometheus or build tools like Jenkins use service accounts to interact with the Kubernetes API.

Example Scenario: Python Kubernetes Dashboard

Imagine you have developed a simple Python dashboard application that retrieves a list of pods from your Kubernetes cluster and displays them on a web page. In order for your application to query the Kubernetes API securely, it must authenticate using a service account.

To create a service account named dashboard-sa, run the following command. This command not only creates the account but also automatically generates a token for API authentication:

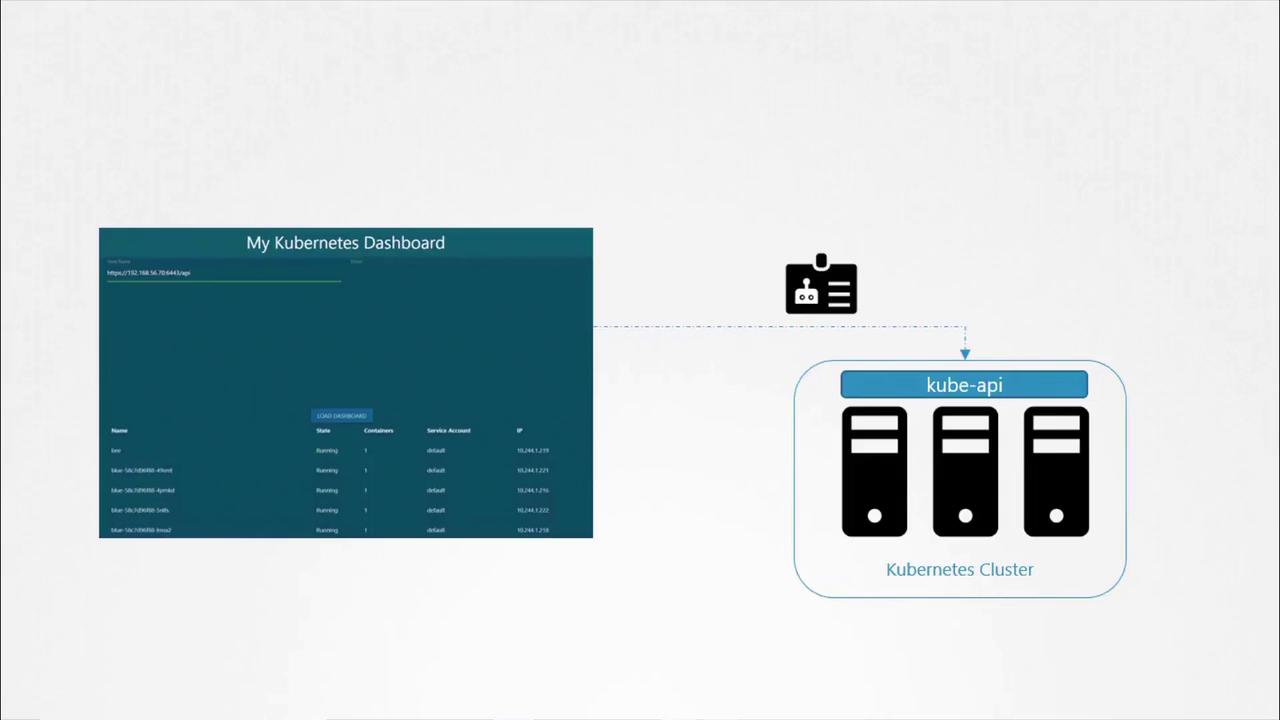

The image shows a Kubernetes dashboard interface connected to a Kubernetes cluster with three nodes, illustrating the kube-api interaction.

kubectl create serviceaccount dashboard-sa
# Expected output:
# serviceaccount "dashboard-sa" created

You can verify the newly created service account with:

kubectl get serviceaccounts

Example output:

NAME            SECRETS   AGE
default         1         218d
dashboard-sa    1         4d

Describing the service account confirms that a token has been automatically created and stored in a secret object:

kubectl describe serviceaccount dashboard-sa

Example output:

Name:                dashboard-sa
Namespace:           default
Labels:              <none>
Annotations:         <none>
Image pull secrets:  <none>
Mountable secrets:   dashboard-sa-token-kbbdm
Tokens:              dashboard-sa-token-kbbdm
Events:              <none>

To inspect the token details, view the secret:

kubectl describe secret dashboard-sa-token-kbbdm

This token is then used as a bearer token for authentication when making REST calls. For example, using curl:

curl https://192.168.56.70:6443/api --insecure --header "Authorization: Bearer eyJhbG..."

Automatic Token Mounting in Pods

When your application (such as a custom dashboard or Prometheus) is hosted on the Kubernetes cluster, the service account token can be automatically mounted into the pod as a volume. This removes the need to manually manage the token. Every namespace includes a default service account that is automatically used if no other account is specified.

Consider the following simple pod definition that uses your custom Kubernetes dashboard image. Although the pod specification does not explicitly mount the token, Kubernetes automatically mounts the default service account token:

kubectl get serviceaccount

Output:

NAME          SECRETS   AGE
default       1         218d
dashboard-sa  1         4d

Pod definition:

apiVersion: v1
kind: Pod
metadata:
  name: my-kubernetes-dashboard
spec:
  containers:
    - name: my-kubernetes-dashboard
      image: my-kubernetes-dashboard

When you create the pod and inspect it using:

kubectl describe pod my-kubernetes-dashboard

You will see a volume automatically created from the secret named default-token-*. For example:

Name:               my-kubernetes-dashboard
Namespace:          default
Status:             Running
IP:                 10.244.0.15
Containers:
  nginx:
    Image:          my-kubernetes-dashboard
Mounts:
  /var/run/secrets/kubernetes.io/serviceaccount from default-token-j4hkx (ro)
Volumes:
  default-token-j4hkx:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-j4hkx
    Optional:    false

Inside the pod, you can list the contents of the service account directory to verify the token file:

kubectl exec -it my-kubernetes-dashboard -- ls /var/run/secrets/kubernetes.io/serviceaccount

Expected output:

ca.crt  namespace  token

To view the token:

kubectl exec -it my-kubernetes-dashboard -- cat /var/run/secrets/kubernetes.io/serviceaccount/token

The default service account is designed with restricted permissions for basic API queries. To use the custom service account (dashboard-sa), modify the pod specification to include the serviceAccountName field. Note that you cannot change the service account for an existing pod; it must be deleted and recreated. In deployments, updating the pod definition will trigger a new rollout.

Example pod definition using the dashboard-sa service account:

apiVersion: v1
kind: Pod
metadata:
  name: my-kubernetes-dashboard
spec:
  containers:
    - name: my-kubernetes-dashboard
      image: my-kubernetes-dashboard
  serviceAccountName: dashboard-sa

After recreating the pod, verify that the new service account is in use:

kubectl describe pod my-kubernetes-dashboard

You should see the volume associated with dashboard-sa-token-[...].

If you wish to disable automatic mounting of the service account token, set automountServiceAccountToken to false in your pod specification:

apiVersion: v1
kind: Pod
metadata:
  name: my-kubernetes-dashboard
spec:
  containers:
    - name: my-kubernetes-dashboard
      image: my-kubernetes-dashboard
  automountServiceAccountToken: false

Note

Once a pod is created, you cannot change its service account. To apply changes, delete and recreate the pod or update the deployment to trigger a rollout.


Evolving Token Management in Kubernetes: Releases 1.22 and 1.24

Prior to Kubernetes 1.22

Before Kubernetes 1.22, every service account was automatically associated with a secret that contained a non-expiring token. This token was mounted into pods at /var/run/secrets/kubernetes.io/serviceaccount. For example:

kubectl get serviceaccount
NAME      SECRETS   AGE
default   1         218d

Inspecting a pod shows the static token being used:

kubectl describe pod my-kubernetes-dashboard
Name:           my-kubernetes-dashboard
Namespace:      default
Status:         Running
IP:             10.244.0.15
Containers:
  nginx:
    Image:      my-kubernetes-dashboard
Mounts:
  /var/run/secrets/kubernetes.io/serviceaccount from default-token-j4hkv (ro)
Volumes:
  default-token-j4hkv:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-j4hkv
    Optional:    false

These tokens, being static and non-expiring, posed scalability and security challenges.

Kubernetes 1.22 – Introduction of the Token Request API

In Kubernetes 1.22, the Token Request API was introduced (KEP 1205). This API generates service account tokens that are audience bound, time bound, and object bound, making them more secure. With this change, a pod created in Kubernetes mounts a token generated by the Token Request API as a projected volume.

Example pod specification using a projected volume token:

apiVersion: v1
kind: Pod
metadata:
  name: nginx
  namespace: default
spec:
  containers:
    - image: nginx
      name: nginx
      volumeMounts:
        - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
          name: kube-api-access-6mtg8
          readOnly: true
  volumes:
    - name: kube-api-access-6mtg8
      projected:
        defaultMode: 420
        sources:
          - serviceAccountToken:
              expirationSeconds: 3607
              path: token
          - configMap:
              name: kube-root-ca.crt
              items:
                - key: ca.crt
                  path: ca.crt
          - downwardAPI:
              items:
                - fieldRef:
                    apiVersion: v1
                    fieldPath: metadata.annotations

Kubernetes 1.24 – Reducing Secret-Based Tokens

With Kubernetes 1.24, further improvements (KEP 2799) were made to reduce reliance on secret-based service account tokens. In this version, a service account no longer automatically creates a non-expiring secret token. To generate a token for a service account, run:

kubectl create token dashboard-sa

This command produces a token with an expiry (typically one hour). You can decode the token using tools like jwt.io or with commands such as:

jq -R 'split(".") | select(length > 0) | .[0],.[1] | @base64d | fromjson' <<< <token>

If you prefer the older non-expiring token method, you can manually create a secret object by specifying the type as kubernetes.io/service-account-token and annotating it with the service account name:

apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: mysecretname
  annotations:
    kubernetes.io/service-account.name: dashboard-sa

Ensure the service account exists before creating the secret. According to Kubernetes documentation, the Token Request API is the recommended approach due to its improved security features.

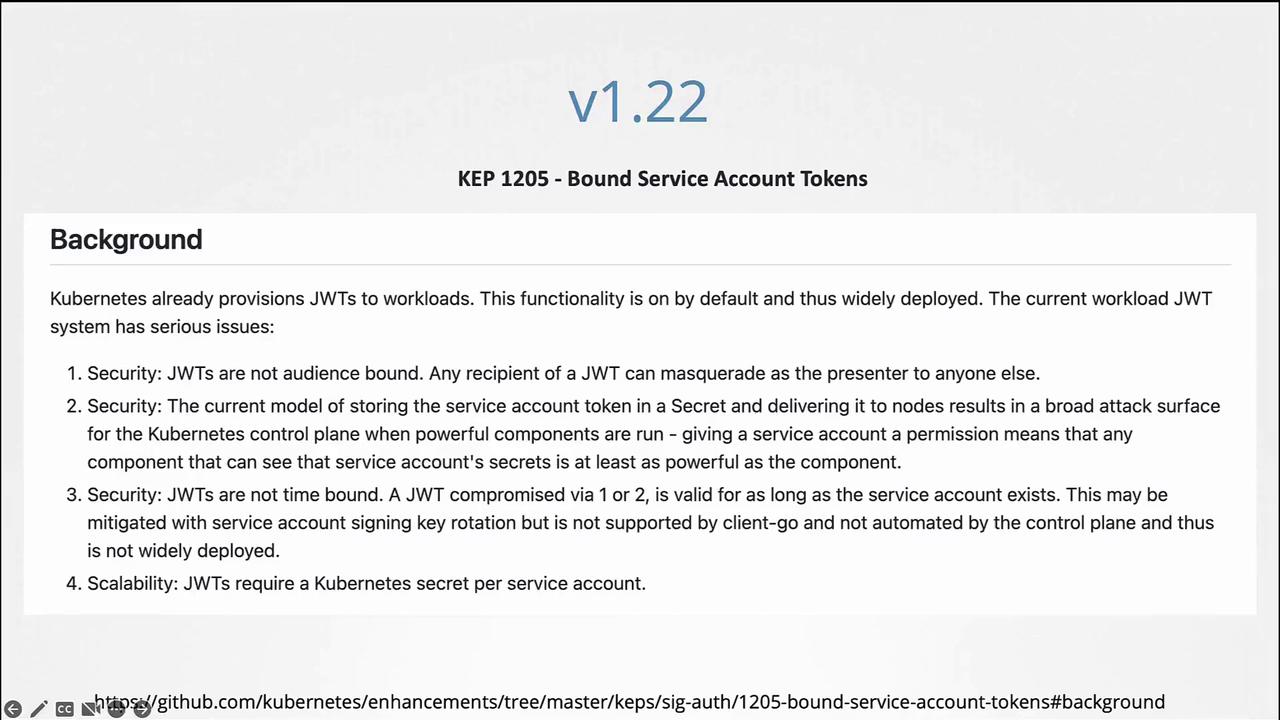

The image describes Kubernetes v1.22's KEP 1205, highlighting security and scalability issues with JWTs in service account tokens.

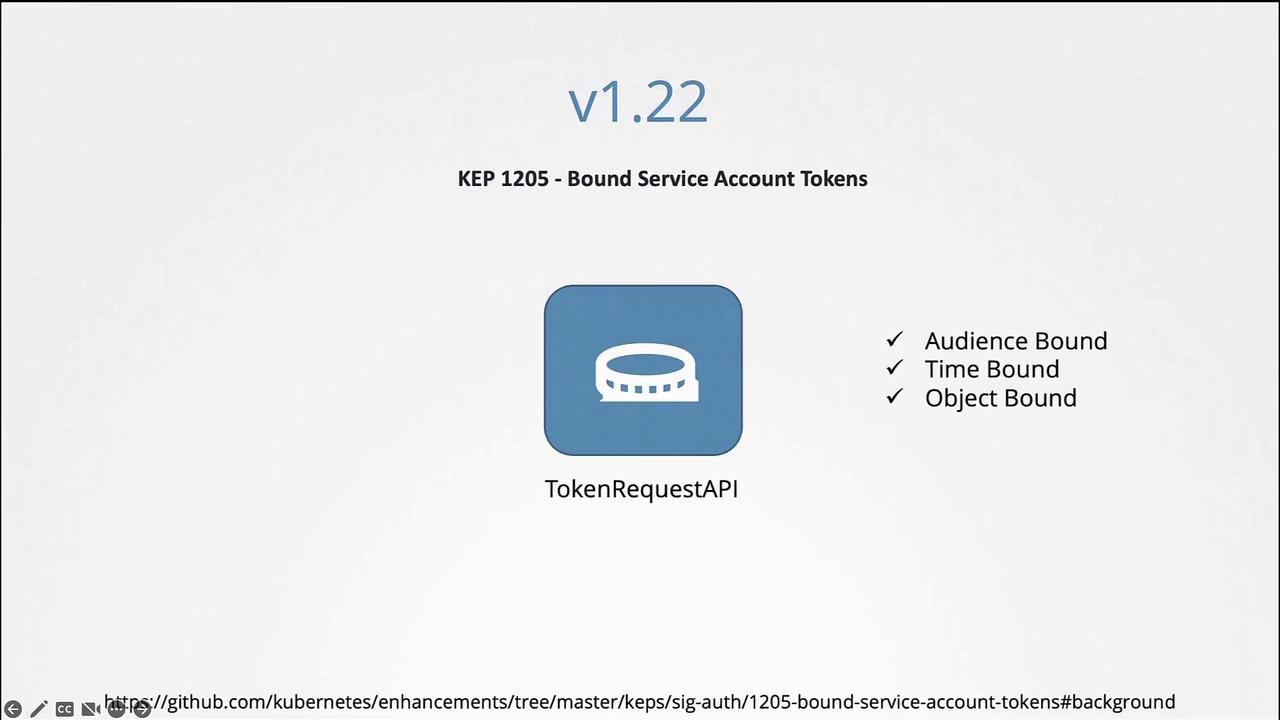

The image is about Kubernetes v1.22, featuring KEP 1205 for Bound Service Account Tokens, highlighting TokenRequestAPI with audience, time, and object-bound features.

To summarize the commands in Kubernetes 1.24:

kubectl create serviceaccount dashboard-sa
# Expected output:
kubectl create token dashboard-sa
# Expected output: <token string with expiry information>

Decoding this token (for example, on jwt.io) will reveal the expiry date in the payload.

If you still need non-expiring tokens via secret objects, you can create them manually:

apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: mysecretname
  annotations:
    kubernetes.io/service-account.name: dashboard-sa

Warning

Avoid using non-expiring tokens unless absolutely necessary. The Token Request API provides a more secure, time-bound alternative.

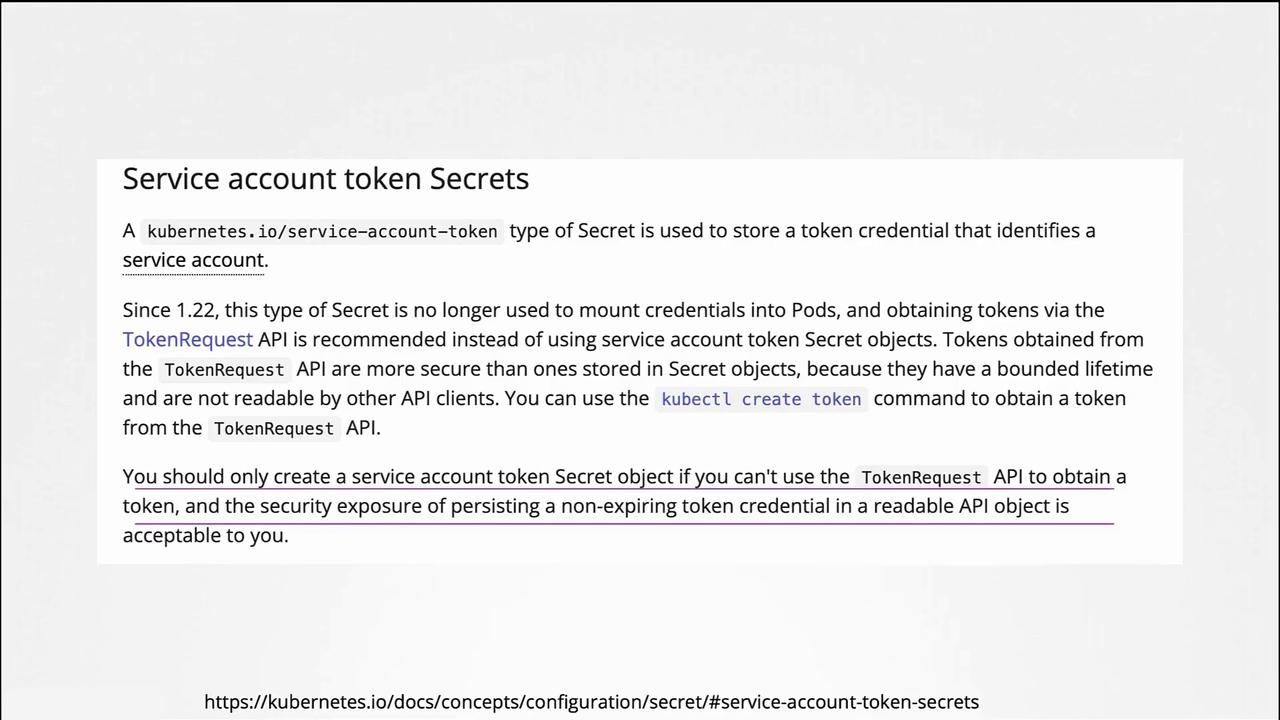

The image explains Kubernetes service account token secrets, recommending the TokenRequest API for secure token management since version 1.22.

This concludes our discussion on Kubernetes service accounts and the evolution of their token management. By understanding these concepts, you can better secure your cluster and manage authentication effectively.
