Demo Install Ansible

In this lesson, you will learn how to clone virtual machines, set up an Ansible controller and target machines, and test connectivity using Ansible. The process includes powering off the original VM, creating linked clones, renaming hosts, installing Ansible, and verifying communication between nodes.


1. Cloning the Virtual Machines

First, power off your virtual machine. Right-click on the VM (in this example, a "centos-template") and select Clone.

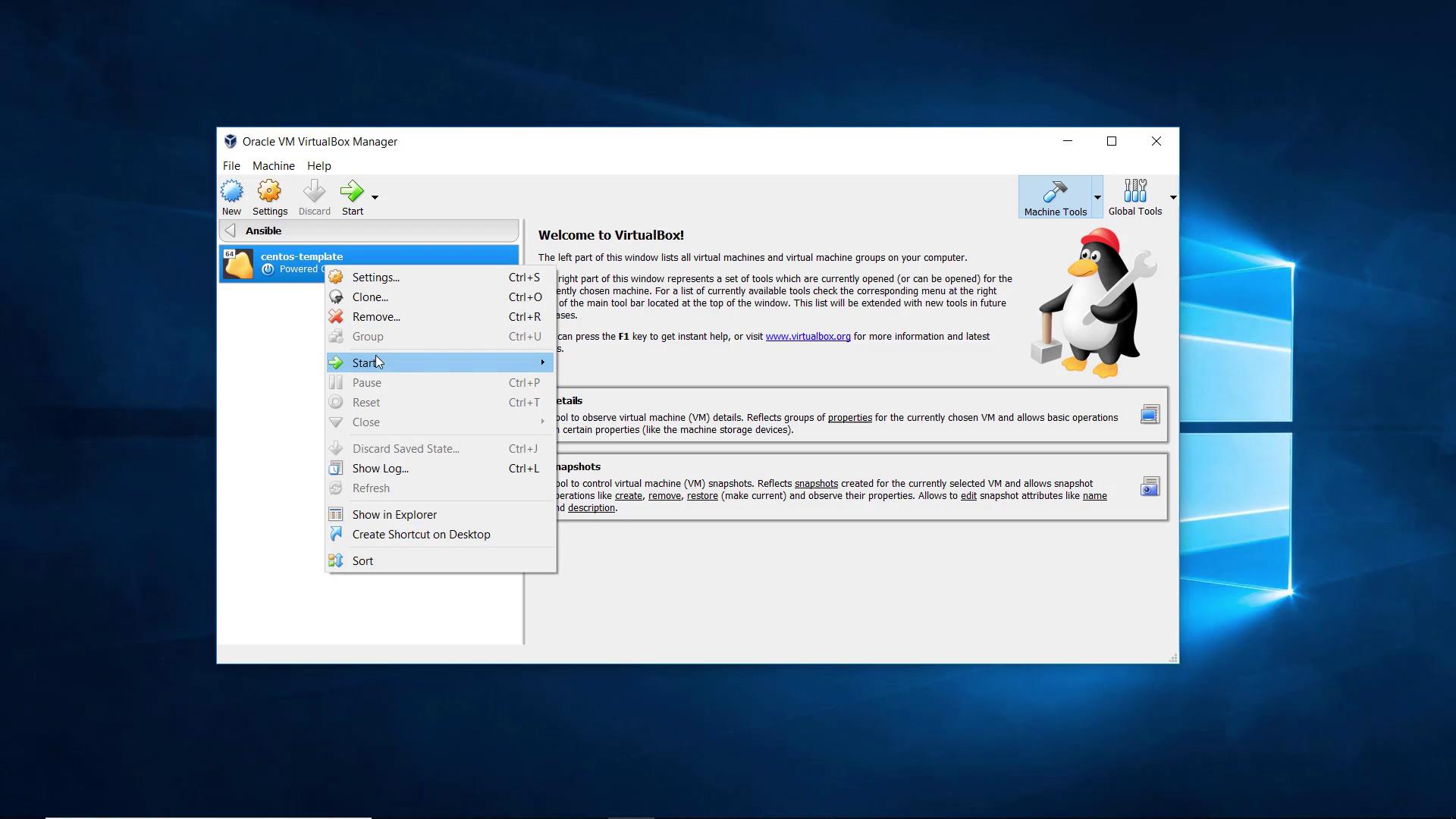

The image shows the Oracle VM VirtualBox Manager interface with a context menu open for a virtual machine named "centos-template," displaying options like Start, Settings, and Clone.

In the clone creation wizard, you will be prompted to provide a name for the new VM. Name the first clone Ansible controller. Ensure you check the reset MAC address option so that each virtual machine receives a unique MAC address.

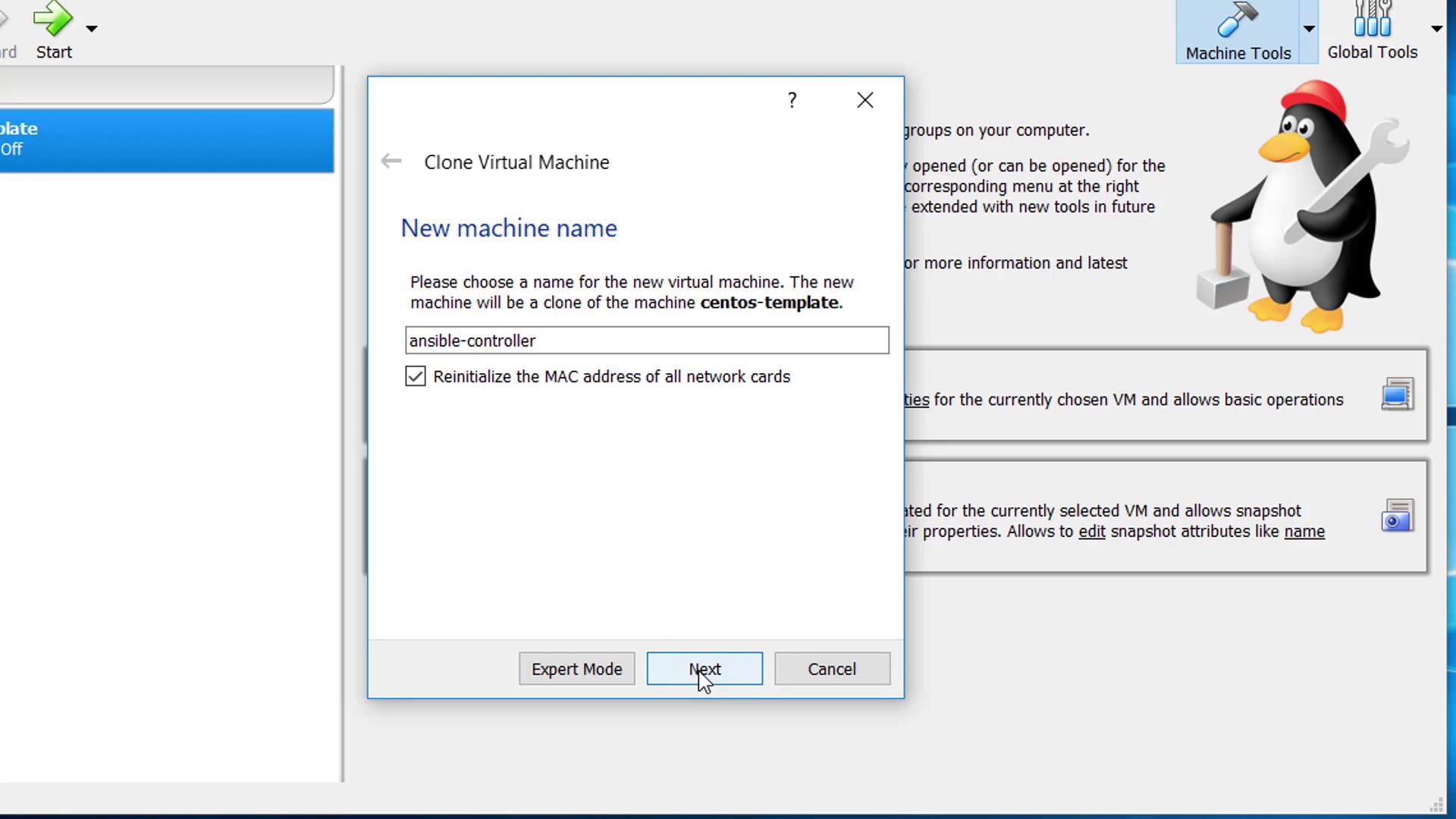

The image shows a virtual machine cloning interface, where a new machine named "ansible-controller" is being created from a "centos-template."

In the next step, select the linked clone option. A linked clone conserves disk space by referencing the original disk image instead of duplicating it entirely.

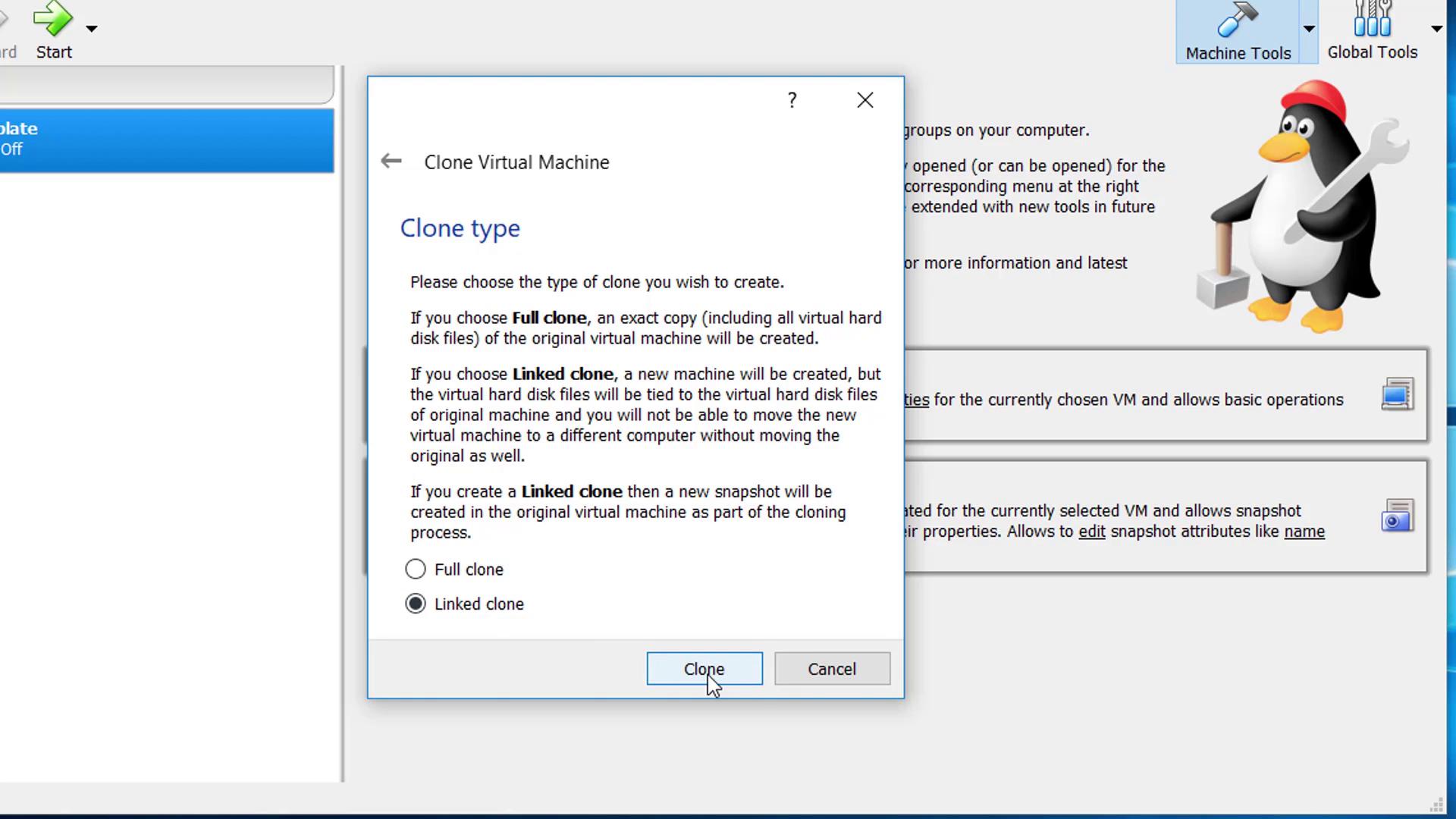

The image shows a virtual machine cloning dialog, offering options for "Full clone" or "Linked clone," with a penguin holding a hammer illustration.

Click Clone to create the Ansible controller. Repeat the same steps to clone another machine for the Ansible target, naming it Ansible-target1, checking the reset MAC address option, and opting for a linked clone.

After cloning, you will have three VMs:

  • A template (centos-template)
  • Ansible controller
  • Ansible-target1

Power on both the Ansible controller and the Ansible target.

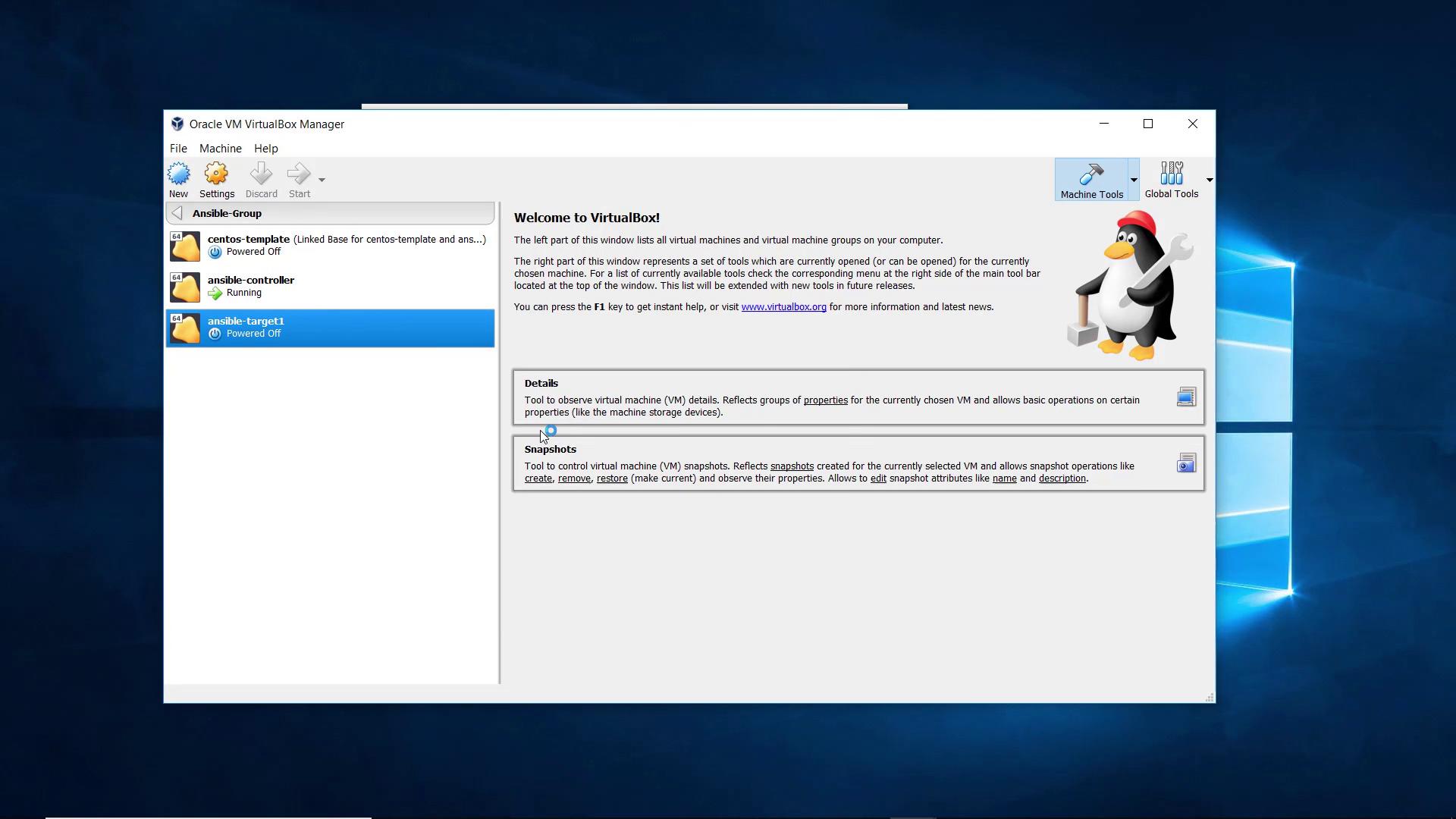

The image shows the Oracle VM VirtualBox Manager interface with virtual machines listed, including "centos-template," "ansible-controller," and "ansible-target1," with details and snapshot options.


2. Establishing SSH Sessions and Checking IP Addresses

Once the virtual machines are powered on, log into the operating system using the OSBox password. Open a terminal and run the following command to check the IP address:

osboxes@osboxes:~$ ifconfig
enp0s3: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.114  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::a1dc:152c:1a82:7211  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:6c:df:d0  txqueuelen 1000  (Ethernet)
        RX packets 2079 bytes 156295 (152.2 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 79 bytes 9467 (9.3 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1  (Local Loopback)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        inet6 52:54:00:ed:da:3f  txqueuelen 1000  (Ethernet)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

For easier management, establish an SSH session to the Ansible controller using its IP address (for example, 192.168.1.113) with the username osboxes. Name this session Ansible-controller.

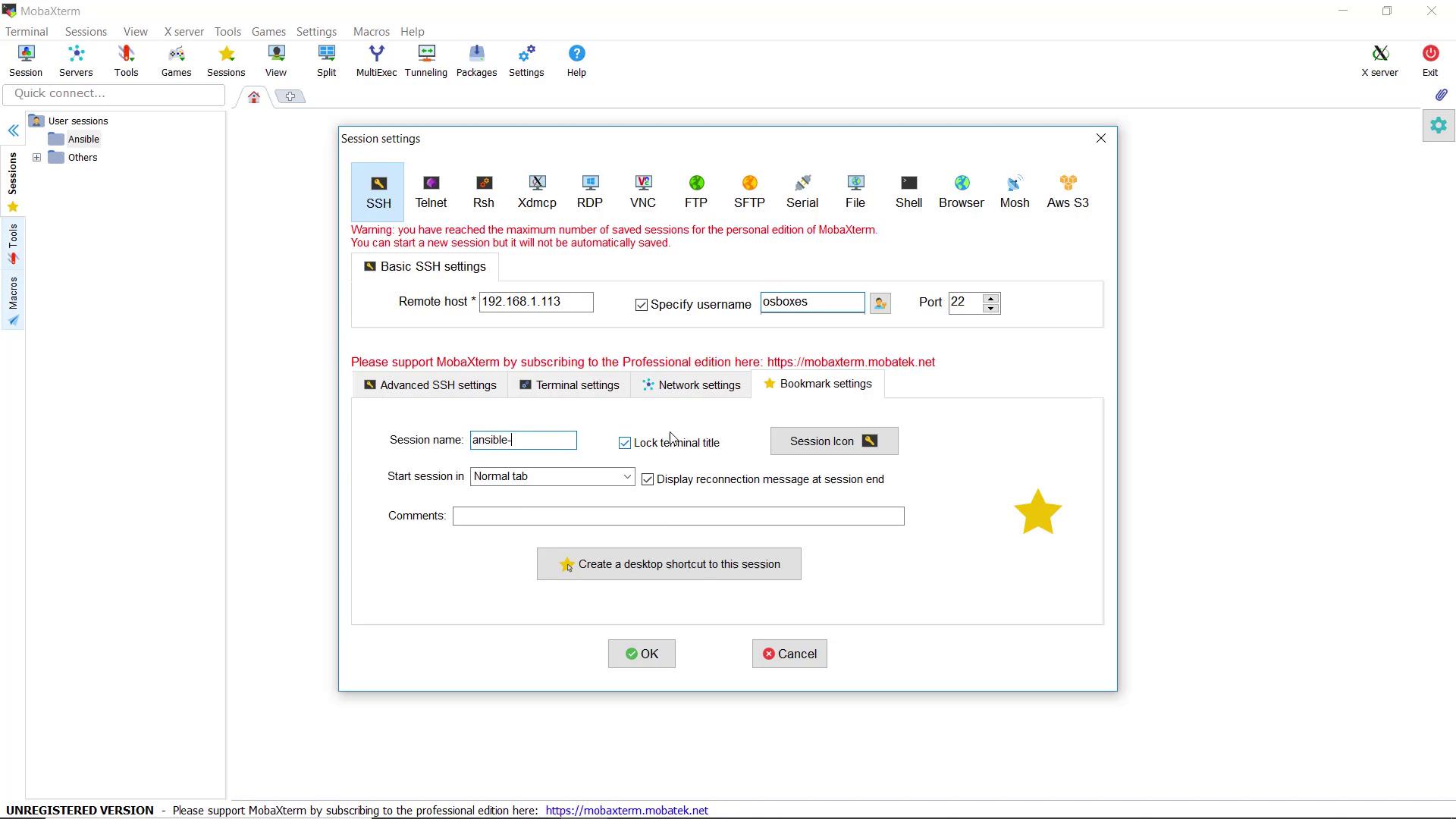

The image shows the MobaXterm application interface with session settings for SSH connection, including remote host IP, username, and session options.

Similarly, set up an SSH session for the Ansible target (e.g., at IP 192.168.1.114) and name it Ansible-target1. Upon logging in, you might see:

Last login: Sat May 26 04:13:56 2018
[osboxes@osboxes ~]$

3. Renaming the Hosts

By default, both the controller and target machines are named OSBoxes. Update the hostnames to clearly define their roles. For the controller, modify the /etc/hostname file by replacing “OSBoxes” with Ansible-controller:

[osboxes@osboxes ~]$ sudo vi /etc/hostname
[sudo] password for osboxes:
[osboxes@osboxes ~]$

Next, update the /etc/hosts file to reflect the new hostname. Replace the default entries:

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

with your desired hostname information while keeping the localhost entries intact.

The image shows a MobaXterm terminal window connected to "ansiblecontroller" at IP 127.0.0.1, with a command prompt ready for input.

After saving the changes, restart the system to apply the new hostname. Repeat these steps on the target machine (for example, renaming it to target) and verify the changes in your SSH sessions.

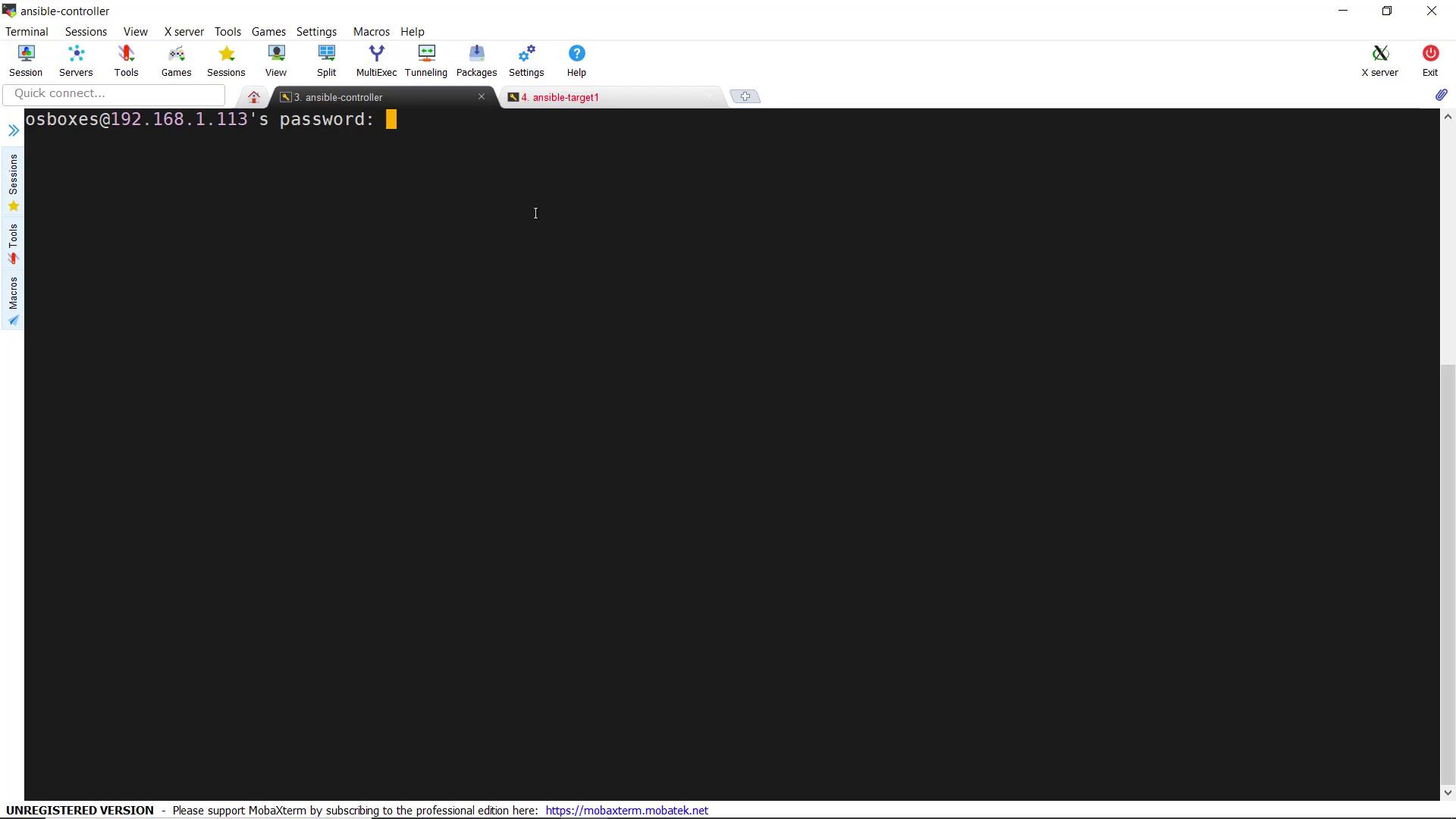

A terminal window in MobaXterm prompts for a password to access a remote server at IP 192.168.1.113.


4. Installing Ansible on the Controller

With the hostnames correctly set, install Ansible on the Ansible controller. Follow the official Ansible installation instructions for CentOS using yum. Execute the command in your terminal. During installation, you may be prompted to confirm the import of the GPG key and other related messages. A sample output is shown below:

Total
Retrieving key from file:/etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
Importing GPG key 0xFA480EB5:
Userid     : "CentOS-7 Key (CentOS 7 Official Signing Key) <[email protected]>"
Fingerprint: 6341 ab27 53d7 8a7c 7bb1 24c6 a8a7 f4a8 0eb5
Package    : centos-release-7-4.1708.el7.centos.x86_64 (@anaconda)
From       : /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
Is this ok [y/N]: y
Running transaction check
Transaction test succeeded
Running transaction
  Installing : python-paramiko-2.1.1.el7.noarch                     1/11
  Installing : python-httpd2-0.9.2-1.el7.noarch                      2/11
  Installing : python-markupsafe-0.11-10.el7.x86_64                  3/11
  Installing : python-babel-0.9.6-8.el7.noarch                        4/11
  Installing : python-jinja2-2.10-1.el7.noarch                        5/11
  Installing : python-pytz-2015.7-1.el7.noarch                        6/11
  Installing : python-passlib-1.6.5-2.el7.x86_64                      7/11
  Installing : sshpass-1.06-2.el7.x86_64                              8/11
  Installing : python2-jmespath-0.9.0-3.el7.noarch                    9/11
  Installing : ansible-2.4.2.0-2.el7.noarch                          10/11
  Verifying  : python-babel-0.9.6-8.el7.noarch                        1/11
  Verifying  : python-passlib-1.6.5-2.el7.x86_64                      2/11
  Verifying  : python-jinja2-2.10-1.el7.noarch                        3/11
  Verifying  : python-markupsafe-0.11-10.el7.x86_64                  4/11
  Verifying  : python-paramiko-2.1.1.el7.noarch                       5/11
  Verifying  : python-httpd2-0.9.2-1.el7.noarch                       6/11
  Verifying  : sshpass-1.06-2.el7.x86_64                              7/11
  Verifying  : python2-jmespath-0.9.0-3.el7.noarch                    8/11
  Verifying  : ansible-2.4.2.0-2.el7.noarch                            9/11
  Verifying  : python-pytz-2015.7-1.el7.noarch                       10/11
  Verifying  : python2-pyYAML-3.10-11.el7.x86_64                     11/11

Installed:
  python-paramiko.noarch 0:2.1.1-1.el7
  python-httpd2.noarch 0:0.9.2-1.el7
  python-markupsafe.x86_64 0:0.11-10.el7
  python-babel.noarch 0:0.9.6-8.el7
  python-jinja2.noarch 0:2.10-1.el7
  python-pytz.noarch 0:2015.7-1.el7
  python-passlib.x86_64 0:1.6.5-2.el7
  sshpass.x86_64 0:1.06-2.el7
  python2-jmespath.noarch 0:0.9.0-3.el7
  ansible.noarch 0:2.4.2.0-2.el7
  python2-pyYAML.x86_64 0:3.10-11.el7

After the installation completes, verify the Ansible version:

[osboxes@ansiblecontroller ~]$ ansible --version
ansible 2.4.2.0
  config file = /etc/ansible/ansible.cfg
  configured module search path = ['/home/osboxes/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/lib/python2.7/site-packages/ansible
  executable location = /usr/bin/ansible
  python version = 2.7.5 (default, Aug  4 2017, 00:39:18) [GCC 4.8.5 20150623 (Red Hat 4.8.5-16)]
[osboxes@ansiblecontroller ~]$

5. Testing Connectivity Between Controller and Target

First, manually verify SSH connectivity from the Ansible controller to the target machine. For example, SSH into the target server at 192.168.1.114:

[osboxes@ansiblecontroller ~]$ ssh 192.168.1.114
The authenticity of host '192.168.1.114 (192.168.1.114)' can't be established.
ECDSA key fingerprint is SHA256:7s4hRBL0E0qffgA/2J/p2QH0mJTY/qHInXJ802LE.
ECDSA key fingerprint is MD5:84:26:6d:a0:87:34:cf:17:f8:8f:1b:6b:7e:ba.
Are you sure you want to continue connecting (yes/no)?

Type yes, provide the password, and then exit.

Next, create a test project to use Ansible’s ping module. Inside the Ansible controller, create a folder named test-project and an inventory file for your target:

[osboxes@ansiblecontroller ~]$ mkdir test-project
[osboxes@ansiblecontroller ~]$ cd test-project/
[osboxes@ansiblecontroller test-project]$ cat > inventory.txt
target1 ansible_host=192.168.1.114 ansible_ssh_pass=osboxes.org

Verify the inventory file contents:

[osboxes@ansiblecontroller test-project]$ cat inventory.txt
target1 ansible_host=192.168.1.114 ansible_ssh_pass=osboxes.org

Now, run the Ansible ping test:

[osboxes@ansiblecontroller test-project]$ ansible target1 -m ping -i inventory.txt
target1 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

A successful ping (with output "pong") confirms that the controller can communicate with the target.


6. Adding a Second Target (Target Two)

To further validate the setup, create another clone from the template for a second target machine.

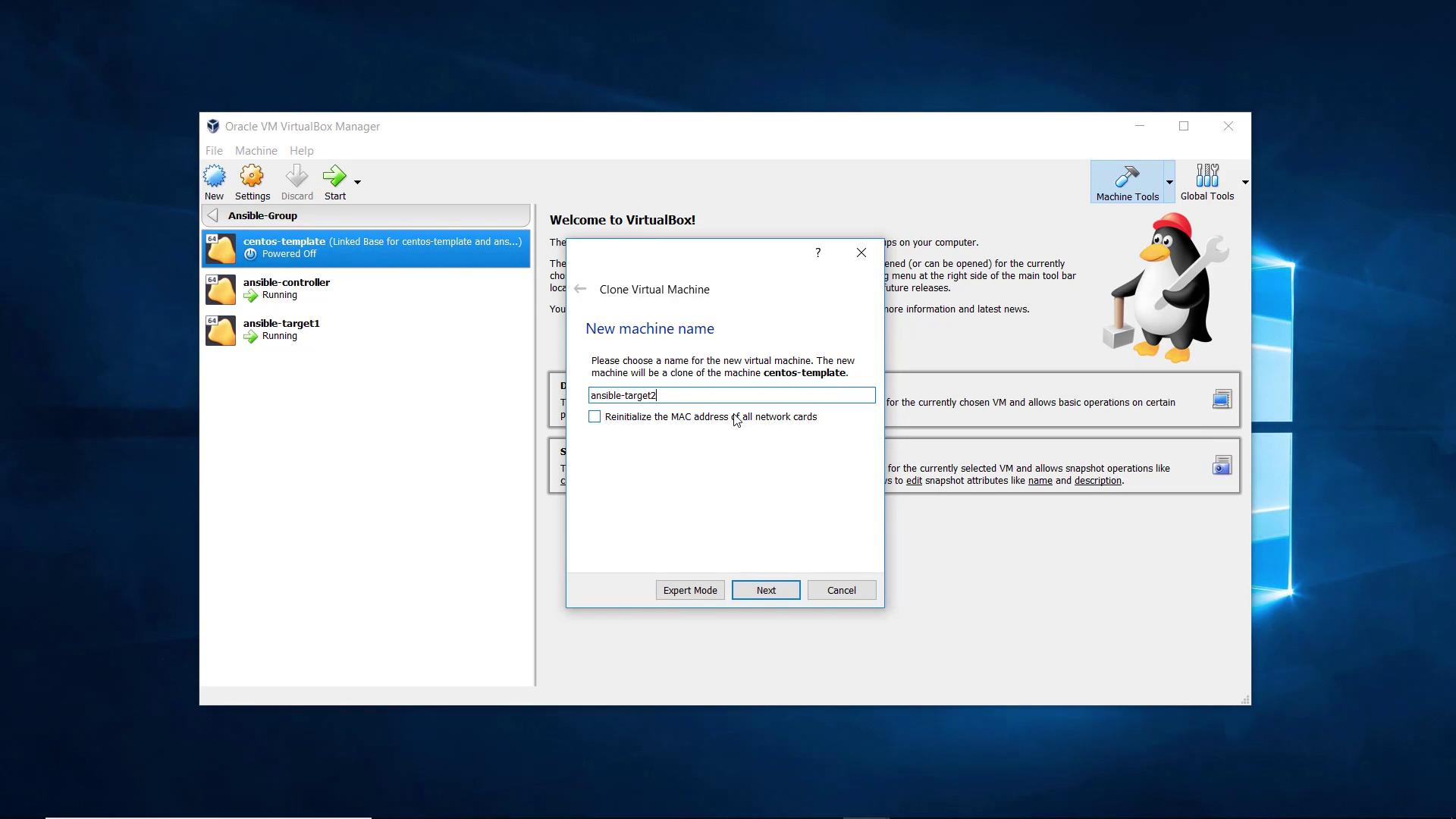

The image shows Oracle VM VirtualBox Manager with a dialog box for cloning a virtual machine named "centos-template" to "ansible-target2".

After cloning, power on the new target and check its IP address. For example, if the new IP is 192.168.1.115, your output from ifconfig might look like:

osboxes@osboxes:~$ ifconfig
enp03: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.115  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::f00d:27:ac:a1:6  prefixlen 64  scopeid 0x20<link>
        ether 08:00:27:ac:a1:06  txqueuelen 1000  (Ethernet)
        RX packets 165 bytes 13069 (12.7 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 72 bytes 8976 (8.7 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1  (Local Loopback)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        inet6 fe80::a00:27ff:fe64:a16  prefixlen 64  scopeid 0x20<link>
        ether 52:54:00:12:34:56  txqueuelen 1000  (Ethernet)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

Establish an SSH session to this new target (naming it Ansible-target2) and update its hostname similarly to the previous steps. Then, update your inventory file in the test-project directory to include both targets:

[osboxes@ansiblecontroller test-project]$ vi inventory.txt

Change the inventory file to include both targets:

target1 ansible_host=192.168.1.114 ansible_ssh_pass=osboxes.org
target2 ansible_host=192.168.1.115 ansible_ssh_pass=osboxes.org

Now, test connectivity with Ansible:

[osboxes@ansiblecontroller test-project]$ ansible target1 -m ping -i inventory.txt
target1 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

[osboxes@ansiblecontroller test-project]$ ansible target2 -m ping -i inventory.txt
target2 | FAILED! => {
    "msg": "Using a SSH password instead of a key is not possible because Host Key checking is enabled and sshpass does not support this. Please add this host's fingerprint to your known_hosts file to manage this host."
}

Tip

To resolve the error for target two, you can either manually SSH into target two to accept its fingerprint or disable host key checking in the Ansible configuration by setting host_key_checking = False in /etc/ansible/ansible.cfg. (Note: Disabling host key checking is not recommended for production environments.)

After resolving the host key issue, run the ping test again:

[osboxes@ansiblecontroller test-project]$ ansible target2 -m ping -i inventory.txt
target2 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

This confirms that the Ansible controller can now successfully communicate with both target machines.


7. Conclusion

Ansible has been successfully installed and configured on the Ansible controller, and communication has been established with both target machines. This lesson covered the entire process—from cloning VMs and renaming hosts to installing Ansible and performing connectivity tests using the ping module.

In production environments, it is highly recommended to use SSH key-based authentication instead of passwords for better security.

Thank you, and that concludes this demo.
