Create and Manage Hard Links

In this article, we'll explore how Linux manages hard links and why they are beneficial for efficient file management. Understanding hard links requires a basic knowledge of file systems and inodes.

File System Basics

Imagine a Linux system used by two distinct users, Aaron and Jane. Each user logs in with their own credentials, which provide personalized desktops, settings, and file directories.

Suppose Aaron takes a picture of the family dog and saves it as:

/home/aaron/pictures/family_dog.jpg

To simulate the file creation, we use the following command, which writes a description (acting as the file's content) into the file:

$ echo "Picture of Milo the dog" > Pictures/family_dog.jpg

When you inspect the file with the stat command, it shows details that include the inode number:

$ stat Pictures/family_dog.jpg
  File: Pictures/family_dog.jpg
  Size: 49              Blocks: 8          IO Block: 4096   regular file
Device: fd00h/64768d Inode: 52946177   Links: 1
Access: (0640/-rw-r-----)  Uid: ( 1000/ aaron)   Gid: ( 1005/ family)
Access: 2021-10-27 16:33:18.949749912 -0500
Modify: 2021-10-27 14:41:19.202778881 -0500
Change: 2021-10-27 16:33:18.851749919 -0500
Birth: 2021-10-26 13:37:17.980969655 -0500

In Linux, every file is represented by an inode—a data structure that stores metadata (like permissions, modification times, and data block locations). While the inode number is the technical reference, we use the file name (in this case, family_dog.jpg) to map to that inode. Notice the output indicates "Links: 1", meaning there is a single hard link (the original file name) associated with the inode.

Creating and Using Hard Links

Hard links allow you to reference the same data from different locations without duplicating file content. This is especially useful if you want to share data without unnecessarily consuming additional disk space.

Consider Jane, who has her own pictures directory at /home/jane/pictures. Instead of copying family_dog.jpg from Aaron's directory, which duplicates the file data, you can create a hard link. This avoids the overhead of duplicating thousands of high-resolution images.

While the typical copy command might be:

$ cp -r /home/aaron/Pictures/ /home/jane/Pictures/

you can create a hard link using the following syntax:

$ ln /home/aaron/Pictures/family_dog.jpg /home/jane/Pictures/family_dog.jpg

After creating the hard link, both file paths reference the same inode. Running the stat command now will show the file has two hard links:

$ stat Pictures/family_dog.jpg
File: Pictures/family_dog.jpg
Size: 49         Blocks: 8          IO Block: 4096   regular file
Device: fd00h/64768d Inode: 52946177  Links: 2
Access: (0640/-rw-r-----)  Uid: ( 1000/ aaron)   Gid: ( 1005/ family)
Access: 2021-10-27 16:33:18.949749912 -0500
Modify: 2021-10-27 14:41:19.20278881 -0500
Change: 2021-10-27 16:33:18.851749919 -0500
Birth: 2021-10-26 13:37:17.980969655 -0500

Deleting Hard Links

For example, if Aaron removes his file:

$ rm /home/aaron/Pictures/family_dog.jpg

Jane still has access via her hard link. However, if Jane then deletes the file as well:

$ rm /home/jane/Pictures/family_dog.jpg

the filesystem marks the data blocks as free, and from the user's perspective, the file is gone.

Managing Permissions with Hard Links

Since hard links share the same inode, any permission changes on one link are reflected on all links. To ensure both Aaron and Jane have correct access to the file, you might add them to the same group (for example, "family") and adjust the file's permissions accordingly:

$ usermod -a -G family aaron
$ usermod -a -G family jane
$ chmod 660 /home/aaron/Pictures/family_dog.jpg

These permission changes apply to all hard links referencing the inode, ensuring consistent access.

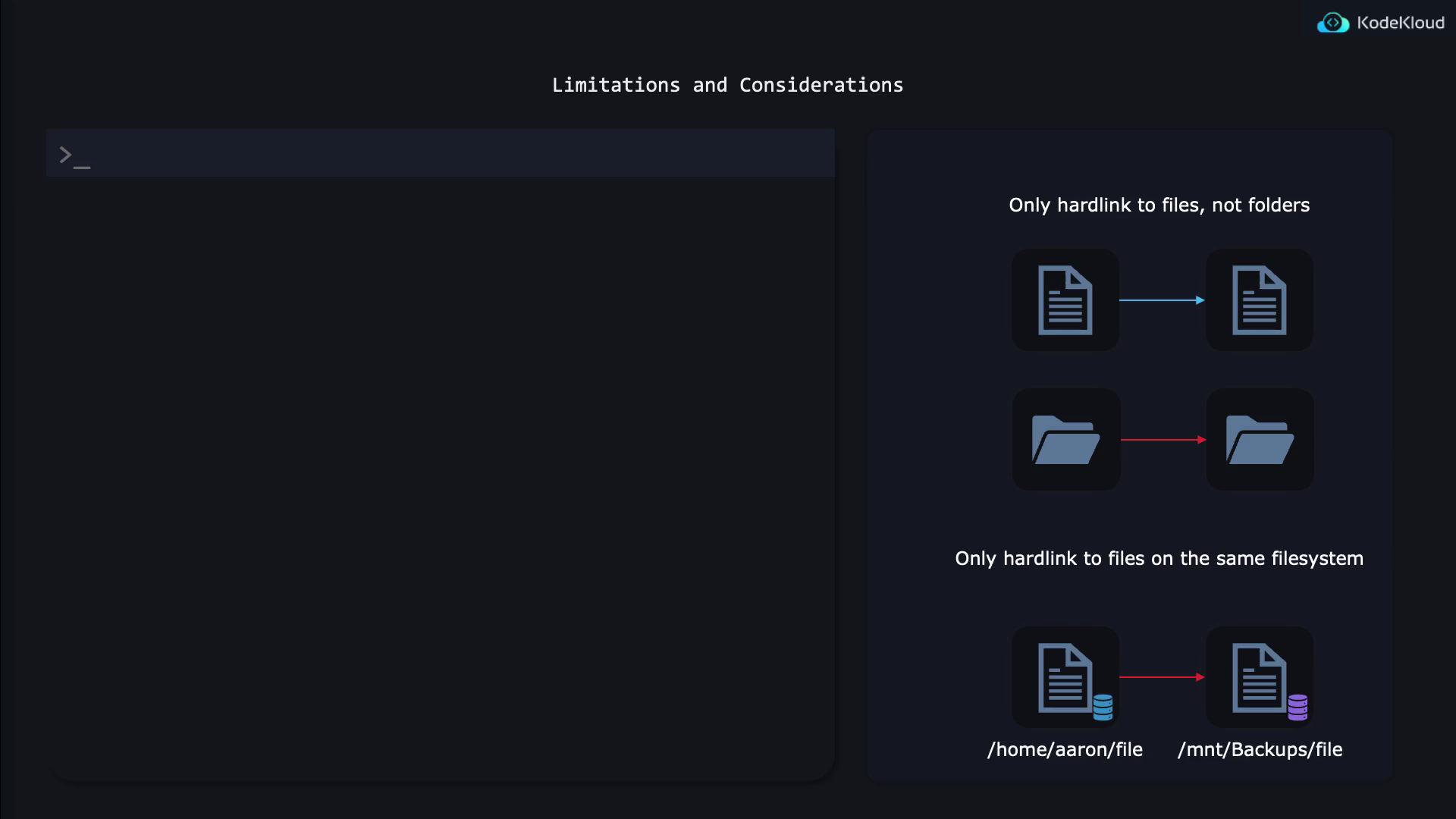

Limitations of Hard Links

There are a few limitations to be aware of when working with hard links:

1. Hard links can only be created for files, not directories.
2. Hard links must reside on the same file system; you cannot create a hard link from one file system to another.

Summary

Hard links allow multiple directory entries to reference the same file data without duplicating storage capacity. This method provides an efficient way to share files between users while ensuring that the data remains accessible until all links are removed.

For further reading on Linux file systems and inode management, consider visiting Linux File System Hierarchy.
