Monitor Storage Performance
In this lesson, we explore how to monitor the performance of storage devices—similar to how we track CPU and RAM usage. Just as a CPU consistently running at 100% can slow down your system, overusing storage devices can also degrade performance. While tools such as TOP and HTOP are common for monitoring CPU and RAM usage, various utilities exist specifically for storage devices. In this guide, we will review several simple tools to help you manage and diagnose storage performance issues.

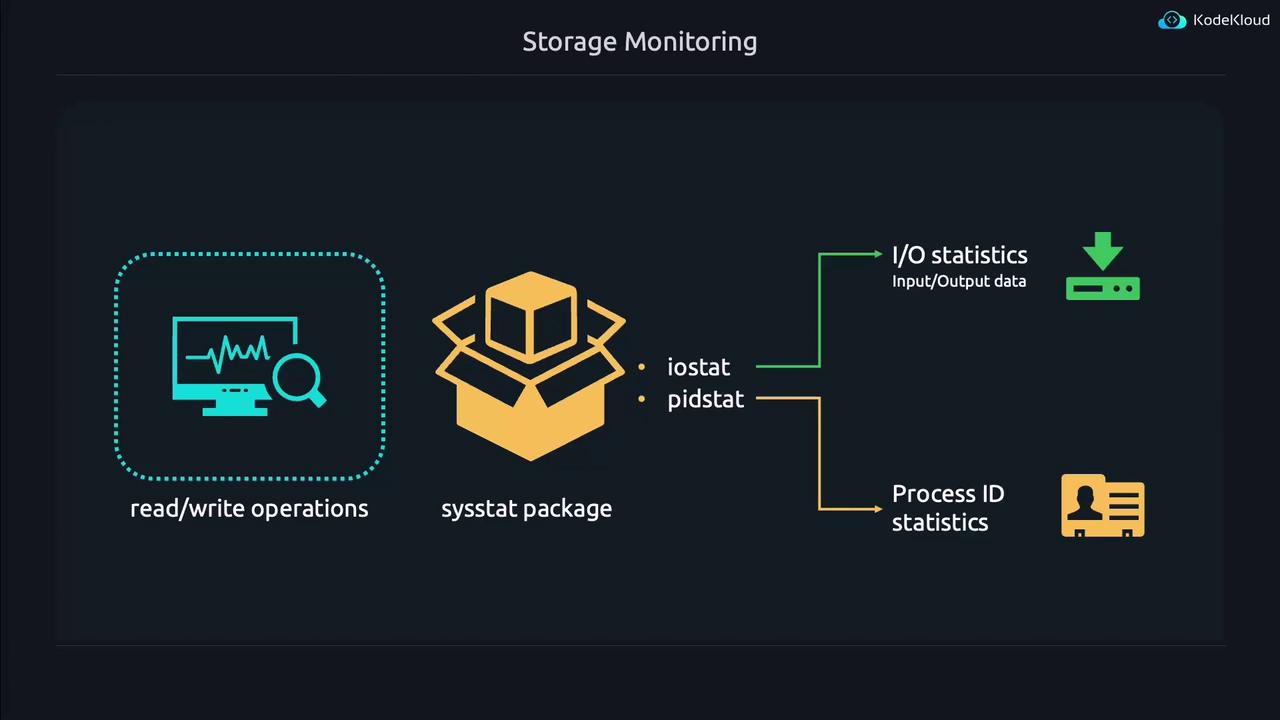

There is a package called sysstat that bundles many system monitoring utilities—including iostat and pidstat, which we will focus on. Install sysstat with:
sudo apt install sysstat
The installation process may display output similar to this:
$ sudo apt install sysstat
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Suggested packages:
isag
The following NEW packages will be installed:
sysstat
0 upgraded, 1 newly installed, 0 to remove and 330 not upgraded.
update-alternatives: using /usr/bin/sar.sysstat to provide /usr/bin/sar (sar)
in auto mode
Created symlink /etc/systemd/system/sysstat.service.wants/sysstat-collect.timer → /lib/systemd/system/sysstat-collect.timer
iostat, short for input/output statistics, monitors data being written to or read from a storage device. In contrast, pidstat shows statistics for process IDs (PID) interacting with the storage subsystem. Every process in Linux has a unique identifier, and pidstat helps you understand which processes create heavy I/O loads.
Below, we begin by running iostat without any arguments. This command produces a summary of storage device usage since boot:
$ iostat
Linux 5.15.0-76-generic (KodeKloud) 07/18/2023 _x86_64_ (2 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
0.47 0.00 1.09 4.17 0.03 94.24
Device tps kB_read/s kB_wrtn/s kB_dscd/s kB_read kB_wrtn
dm-0 197.23 517.01 600.42 0.00 256513 297900
loop0 0.43 4.32 0.00 0.00 2142 0
loop1 0.09 0.70 0.00 0.00 345 0
loop2 0.08 0.70 0.00 0.00 345 0
loop3 2.46 90.73 0.00 0.00 45097 0
vda 155.28 535.50 600.66 0.00 265686 298016

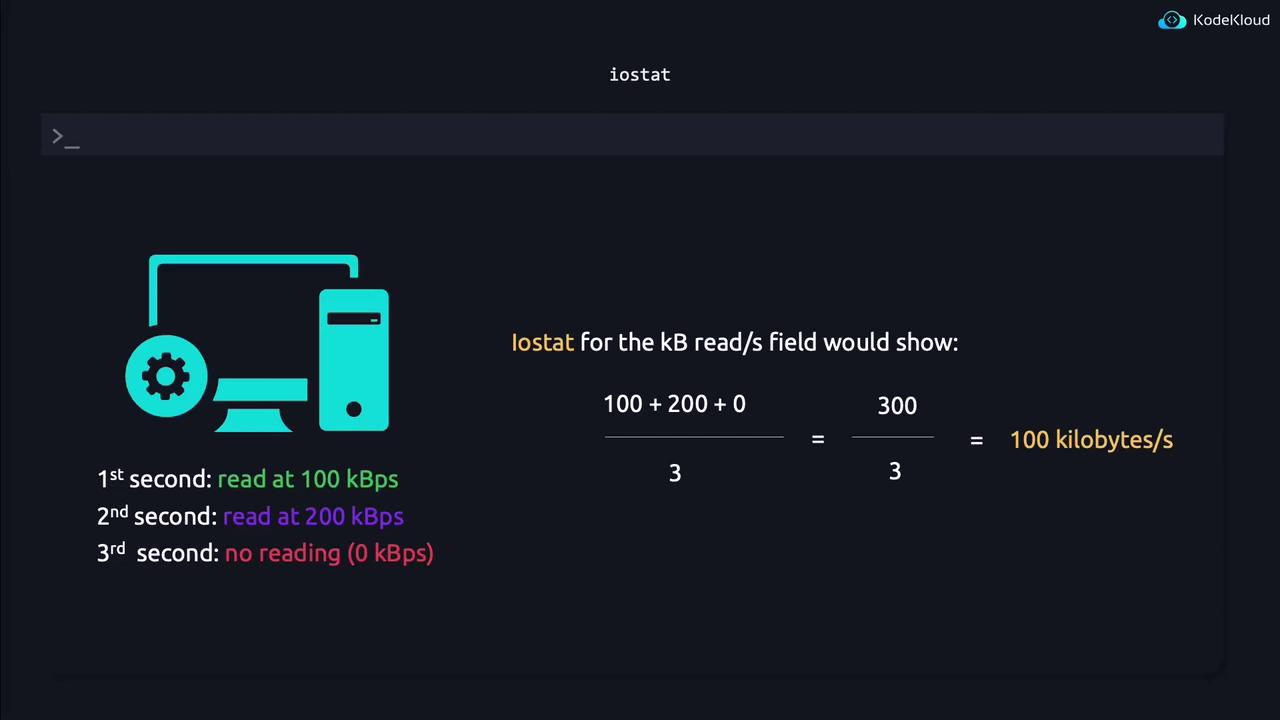

The above output represents historical usage measured since the system booted. Note that the displayed values represent averages over the system's uptime, which might not reflect the current instantaneous load. For example, if disk reads vary over consecutive seconds, the average value shown by iostat adjusts accordingly. Fields such as TPS (transfers per second), kB_read/s, and kB_wrtn/s are computed from these running averages, while kB_read and kB_wrtn show cumulative totals.
$ iostat
Linux 5.15.0-76-generic (KodeKloud) 07/18/2023 _x86_64_ (2 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
0.47 0.00 1.09 4.17 0.03 94.24
Device tps kB_read/s kB_wrn/s kB_dscd/s kB_read kB_wrn kB_dscd
dm-0 197.23 517.01 600.42 0.00 256513 297900 0
loop0 0.43 4.32 0.00 0.00 2142 0 0
loop1 0.09 0.70 0.00 0.00 345 0 0
loop2 0.08 0.70 0.00 0.00 345 0 0
loop3 2.46 90.73 0.00 0.00 45097 0 0
vda 155.28 535.50 600.66 0.00 265686 298016 0
In practical terms, a process that writes 1 kB repeatedly in rapid succession can cause high TPS values even if the individual write size is small. Conversely, operations involving large data transfers are more apparent when you review the cumulative values in kB_read and kB_wrtn.
For instance, consider the following iostat output from a different kernel version:
$ iostat
Linux 5.19.0-41-generic (user1) 07/18/2023 _x86_64_ (1 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
19.45 13.74 8.49 1.82 0.00 56.50
Device tps kB_read/s kB_wrn/s kB_dscd/s kB_read kB_wrn kB_dscd
dm-0 197.23 517.01 600.42 0.00 256513 297900 0
loop0 0.43 4.32 0.00 0.00 2142 0 0
loop1 0.09 0.70 0.00 0.00 345 0 0
loop2 0.08 0.70 0.00 0.00 345 0 0
loop3 2.46 90.73 0.00 0.00 45097 0 0
vda 155.28 535.50 600.66 0.00 265846 298016 0
Even a seemingly small write (such as 1 kB) may be reported as a larger block, particularly when larger transfers occur. A storage device can experience stress in two ways:
- When a process initiates frequent read/write operations (producing a high TPS).
- When large volumes of data are transferred during each operation (visible in the kB_read/kB_wrn fields).
For example, if a device capable of 2 GB/s is nearly saturated by one process, other processes may experience significant delays. Both iostat and pidstat are essential in identifying and diagnosing these issues.
Tip
For quick diagnostics, consider running iostat with a delay parameter (e.g., 1 second) to refresh the output and capture current activity.
Creating a Storage Load Scenario
To illustrate these concepts, let's create a process that continuously writes to a storage device. We use the dd command to write zeros from /dev/zero into a file. The parameters for the command mean the following:
- if=/dev/zero: Uses an infinite stream of zeros.
- of=DELETEME: Specifies the output file.
- bs=1: Sets the block size to 1 byte.
- count=1000000: Writes 1 byte a million times.
- oflag=dsync: Forces the write operation to bypass caching.
- &: Runs the command in the background.
dd if=/dev/zero of=DELETEME bs=1 count=1000000 oflag=dsync &
When executed, you might see output like:
jeremy@kodekloud:~$ dd if=/dev/zero of=DELETE_ME bs=1 count=1000000 oflag=dsync &
[1] 1411
jeremy@kodekloud:~$
This background process allows you to continue using the terminal. To monitor which process is writing to the device, run iostat with a delay parameter:
iostat 1
The output refreshes every second. A sample refreshed output may look like:
Linux 6.8.0-35-generic (kodekloud) 06/14/2024 _x86_64_ (10 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
0.04 0.00 0.21 0.44 0.00 99.31
Device tps kB_read/s kB_wrn/s kB_dscd/s kB_read kB_wrn kB_dscd
dm-0 43.60 150.48 132.01 0.00 263897 231512 0
nbd0 0.07 1.33 0.03 0.00 2341 60 0
sda 34.15 155.71 132.11 0.00 273070 231680 0
After a while, you may notice a sudden increase in TPS and kB_wrn/s for devices like dm-0 and sda. For example:
$ iostat
Linux 6.8.0-35-generic (user1) 07/18/2023 _x86_64_ (1 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
19.45 13.74 8.49 1.82 0.00 56.50
Device tps kB_read/s kB_wrn/s kB_dscd/s kB_read kB_wrn kB_dscd
dm-0 197.23 517.01 600.42 0.00 256513 297900 0
loop0 0.43 4.32 0.00 0.00 2142 0 0
loop1 0.09 0.70 0.00 0.00 345 0 0
loop2 0.08 0.70 0.00 0.00 345 0 0
loop3 2.46 90.73 0.00 0.00 45097 0 0
vda 155.28 535.50 600.66 0.00 265686 298016 0
This indicates that certain devices are under heavy write activity. However, iostat alone does not reveal which process is responsible.
Identifying the Process with pidstat
To determine the process causing high I/O, exit iostat by pressing Ctrl+C and use pidstat:
pidstat -d
The output will list I/O statistics for each process, similar to:
jeremy@kodekloud:~$ pidstat -d
Linux 6.8.0-35-generic (kodekloud) 06/14/2024 _x86_64_ (10 CPU)
07:09:35 AM UID PID kB_rd/s kB_wr/s kB_ccwr/s iodelay Command
07:09:35 AM 1000 1274 0.97 0.00 0.00 0 bash
07:09:35 AM 1000 1411 0.04 75.50 0.00 0 dd
07:09:35 AM 1000 1418 0.03 0.00 0.00 0 pidstat
jeremy@kodekloud:~$
In the above example, the dd process (PID 1411) is responsible for heavy write activity. To continuously monitor, run pidstat with an interval:
pidstat -d 1
Press Ctrl+C to exit. A sample repeated output might look like:
07:12:34 AM UID PID kB_rd/s kB_wr/s kB_ccwr/s iodelay Command
07:12:35 AM UID 1000 1411 0.00 665.35 0.00 0 dd
07:12:35 AM UID 1000 1411 0.00 696.00 0.00 0 dd
07:12:36 AM UID 1000 1411 0.00 605.94 0.00 0 dd
07:12:37 AM UID 1000 1411 0.00 636.00 0.00 0 dd
07:12:38 AM UID 1000 1411 0.00 673.27 0.00 0 dd
07:12:39 AM UID 1000 1411 0.00 620.00 0.00 0 dd
07:12:40 AM UID 1000 1411 0.00 613.86 0.00 0 dd
07:12:41 AM UID 1000 1411 0.00 617.48 0.00 0 dd
^C
Average: UID 1000 PID 1411 kB_rd/s kB_wr/s kB_ccwr/s iodelay Command
Key Observation
Both dm-0 and /dev/sda show significant write activity in the iostat output, and the dd process (PID 1411) is the main contributor based on pidstat.
Understanding Device Mapper (dm-0)
You may wonder what the dm-0 device represents. DM stands for Device Mapper, which is used by the Logical Volume Manager (LVM) to manage storage volumes. To find out what dm-0 maps to, use:
sudo dmsetup info /dev/dm-0
Example output:
jeremy@kodekloud:~$ sudo dmsetup info /dev/dm-0
[sudo] password for jeremy:
Name: ubuntu--vg-ubuntu--lv
State: ACTIVE
Read Ahead: 256
Tables present: LIVE
Open count: 1
Event number: 0
Major, minor: 252, 0
Number of targets: 1
UUID: LVM-gAAfKzeoxfbviBTqNm3tActzQkhA7naII91DKxXBFhbSArz3azVx1ioaauFTXxCR
Next, verify the relationship between dm-0 and the physical devices with lsblk:
sudo lsblk
Sample lsblk output:
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 45G 0 disk
├─sda1 8:1 0 1M 0 part /boot
├─sda2 8:2 0 2G 0 part
├─sda3 8:3 0 43G 0 part
└─ubuntu--vg-ubuntu--lv 252:0 0 21.5G 0 lvm /
sr0 11:0 1 1024M 0 rom
nbd0 43:0 16 0B 0 disk
… (other nbd devices)
From this output, dm-0 (shown as ubuntu--vg-ubuntu--lv) is a logical volume created on /dev/sda3, which explains why both dm-0 and sda are active.
Managing Processes with High I/O
To summarize our findings:
The dd process (PID 1411) is writing continuously to the storage device.
These writes are occurring on /dev/sda, accessed through the logical volume dm-0.
In a real-world scenario, a process such as a database (e.g., MariaDB) might be responsible, warranting further investigation into logs or even a restart using:
sudo systemctl restart mariadb
To view the full command of a given process, use:
ps -ef | grep 1411
If you decide to stop the process, execute:
kill 1411
Verify the process termination with:
ps 1411
Example output:
PID TTY STAT TIME COMMAND
1411 pts/0 D 0:28 dd if=/dev/zero of=DELETEME bs=1 count=1000000 oflag=dsync
If the process does not terminate gracefully, you may force termination with the SIGKILL signal:
kill -9 1411
Caution
Using SIGKILL (kill -9) stops a process immediately without allowing it to perform any cleanup. Use this option only as a last resort.
Additional Command-Line Options
Here are a few useful options for both iostat and pidstat:
iostat Options:
- Use
-dto display only device utilization (omitting CPU statistics). - Use
-hfor human-readable output, where large numbers are automatically scaled (e.g., kilobytes, megabytes, gigabytes).
Examples:
jeremy@kodekloud:~$ iostat -d
Linux 6.8.0-35-generic (kodekloud) 06/14/2024 _x86_64_ (10 CPU)
Device tps kB_read/s kB_wrn/s kB_dscd/s kB_read kB_wrn kB_dscd
dm-0 219.55 109.38 697.28 0.00 264297 1684820 0
nbd0 0.05 1.0 0.02 0.00 2341 60 0
sda 175.08 113.18 697.34 0.00 273470 1684984 0
jeremy@kodekloud:~$ iostat -h
Linux 6.8.0-35-generic (kodekloud) 06/14/2024 _x86_64_ (10 CPU)
avg-cpu: %user %nice %system %iowait %steal %idle
0.0% 0.0% 0.4% 2.3% 0.0% 97.2%
tps kB_read/s kB_wrn/s kB_dscd kB_read kB_wrn Device
217.84 108.5k 691.8k 0.0k 258.1M 1.6G dm-0
0.05 1.0k 0.0k 0.0k 2.3M 60.0k nbd0
173.72 112.3k 691.9k 0.0k 267.1M 1.6G sda
pidstat Options:
- Use
--humanto display I/O statistics in a human-readable format.
Example:
pidstat -d --human
Sample output:
Linux 6.8.0-35-generic (kodekloud) 06/14/2024 _x86_64_ (10 CPU)
07:19:18 AM UID PID kB_rd/s kB_wr/s kB_ccwr/s iodelay Command
07:19:18 AM 1000 1274 955.5B 166.7k 0.0B 0 bash
Monitoring Disk Partitions with iostat
By default, iostat displays statistics for whole devices (e.g., /dev/sda). To view statistics for every partition, use:
iostat -p ALL
Or, to focus on partitions for a specific device like sda:
iostat -p sda
For more detailed options, always refer to the manual pages:
man iostat
man pidstat
Conclusion
This lesson demonstrated the techniques to monitor storage performance, diagnose device stress, and identify processes causing heavy I/O activity using tools like iostat and pidstat. By combining these tools with commands such as dd, dmsetup, and lsblk, you can efficiently troubleshoot and resolve storage-related performance issues.
Now that you have learned these valuable monitoring techniques, let's move on to our next lesson!
