Use Remote Filesystems NFS

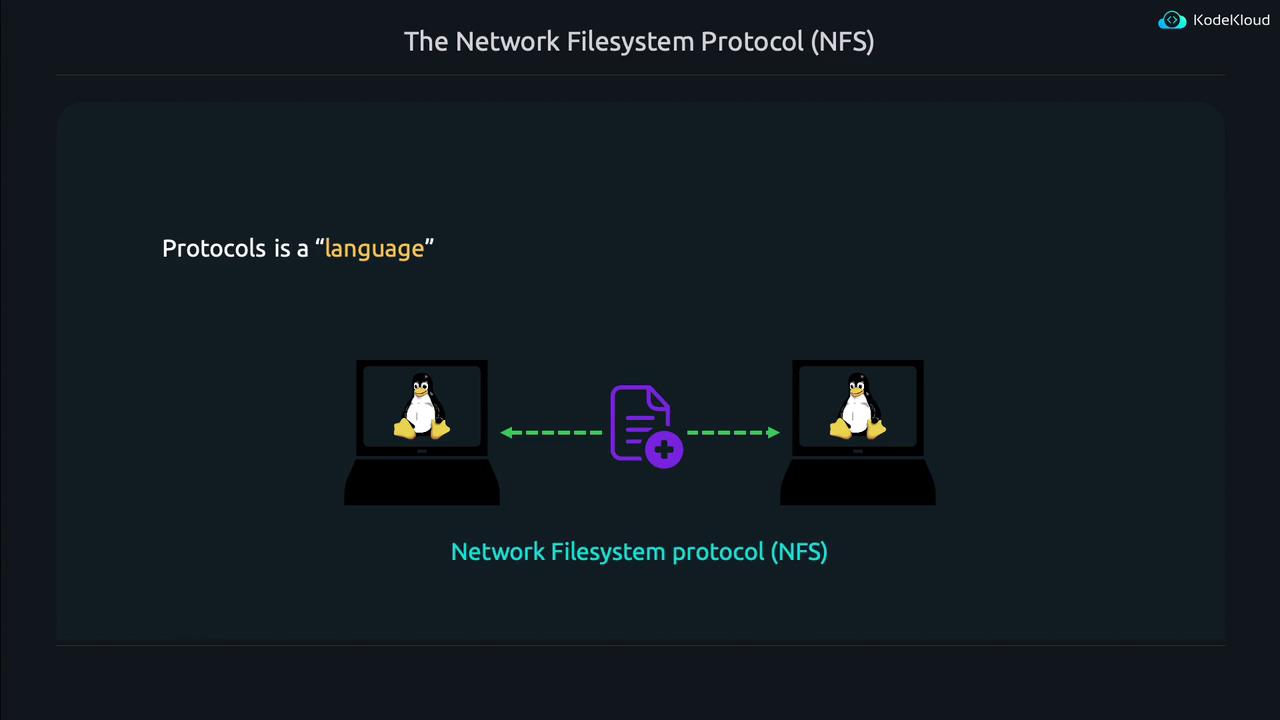

In previous lessons, we explored working with local file systems and local block storage devices—data stored on the same system where you are logged in. In this lesson, we focus on using remote file systems by leveraging the Network File System (NFS) protocol, a popular method for sharing data between Linux computers.

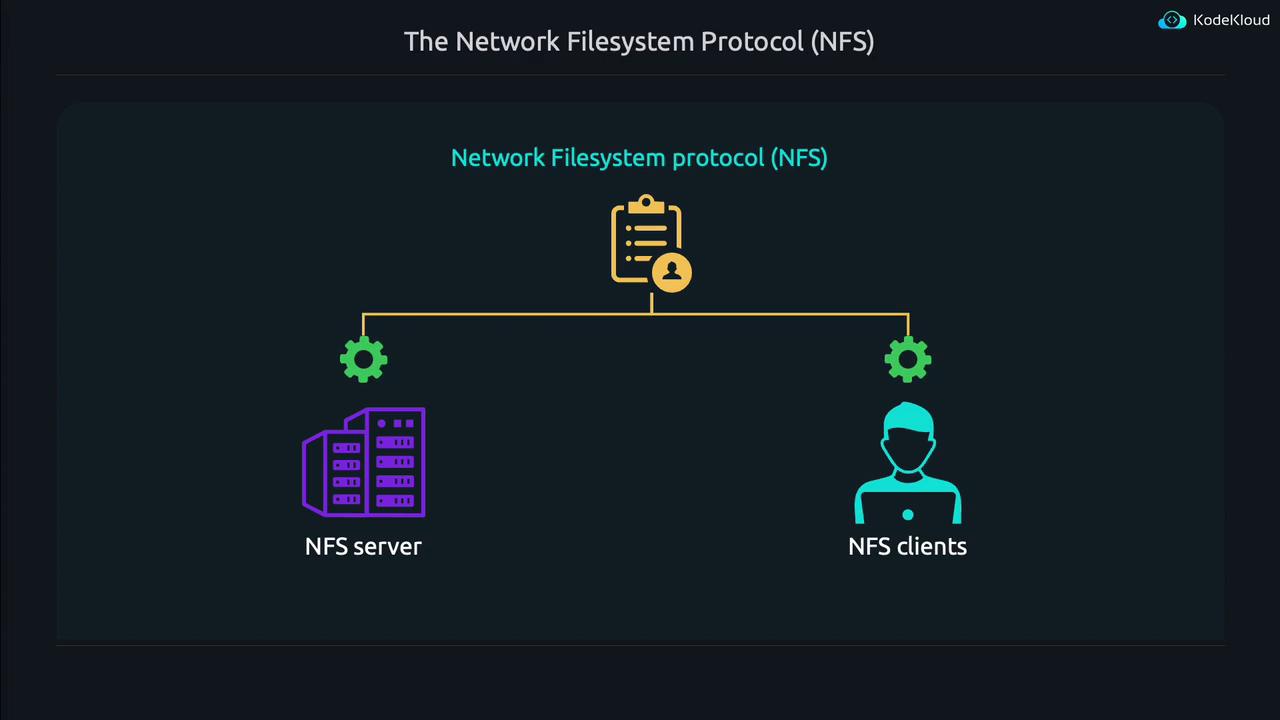

NFS operates based on a two-step process:

1. Configuring an NFS server to share a file system with remote machines.
2. Setting up an NFS client to mount the remote file system.

Configuring the NFS Server

Begin by setting up the NFS server—the system that shares data with clients.

Step 1: Install the NFS Server Package

Install the necessary package using the following command:

sudo apt install nfs-kernel-server

Step 2: Define File System Shares

Specify which directories to share by editing the /etc/exports file. Open the file with your preferred text editor:

sudo vim /etc/exports

Inside this file, you will see commented examples that illustrate the basic syntax. The general format for an export declaration is:

1. The directory to be shared (e.g., /nfs/disk1/backups or /srv/homes).
2. One or more allowed NFS clients (specified as hostnames, fully qualified domain names, or IP addresses).
3. Optionally, a range of IP addresses can be allowed using CIDR notation (e.g., 10.0.16.0/24).
4. Export options enclosed in parentheses, such as (rw,sync,no_subtree_check) for read/write access or (ro,sync,no_subtree_check) for read-only access.

Here’s an example configuration in /etc/exports:

# Example export configuration:
"/nfs/disk1/backups"  hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
# You can replace 'hostname1' with an IP like "10.0.0.9", or use a CIDR range like "10.0.16.0/24"

Understanding Export Options

• rw: Permits both read and write operations.
• ro: Restricts the share to read-only access.
• sync: Ensures data is written to the storage device before confirming the operation.
• async: Allows asynchronous writes, which can boost performance but might risk data loss in sudden reboots.
• no_subtree_check: Disables subtree checking, which avoids potential issues when files are moved or renamed.
• no_root_squash: By default, NFS remaps client root users to a lesser privileged user (nobody). This option lets the client's root user retain root privileges on the remote share.

For additional details and options, refer to the manual page:

man exports

Adding an Export Example

To share the /etc directory with a computer having IP address 127.0.0.1 (read-only), add the following line to /etc/exports:

/etc 127.0.0.1(ro,sync,no_subtree_check)

After modifying the file, re-export the directories to update the NFS server's configuration:

sudo exportfs -r

The -r flag forces the server to refresh its list of shared directories. To confirm the current exports and their settings, run:

sudo exportfs -v

/etc *.example.com(ro,sync,no_subtree_check)

Configuring the NFS Client

Configuring the client side is straightforward. First, install the necessary NFS utilities:

sudo apt install nfs-common

Mounting an NFS Share

Assuming an NFS server is sharing the /etc directory, you can mount it using:

sudo mount IP_or_hostname_of_server:/path/to/remote/directory /path/to/local/directory

For example, to mount the /etc directory from an NFS server at 127.0.0.1 to your local /mnt directory, run:

sudo mount 127.0.0.1:/etc /mnt

Similarly, if using a hostname such as server1, the command becomes:

sudo mount server1:/etc /mnt

To unmount the NFS share later, execute:

sudo umount /mnt

Auto-Mounting at Boot

To mount the NFS share automatically during system boot, edit the /etc/fstab file:

sudo vim /etc/fstab

Then add a line similar to the following:

127.0.0.1:/etc /mnt nfs defaults 0 0

This entry includes:

• Source: 127.0.0.1:/etc
• Mount Point: /mnt
• File System Type: nfs
• Mount Options: defaults (modifiable based on requirements)
• Dump and Pass Fields: Both set to 0 for a network-mounted file system

An example snippet from your /etc/fstab might look like:

# /etc/fstab: static file system information.
#
# <file system>                    <mount point>    <type>    <options>         <dump>  <pass>
/       ext4    defaults        0       1
/dev/disk/by-uuid/ec83bbc6-458e-490c-9188-2d5cc97a0e20 /boot ext4 defaults 0 1
127.0.0.1:/etc                     /mnt            nfs       defaults          0       0

Summary

This lesson covered the essential steps for setting up an NFS server and configuring NFS clients to mount remote file systems. You learned how to:

• Install and configure the NFS server package.
• Define shared directories using the /etc/exports file and understand key export options.
• Verify and manage the shared directories with exportfs.
• Install NFS utilities on the client side, mount and unmount the NFS share, and configure automatic mounting using the /etc/fstab file.

With this knowledge, you can efficiently share file systems between Linux systems using NFS.

Let's move on to the next lesson.
