Configure update management

Keeping your systems updated is essential for security and optimal performance in today's dynamic digital landscape. For organizations utilizing infrastructure-as-a-service, it’s important to remember that under the shared responsibility model, updating and patching the operating system is the customer's responsibility. Azure Update Management offers a streamlined solution to ensure your Windows and Linux servers always have the latest patches installed.

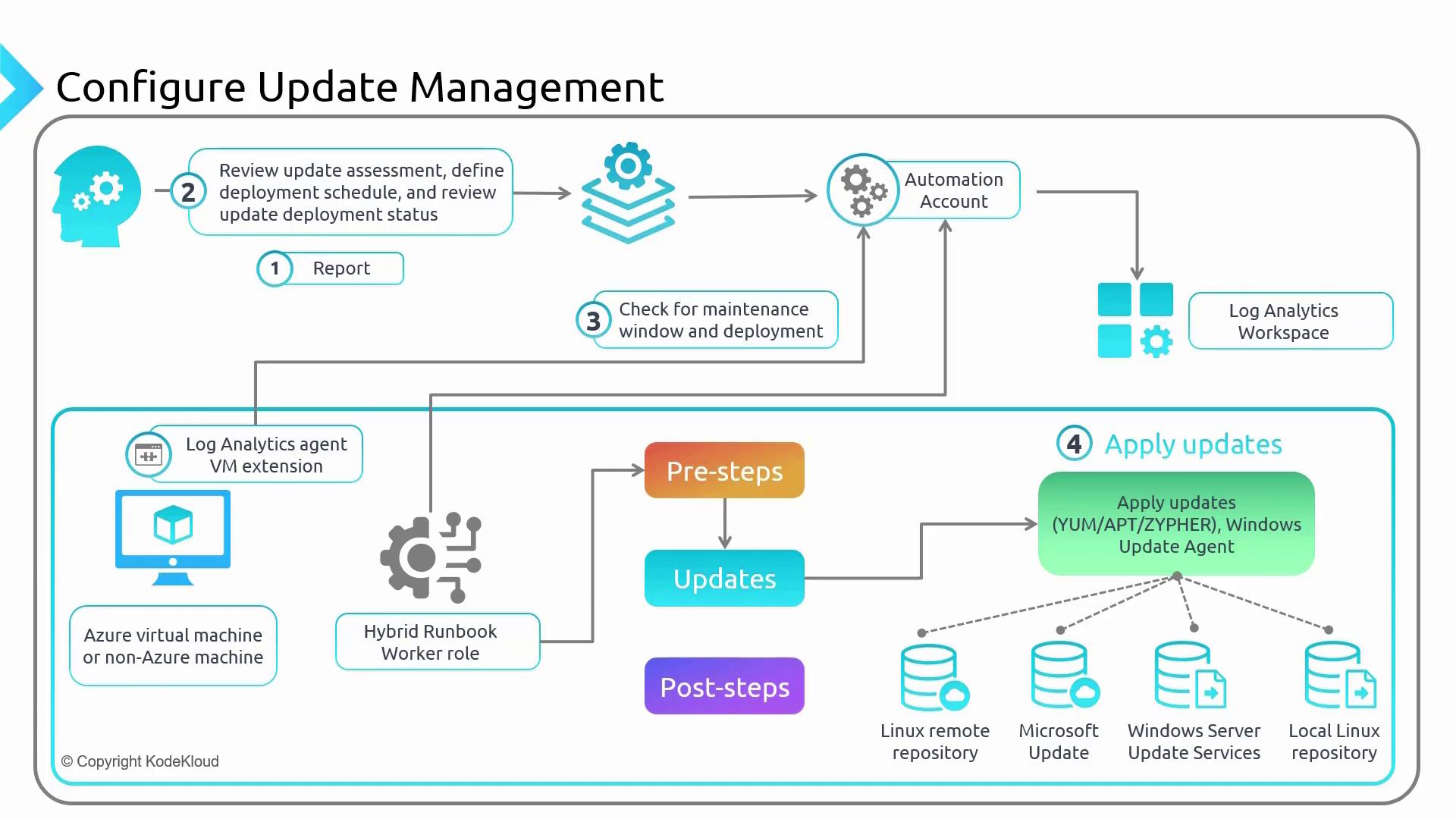

Azure Update Management integrates with Azure Monitor logs to systematically store data related to update assessments and the results of update deployments. This data is collected from machines hosted within Azure as well as on-premises or in other clouds. To enable this data collection, an Automation Account is linked to a Log Analytics Workspace, and each machine runs an agent called the Log Analytics Agent.

The update management process begins when the agent generates a report by collecting update assessments from each machine. As an administrator, you review these assessments, define the deployment schedule, and monitor the update deployment status. When you initiate a deployment, the system checks for any scheduled maintenance windows before applying the updates, and the collected data is then sent to the Log Analytics Workspace.

Using a Hybrid Runbook Worker role linked with the Automation Account, updates are pushed from various sources such as Linux repositories, Microsoft Update, Windows Server Update Service (WSUS), or another local repository. Once the update process is complete, detailed status reports are provided to the administrator.

Workflow Overview

• An agent is deployed on each machine to collect update information.
• A maintenance window is scheduled.
• Updates are either automatically installed or manually deployed based on your configuration.

For production environments, you might prefer to manually review updates and schedule deployments within a defined maintenance window instead of relying solely on automatic installations.

Additionally, Azure Arc can be used to onboard on-premises or non-Azure machines (for example, those hosted in AWS or GCP) so they appear as native Azure VMs. This allows you to manage update deployments across diverse environments with ease.

Setting Up Update Management in the Azure Portal

1. Navigate to Update Management (now rebranded as Update Manager) in the Azure portal.

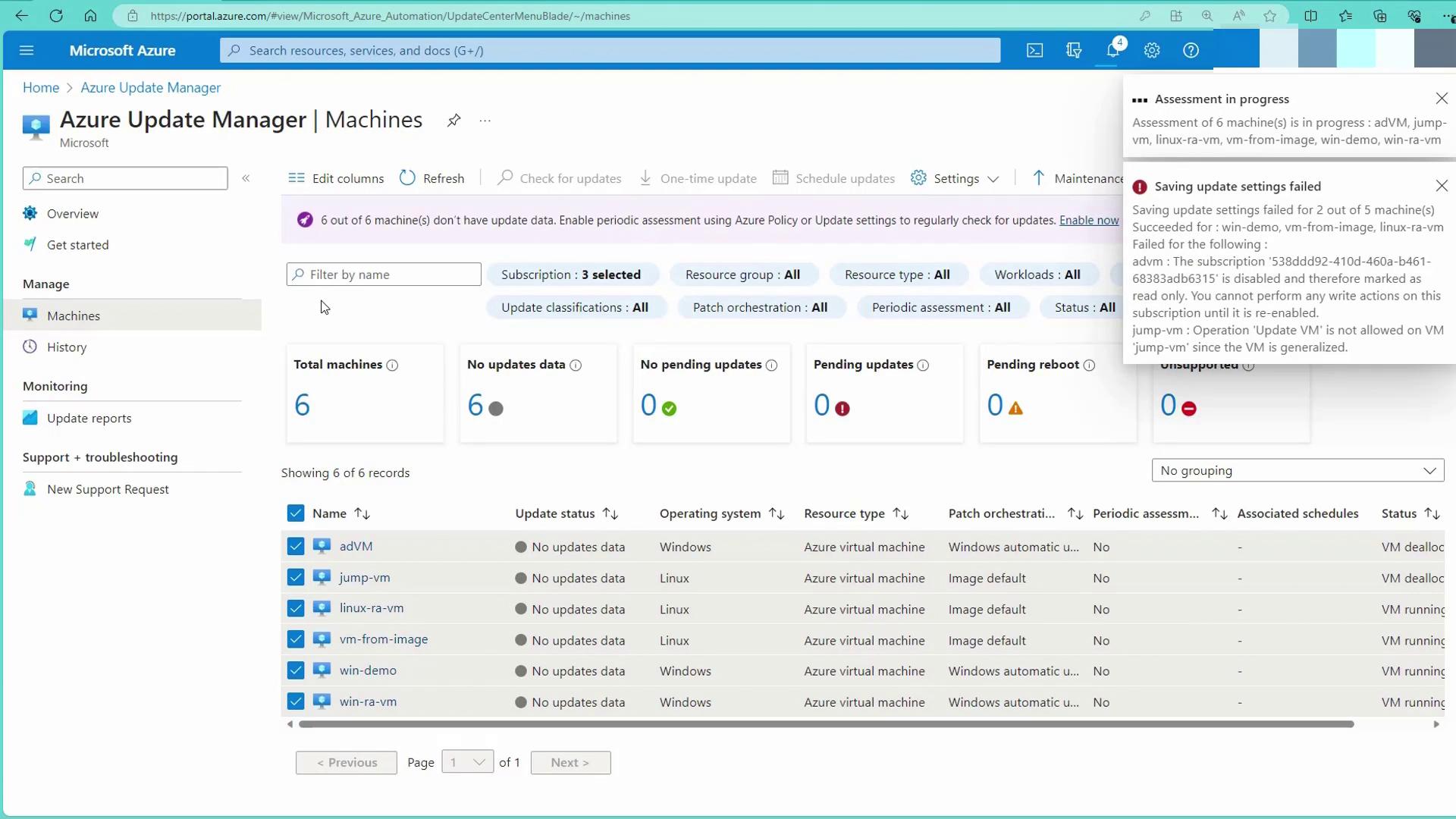

2. Click on the Machines tab to view all your managed devices. In this example, six machines are available, with some configured to use Windows Automatic Update.
3. Select the desired machines and proceed to Update Settings. Here, you can choose a customer-managed schedule, allowing you to define what updates should be installed and when.

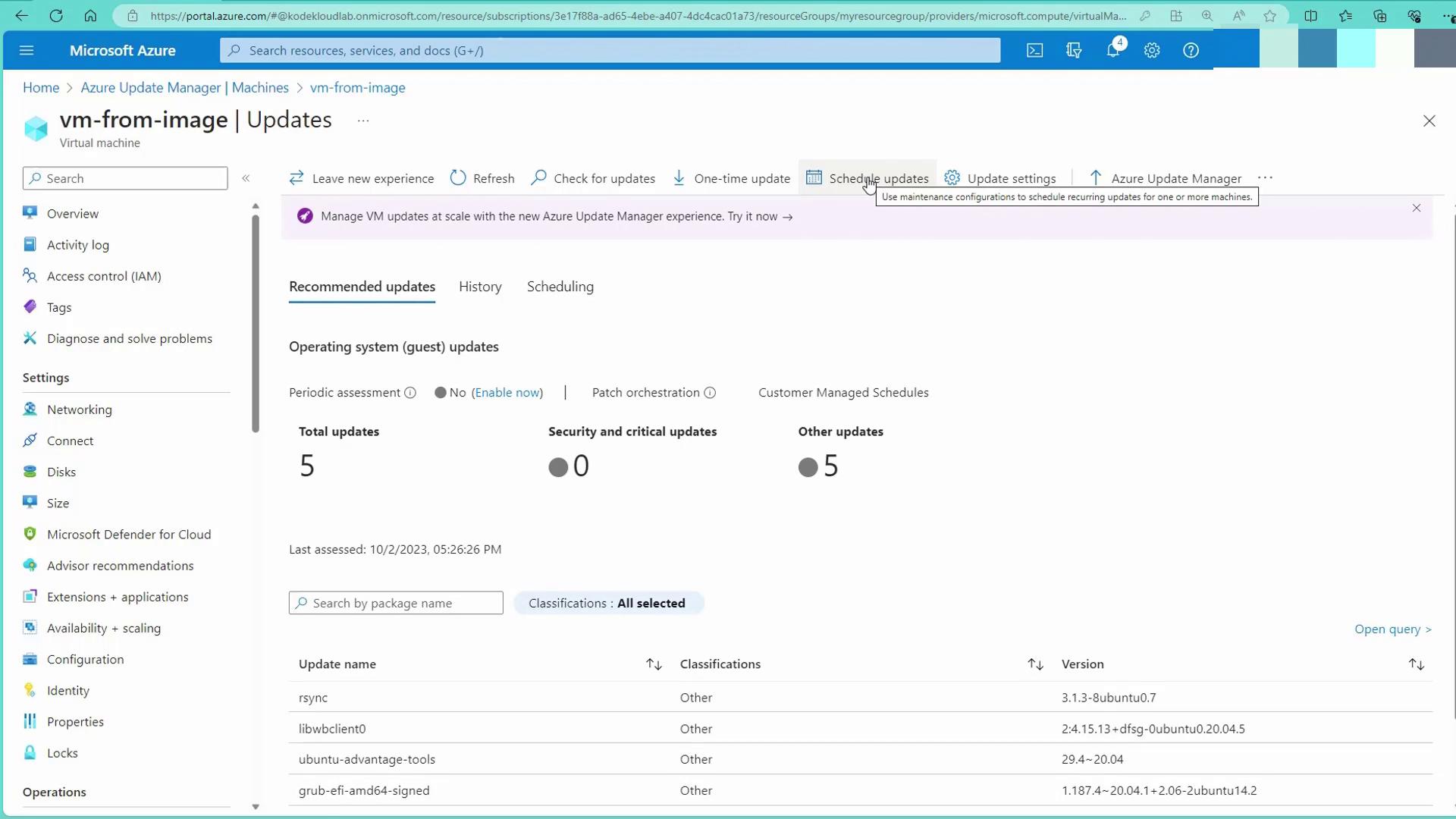

4. Click on "Check for updates" or "Assess now" to perform an update assessment.

If you encounter an error message for a generalized VM, it is because a generalized VM is not eligible for update assessments, resulting in such errors. Once the agent is deployed, it gathers and sends update information to the update repository, enabling the assessment of available updates. After the assessment is complete, you can review details like pending updates, required reboots, and unsupported configurations. The update status for each VM will be reflected accordingly.

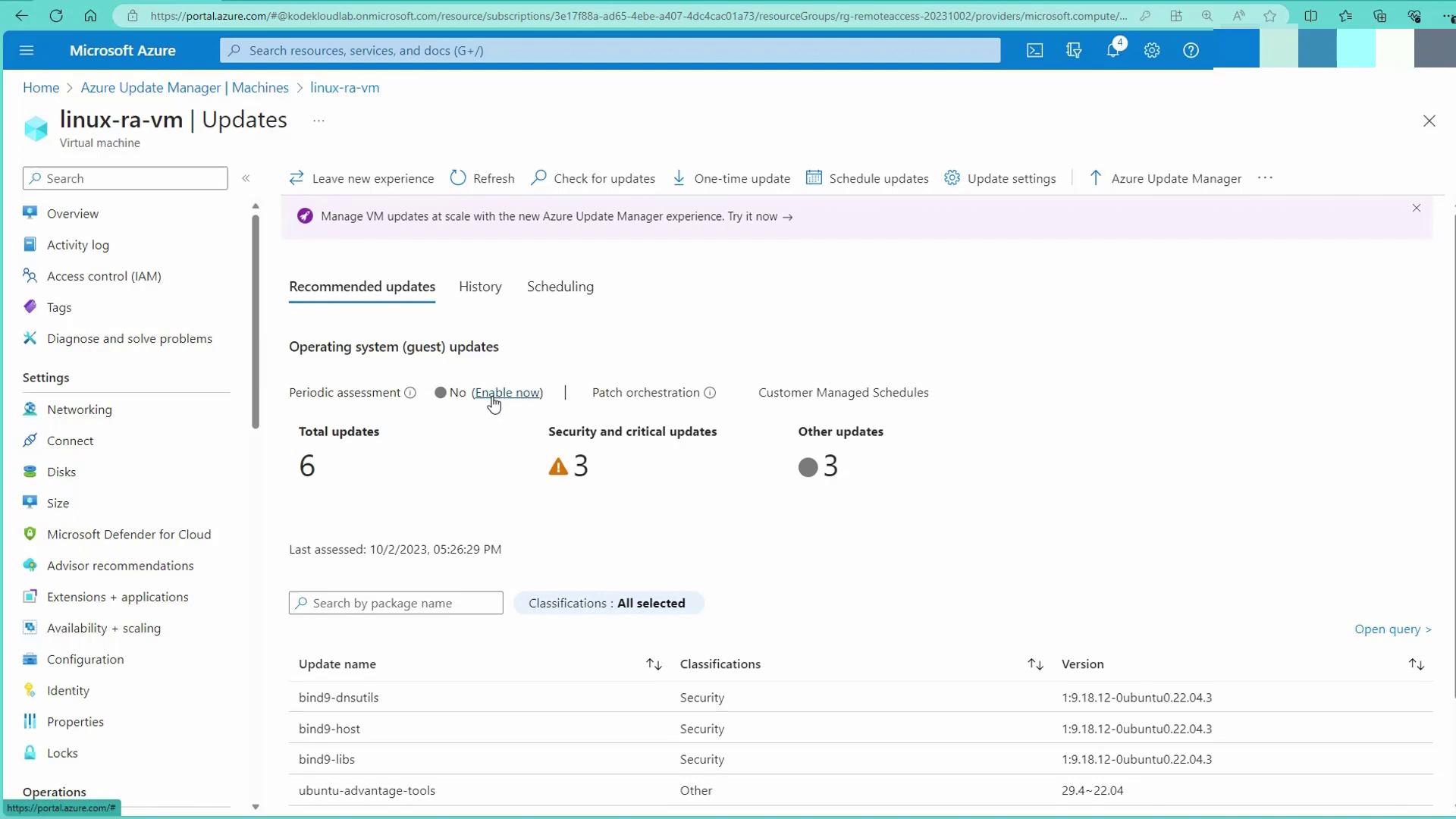

For instance, selecting a specific Linux machine reveals its update details. One machine may show six pending updates, while others may display five, three, or even a single pending update.

After a manual assessment, you have the option to schedule future update installations. This provides flexibility to create a one-time update deployment or to schedule periodic updates via a maintenance configuration.

By enabling periodic assessments, the system automatically checks for new updates and alerts you when a patch or reboot is required. This ensures that your systems remain secure and updated without constant manual intervention, though manual review remains available for production environments.

This lesson provided an overview of how Azure Update Management works and how to set it up to efficiently update your machines. An important next step is to explore the deployment of disk encryption for further securing your infrastructure.
