APPENDIX A Demo Gitlab Setup

Welcome to this comprehensive guide on setting up a local GitLab instance on your laptop. In this article, you'll learn how to deploy a CentOS-based virtual machine using Oracle VirtualBox, configure a static IP address, and install GitLab through Docker. This step-by-step guide is perfect for developers looking to create a local development environment.

Deploying the CentOS Virtual Machine

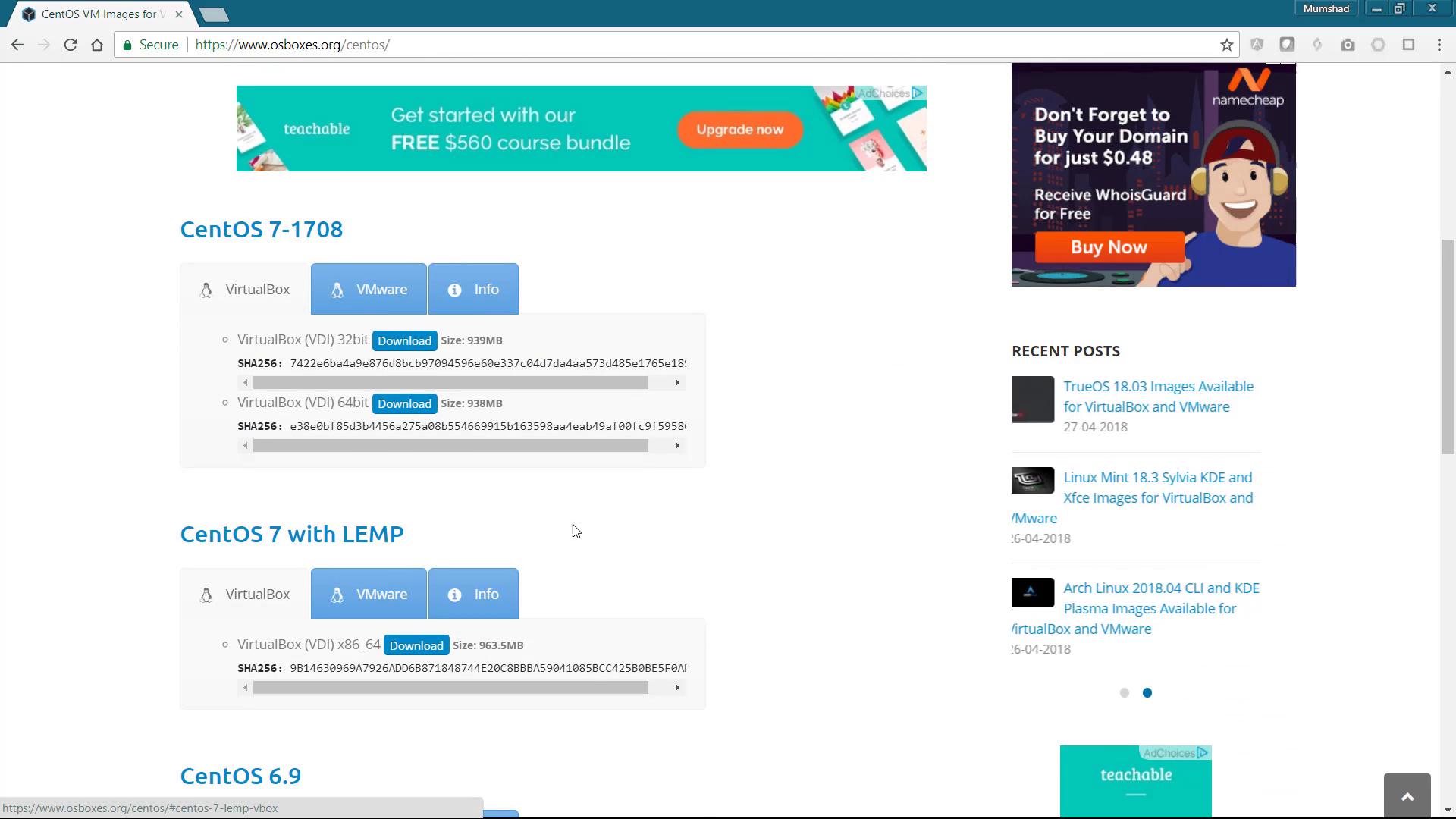

Begin by downloading the CentOS VirtualBox image from osboxes.org. Browse the list of available operating systems and select the 64-bit CentOS VirtualBox image. After downloading the VDI file, extract it to a folder on your computer.

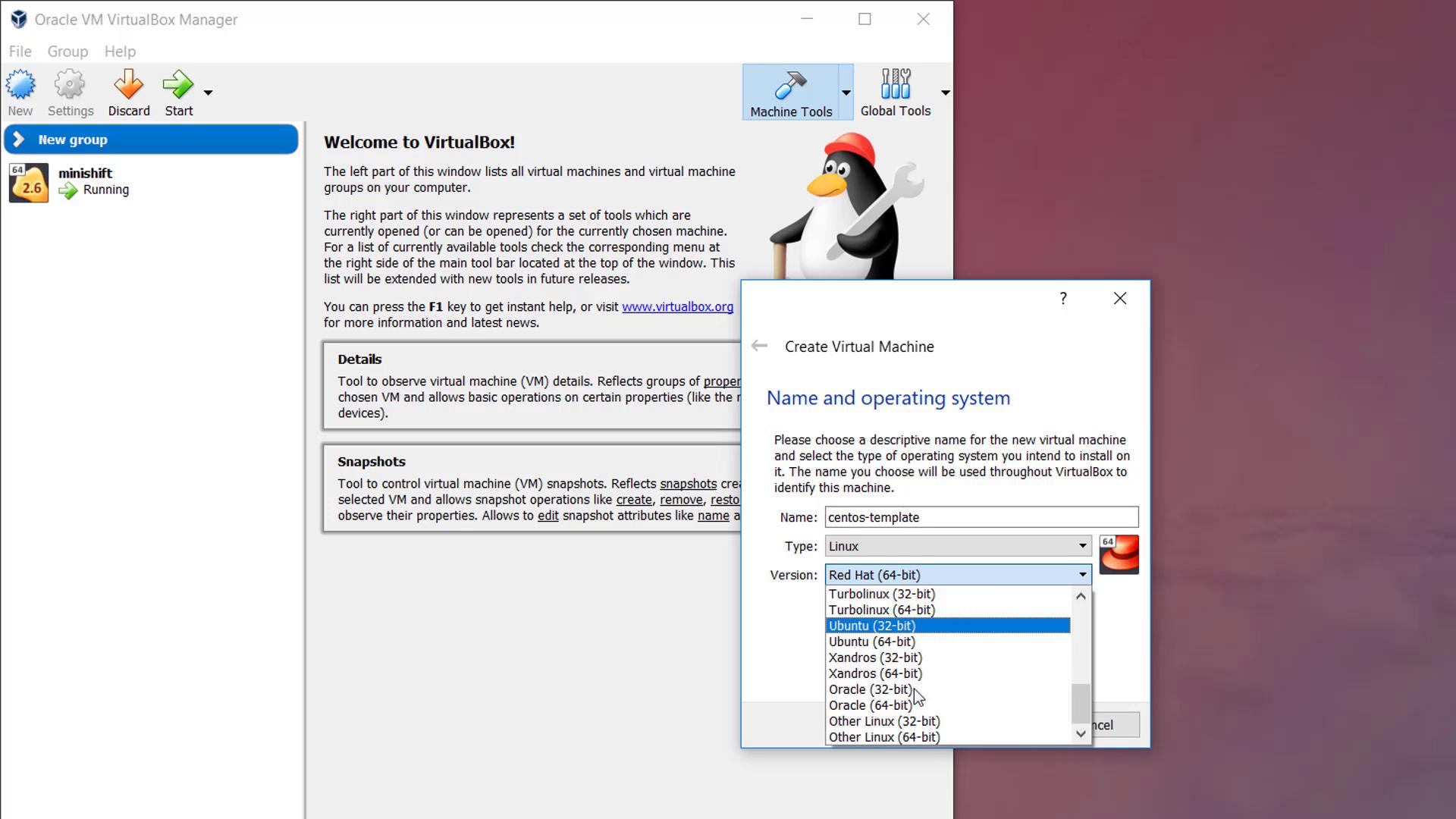

Next, open Oracle VirtualBox and click the "New" button to create a new virtual machine. Choose "Other Linux (64-bit)" as the operating system and allocate at least 2 GB of memory. When prompted for the hard disk, select the "Use existing" option and locate the extracted VDI file.

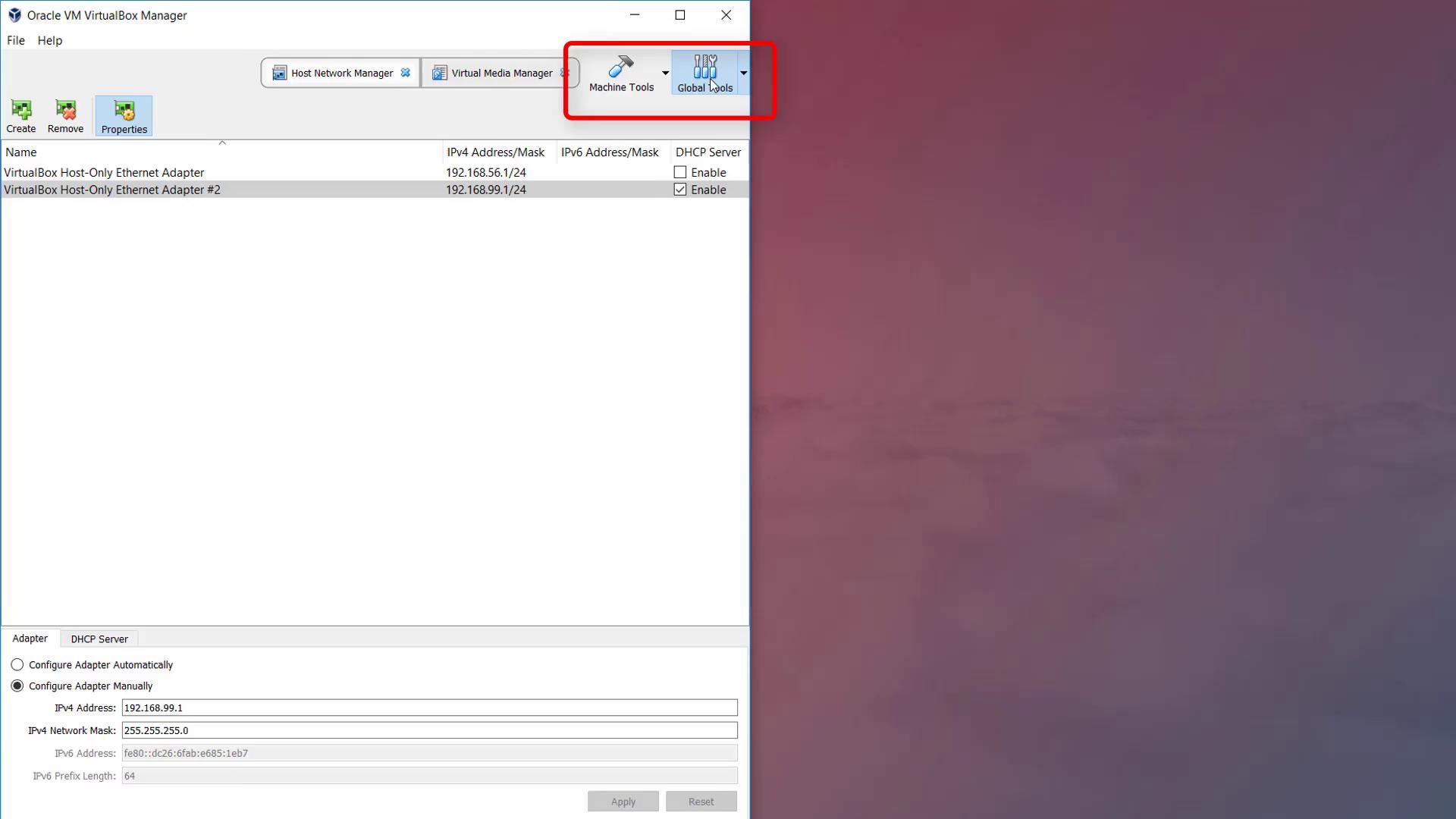

Before starting the virtual machine, you need to configure the networking settings to enable a static IP address. Since VirtualBox uses DHCP by default, create a host-only network adapter without DHCP support. Open the global settings, navigate to the Host Network Manager, add a new adapter, and uncheck the "Enable DHCP Server" option. Take note of the configured IP address and range.

Then, adjust the CentOS template settings:

• Increase the CPU count to two.

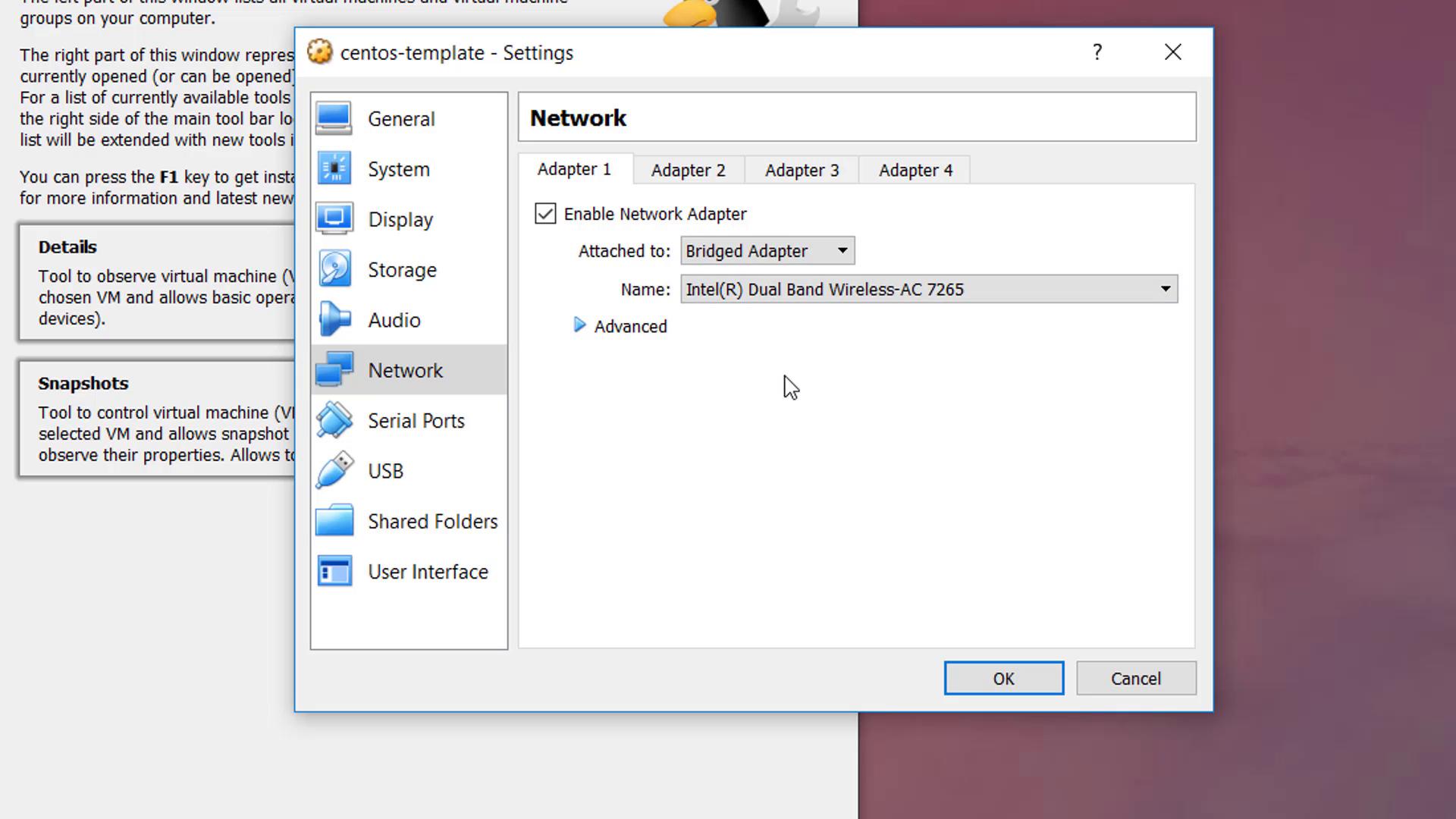

• Set the first network adapter to "Bridged Adapter" to access the Internet through your wireless router.
• Attach the second adapter to the previously created host-only network to allow for a static IP assignment.

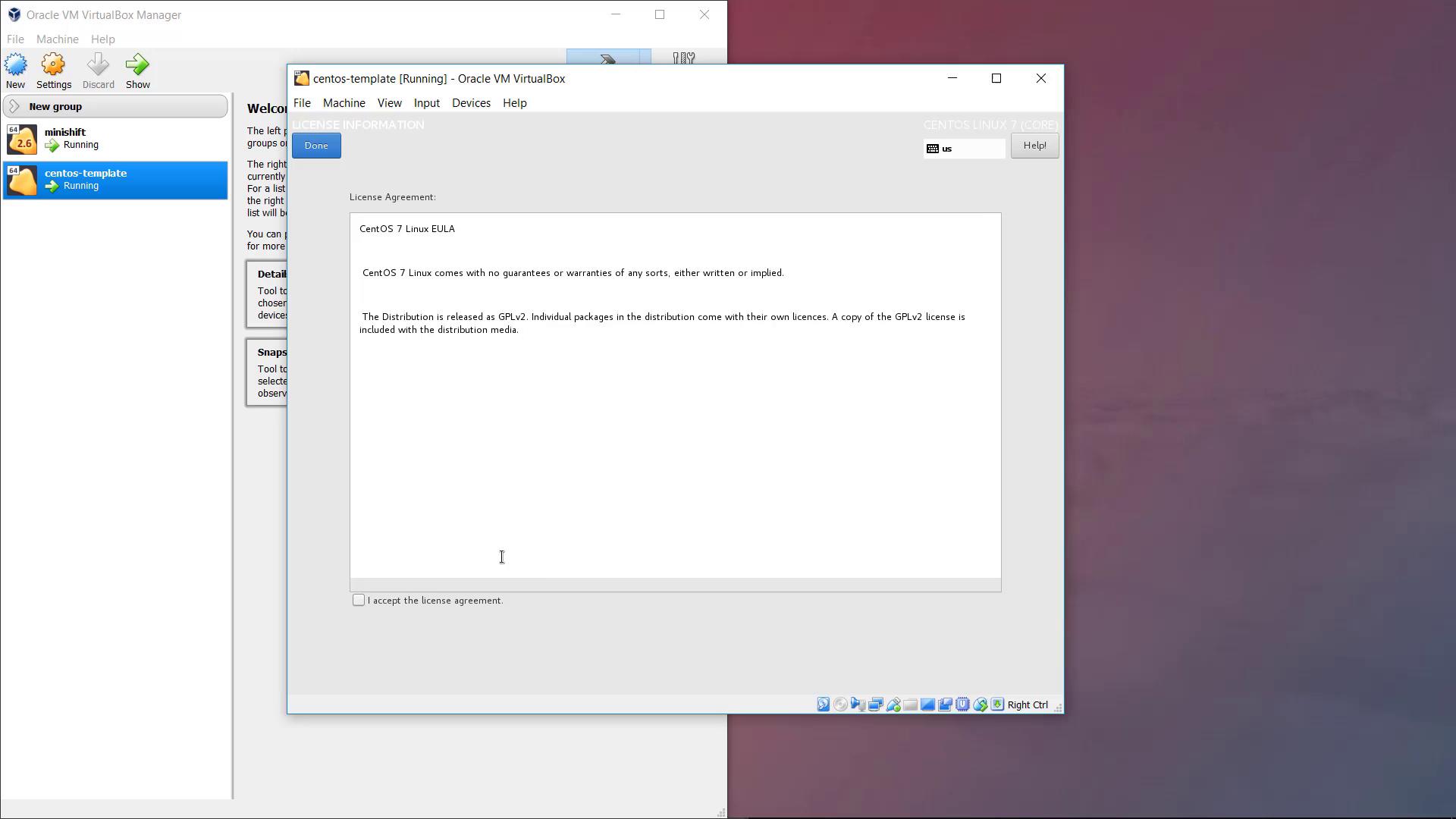

Power on the CentOS template. During boot-up, you’ll be prompted to accept the license agreement. Log in for the first time using the credentials provided on osboxes.org (the default password is "osboxes.org").

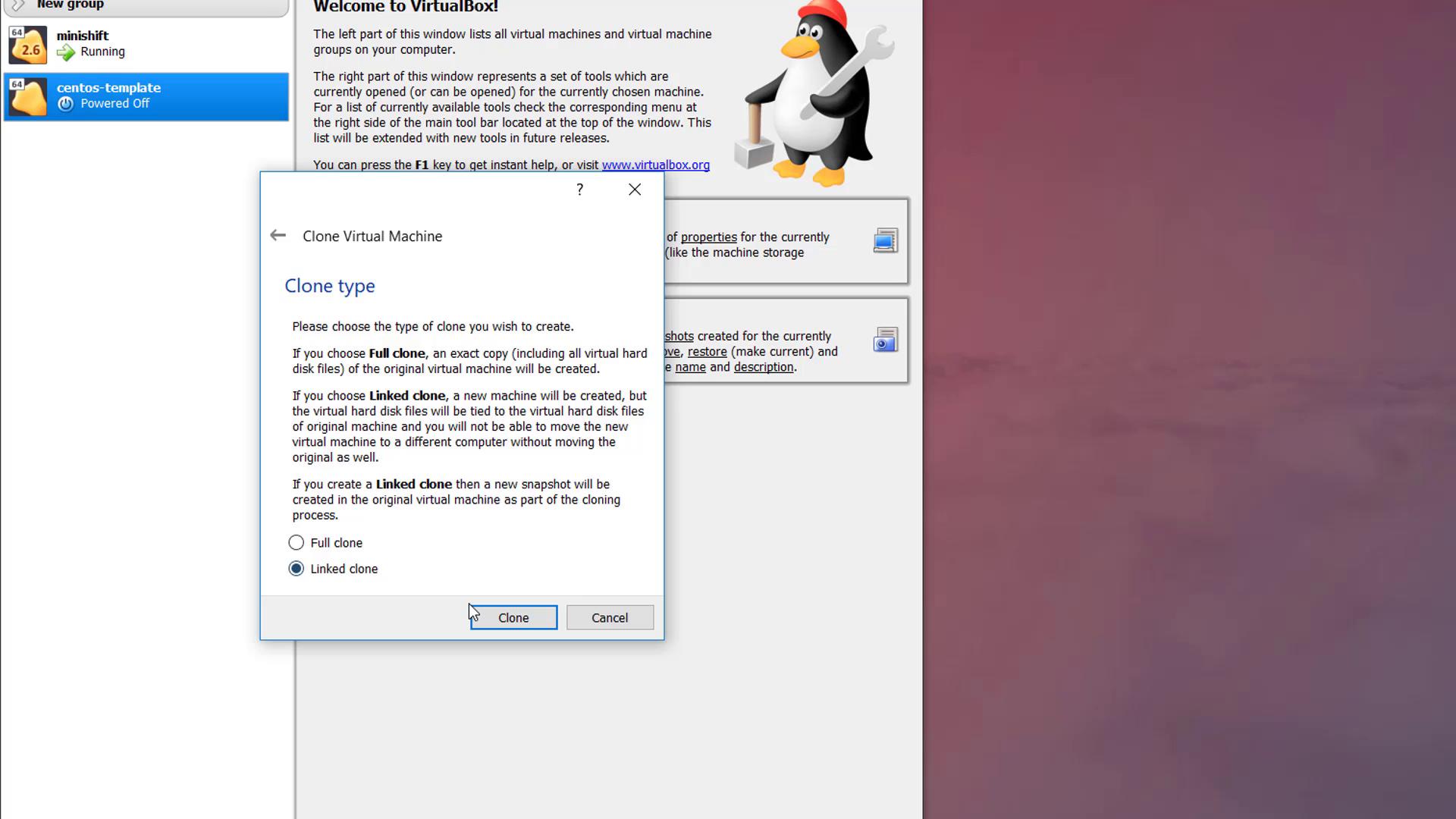

Once the initial configuration is complete, shut down the virtual machine. Right-click on the CentOS template and select "Clone" to create a new linked clone named "GitLab." Ensure you check the "Reset MAC address" option so that the clone receives a unique MAC address. Power on the cloned "GitLab" VM and log in again using the "osboxes.org" password.

Configuring a Static IP Address

After logging into the GitLab VM, open a terminal and run the command ifconfig to view the network interfaces. You might observe that the host-only adapter (commonly named enp0s8) does not have an IP address assigned. To assign a static IP, create a new network script for that interface.

1. Navigate to the network scripts directory:

   cd /etc/sysconfig/network-scripts


2. Copy the default loopback script as a template for the host-only adapter:

   sudo cp ifcfg-lo ifcfg-enp0s8
   sudo vi ifcfg-enp0s8


3. Update the file with the following configuration (replace IP values as desired):

   DEVICE=enp0s8
   IPADDR=192.168.56.150
   NETMASK=255.255.255.0
   NETWORK=192.168.56.0
   BROADCAST=192.168.56.255
   ONBOOT=yes
   NAME=enp0s8


4. Save the file and restart the network service:

   sudo service network restart
   ifconfig enp0s8


The output should now display an IP address similar to:

inet 192.168.56.150  netmask 255.255.255.0  broadcast 192.168.56.255

Installing GitLab

To install GitLab, start by preparing your system with the necessary packages. For additional details, refer to the GitLab installation guide.

1. Install required packages:

   sudo yum install -y curl policycoreutils-python openssh-server
   sudo systemctl enable sshd
   sudo systemctl start sshd
   sudo firewall-cmd --permanent --add-service=http
   sudo systemctl reload firewalld


2. Install Postfix to handle email notifications:

   sudo yum install postfix
   sudo systemctl enable postfix
   sudo systemctl start postfix


3. Deploy GitLab using Docker. If Docker is not installed, use the official Docker installation script:

   curl -fsSL get.docker.com -o get-docker.sh
   sudo sh get-docker.sh


4. Once Docker is installed, start the Docker service and deploy the GitLab container using one of the following commands. Use the first command for standard systems or the second if SELinux is enabled.

   Standard deployment:

   sudo docker run --detach \
     --hostname gitlab.example.com \
     --publish 443:443 --publish 80:80 --publish 22:22 \
     --name gitlab \
     --restart always \
     --volume /srv/gitlab/config:/etc/gitlab \
     --volume /srv/gitlab/logs:/var/log/gitlab \
     --volume /srv/gitlab/data:/var/opt/gitlab \
     gitlab/gitlab-ce:latest


   For systems with SELinux enabled:

   sudo docker run --detach \
     --hostname gitlab.example.com \
     --publish 443:443 --publish 80:80 --publish 22:22 \
     --name gitlab \
     --restart always \
     --volume /srv/gitlab/config:/etc/gitlab:Z \
     --volume /srv/gitlab/logs:/var/log/gitlab \
     --volume /srv/gitlab/data:/var/opt/gitlab \
     gitlab/gitlab-ce:latest


Make sure that the hostname reflects the fully qualified domain name (FQDN) or the static IP address of your CentOS virtual machine.

Allow a few minutes for GitLab to initialize. You can monitor the initialization process using:

sudo docker logs -f gitlab

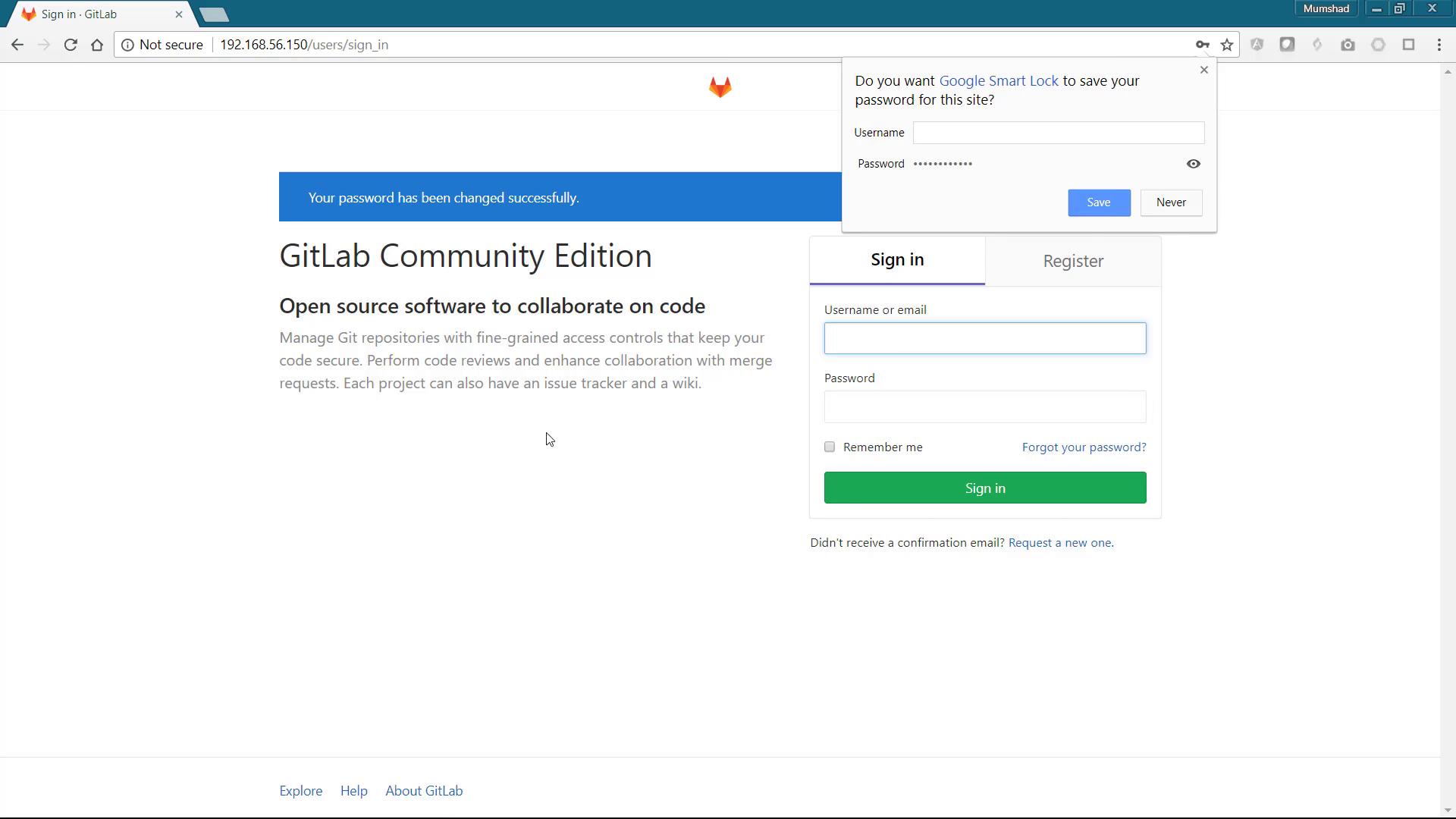

When GitLab prompts you to change the default password at first login, update it to secure your access. Log in with the username "root" and your new secure password.

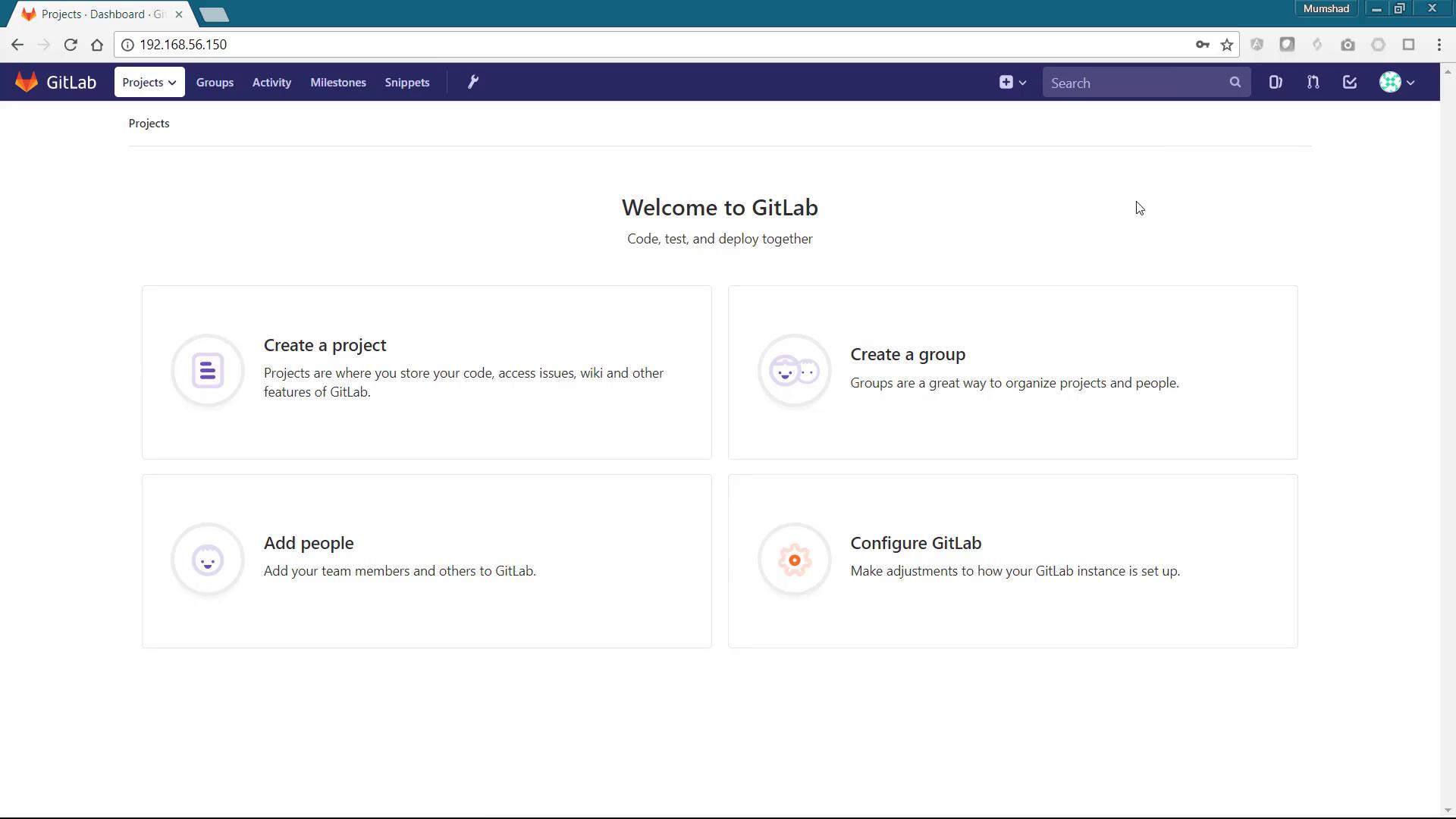

After successful configuration, the GitLab dashboard will be displayed, allowing you to create projects, manage groups, and configure additional settings.

Congratulations! You have now set up a fully functional local GitLab environment on your laptop. Enjoy your new development setup and happy coding!
