Demo Create Custom Catalog

Welcome to this lesson. In this guide, we will create a custom template for the example voting application deployed on an OpenShift cluster. The objective is to package all the components—BuildConfigs, DeploymentConfigs, Services, Routes, ImageStreams, and Secrets—into a single template, making it easy for developers and users to deploy the complete voting application with just a few clicks.

We will first identify and extract the YAML configurations for all the components into a dedicated template file. Then, we will create the template using either the OpenShift UI or CLI.

Creating the Template File

Begin by creating a file named example-voting-app-template.yml. Initialize this file with the API version and kind set to v1 and Template, respectively. Specify the template name in the metadata section.

apiVersion: v1
kind: Template
metadata:
  creationTimestamp: null
  name: voting-app-template

This name will be displayed in the UI once the template is created. Next, add the objects array where each configuration item will be defined.

apiVersion: v1
kind: Template
metadata:
  creationTimestamp: null
  name: example-voting-app-template
objects:

As noted, ensure that the template contains all the necessary components including BuildConfigs, DeploymentConfigs, Services, Routes, ImageStreams, and Secrets.

Adding Secrets

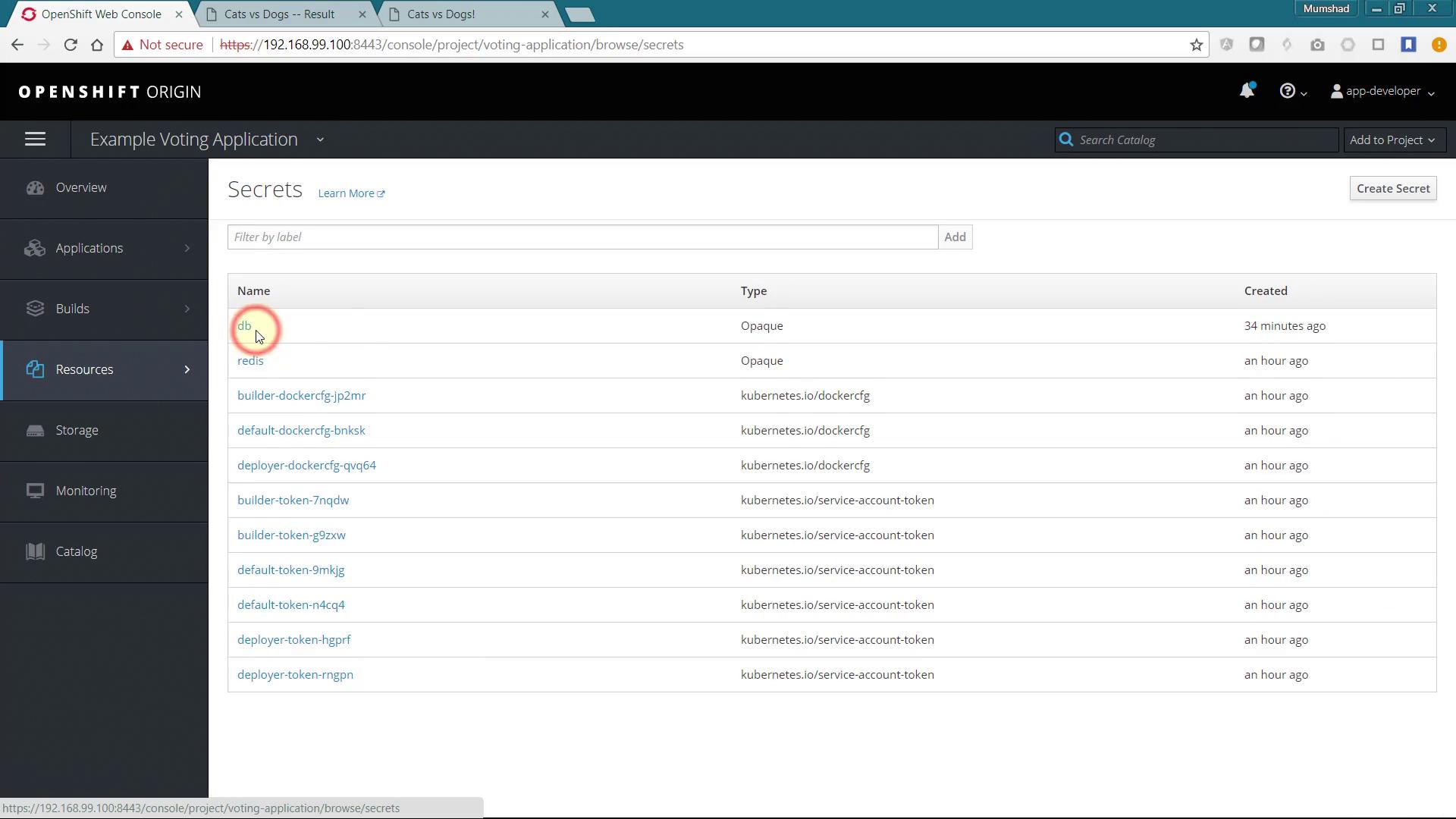

Start by adding the Secrets. Navigate to the Secrets section in your OpenShift resources. You will find two relevant secrets: the DB secret and the Redis secret.

To add the DB Secret, select it, click "Actions," and then "Edit YAML." Copy the content and paste it into your template file. Modify the secret by replacing the encrypted passwords with clear text and removing extraneous annotations and metadata, while retaining the essential information.

Original snippet:

apiVersion: v1
kind: Template
metadata:
  creationTimestamp: null
  name: example-voting-app-template
objects:
- apiVersion: v1
  data:
    database-name: cG9zdGdyZXM=
    database-password: cG9zdGdyZXNfcGFzc3dvcHM=
    database-user: cG9zdGdyZXNfdXNlcg==
  kind: Secret
  metadata:
    annotations:
      template.openshift.io/expose-database_name: '{.data["database-name"]}'
      template.openshift.io/expose-password: '{.data["database-password"]}'
      template.openshift.io/expose-username: '{.data["database-user"]}'
    creationTimestamp: '2018-05-03T17:51:39Z'
    labels:
      app: postgresql-persistent
      template: postgresql-persistent-template
    name: db
    namespace: voting-application
    resourceVersion: '300645'
    selfLink: /api/v1/namespaces/voting-application/secrets/db
    uid: a18b7ec2-4efa-11e8-aaf2-8e9d9a82dla9
  type: Opaque

Modified snippet:

apiVersion: v1
kind: Template
metadata:
  creationTimestamp: null
  name: example-voting-app-template
objects:
- apiVersion: v1
  data:
    database-name: db
    database-password: postgres_password
    database-user: postgres_user
  kind: Secret
  metadata:
    annotations:
      template.openshift.io/expose-database_name: '{.data["database-name"]}'
      template.openshift.io/expose-password: '{.data["database-password"]}'
      template.openshift.io/expose-username: '{.data["database-user"]}'
    creationTimestamp: '2018-05-03T17:51:39Z'
    labels:
      app: postgresql-persistent
      template: postgresql-persistent-template
    name: db
    namespace: voting-application
    resourceVersion: '300645'
    selfLink: /api/v1/namespaces/voting-application/secrets/db
    uid: a1b7ec2-4efa-11e8-9d9a82dla9
  type: Opaque

Repeat these steps for the Redis Secret by copying its YAML content, removing unnecessary details, and retaining only the critical data (e.g., redis_password and its name).

Adding Build Configurations

Next, add the BuildConfigs. Begin by selecting the YAML configuration for the existing BuildConfig for the "result" component and adding it to the objects array. Remove any unneeded details while preserving all crucial specifications.

- apiVersion: v1
  data:
    database-name: db
    database-password: postgres_password
    database-user: postgres_user
  kind: Secret
  metadata:
    name: db

- apiVersion: v1
  data:
    database-password: redis_password
  kind: Secret
  metadata:
    name: redis

- apiVersion: build.openshift.io/v1
  kind: BuildConfig
  metadata:
    annotations:
      openshift.io/generated-by: OpenShiftWebConsole
    creationTimestamp: '2018-05-03T17:54:05Z'
    labels:
      app: result
    name: result
    namespace: voting-application
    resourceVersion: '300913'
    selfLink: >-
      /apis/build.openshift.io/v1/namespaces/voting-application/buildconfigs/result
    uid: f8e91145-4efa-11e8-aaf2-8e9d9a82d1a9
  spec:
    nodeSelector: null

Leave the content under the spec section as-is. Note that the GitHub URL embedded in the template can later be parameterized to prompt user input during deployment. Be sure to remove any status sections if they exist. Follow similar procedures for the BuildConfigs of the vote and worker applications.

Below is an additional snippet showcasing an ImageStreamTag configuration:

- apiVersion: v1
  kind: ImageStreamTag
  name: result:latest
  postCommit: {}
  resources: {}
  runPolicy: Serial
  source:
    contextDir: /result
    git:
      ref: master
      uri: 'https://github.com/mmumshad/example-voting-app.git'
    type: Git
  strategy:
    sourceStrategy:
      env:
        - name: PORT
          value: '8080'
      from:
        kind: ImageStreamTag
        name: 'nodejs:8'
        namespace: openshift
      type: Source
  triggers:
    - generic:
        secret: 5a7aeOble2c90cbc
        type: Generic
    - github:
        secret: 7832f312c9c2e71f
        type: GitHub
    - imageChange:
        lastTriggeredImageID: >-
          docker.io/centos/nodejs-8-centos7@sha256:8d144d0e2a7d57b537e83ff68a6a4aef495850788c6dd5173d1c75fbd45e5ca0b

Adding ImageStreams

Add the ImageStreams for each application next. For instance, the worker application's BuildConfig snippet might appear as follows:

- apiVersion: build.openshift.io/v1
  kind: BuildConfig
  metadata:
    name: worker
  spec:
    nodeSelector: null
    output:
      to:
        kind: ImageStreamTag
        name: 'worker:latest'
    postCommit: {}
    resources: {}
    runPolicy: Serial
    source:
      contextDir: /worker
      git:

There are three ImageStreams configured—one for each application. Copy the YAML for each ImageStream and add it to the objects array. For example, to tag and push an image from Docker, you might use:

$ sudo docker tag myimage registry/voting-application/worker:tag
$ sudo docker push registry/voting-application/worker:tag

Then duplicate the configuration for the other two ImageStreams:

- apiVersion: image.openshift.io/v1
  kind: ImageStream
  metadata:
    name: worker
  spec:
    lookupPolicy:
      local: false
- apiVersion: image.openshift.io/v1
  kind: ImageStream
  metadata:
    name: result
  spec:
    lookupPolicy:
      local: false

Adding Deployments

Next, add the DeploymentConfigs. There are five DeploymentConfigs for the application components. In the OpenShift Origin web console, you can see the list of deployments, as shown in the image below:

For every DeploymentConfig, select the YAML configuration, copy it into your template file, and remove any unnecessary details. Consider simplifying blocks such as the livenessProbe as shown below:

livenessProbe:
  exec:
    command:
      - /bin/sh
      - '-i'
      - '-c'
      - pg_isready -h 127.0.0.1 -p 5432
  failureThreshold: 3
  initialDelaySeconds: 30
  periodSeconds: 10
  successThreshold: 1
  timeoutSeconds: 1

Repeat these clean-up steps for each DeploymentConfig associated with the application.

Adding Services and Routes

Finally, add the configurations for Services and Routes.

For Services, here is an example configuration for the worker application:

- apiVersion: v1
  kind: Service
  metadata:
    name: worker
  spec:
    containers:
      - image: 172.30.1.1:5000/voting-application/worker@sha256:0417be4bd34d5414d378e1751d2b52b66e8bff3f83e2bd7dc68f11e893da04f7
        imagePullPolicy: Always
        name: worker
        ports:
          - containerPort: 8080
            protocol: TCP
          - containerPort: 8443
            protocol: TCP
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
    dnsPolicy: ClusterFirst
    restartPolicy: Always
    schedulerName: default-scheduler
    securityContext: {}
    terminationGracePeriodSeconds: 30
    test: false
    triggers:
      - imageChangeParams:
          automatic: true
          containerNames:
            - worker
          from:
            kind: ImageStreamTag
            name: 'worker:latest'
            namespace: voting-application
          lastTriggeredImage: ''

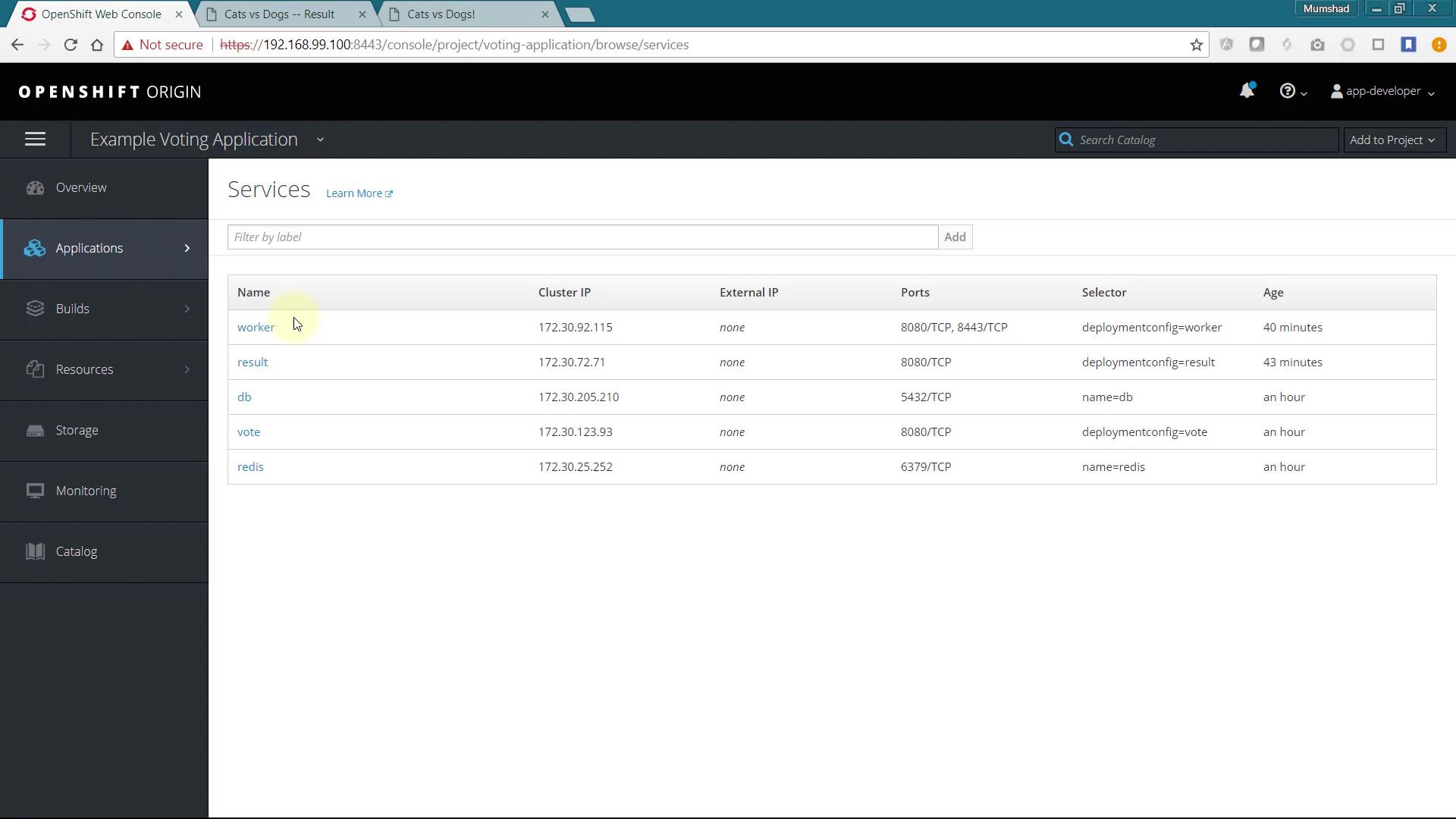

View the list of services in the OpenShift Origin web console as shown below:

For additional service details (e.g., for the worker application), refer to the image below:

For Routes, here’s an example configuration for the "result" application:

- apiVersion: v1
  kind: Service
  metadata:
    name: result
  spec:
    ports:
      - name: 8080-tcp
        port: 8080
        protocol: TCP
        targetPort: 8080
    selector:
      deploymentconfig: result
    sessionAffinity: None
    type: ClusterIP
  status:
    loadBalancer: {}

Similarly, additional Route configurations for, for instance, the vote service can be specified as follows:

- apiVersion: v1
  kind: Service
  metadata:
    annotations:
      openshift.io/generated-by: OpenShiftWebConsole
    creationTimestamp: '2018-05-03T17:41:57Z'
    labels:
      app: vote
    name: vote
    namespace: voting-application
    resourceVersion: '299709'
    selflink: /api/v1/namespaces/voting-application/services/vote
    uid: 466b7d16-4ef9-11e8-aaf2-8ed9a82d1a9
  spec:
    clusterIP: 172.30.123.93
    ports:
      - name: 8080-tcp
        port: 8080
        protocol: TCP
        targetPort: 8080
    selector:
      deploymentconfig: vote
    sessionAffinity: None
    type: ClusterIP
  status:
    loadBalancer: {}

Create a Route for each application as needed.

Creating the Template in OpenShift

Once the file is complete, you can create a template from the CLI. First, configure your OC environment variable. In this example, the template is intended to be available for a new user (for example, AppDeveloper2).

Switch to the directory containing the file and execute the oc create -f command:

c:\Users\mmums>cd c:\

c:\>cd minishift-1.16.1-windows-amd64

c:\minishift-1.16.1-windows-amd64>minishift.exe oc-env
SET PATH=C:\Users\mmums\.minishift\cache\oc\v3.9.0\windows;%PATH%
REM Run this command to configure your shell:
REM @FOR /f "tokens=*" %i IN ('minishift oc-env') DO @call %i

c:\minishift-1.16.1-windows-amd64>SET PATH=C:\Users\mmums\.minishift\cache\oc\v3.9.0\windows;%PATH%

Log in through both the UI and CLI using your credentials, navigate to the directory with example-voting-app-template.yml, and create the template using:

d:\Mumshad Files\Google Drive\Udemy\OpenShift\code>oc create -f example-voting-app-template.yml
Error from server (Forbidden): error when creating "example-voting-app-template.yml": templates is forbidden: User "app-developer-2" cannot create templates in the namespace "default": User "app-developer-2" cannot create templates in project "default"

d:\Mumshad Files\Google Drive\Udemy\OpenShift\code>

Since regular users cannot create a template in the default namespace, create a new project and specify its namespace:

d:\Mumshad Files\Google Drive\Udemy\OpenShift\code>oc create -f example-voting-app-template.yml -n voting-application-3

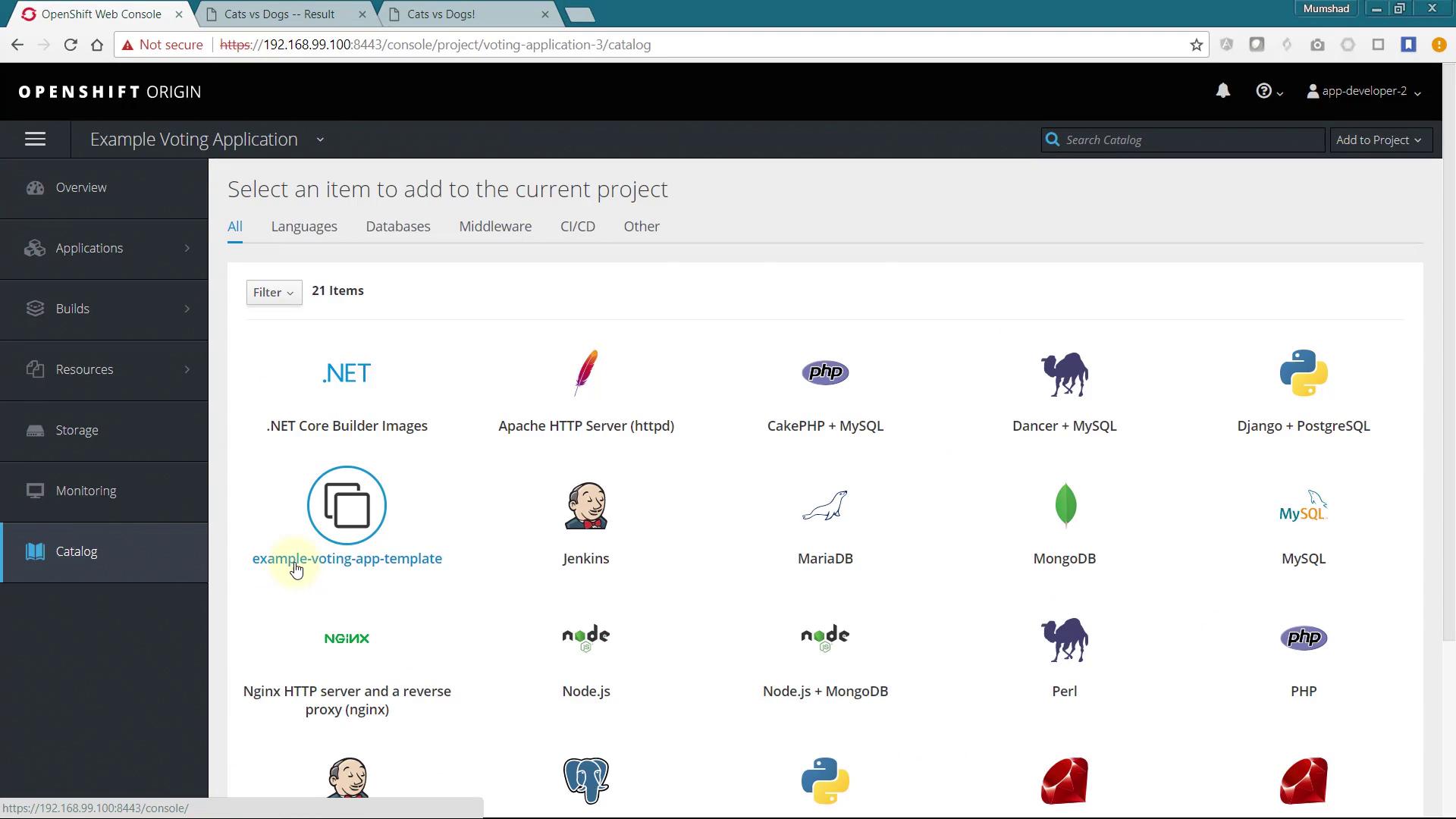

After running this command, refresh the UI. You should see the new catalog item named example-voting-app-template displayed. Click on it and follow the deployment wizard to launch the application stack. Monitor the progress of builds and deployments on the monitoring page.

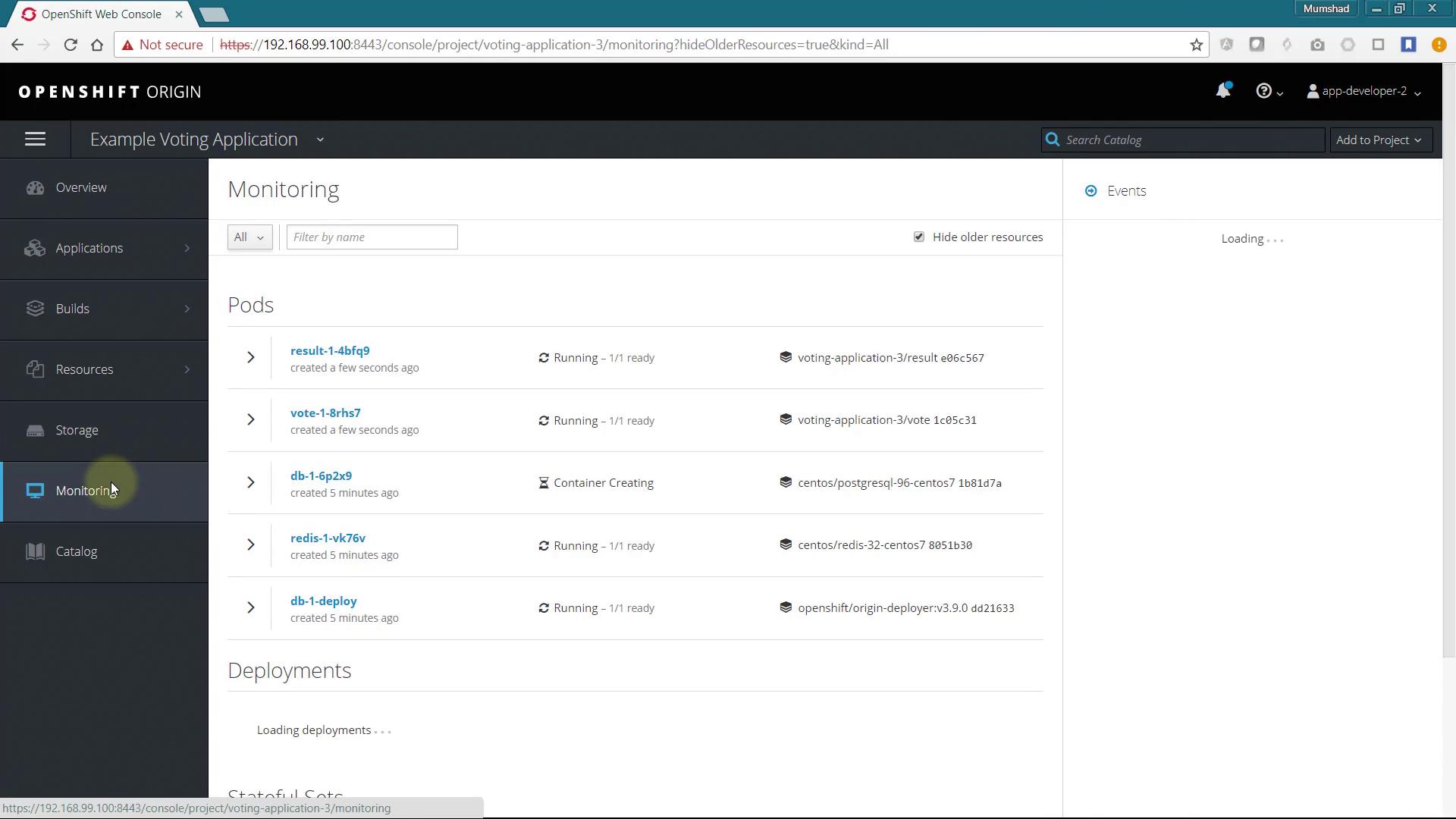

After deployment, click on the Routes to access the voting and result pages.

Conclusion and Next Steps

You have successfully created a custom catalog item for the example voting application, enabling quick deployment for anyone. As a next step, consider parameterizing the template to allow user input via the wizard. For additional ideas, review the source code of existing templates.

Thank you for your time, and we hope this lesson helps you get started with creating custom templates in OpenShift.
