Conclusion

Congratulations on completing the Istio Certified Associate (ICA) course. Throughout this lesson you explored Istio’s service mesh fundamentals and gained hands‑on experience managing microservices on Kubernetes. You learned how to install Istio, configure traffic management (Gateways, VirtualServices), enforce security (mTLS), perform fault injection, and instrument observability — all aligned with real‑world production scenarios and ICA exam objectives.

Example control plane environment

Here’s an example of a control plane user home and a local Istio release directory you may have used during the labs:

root@controlplane ~ ✗ ll
total 48
drwxr-xr-x  9 root root 4096 Apr  7 21:38 ./
drwxr-xr-x  1 root root 4096 Apr  7 21:18 ..
-rw-r--r--  1 root root  711 Apr  7 21:18 .bash_profile
-rw-r--r--  1 root root  161 Jul  9  2019 .bashrc
drwxr-xr-x  2 root root 4096 Jul 21 15:35 .cache/
drwxr-xr-x  6 root root 4096 Jul 21 15:38 .config/
drwxr-xr-x  2 root root 4096 Apr  7 21:18 .kube/
drwxr-xr-x  1 root root 4096 Jul  9  2019 .profile
drwxr-xr-x  2 root root 4096 Jul 23 15:38 snap/
drwxr-xr-x  2 root root 4096 Oct 23 15:37 ssh/
-rw-r--r--  1 root root    0 Oct 23 15:38 .sudo_as_admin_successful
drwxr-xr-x  1 root root 4096 Apr  7 21:36 .terminal_logs/

root@controlplane ~ ✗ cd istio-1.18.2/
root@controlplane ~/istio-1.18.2 ✗ export PATH=$PWD/bin:$PATH
root@controlplane ~/istio-1.18.2 ✗ which istioctl
/root/istio-1.18.2/bin/istioctl

Install Istio (Helm example)

The following Helm command installs Istio 1.18.2 using the demo profile and sets small Pilot resource requests — useful for lab or low‑resource clusters:

helm install istiod istio/istiod \
  --namespace istio-system \
  --create-namespace \
  --version 1.18.2 \
  --set profile=demo \
  --set pilot.resources.requests.memory=128Mi \
  --set pilot.resources.requests.cpu=250m

Core skills mastered

You should now be comfortable with the essential tasks for running and troubleshooting Istio in production:

Sidecar proxy model and Envoy integration
Configuring Gateways and VirtualServices for ingress and east‑west traffic
Traffic routing: subsets, weights, header/cookie routing
Security: mTLS, authentication, and authorization policies
Resilience: circuit breaking, retries, timeouts, and fault injection
Observability: telemetry, tracing, and log collection workflows

Topic	Why it matters	Example commands
Control plane tools	Inspect and manage Istio components	`istioctl analyze`, `kubectl -n istio-system get pods`
Traffic management	Shape request flows and implement canary releases	`kubectl apply -f virtualservice.yaml`
Security	Secure service-to-service communication	`PeerAuthentication`, `DestinationRule`
Resilience	Improve application stability and testing	`VirtualService` fault injection

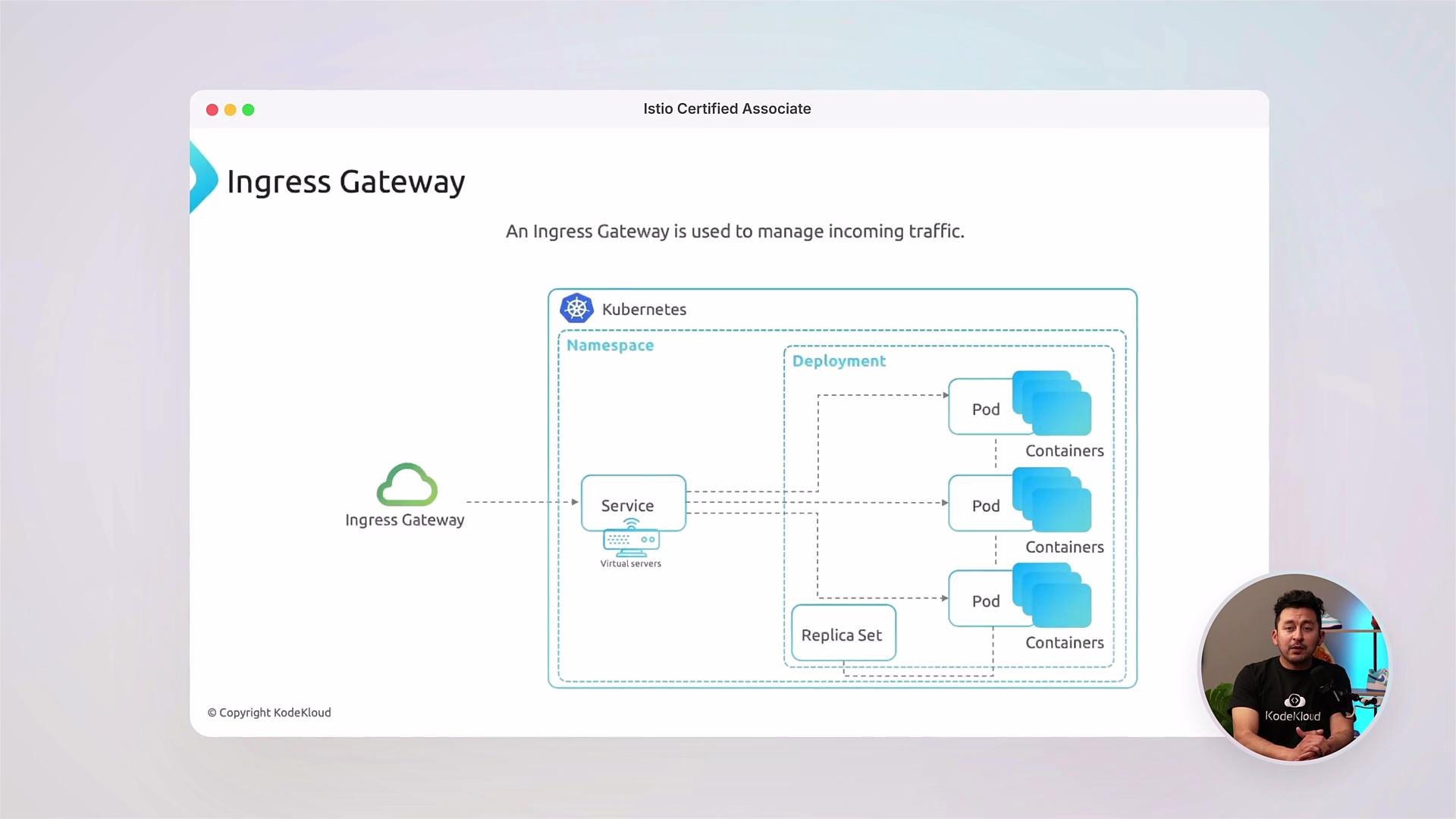

The image is a diagram explaining how an Ingress Gateway manages incoming traffic within a Kubernetes environment, showing components like Services, Pods, and Replica Sets. There's also a person speaking in a small video frame at the bottom right.

Fault injection example

To practice resilience testing, create a VirtualService to inject a fixed 5s delay for 100% of traffic routed to the v1 subset of app-svc:

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: app-vs
  namespace: frontend
spec:
  hosts:
    - app-svc
  http:
    - fault:
        delay:
          percentage:
            value: 100.0
          fixedDelay: 5s
      route:
        - destination:
            host: app-svc.frontend.svc.cluster.local
            port:
              number: 80
            subset: v1

Keep practicing on real clusters. Revisit the official Istio documentation, run mock exams, and perform hands‑on labs to strengthen configuration, troubleshooting, and exam readiness: https://istio.io/latest/docs/

Next steps and resources

Official Istio docs: https://istio.io/latest/docs/
Kubernetes concepts: https://kubernetes.io/docs/concepts/
Learn more about related service mesh tooling and advanced topics:
- Multi‑cluster topologies and Service Mesh Federation
- Cilium integration and eBPF networking: Prep Course - Cilium Certified Associate (CCA) Certification (https://learn.kodekloud.com/user/courses/cilium-certified-associate-cca)

Thank you for choosing KodeKloud. Stay connected with the community, share your progress, and continue building with Istio. Best of luck on your ICA exam and in your cloud‑native journey — you’re ready to apply what you’ve learned and keep evolving.
