Pushing Metrics

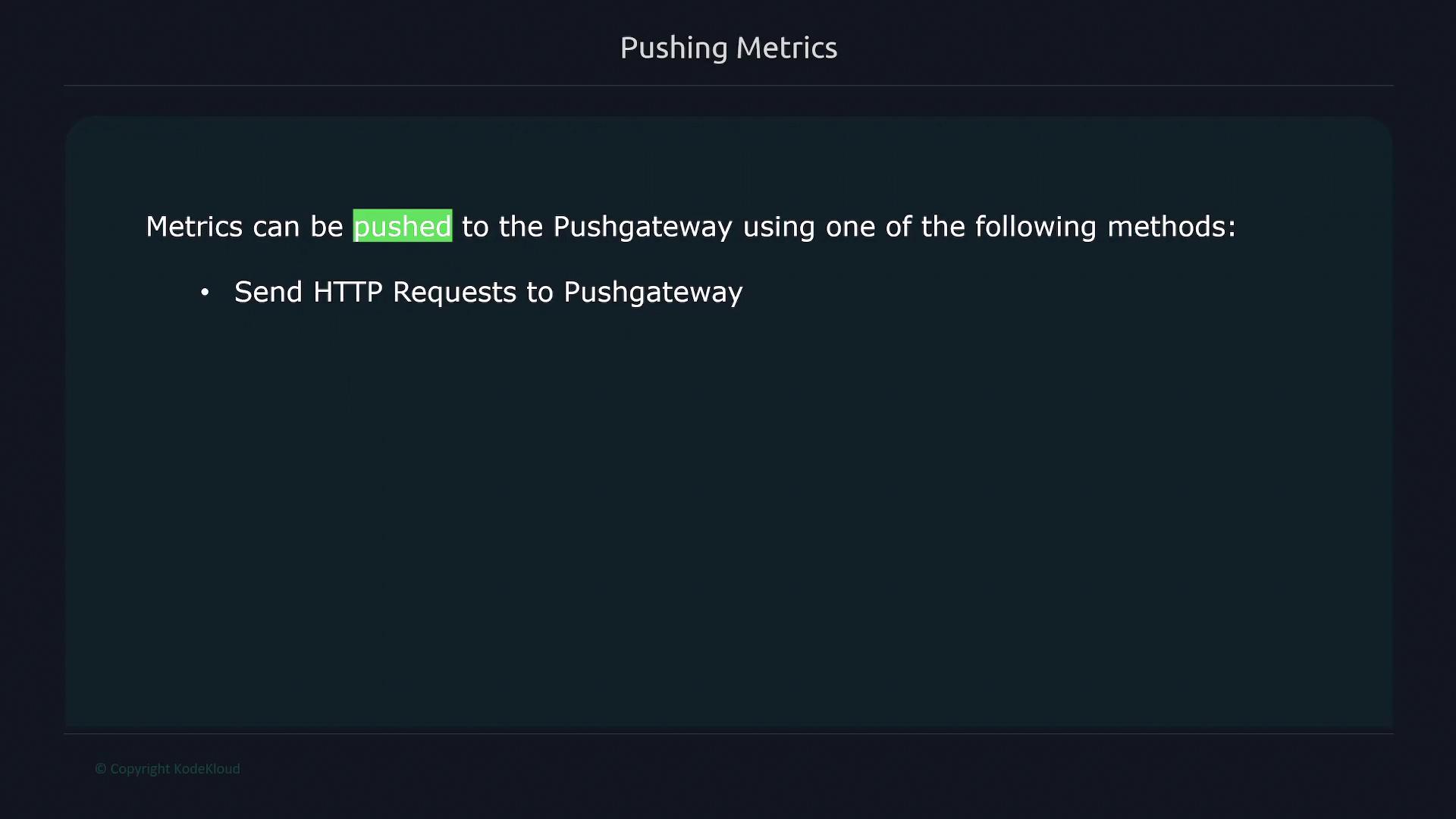

This guide explains how to push metrics to a Push Gateway using two primary methods: sending an HTTP request directly or using a Prometheus client library. We cover sending metrics with custom grouping, updating existing metrics, and deleting groups of metrics.

Pushing Metrics via HTTP Request

You can push metrics by sending an HTTP POST request to a URL formatted as follows:

http://<pushgateway_address>:<port>/metrics/job/<job_name>/<label1>/<value1>/<label2>/<value2>

In this URL:

• The Push Gateway address and port specify the destination.
• The "job" segment designates the job label, with <job_name> indicating the associated metric's job name.
• Additional label/value pairs not only supplement the metrics with extra labels but also serve as a grouping key, allowing you to update or delete metrics as a collection.

Example: Pushing Metrics Using curl

To demonstrate, here is an example where we push a metric named example_metric with a value of 4421 under the job db_backup. This is done using the curl command:

$ echo "example_metric 4421" | curl --data-binary @- http://localhost:9091/metrics/job/db_backup

Explanation:

• The metric data is sent as binary using --data-binary.
• The echo command outputs the metric string.
• The @- flag directs curl to read the binary data from standard input.
• The URL targets the local Push Gateway at port 9091, appending the necessary job label.

After pushing the metric, retrieve the metrics from the Push Gateway with:

$ curl localhost:9091/metrics
example_metric{instance="",job="db_backup"} 4421
# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 1.0373e-05
go_gc_duration_seconds{quantile="0.25"} 2.5597e-05
go_gc_duration_seconds{quantile="0.5"} 2.7005e-05
go_gc_duration_seconds{quantile="0.75"} 3.787e-05

Grouping Metrics

The URL path, which includes the job name and any additional label-value pairs, functions as a grouping key. Metrics pushed to the same URL are part of a group, enabling bulk updates or deletion.

Grouping Example

Imagine you want to push two metrics—metric_one (counter) and metric_two (gauge)—together under a group labeled as archive with an additional label db=mysql. Use the following command:

$ cat <<EOF | curl --data-binary @- http://localhost:9091/metrics/job/archive/db/mysql
# TYPE metric_one counter
metric_one{label="val1"} 11
# TYPE metric_two gauge
# HELP metric_two Just an example.
metric_two 100
EOF

In this example:

• The job is named archive.
• The label db=mysql groups these metrics.
• All metrics pushed via this URL belong to the same group.

Changing the grouping labels creates a distinct group. For instance, the following command creates a group with the label app=web:

$ cat <<EOF | curl --data-binary @- http://localhost:9091/metrics/job/archive/app/web
# TYPE metric_one counter
metric_one{label="val1"} 22
# TYPE metric_two gauge
# HELP metric_two Just an example.
metric_two 200
EOF

Now, you have two groups:

1. Group one: archive with db=mysql
2. Group two: archive with app=web

Verify the grouped metrics with:

$ curl localhost:9091/metrics | grep archive
metric_one{db="mysql",instance="",job="archive",label="val1"} 11
metric_two{db="mysql",instance="",job="archive"} 100

metric_one{app="web",instance="",job="archive",label="val1"} 22
metric_two{app="web",instance="",job="archive"} 200

Updating Metrics: POST vs. PUT

The HTTP method used to update metrics affects how the group is modified.

Using POST

A POST request updates only the metrics that have the same name as those in the new payload, leaving other metrics in the group unchanged. For example, to update metric_one in the archive/app/web group:

$ cat <<EOF | curl --data-binary @- http://localhost:9091/metrics/job/archive/app/web
# TYPE metric_one counter
metric_one{label="val1"} 44
EOF

Using PUT

A PUT request, by contrast, replaces all metrics within the specified group with the new set provided. For instance, to completely replace the group contents with only metric_one:

$ cat <<EOF | curl -X PUT --data-binary @- http://localhost:9091/metrics/job/archive/app/web
# TYPE metric_one counter
metric_one{label="val1"} 44
EOF

After this command, only metric_one exists in the archive/app/web group, and all previous metrics (e.g., metric_two) are removed.

Deleting Metrics

To remove all metrics from a specific group, send a DELETE request to that group's URL:

$ curl -X DELETE http://localhost:9091/metrics/job/archive/app/web

Once executed, the group archive/app/web is deleted, leaving other groups (like archive/db/mysql) unaffected.

Summary

• Use a POST request to update specific metrics by name within a group.
• Use a PUT request to completely replace all metrics in a group.
• Use a DELETE request to remove all metrics belonging to a given group.

This guide details how to push, update, and delete metrics on a Push Gateway through HTTP requests, helping you manage and group metrics efficiently for monitoring and observability.
