Configure disk compression

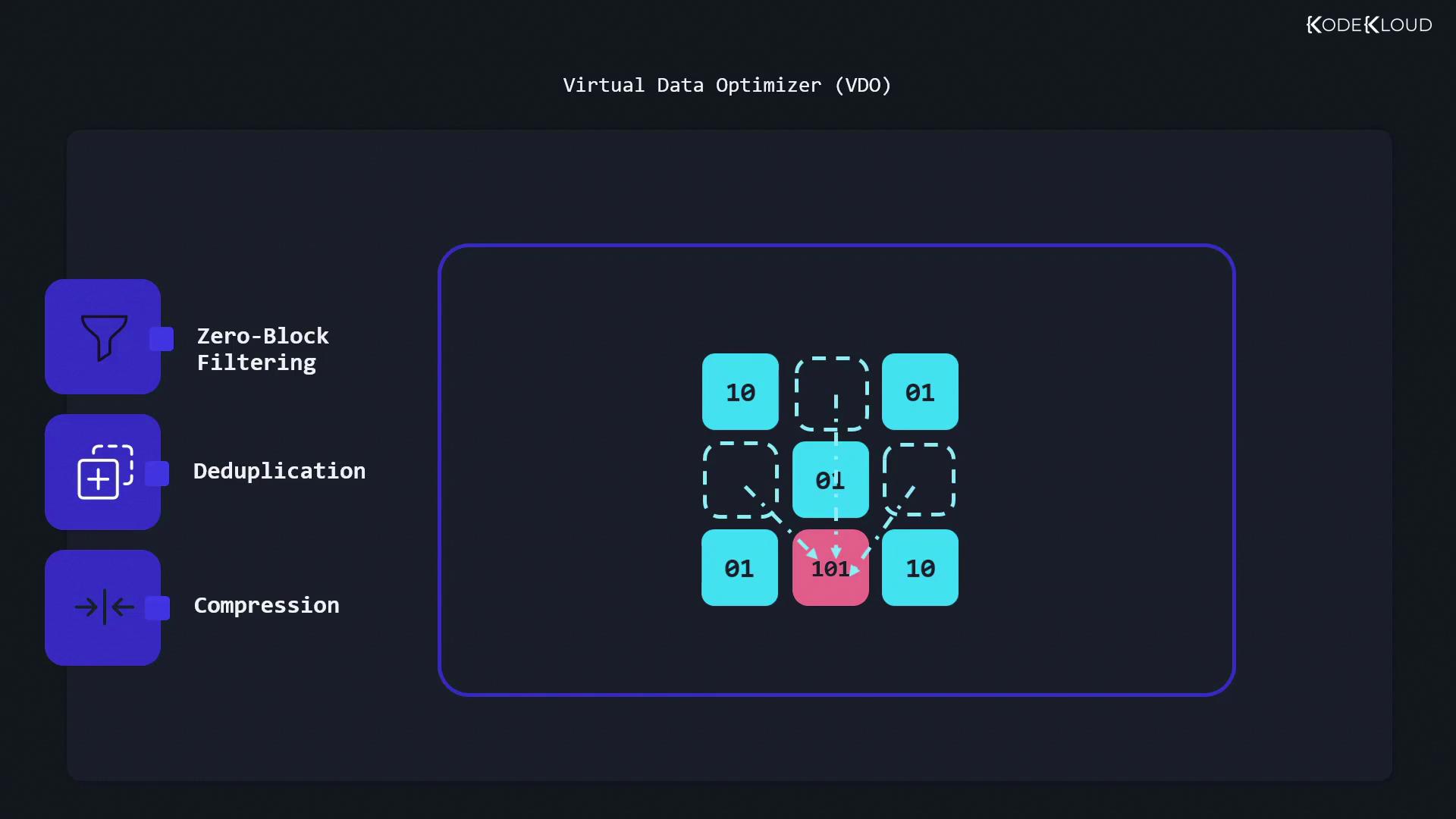

In this tutorial, you'll learn how to configure disk compression using Virtual Data Optimizer (VDO) in Linux. Although storage has become increasingly abundant and affordable, effective storage management remains crucial. VDO optimizes storage use through three key techniques: zero-block filtering, deduplication, and compression. Below, we explain each concept and provide step-by-step instructions to configure VDO on your system.

Zero-Block Filtering

VDO begins by scanning the storage device for blocks filled only with zeros—data that does not contribute meaningfully to the stored information. This process is similar to draining water from pasta using a colander: the water (empty data) flows away while the pasta (useful data) is retained.

Deduplication

Once zero blocks are filtered out, VDO moves on to deduplication. In this step, VDO checks if a block of data is already present elsewhere on the storage device. If a duplicate is found, instead of rewriting the data, VDO updates its metadata to reference the existing block. This method reduces redundant data storage and conserves disk space.

Compression

The final step in the VDO process is data compression. As data blocks are written to disk, VDO compresses them and packs several compressed blocks into one physical block. This not only saves space but can also improve read performance by reducing the amount of data transferred.

Installing and Enabling VDO

If VDO is not already installed, you can add it using YUM. Once installed, enable and start the VDO service with systemctl:

sudo yum install vdo
sudo systemctl enable --now vdo.service

Creating a VDO Device

To begin using VDO, you must have a storage device. In this example, we use an unpartitioned device /dev/vdb (5 GB in size) and create a VDO device with a logical size of 10 GB:

sudo vdo create --name=vdo_storage --device=/dev/vdb --vdoLogicalSize=10G

Explanation of the command options:

• vdo create: Initiates the creation of a new VDO-managed device.
• --name=vdo_storage: Assigns a name to the new VDO device.
• --device=/dev/vdb: Specifies the physical storage device to use.
• --vdoLogicalSize=10G: Sets the logical volume size that users will see (10 GB logical, despite a 5 GB physical size).

After creating the VDO device, check its status with:

sudo vdostats --human-readable

Expected output:

Device                     Size   Used Available Use% Space saving%
/dev/mapper/vdo_storage    5.0G  3.0G      2.0G 60% N/A

Here, the "Size" column reflects the physical capacity while "Use%" indicates current usage. The "Space saving%" field displays N/A until data is written.

Creating a Filesystem on the VDO Device

Next, create an XFS filesystem on the VDO device. The -K option prevents XFS from sending discard requests, which accelerates filesystem creation on an all-zero VDO device:

sudo mkfs.xfs -K /dev/mapper/vdo_storage
sudo udevadm settle

After filesystem creation and letting udev settle, check the VDO statistics again:

sudo vdostats --human-readable

The updated output should reflect a significant space-saving percentage:

Device                     Size   Used Available Use% Space saving%
/dev/mapper/vdo_storage    5.0G  3.0G      2.0G 60% 99%

Mounting the VDO Device

Before mounting the VDO device, create a mount point (e.g., /mnt/myvdo) and add an entry to /etc/fstab with the necessary options to ensure the VDO service is active before mounting:

/dev/mapper/vdo_storage /mnt/myvdo xfs _netdev,x-systemd.device-timeout=0,x-systemd.requires=VDO.service 0 0

Then, create the mount point and mount the filesystem:

sudo mkdir /mnt/myvdo
sudo vi /etc/fstab
sudo mount -a
df -h /mnt/myvdo

Expected output:

Filesystem              Size  Used Avail Use% Mounted on
/dev/mapper/vdo_storage  10G  104M  9.9G  2% /mnt/myvdo

Note that the physical size is 5 GB, but the logical size presented to users is 10 GB.

Demonstrating Deduplication

To observe how VDO conserves disk space via deduplication, follow these steps:

1. Create a 50 MB file with random data:

   head -c 50MB /dev/urandom > mydata.txt


2. Create 10 directories on the VDO mount point:

   mkdir /mnt/myvdo/dir{1..10}


3. Copy the file into each directory using a loop:

   for i in $(seq 1 10); do sudo cp /home/aaron/mydata.txt /mnt/myvdo/dir$i; done


4. Verify the mount point’s usage:

   df -h /mnt/myvdo


   Expected result:

   Filesystem              Size  Used Avail Use% Mounted on
   /dev/mapper/vdo_storage  10G  581M  9.5G   6% /mnt/myvdo


5. Check the VDO statistics:

   sudo vdostats --human-readable


   Expected output:

   Device                      Size  Used Available Use% Space saving%
   /dev/mapper/vdo_storage     5.0G  3.0G      2.0G 60%          94%


Next, copy another file with a different name into each directory:

sudo cp /home/aaron/mydata.txt /home/aaron/moredata.txt
for i in $(seq 1 10); do sudo cp /home/aaron/moredata.txt /mnt/myvdo/dir$i; done

Then verify the filesystem usage and VDO statistics again:

df -h /mnt/myvdo
sudo vdostats --human-readable

Expected output for filesystem usage:

Filesystem              Size  Used Avail Use% Mounted on
/dev/mapper/vdo_storage  10G  1.1G  9.0G 11% /mnt/myvdo

And VDO stats might show:

Device                      Size  Used Available Use% Space saving%
/dev/mapper/vdo_storage     5.0G  3.1G  1.9G   61% 95%

As you add more identical copies, you will notice an increase in the space-saving percentage, demonstrating VDO's effective deduplication—even when file names differ.

VDO in RHEL 9 with LVM Integration

In RHEL 9, VDO is integrated with LVM, and the standalone Python-based VDO tools are no longer used. To create a new VDO volume using LVM, proceed with the following steps:

1. Create a physical volume on /dev/vdb:

   sudo pvcreate /dev/vdb


2. Create a volume group named vdo_volume:

   sudo vgcreate vdo_volume /dev/vdb


3. Create a logical volume with VDO options:

   sudo lvcreate --type vdo -n vdo_storage -L 100%FREE -V 10G vdo_volume/vdo_pool1


4. Create an XFS filesystem on the new VDO volume:

   sudo mkfs.xfs -K /dev/vdo_volume/vdo_storage


   Alternatively, to use an ext4 filesystem:

   sudo mkfs.ext4 -E nodiscard /dev/vdo_volume/vdo_storage


One clear advantage of the LVM-integrated approach in RHEL 9 is that it simplifies mounting by eliminating the complex options required in previous versions.

Mounting the LVM-Based VDO Device

First, create a mount point:

sudo mkdir /mnt/myvdo

Edit the /etc/fstab file with your preferred text editor (e.g., vi) and add the following line:

/dev/vdo_volume/vdo_storage /mnt/myvdo xfs defaults 0 0

Then, mount the filesystem and verify the mount:

sudo mount -a
df -h /mnt/myvdo

Expected output:

Filesystem                  Size  Used Avail Use% Mounted on
/dev/vdo_volume/vdo_storage  10G  104M  9.9G  2% /mnt/myvdo

This confirms that the VDO volume has a logical size of 10 GB and is correctly mounted.

For more details on LVM-based VDO options, refer to the manual pages:

man lvm vdo

This concludes our comprehensive guide on configuring disk compression with VDO. Enjoy the benefits of optimized storage and improved performance in your Linux environment!
