Structs

In this lesson, we explore one of Rust's fundamental features: structs. Structs allow you to organize related data into custom data types. By the end of this lesson, you’ll be confident in creating, accessing, and managing structs to build efficient Rust programs.

What is a Struct?

In Rust, a struct is a custom data type that groups related values together. Think of a struct as a container that bundles multiple pieces of data under one name. For example, a Person struct can group attributes like name, age, and phone number together.

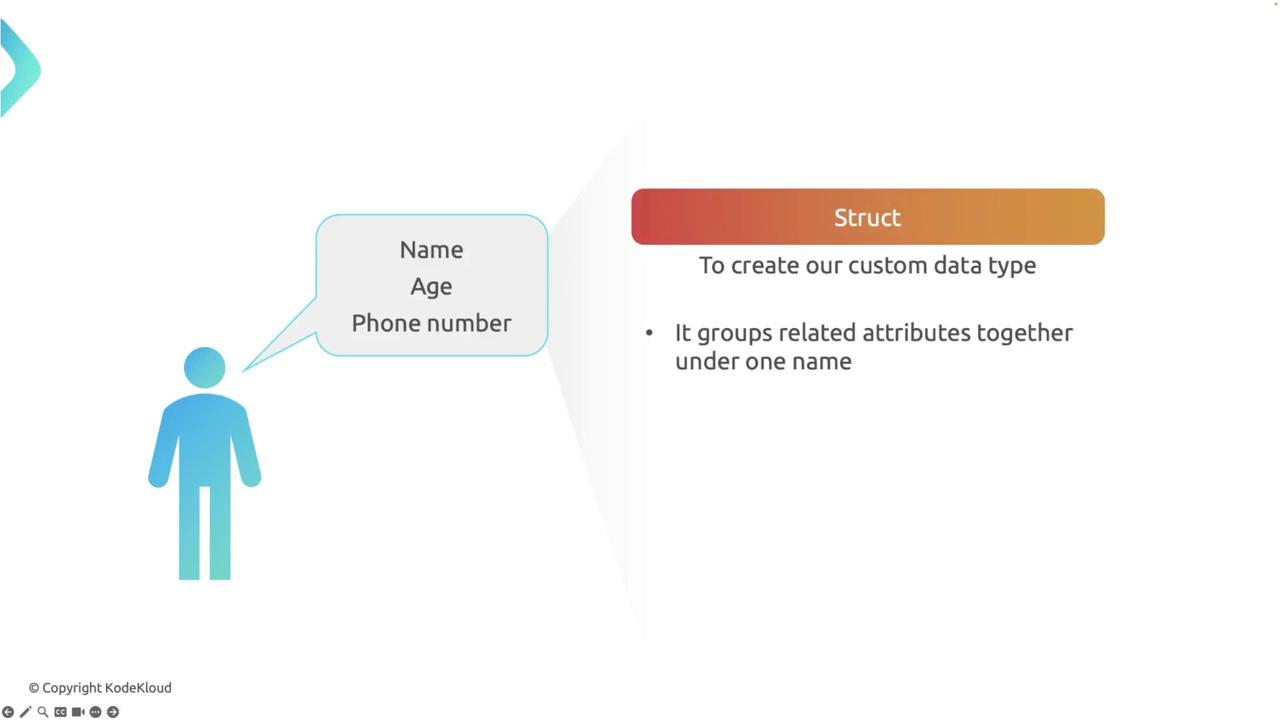

In the diagram above, the Person struct gathers multiple attributes—name, age, and phone number—into a single, coherent unit.

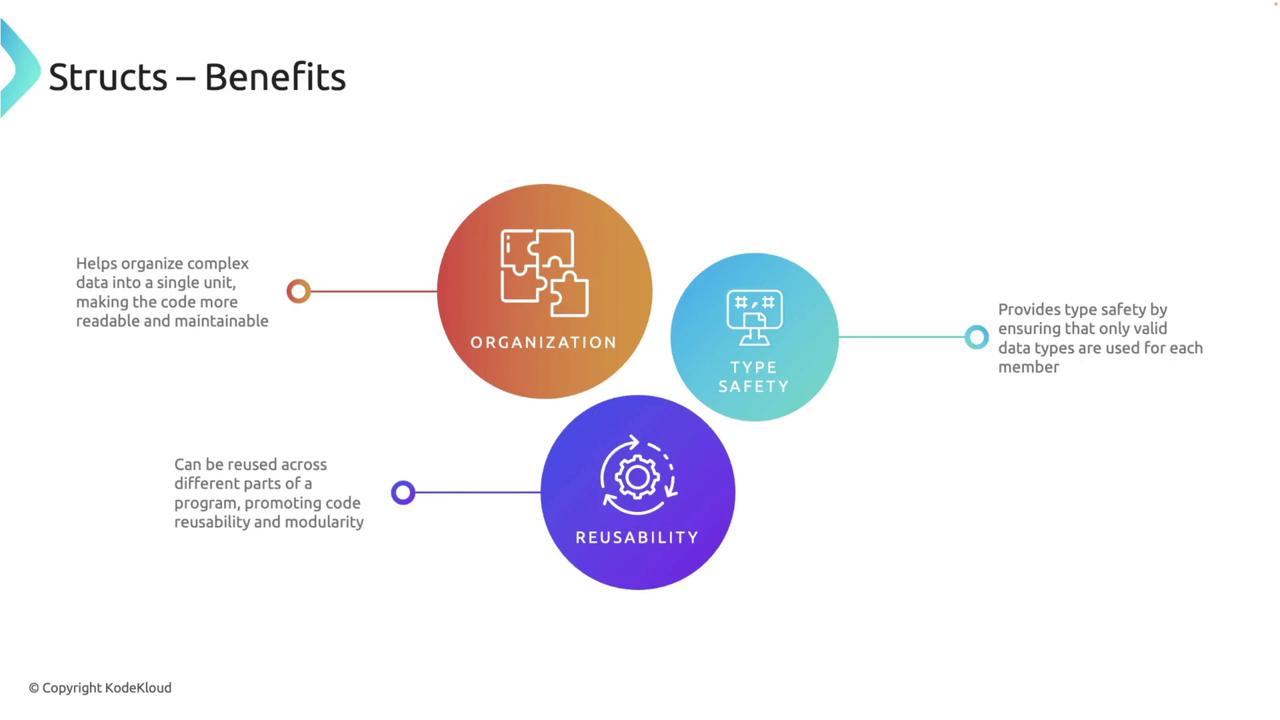

Benefits of Using Structs

Structs offer several advantages:

• Organization: They encapsulate complex data into a single unit, enhancing code readability and maintainability.
• Type Safety: They enforce specific data types for each field.
• Reusability: Structs can be reused across various parts of your program, which promotes modularity.

Defining a Struct

Defining a struct in Rust is straightforward. The basic syntax is as follows:

struct StructName {
    field1: FieldType1,
    field2: FieldType2,
    // More fields...
}

You begin with the struct keyword, followed by the struct name and a list of fields with their respective data types.

Example: Defining a Rectangle Struct

Below is an example demonstrating how to define a Rectangle struct with two fields: width and height of type u32.

struct Rectangle {
    width: u32,
    height: u32,
}

To create an instance of this struct, you assign concrete values to each field using the following syntax:

fn main() {
    let r1 = Rectangle {
        width: 30,
        height: 50,
    };

    println!("Width: {}", r1.width);
    println!("Height: {}", r1.height);
}

In this example, the instance r1 represents a rectangle with a width of 30 and a height of 50, and fields are accessed using dot notation (e.g., r1.width).

Struct Field Shorthand

Rust allows for a shorthand syntax when variable names match the field names. Consider the following simplification:

fn main() {
    let width = 30;
    let height = 50;
    let r1 = Rectangle { width, height };

    println!("Width: {}", r1.width);
    println!("Height: {}", r1.height);
}

This shorthand makes the code cleaner by reducing redundancy.

Struct Update Syntax

Rust supports a special update syntax that creates a new instance of a struct by copying values from an existing instance while updating specified fields:

fn main() {
    let r1 = Rectangle {
        width: 30,
        height: 50,
    };

    let r2 = Rectangle {
        height: 60,
        ..r1
    };

    println!("r2 Width: {}", r2.width);
    println!("r2 Height: {}", r2.height);
}

In this snippet, r2 reuses the width from r1 while updating the height to 60.

Ownership with Structs

Understanding ownership is crucial when working with structs in Rust. Each struct field might have different ownership rules.

Consider the following example:

struct Rectangle {
    width: u32,
    height: u32,
}

fn main() {
    let rect1 = Rectangle {
        width: 30,
        height: 50,
    };

    let rect2 = rect1; // Moves ownership from rect1 to rect2
    // println!("rect1 Width: {}", rect1.width); // Error: rect1 is no longer valid
    println!("rect2 Width: {}", rect2.width);
    println!("rect2 Height: {}", rect2.height);
}

After moving ownership from rect1 to rect2, attempting to access rect1 will result in a compile-time error because Rectangle does not automatically implement the Copy trait.

Borrowing and References

Borrowing in Rust lets you reference data without transferring its ownership. The following example demonstrates immutable borrowing:

struct Rectangle {
    width: u32,
    height: u32,
}

fn print_dimensions(rect: &Rectangle) {
    println!("Width: {}", rect.width);
    println!("Height: {}", rect.height);
}

fn main() {
    let rect1 = Rectangle {
        width: 30,
        height: 50,
    };

    print_dimensions(&rect1); // Borrow rect1 immutably
    println!("rect1 Width: {}", rect1.width);
}

In this case, print_dimensions borrows rect1 immutably. This allows continued access to rect1 after the function call.

Mutable Borrowing

If modifications are necessary, you must use a mutable reference. The example below illustrates mutable borrowing:

struct Rectangle {
    width: u32,
    height: u32,
}

fn modify_dimensions(rect: &mut Rectangle) {
    rect.width = 40;
    rect.height = 60;
}

fn main() {
    let mut rect1 = Rectangle {
        width: 30,
        height: 50,
    };

    modify_dimensions(&mut rect1); // Borrow rect1 mutably

    println!("Modified Width: {}", rect1.width);
    println!("Modified Height: {}", rect1.height);
}

Using mut on rect1 allows its fields to be changed safely. Rust ensures only one mutable reference exists at any given time to prevent data races.

Structs with Non-Copy Fields

When a struct contains non-copy types (e.g., String), the ownership rules become more pronounced.

struct Owner {
    name: String,
}

struct House {
    owner: Owner,
    rooms: u32,
}

fn main() {
    let owner1 = Owner {
        name: String::from("Alice"),
    };

    let house1 = House {
        owner: owner1, // Move ownership of owner1 to house1
        rooms: 3,
    };

    // println!("Owner: {}", owner1.name); // Error: owner1 is no longer valid

    println!("House owner: {}", house1.owner.name);
    println!("Number of rooms: {}", house1.rooms);
}

After moving owner1 into house1, attempting to access owner1 directly will result in a compile-time error. Access the owner's name via house1.owner.name instead.

Printing Structs

By default, custom structs cannot be printed using the {} formatter because they do not implement the Display trait.

Using the Debug Trait

The simplest solution to print a struct is to derive the Debug trait and use the {:?} formatter:

#[derive(Debug)]
struct Point {
    x: i32,
    y: i32,
}

fn main() {
    let p = Point { x: 5, y: 10 };
    println!("{:?}", p); // Outputs: Point { x: 5, y: 10 }
}

Implementing the Display Trait

For customized formatting, manually implement the Display trait:

use std::fmt;

struct Point {
    x: i32,
    y: i32,
}

impl fmt::Display for Point {
    fn fmt(&self, f: &mut fmt::Formatter) -> fmt::Result {
        write!(f, "({}, {})", self.x, self.y)
    }
}

fn main() {
    let p = Point { x: 5, y: 10 };
    println!("{}", p); // Outputs: (5, 10)
}

Implementing Display gives you full control over how the struct is printed.

We will continue our discussion in upcoming lessons by exploring traits and their implementations in greater detail. Happy coding!
