Concurrent Runs amp Queued State

In this article, we explain how changes in your Terraform configuration trigger concurrent runs in Spacelift and how to handle queued states when multiple engineers modify the code simultaneously.

Updating the Terraform Configuration

We begin by updating the main Terraform configuration file (main.tf) to deploy a simple AWS EC2 instance. The configuration below specifies the required Terraform version, AWS provider settings, and resource details for the EC2 instance:

required_version = ">= 1.2.0"

provider "aws" {
  region = "us-east-1"
}

resource "aws_instance" "app_server" {
  ami           = "ami-02396cdd13e9a1257"
  instance_type = "t2.micro"
}

Next, verify that your AWS credentials are correctly stored on your local system. This ensures that authentication is properly configured:

space lift-demo on main via default
> cat ~/.aws/credentials
[default]
aws_access_key_id = AKIAIAAWSJ5UTC5X42CU
aws_secret_access_key = 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

space lift-demo on main via default
> AKIAIAAWSJ5UTC5X42CU

Creating a VPC

Now, let’s create a simple Virtual Private Cloud (VPC) with a CIDR block of 10.0.0.0/16, named "tf-example". After you save, add, and commit these changes to your Git repository, a new run is triggered in Spacelift.

Below is the Terraform configuration for creating the VPC:

provider "aws" {
  region = "us-east-1"
}

resource "aws_vpc" "my_vpc" {
  cidr_block = "10.0.0.0/16"

  tags = {
    Name = "tf-example"
  }
}

After committing these changes, the Git output might look like this:

1 file changed, 8 insertions(+)
spacelift-demo on main [!] via ⬢ default
> git push
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 415 bytes | 415.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0), pack-reused 0
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
To https://github.com/Sanjeev-Thiyagarajan/spacelift-demo.git
   2e4d018..1587182  main -> main
spacelift-demo on main via ⬢ default took 2s

Back in Spacelift, the run corresponding to the "add VPC" commit starts by initializing, generating a plan, and then moving into an unconfirmed state. The plan output indicates that a new VPC will be created:

# aws_vpc.my_vpc will be created
resource "aws_vpc" "my_vpc" {
  cidr_block                = "10.0.0.0/16"
  default_network_acl_id    = (known after apply)
  default_route_table_id    = (known after apply)
  enable_dns_support        = (known after apply)
  enable_classiclink        = (known after apply)
  enable_classiclink_dns_support = (known after apply)
  enable_dhpc_options       = true
  id                       = (known after apply)
}

Handling Concurrent Changes

Assume another engineer updates the VPC configuration by changing the CIDR block to 10.2.0.0/16. Their updated configuration is as follows:

provider "aws" {
  region = "us-east-1"
}

resource "aws_vpc" "my_vpc" {
  cidr_block = "10.2.0.0/16"

  tags = {
    Name = "tf-example"
  }
}

After committing these changes, you will see similar Git output:

1 file changed, 8 insertions(+)
$ git push
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 415 bytes | 415.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0), pack-reused 0
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
To https://github.com/Sanjeev-Thiyagarajan/spacelift-demo.git
   2e4d018..1587182  main -> main

Since the previous run is still awaiting confirmation, this new commit causes the new run to be queued. Spacelift blocks the new plan because a prior commit is pending confirmation. The following log output illustrates the plan execution for the queued run:

Plan: 1 to add, 0 to change, 0 to destroy.
  [16G2A21ZKRPPCFHCXHCKDX] changes are GO
  Uploading the list of managed resources...
  Please be aware that Run changes calculation includes Terraform output changes.
  Resource list upload is GO
  Generating JSON representation of the plan...
  JSON representation is GO
  Loading custom plan policy inputs...
  No custom plan policy inputs found
  Encrypting workspace...
  Uploading workspace...
  [16G2A21ZKRPPCFHCXHCKDX] workspace upload is GO

Finalizing the Run

Once the queued run is discarded, the remaining unconfirmed run continues through the following initialization steps:

• Downloading the source code.
• Setting up mounted files.
• Configuring file permissions.
• Pulling the required Docker image.
• Downloading Terraform.
• Creating and starting the Docker container.
• Verifying prerequisites.

Example initialization output:

[019A21Z1ZKRPCPWHCHDX]
Downloading source code...
Source code is GO
Setting up mounted files...
Mounted files are GO
Configuring file permissions...
Permissions are GO
Evaluating run initialization policy...
No initialization policies attached
Pulling Docker image public.ecr.aws/spacelift/runner-terraform:latest...
Docker image is GO
Downloading Terraform 1.4.6...
Terraform 1.4.6 download is GO (/bin/terraform)
Creating Docker container...
Starting Docker container...
Docker container is GO
Verifying container image prerequisites...
Successfully verified container image prerequisites

After reviewing the plan, you can confirm the run. The confirmed plan incorporates a minor adjustment in the resource tags, as seen below:

tags = {
  "Name" = "tf-example"
}
tags_all = {
  "Name" = "tf-example"
}

Plan: 1 to add, 0 to change, 0 to destroy.
[016A21Z1KCPW93HDBYHCKD] Changes are GO
[016A21Z1KCPW93HDBYHCKD] Uploading the list of managed resources...
Please be aware that run changes calculation includes Terraform output changes.
[016A21Z1KCPW93HDBYHCKD] Generating JSON representation of the plan...
json representation is GO
[016A21Z1KCPW93HDBYHCKD] Loading custom plan policy inputs...
[016A21Z1KCPW93HDBYHCKD] No custom plan policy inputs found

Confirming the run initiates Terraform to apply the changes. During the apply phase, the new VPC is created successfully:

Configuring Terraform CLI...
Terraform CLI config is GO
Running 0 custom hooks.
Applying changes...
aws_vpc.my_vpc: Creating...
aws_vpc.my_vpc: Creation complete after 2s [id=vpc-04ba775bef2142e4]
Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Outputs:
instance_id = "i-0aad255fcf794a89b"
instance_public_ip = "34.229.176.97"

The run then transitions to a finished state, and you can verify the successful creation of the VPC in your AWS environment.

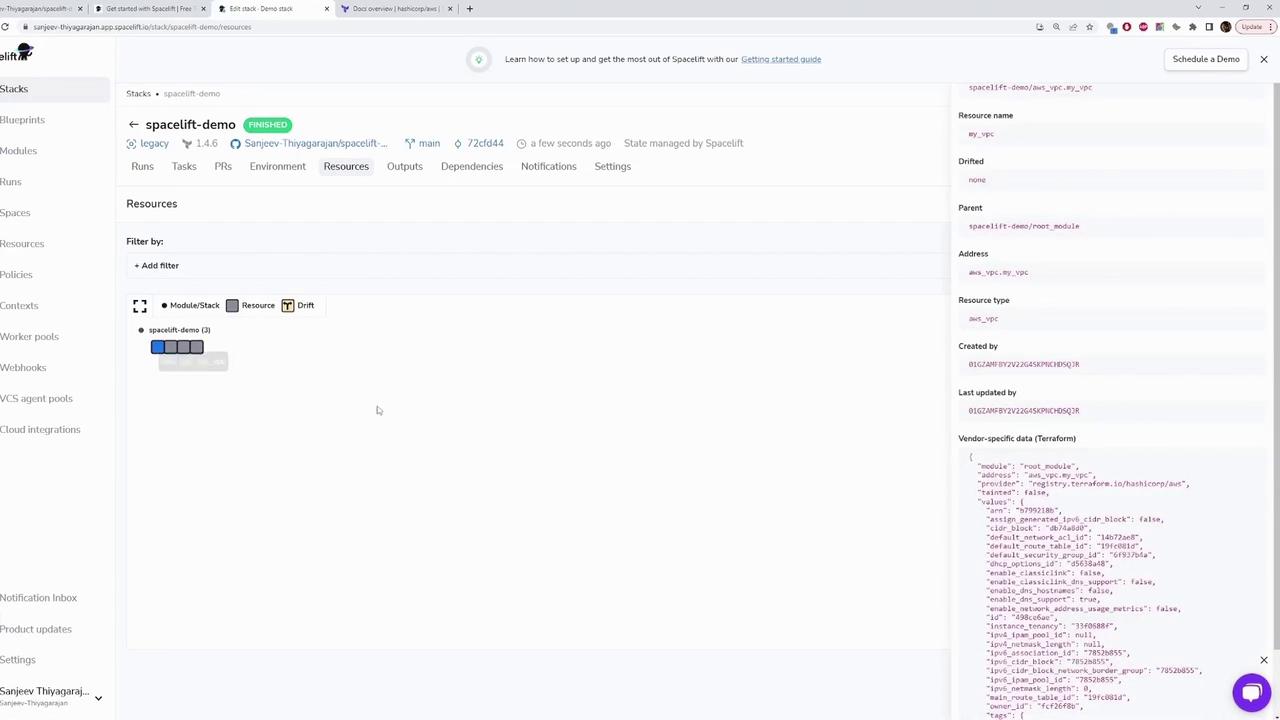

The image below shows an example of the Spacelift dashboard displaying the "spacelift-demo" stack details, including resources and configuration information:

Summary

This article demonstrated how Spacelift handles concurrent runs and queued states when multiple engineers update Infrastructure as Code. By understanding and managing these states effectively, you can avoid conflicts and ensure a smooth deployment process.

For more detailed information on managing Terraform configurations and Spacelift operations, check out the Terraform Documentation and Spacelift Guides.
