Demo of Lab 3

Welcome to Lab Three! In this session, you'll learn how to structure Terragrunt configurations for a multi-module AWS deployment. Follow these steps to provision a VPC, EC2 instances, and manage remote state with Terraform and Terragrunt.

If you ever need to retrieve your AWS credentials during the lesson, run:

show creds

You can also open the VS Code IDE in a new browser tab to copy and paste commands.

Terraform Modules Overview

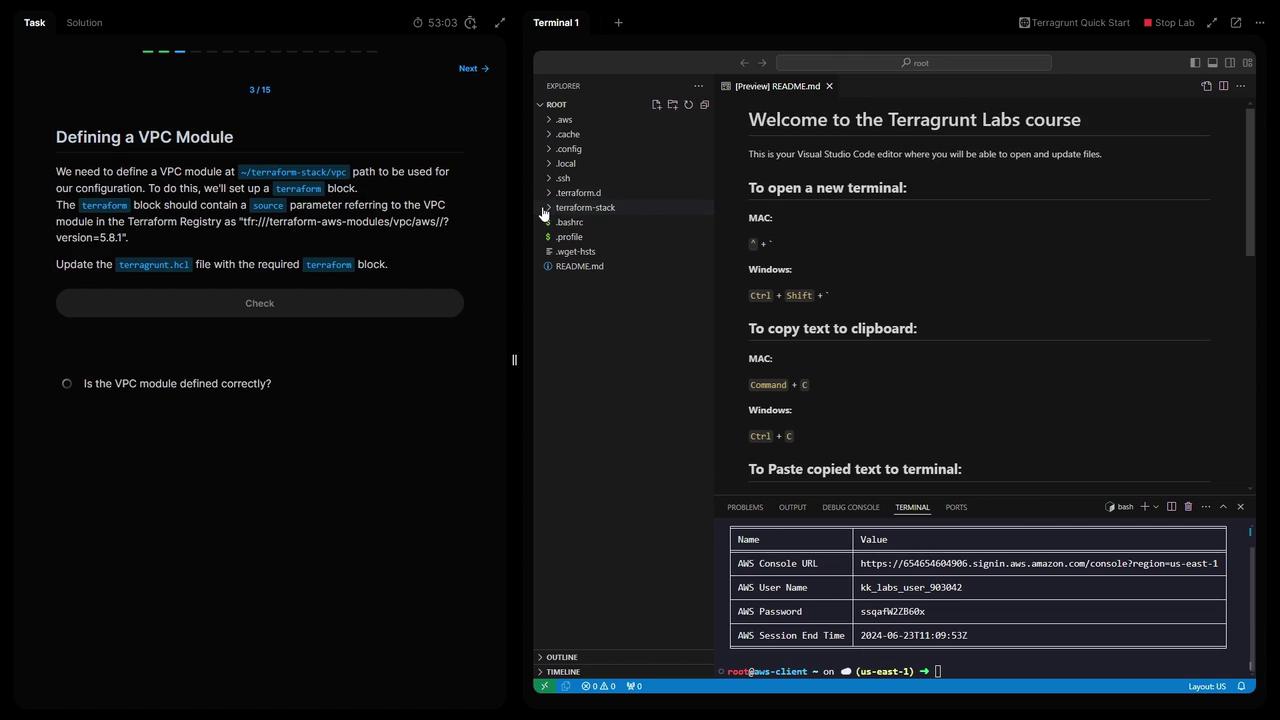

1. Define the VPC Module

Create a Terragrunt configuration under Terraform stack/vpc/terragrunt.hcl:

terraform {
  source = "terraform-aws-modules/vpc/aws//?version=5.8.1"
}

inputs = {
  name               = "vpc"
  cidr               = "10.0.0.0/16"
  azs                = ["us-east-1a", "us-east-1b", "us-east-1c"]
  public_subnets     = ["10.0.101.0/24", "10.0.102.0/24", "10.0.103.0/24"]
  private_subnets    = ["10.0.201.0/24", "10.0.202.0/24"]
  enable_nat_gateway = true
  single_nat_gateway = true
}

Save the file and validate the configuration:

terragrunt validate

2. Configure Remote State in the Root

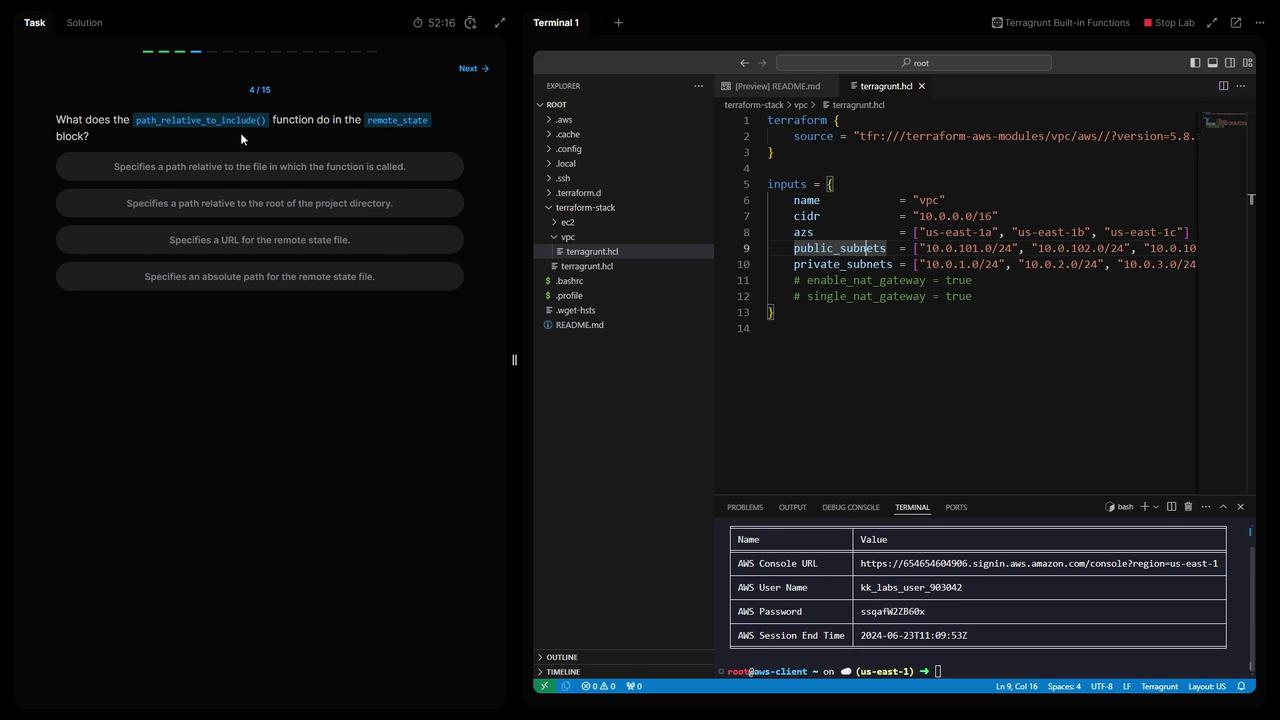

What is path_relative_to_include()?

In your root Terraform stack/terragrunt.hcl, add:

remote_state {
  backend = "s3"
  config = {
    encrypt = true
    bucket  = "kk-tf-state-314"
    key     = "${path_relative_to_include()}/terraform.tfstate"
    region  = "us-east-1"
  }
  generate = {
    path      = "backend.tf"
    if_exists = "overwrite_terragrunt"
  }
}

1. List your S3 buckets to find the Terraform state bucket:

   aws s3 ls | grep "kk-tf-state-"


2. Reinitialize Terragrunt and confirm updating the backend:

   terragrunt init
   # Type "yes" when prompted


3. Define Common Locals

To DRY out your configuration, define shared values at the root:

locals {
  project       = "kodeloud-labs"
  ami           = "ami-0f2a1bb3c24f7285"
  instance_type = "t2.micro"
}

Validate once more:

terragrunt validate

4. Generate Provider and Terraform Version Files

Leverage Terragrunt’s generate blocks to auto-create providers.tf and a Terraform version override:

generate "provider" {
  path      = "providers.tf"
  if_exists = "overwrite_terragrunt"
  contents  = <<EOF
provider "aws" {
  region = "us-east-1"
}
EOF
}

generate "provider_version" {
  path      = "provider_version_override.tf"
  if_exists = "overwrite_terragrunt"
  contents  = <<EOF
terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}
EOF
}

Re-run initialization:

terragrunt init

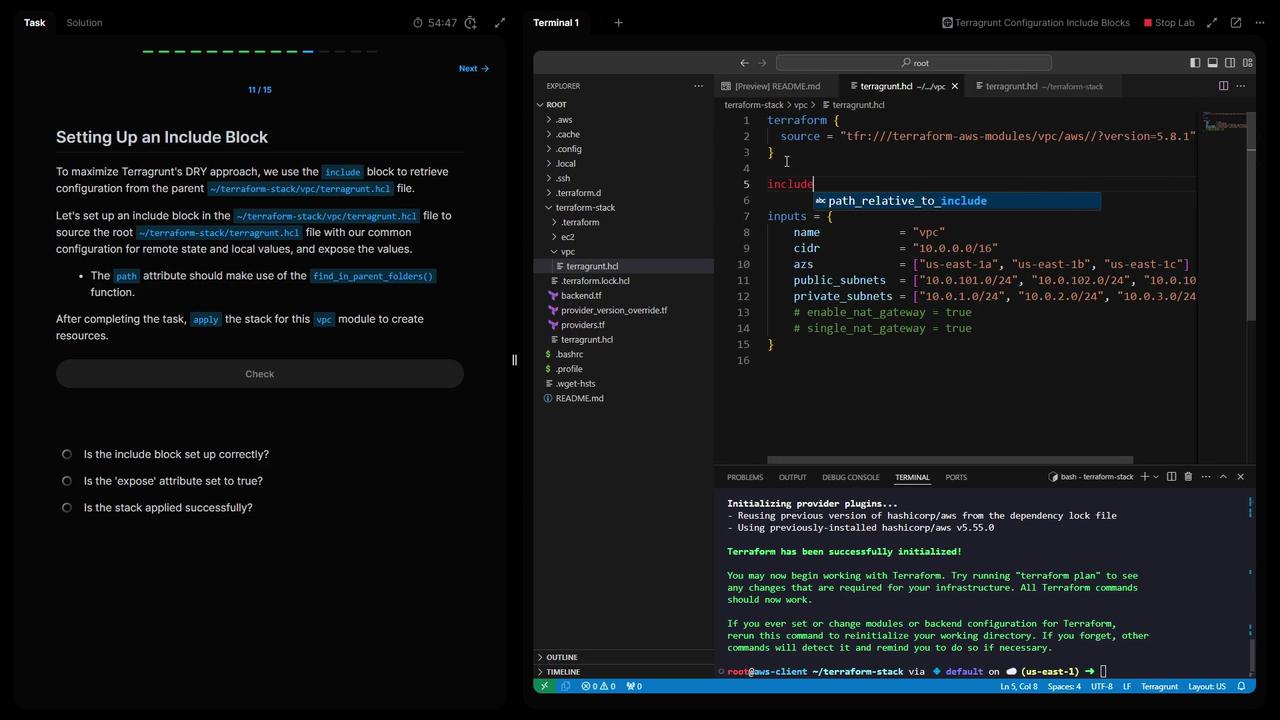

5. Include Root Configuration in the VPC Module

In Terraform stack/vpc/terragrunt.hcl, inherit root settings:

terraform {
  source = "terraform-aws-modules/vpc/aws//?version=5.8.1"
}

include "root" {
  path   = find_in_parent_folders()
  expose = true
}

inputs = {
  name               = "vpc"
  cidr               = "10.0.0.0/16"
  azs                = ["us-east-1a", "us-east-1b", "us-east-1c"]
  public_subnets     = ["10.0.101.0/24", "10.0.102.0/24", "10.0.103.0/24"]
  private_subnets    = ["10.0.201.0/24", "10.0.202.0/24"]
  enable_nat_gateway = true
  single_nat_gateway = true
}

Apply the VPC module:

cd "Terraform stack/vpc"
terragrunt init
terragrunt apply
# Type "yes" to confirm

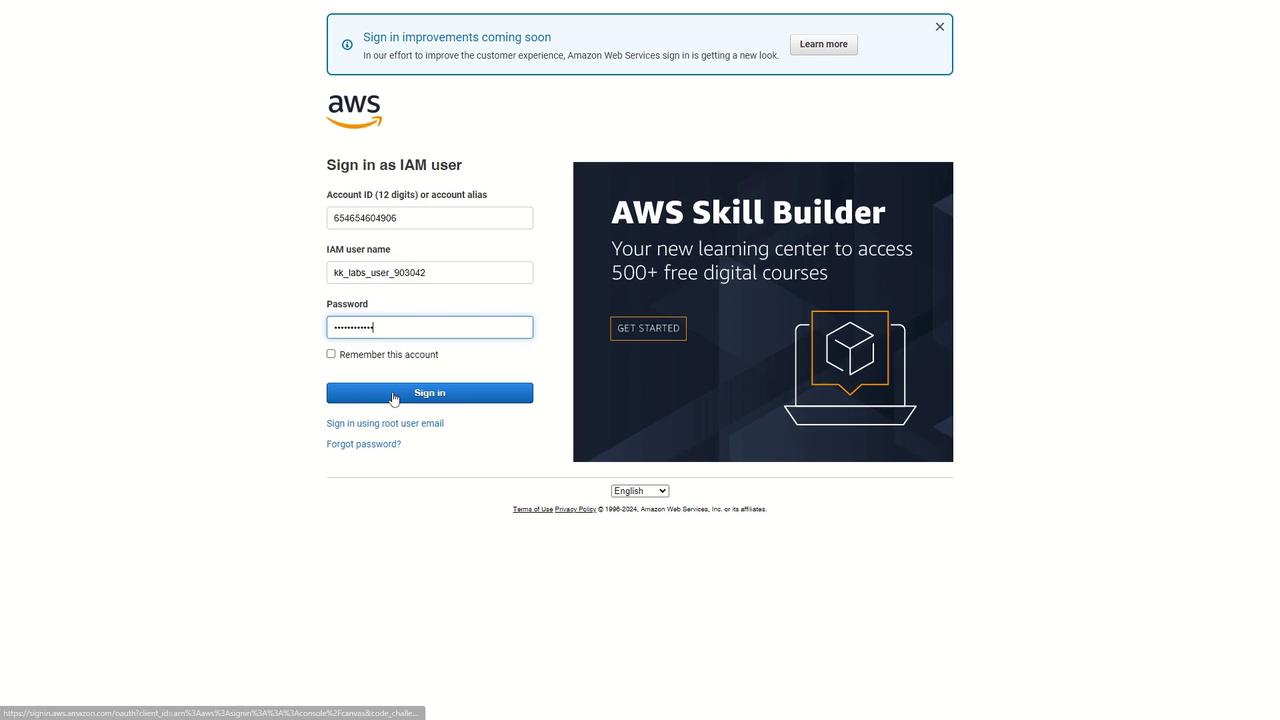

Verify the new VPC in the AWS Console.

6. Deploy EC2 Web Module with VPC Dependency

Create Terraform stack/ec2-web/terragrunt.hcl and reference the VPC outputs:

terraform {
  source = "terraform-aws-modules/ec2-instance/aws//?version=2.0.0"
}

include "root" {
  path   = find_in_parent_folders()
  expose = true
}

dependency "vpc" {
  config_path = "../../vpc"
}

inputs = {
  name          = include.root.locals.project
  ami           = include.root.locals.ami
  instance_type = include.root.locals.instance_type
  subnet_id     = dependency.vpc.outputs.public_subnets[0]
}

Initialize and apply:

cd "Terraform stack/ec2-web"
terragrunt init
terragrunt apply
# Type "yes" to confirm

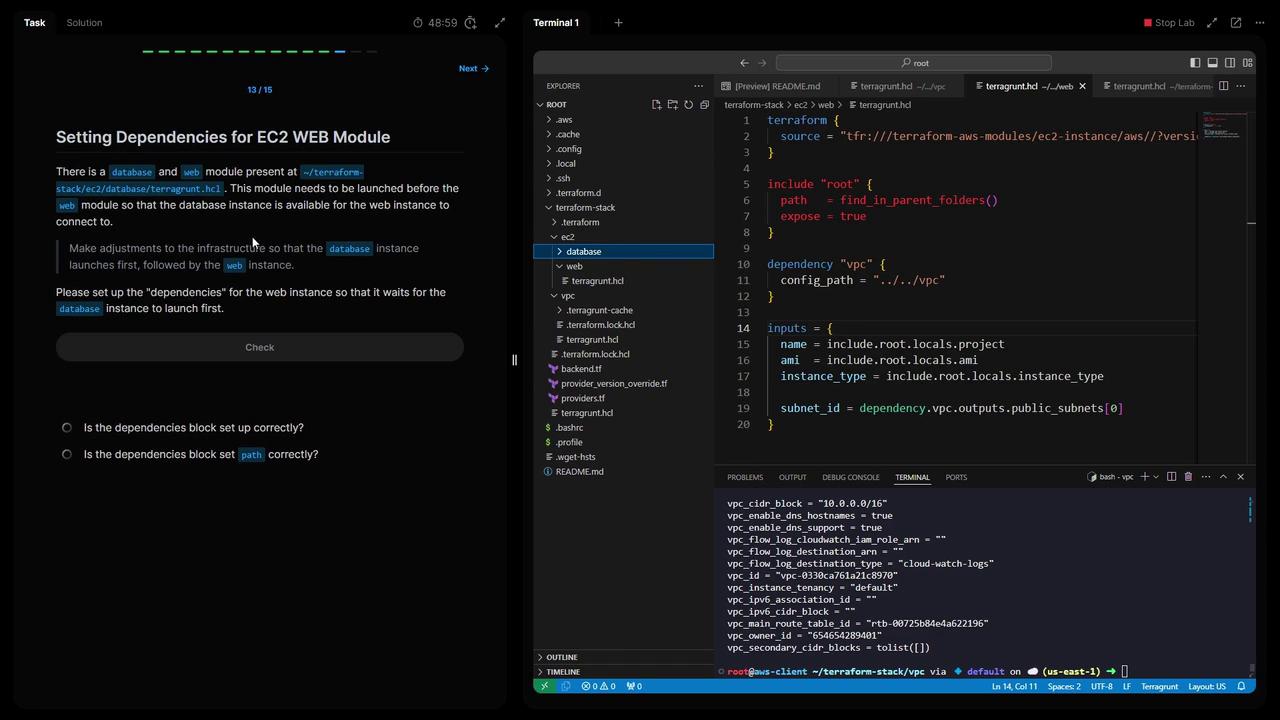

7. Add Database Dependency to the Web Module

If you have a database module under Terraform stack/ec2-database, ensure it deploys before the web server:

dependencies {
  paths = ["../ec2-database"]
}

Re-run in ec2-web:

terragrunt init
terragrunt apply

Terragrunt will sequence: VPC → Database → Web.

8. Deploy All Modules Simultaneously

From the root of Terraform stack, run:

terragrunt run-all apply

This command orchestrates every module in dependency order.

9. Verify Remote State Files in S3

Check that each module has its own state file:

BUCKET=$(aws s3 ls | grep kk-tf-state | awk '{print $3}' | head -n1)
aws s3 ls "s3://$BUCKET" --recursive

Expected output:

2024-06-23 09:14:06   180 0/terraform.tfstate
2024-06-23 09:14:06  9575 0/database/terraform.tfstate
2024-06-23 09:14:09 39803 0/web/terraform.tfstate

10. Why Generate at the Root

By generating the backend, provider, and Terraform-version files at the project root, you:

• Centralize configuration for consistency
• Avoid duplication in child modules
• Simplify maintenance as your infrastructure grows

Thank you for completing Lab Three! You now have a reusable Terragrunt setup for AWS VPC, EC2, and remote state management. See you in the next lab!
