Storage redundancy

This guide explores the various storage replication strategies in Azure, including Locally Redundant Storage (LRS), Zone Redundant Storage (ZRS), Geo-Redundant Storage (GRS), Read Access Geo-Redundant Storage (RA-GRS), and Geo-Redundant Storage with Zones (GCRS and RA-GCRS). Each replication method balances data durability, availability, and cost differently. Choosing the right strategy depends on your application’s needs.

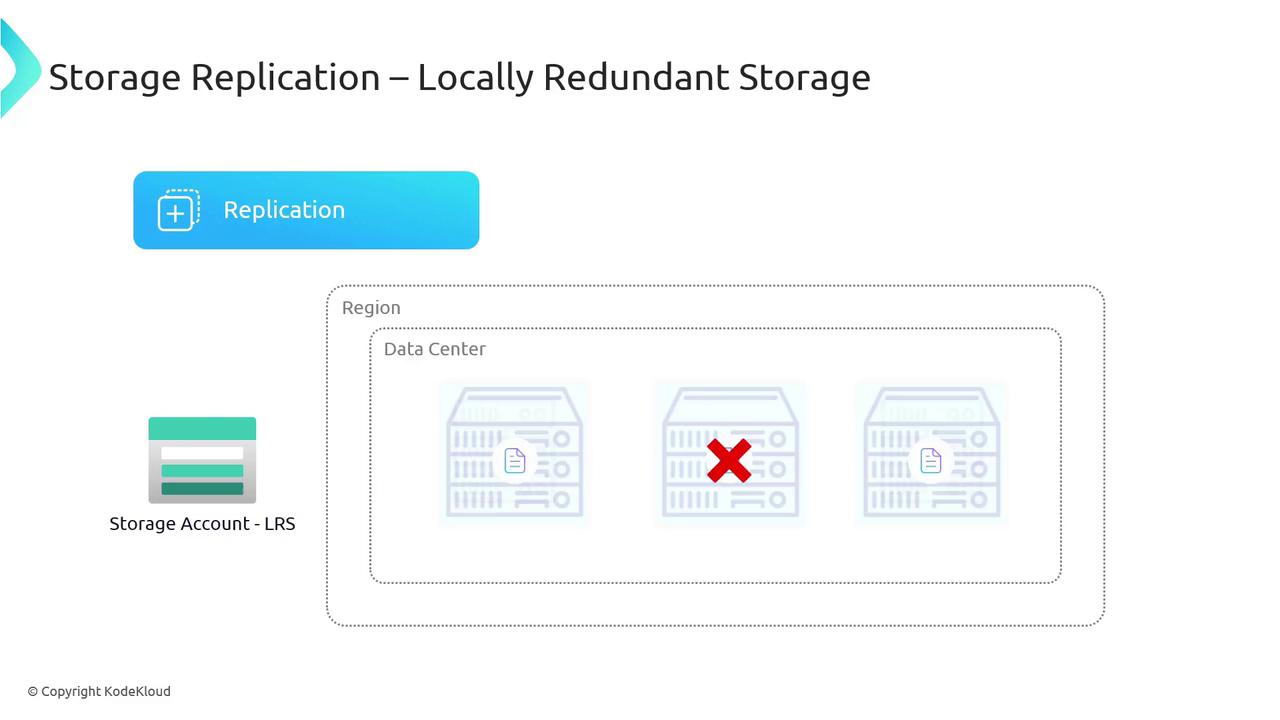

Locally Redundant Storage (LRS)

LRS creates three copies of your data within a single data center, distributing them across different fault domains. Fault domains are isolated hardware units endowed with independent cooling, power, and networking systems. In case of a hardware failure, the replicated copies ensure data availability. However, LRS only covers a single data center, and if that center goes down, access to your data will be interrupted. Despite this, LRS remains the most cost-effective option, offering 99.99% durability.

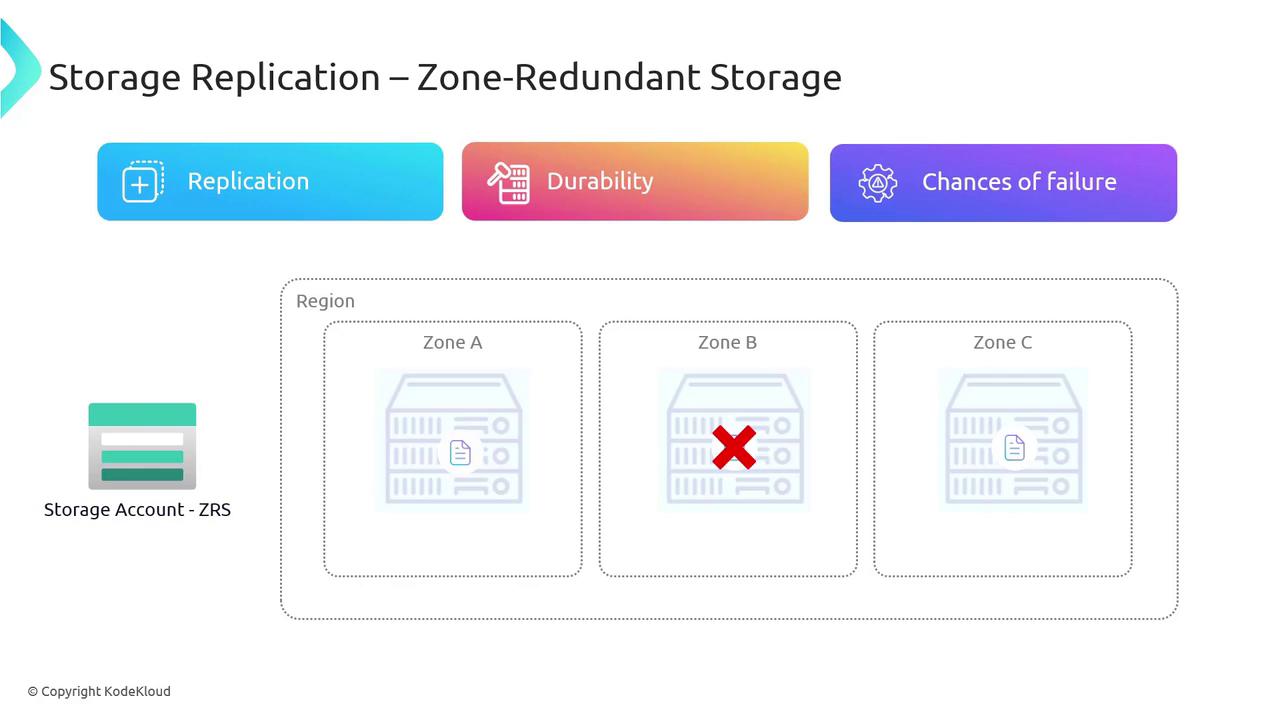

Zone Redundant Storage (ZRS)

ZRS enhances resilience by replicating data across three different availability zones within a single region. Each zone is typically situated in separate clusters of data centers located at least 300 miles apart, ensuring independent power, cooling, and networking. This redundancy means if one zone fails, the other zones maintain data availability. ZRS provides 99.12% durability but does not safeguard against a full regional outage.

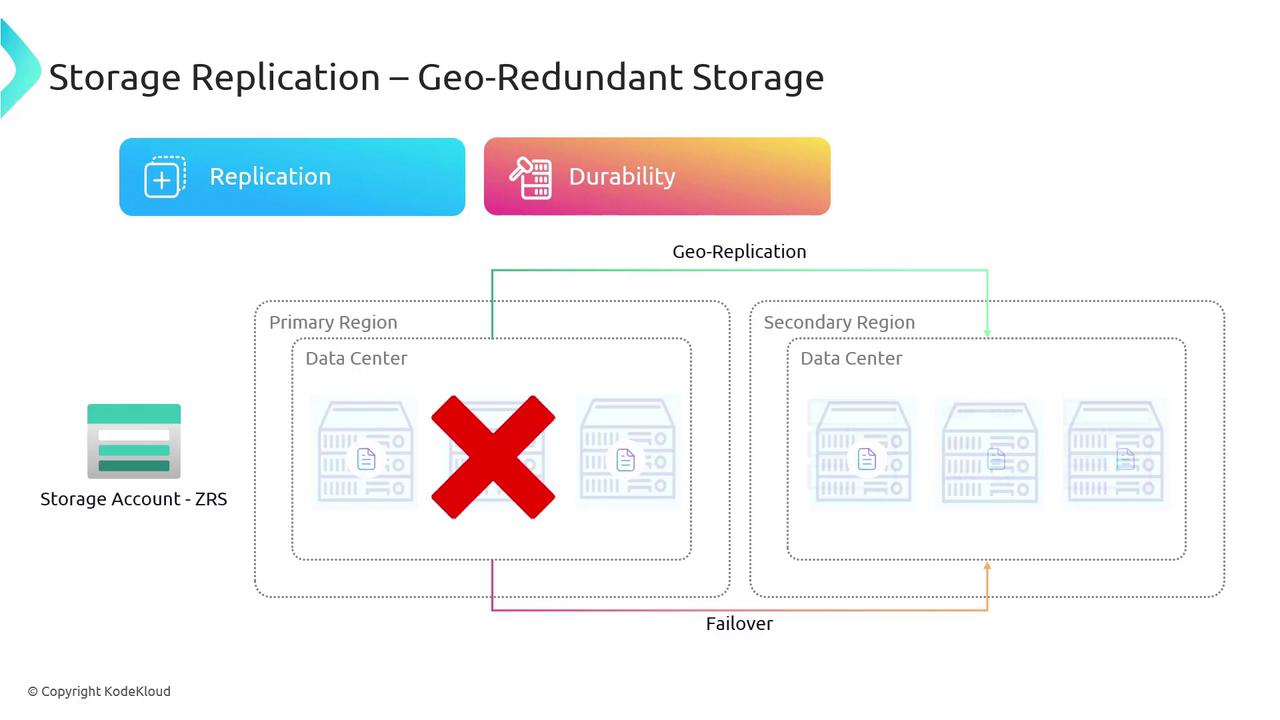

Geo-Redundant Storage (GRS)

GRS offers enhanced redundancy by combining data replication in two regions. Initially, your data is replicated in a primary region using LRS (three copies within one data center). The system then asynchronously replicates the data to a secondary region, also utilizing LRS. In the event that the primary region experiences an outage, a failover can be initiated—either manually or by Microsoft—to the secondary region. Note that the secondary region provides read access only until a complete failover occurs. GRS guarantees 99.69% durability.

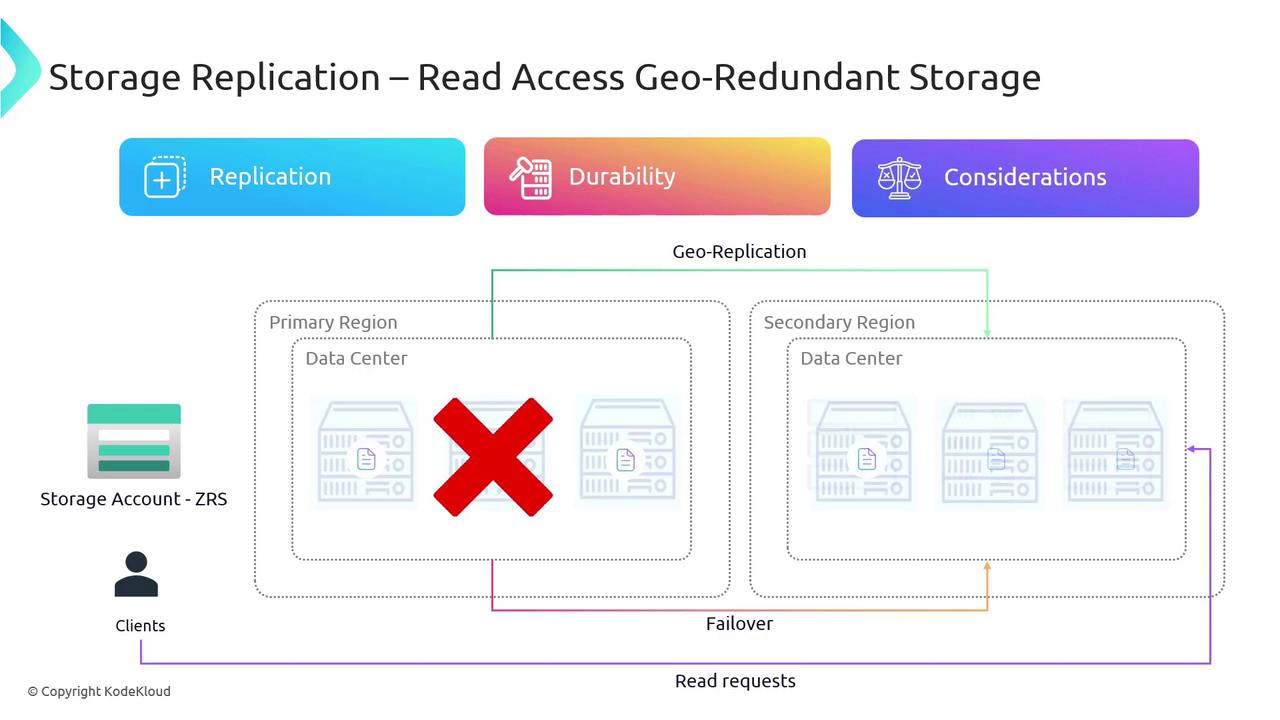

Read Access Geo-Redundant Storage (RA-GRS)

RA-GRS functions similarly to GRS by maintaining three data copies in both the primary and secondary regions. However, it extends functionality by enabling continuous read access from the secondary region. This setup allows your applications to query data from the secondary region without the need for a manual failover, providing a balance between accessibility and redundancy. RA-GRS achieves 99.16% durability.

Geo-Redundant Storage with Zones (GCRS and RA-GCRS)

By integrating the benefits of availability zones into geo-redundancy, Azure’s GCRS takes data protection further:

• In GCRS, data is first spread across three availability zones within the primary region. It is then asynchronously replicated (using LRS) to a secondary region, effectively combining zone-level and region-level redundancy for higher durability ("ZRS plus LRS").

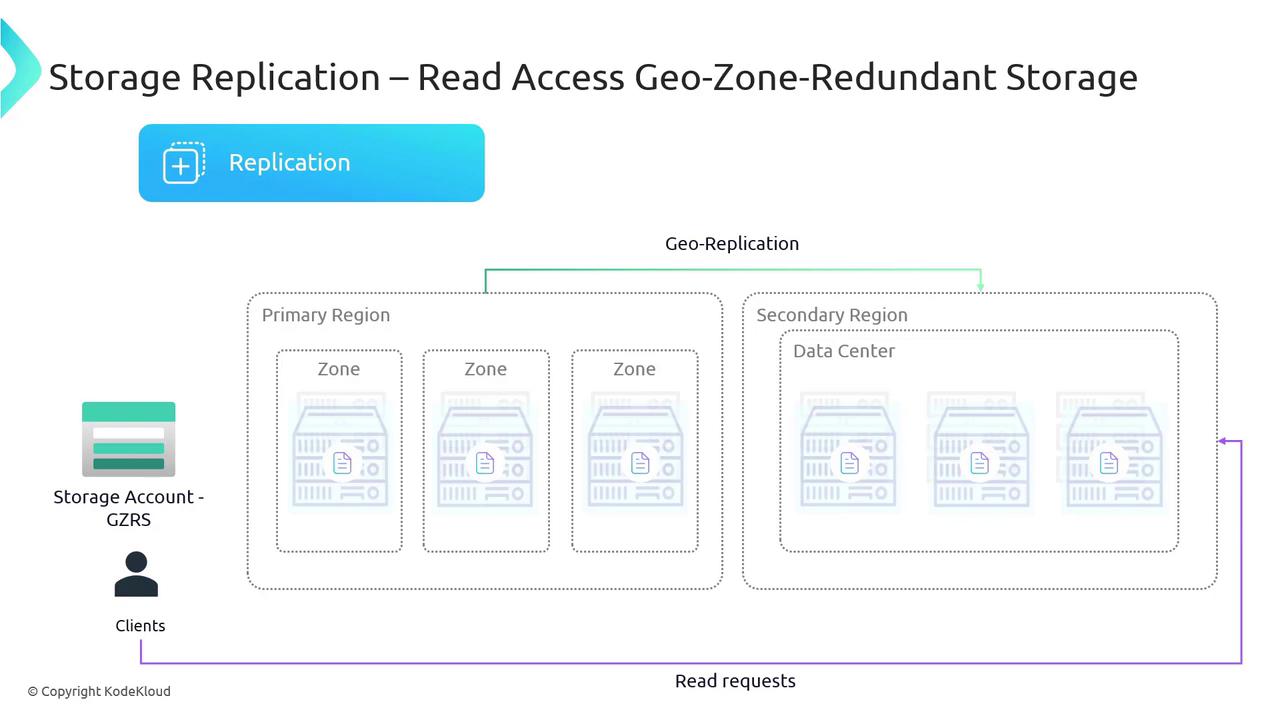

• RA-GCRS operates in a similar fashion, but it allows for continuous read access to the secondary region without waiting for a failover.

Creating a Storage Account in Azure

Follow these steps to create and configure a storage account through the Azure portal:

1. Sign in to the Azure portal: Navigate to "Storage accounts."

2. Initiate Creation: Click "Create" and select the desired subscription and resource group. If needed, create a new resource group.

3. Name Your Account: Provide a unique name—this name will be part of your account’s public endpoint.

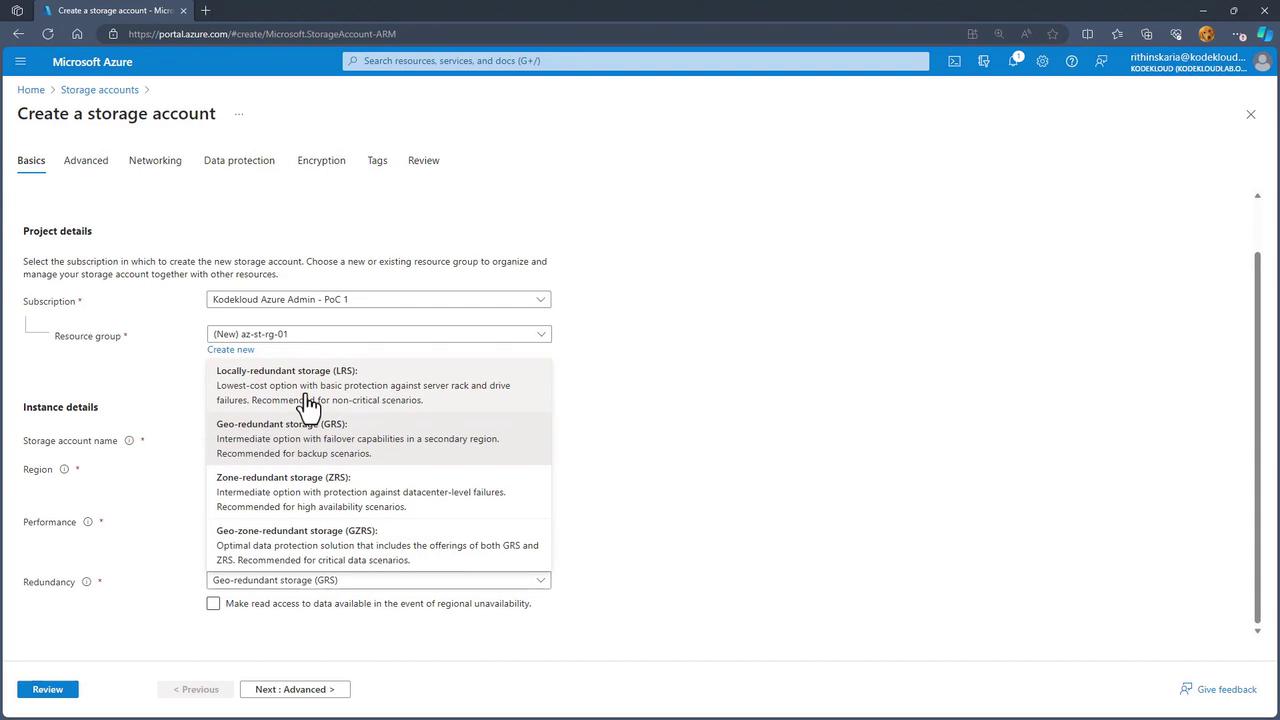

4. Configure Settings: Choose the region for deployment along with the performance tier (HDD or SSD) and the redundancy option (LRS, GRS, ZRS, etc.). For demonstration purposes, LRS is selected due to its cost efficiency.

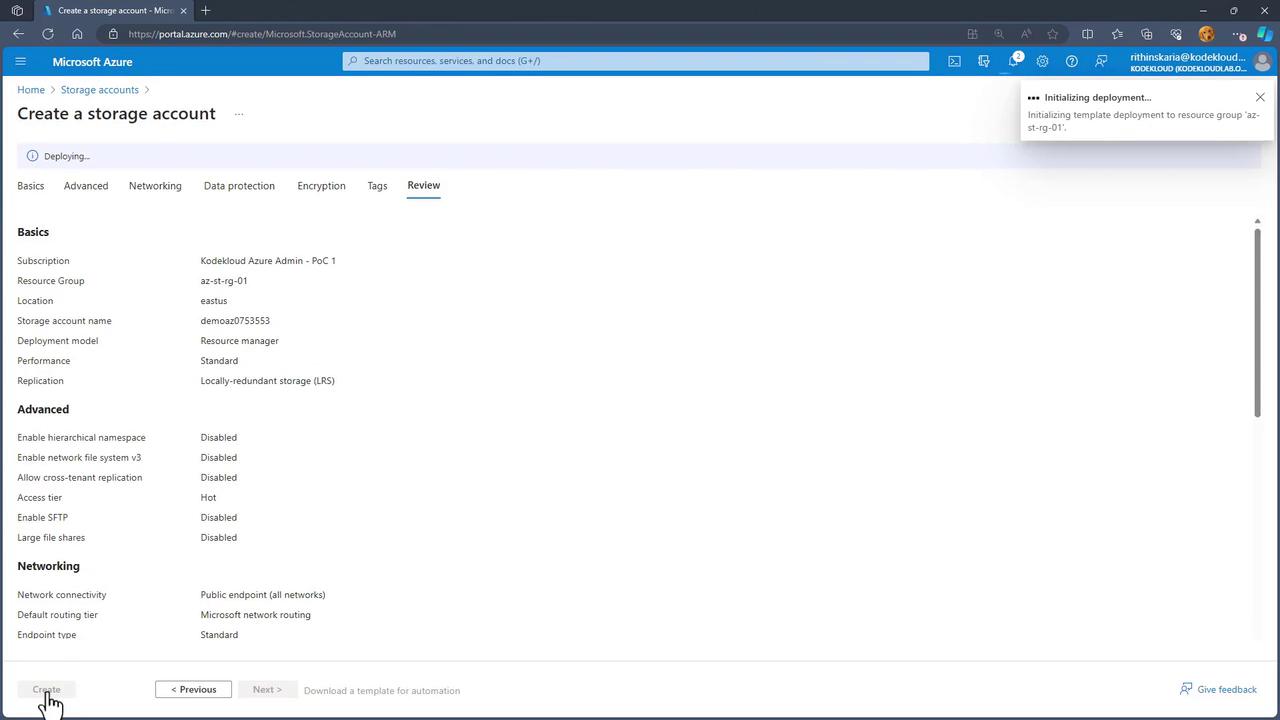

5. Review and Create: Double-check your configuration settings and click "Review + Create."

6. Manage Your Storage Account: Once the account is created, you can explore services like blobs, file shares, queues, and tables.

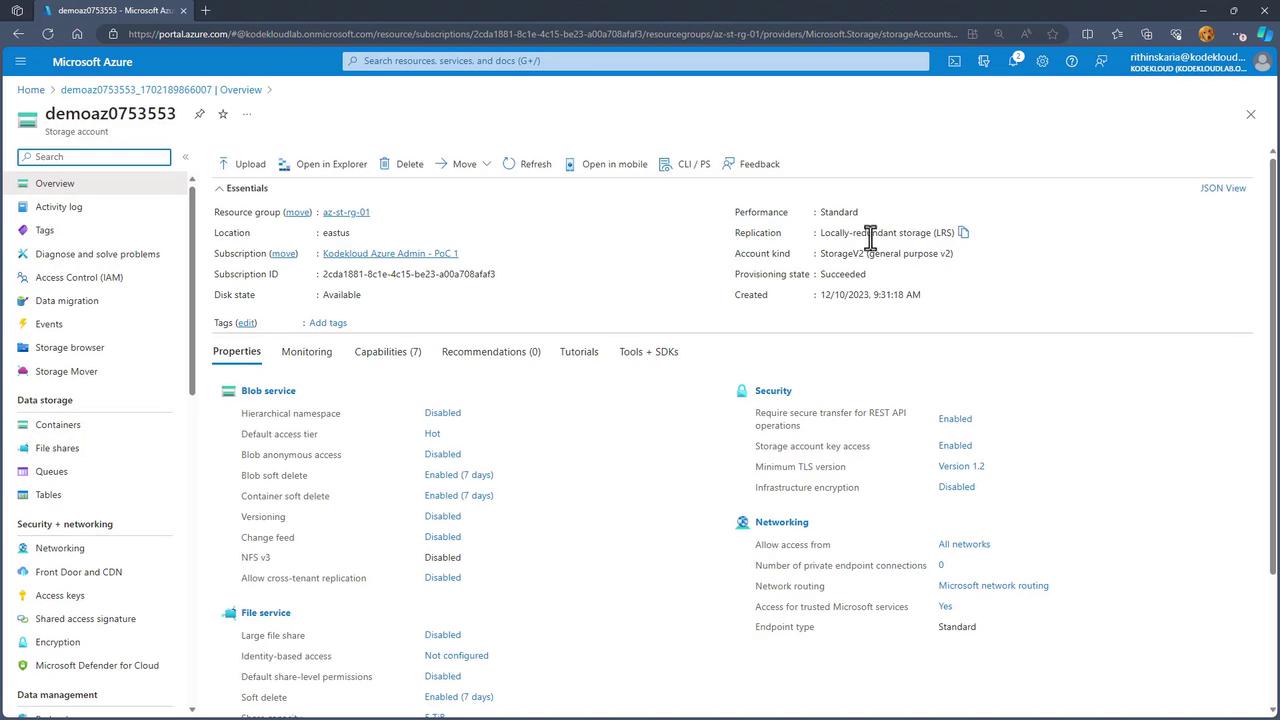

7. View Account Properties: After deployment, the storage account overview will indicate that it is a general-purpose v2 account using LRS. Should your requirements change, you can later modify the redundancy option (for example, switching from LRS to ZRS) via the account's redundancy settings.



Summary

This article outlines the different storage replication strategies available in Azure:

Choose the strategy that best aligns with your application’s availability and cost requirements. For more detailed insights, visit the Azure Storage Documentation.

By following this guide, you can confidently select and configure the optimal storage redundancy option for your Azure solutions.
